Try to get a definitive answer from them as to what the problem was. I for one, would sure like to know.

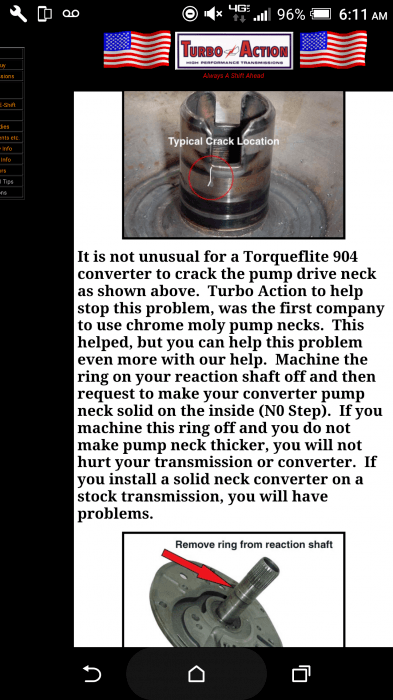

While it's out, have the guys look over the oil-pump drive-lugs on the TC. On 904s these have a habit of cracking,in the corners. I'd hate to see you have to pull it down a year from now, or a week from now, cuz the oil is pouring out the front.
Also highly recommended is a new sprag kit.

Last edited:

Intrepolicious

Well-Known Member
Joined
Feb 16, 2017
Messages
206
Reaction score
17
Location
Florida
I've got a new (well, reman) TC along with everything else. I'm assuming it has new drive lugs? Good news is the rebuild trans has a 2 year/24 mo warranty.


Intrepolicious

Well-Known Member
Joined
Feb 16, 2017
Messages
206
Reaction score
17
Location
Florida
I didn't have much time today while I was there (running late for work) but I'll definitely be asking what the major cause of failure was.


MiradaMegacab

Well-Known Member
Joined
Feb 27, 2011
Messages
1,847
Reaction score
753
Location
Long Island NY


BudW

Moderator
Staff member
Joined
Mar 4, 2012
Messages
5,121
Reaction score
1,485
Location
Oklahoma City
It is rare for a transmission shop, not to replace the torque converter with a reman/rebuilt unit.
The main reason is many torque converters are hard to clean out and they want to make sure all source of contamination (ie: metal shavings) are not present. After all, they are standing behind it for 24/24.

Now many home rebuilds – that is a different issue.

If you have money, I would recommend using parts from the A500 (if you have an A904/998/999 transmission) or an A518 (if you have a 727 transmission) and use the flat design converter hub/pump gears than the slot design (if planning on using lock-up converter and planning on a home rebuild, that is).
BudW


Intrepolicious

Well-Known Member
Joined
Feb 16, 2017
Messages
206
Reaction score
17
Location
Florida
Got the car back yesterday. Yesterday morning actually, had to take it back for a slight band adjustment because the 2nd to 3rd shift points were off a little. Now it's perfect.

I now have a rebuilt TorqueFlite 904 with a 2 year/24k mile warranty!

New/reman torque converter, pump, reverse/low band, kickdown flex (high?)band, clutch packs, valve body seals, new filter and fluid.

What happened: The main thing that led to this transmission's demise, was the fact that this car had a towing package on it. It still has the Class III/IV hitch on it. (Which I SHOULD have taken as a sign before I bought it.. but the car was so nice, I pretended that I didn't see the hitch lol) The original owner used to tow a huge boat or travel home with it.

So after the car sat for some time, barely driven, then I get it and start driving it daily for the first week, it busted the reverse band (that was the loud bang I heard putting it in reverse the morning of the day it died) plus, the pump seals were shot, and the over run clutch packs from all the towing etc etc.

Another thing was the teeth on the flywheel were badly worn from all the years of starting, and there was a big crack on the edge of the flywheel itself.
(I meant to get a picture of that but forgot - also meant to take a pic of the new torque converter because it was a pretty blue!)

And, the car needed a new starter... but get this, not because the original, 1980 starter motor itself went out, but the housing and mounting assembly (the two long bolts) of the starter needed replacing. I think that says a lot about the quality of the original 1980 starter motor.

Anyway, all good now! Shifting nice and smoooth...
