Okay what Clutch Linkage Service Kit works on our cars?

bremereric

FMJ Body Moderator
Joined
Feb 25, 2011
Messages
3,555
Reaction score
245
Location
Jackson Missouri

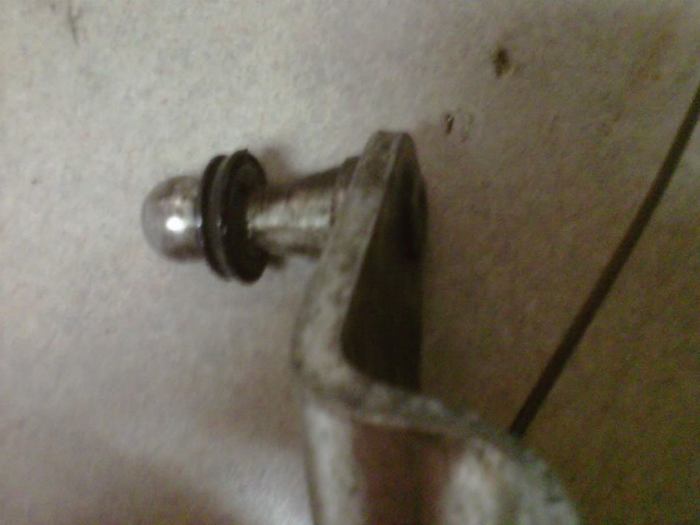

When I pulled my motor and tranny I noticed one of the clips holding the rod to the clutch fork was totally missing... I found a service kit located on e-bay and Mancini racing...they list a P4529447 for B and E bodies and a P4529489
for A bodies...this is a picture of what I am talking about...



old tired rebel

Well-Known Member
Joined
Mar 1, 2011
Messages
196
Reaction score
1
Eric I know it is a long distance call, but the parts dept here is excellent. If it can be found they can find it.

M&L Chrysler Jeep Dodge here in Lexington,NC here is the number

336-248-5191 The Parts dept there is excellent.


res1vw21

Well-Known Member
Joined
Feb 26, 2011
Messages
153
Reaction score
2
Location
near seattle
clips are the same as A B E and so are the bushings as well as the washers and z bar retainer......


bremereric

FMJ Body Moderator
Joined
Feb 25, 2011
Messages
3,555
Reaction score
245
Location
Jackson Missouri
I did some late night checking..

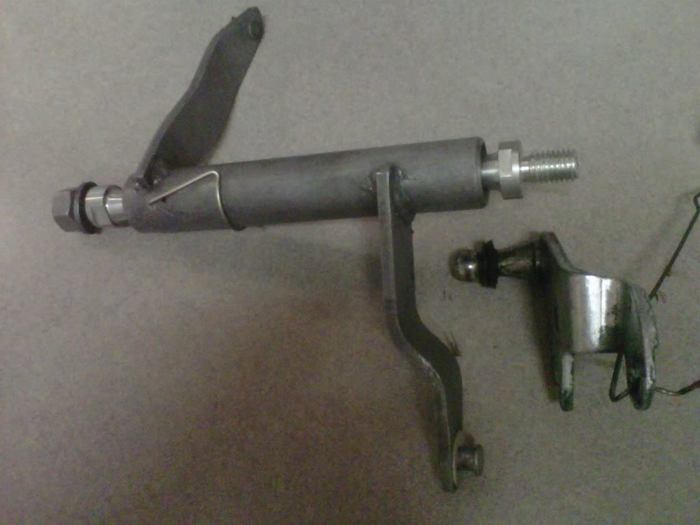

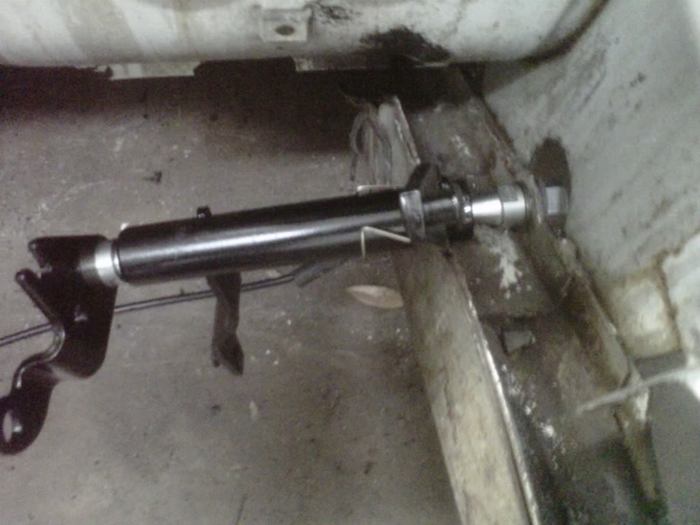

The B-body z-bar service kit I bought for the car will work...I may have to drill a round hole in the bracket that is on the frame rail but oh well that will be another day..I dry fitted everything and then took some pics..the bracket that attaches to the tranny had the pivot ball joint rivot to the bracket..I will have to drill out the rivet and use a nut...






MeMike

Well-Known Member
Joined
Mar 14, 2011
Messages
56
Reaction score
0
Location
The Natural State
Thank you for this good info and thread bremereric and to res1vw21.
Creed will need this for his build :icon_thumleft::icon_thumleft:


bremereric

FMJ Body Moderator
Joined
Feb 25, 2011
Messages
3,555
Reaction score
245
Location
Jackson Missouri
I forgot this one

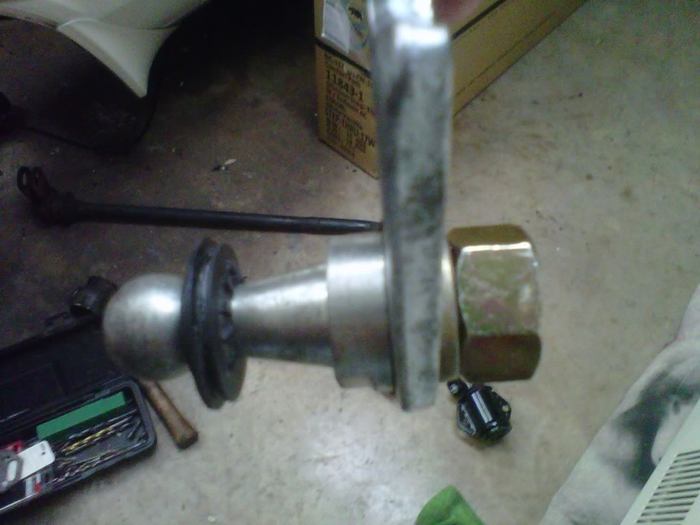

I drilled out the old swivel ball joint and inserted the new one with some blue lock-tite and a lockwasher and nut..



old tired rebel

Well-Known Member
Joined
Mar 1, 2011
Messages
196
Reaction score
1
Eric you are really rolling on this project. Looks like you will be finished before long.
