4X10 Dash Speaker Bolt Pattern

Interior and Electrical

  1. martabo

    martabo Active Member

    Messages:
    37
    Likes Received:
    6
    Joined:
    May 22, 2016
    Location:
    North Carolina, USA
    Does anyone know, or have a speaker to measure a factory 4x10's bolt pattern.

    im trying to make a template for an adapter plate before i leave work today.



    any and all HELP appreciated, thanks.

    _marty

  2. F body Deconstructor Jim

    F body Deconstructor Jim Well-Known Member

    Messages:
    429
    Likes Received:
    106
    Joined:
    Jun 19, 2011
    Location:
    Phoenix, AZ
    10-1/2" center to center of screw holes.
    Overall dimensions are 11-1/8" x 4-5/8"

    martabo likes this.
  3. martabo

    martabo Active Member

    Messages:
    37
    Likes Received:
    6
    Joined:
    May 22, 2016
    Location:
    North Carolina, USA


    thanks for the response. are there only two? and are they centered ?

  4. martabo

    martabo Active Member

    Messages:
    37
    Likes Received:
    6
    Joined:
    May 22, 2016
    Location:
    North Carolina, USA

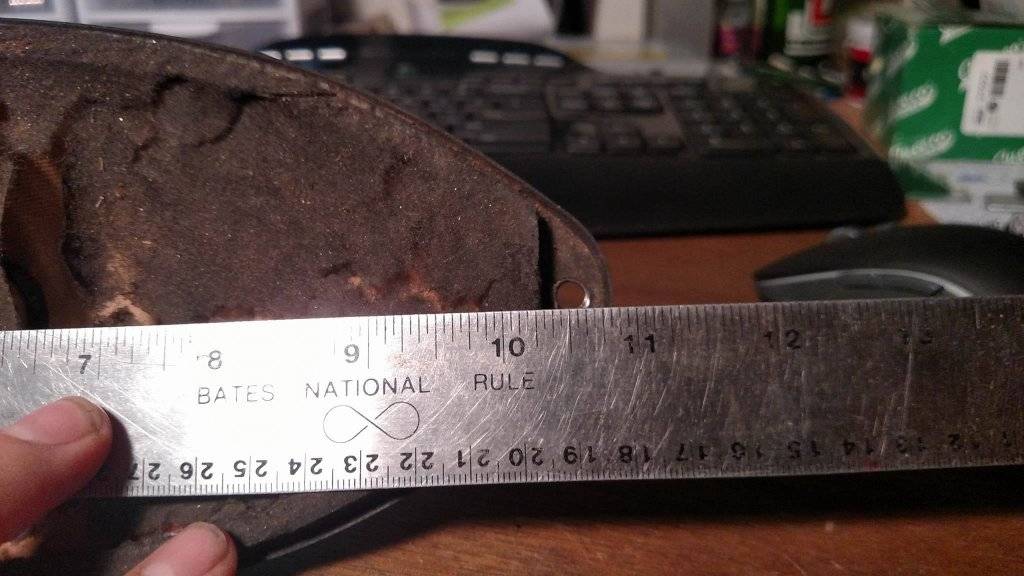

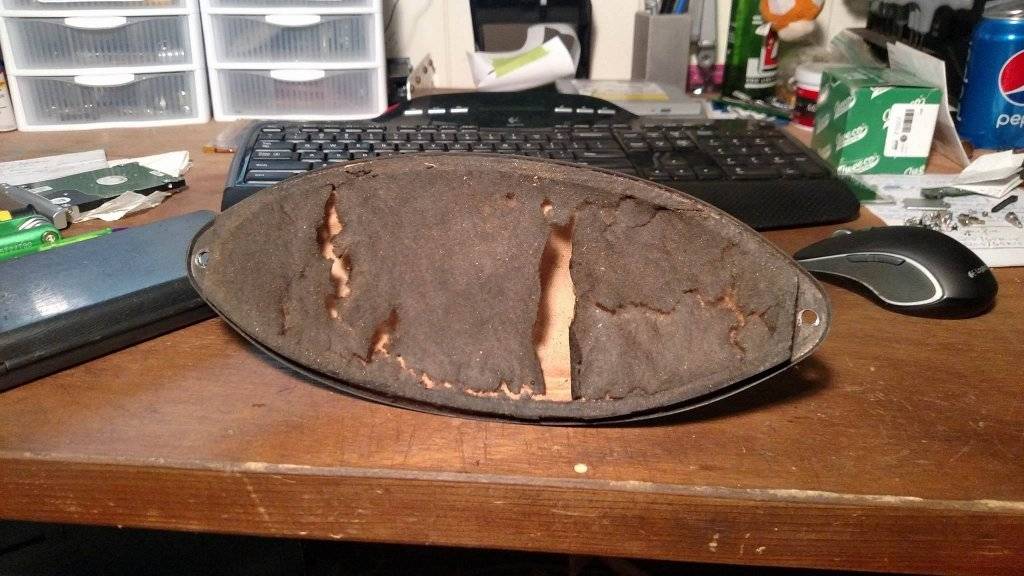

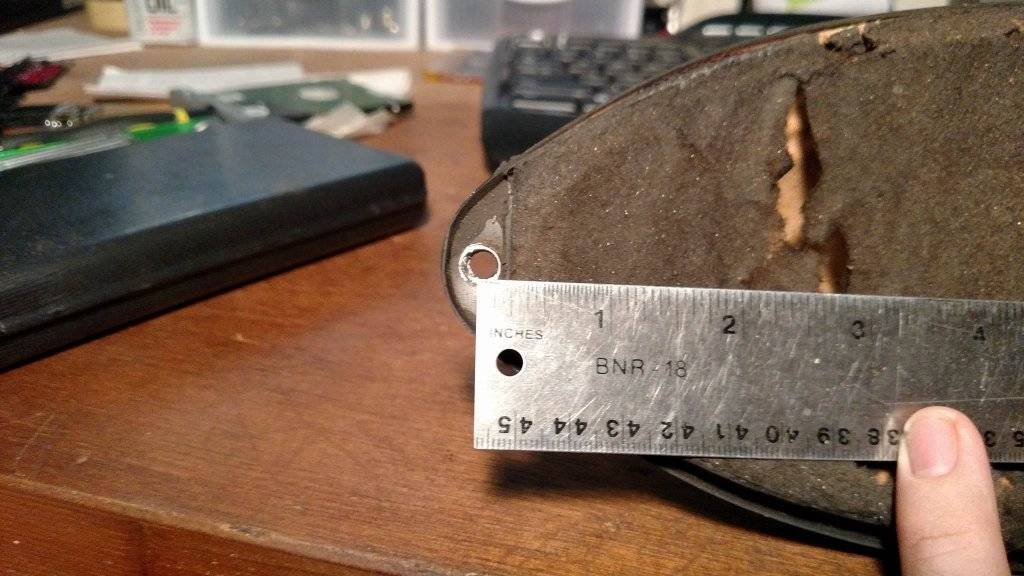

    ok, i got it out.

    Jim, youre dead on, as usual. Anybody who wants this speaker, it still works fine, for a stock radio. mine isnt anymore, so i figured id pull it for some 3.5" speakers in its place. anyone interested in it can have it for the price of shipping.

    I purchased two 3.5" 60 watt each rms, 90 watt each peak amp speakers for $40 shipped.

    Tomorrow im going to plot a full-size template of my plate, and make sure i can get my new speakers down the hole. ill post a picture after its done, as well. for anyone interested in putting a bit more power, even in the dash.



    4x10 speaker 03.jpg 4x10 speaker 01.jpg 4x10 speaker 02.jpg
