87 m body lean burn remove

[mopops]

87 5th ave, i know the info is here but cant find it. i know the parts i need , i need the wire diagram for a color blind guy tks gjg



[Mr C]

Colour blind...that is tough when you talk wiring since it's all coloured.

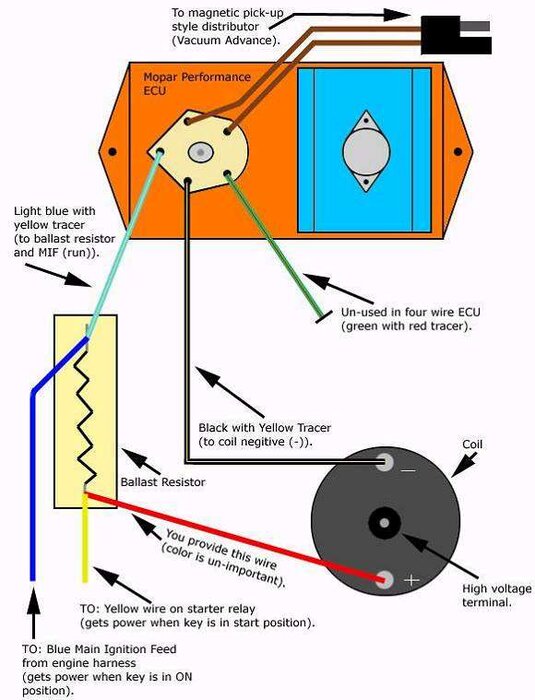

Here's the best pic I could find with added text:



[mopops]

tks I can use ohm meter to find wires this is a great help. I am getting a kit from ehrenberg , can i use my coil or does it need to be changed? tks for the help g j glover



[Aspen500]

Your existing coil will be fine. Regular electronic ignition and Lean Burn/Electronic Spark Control use the same coil. Doesn't apply but, a points system uses a different coil than electronic.



[mopops]

Your existing coil will be fine. Regular electronic ignition and Lean Burn/Electronic Spark Control use the same coil. Doesn't apply but, a points system uses a different coil than electronic.

good news thank you, that saves a few bucks g j glover



[Remow2112]

There are a couple of options if you want to get rid of the resistor and put a better coil on too.
