    I'm starting a battery relocate project to coincide with installing powered seats in the car.

    Got some of the goodies in the mail today... :D

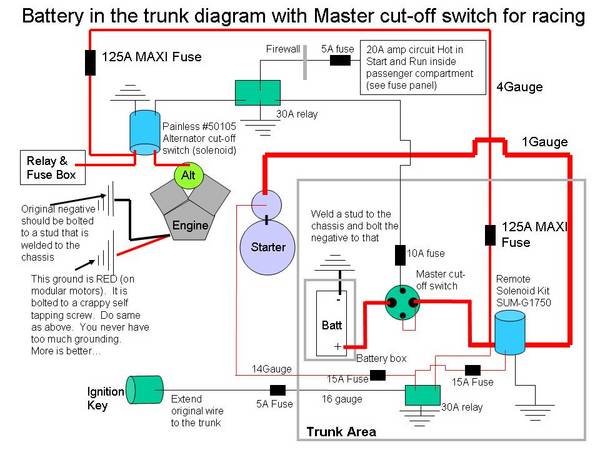

    I found this diagram online for integrating a Ford solenoid into a battery relocate with master cutoff switch which seems to have been designed around a Ford modular 4.6 engine. If anyone on here is a whiz with wiring - seeking expert advice on if and why anything on this diagram is incorrect/dangerous/stupid before I try to replicate it.
