Bullhead connector pinout 78 Volare

Interior and Electrical

  1. NorthernNYMOPAR

    NorthernNYMOPAR Active Member

    Messages:
    35
    Likes Received:
    3
    Joined:
    Nov 2, 2017
    Location:
    Adams, NY
    Ok, I tried the link that was in the stickies above but the links or pictures don't seem to work.

    I've figured out most of my project wiring but does anyone have a bulkhead connector picture pinout for a 1978 Dodge Aspen assuming 1976-1978 or 1979 match.

    Tired of searching and thought I'd ask before more chasing and ringing out.

    Thanks

  2. DCAspen

    DCAspen Well-Known Member

    Messages:
    819
    Likes Received:
    136
    Joined:
    Sep 27, 2011
    Location:
    ct.
    78 and 79 should be the same

  3. BudW

    BudW Moderator Staff Member

    Messages:
    3,048
    Likes Received:
    835
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

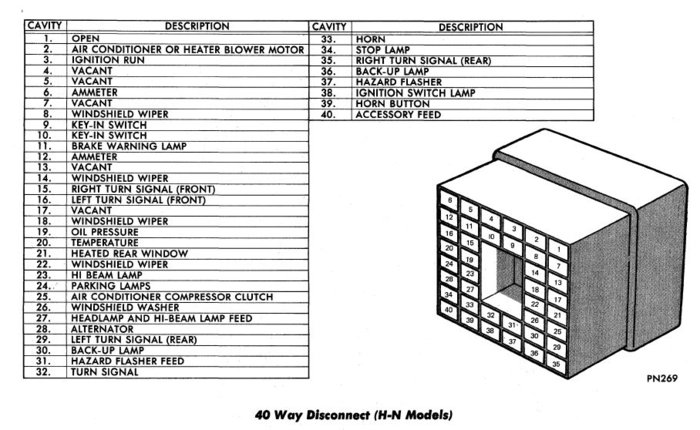

    77 FSM pg 8-219 a.JPG
    This is from my ’77 FSM.
    Is this what you are looking for?
    BudW

  4. NorthernNYMOPAR

    NorthernNYMOPAR Active Member

    Messages:
    35
    Likes Received:
    3
    Joined:
    Nov 2, 2017
    Location:
    Adams, NY
    EXACTLY.....thank you, I scoured the internet and can usually find something but not this, got engine, body, lights, even steering column, but this bigger was elusive.

    Thanks again will save me time in chasing wires for sure.
