Custom M body gauges

Interior and Electrical

  1. brotherGood

    brotherGood Well-Known Member

    Messages:
    647
    Likes Received:
    75
    Joined:
    Mar 31, 2013
    Location:
    Urbana OH

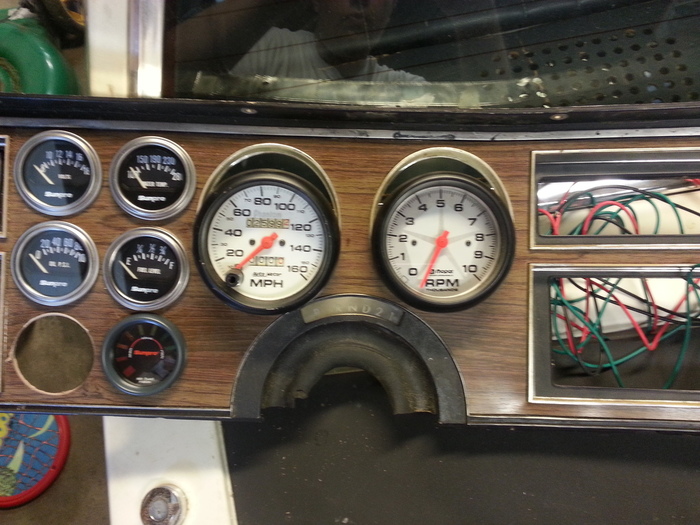

    Well, I've been saying I was going to do this for years, and I finally started today. I used a 2" hole saw initially to open up the side pods enough to fit the gauges into. While they fit, it was extremely tight, and I wanted some breathing room for when they get hot..so I went to a 2 1/8" hole. Mounted them in using the mounting hardware that came with the gauge, just gotta figure out wiring. I'd love to just tap into the factory stuff, but Im not sure if I can or not.

    I also still need to fab up a plate to mount the big gauges, as the egg shape doesnt hold them for nothing..plus it looks bad..lol.

    Im thinking I'll paint the bezel when Im done, and retouch the chrome around the vent, stereo, and HVAC control head..just not sure what color.

    4speedjim likes this.
  2. DCAspen

    DCAspen Well-Known Member

    Messages:
    820
    Likes Received:
    138
    Joined:
    Sep 27, 2011
    Location:
    ct.
    Cool,Working on some custom gauges myself,Trying to keep it stock looking.

    4speedjim likes this.
  3. BudW

    BudW Moderator Staff Member

    Messages:
    3,055
    Likes Received:
    836
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I haven’t worked on aftermarket gauges in some time – so not sure what they are using now.
    When I was working with aftermarket gauges, they all used 12 volts.

    Pretty much all Chrysler gauges use 5 volts – so without some serious gauge re-calibration – you most likely will not be able to use the original sensors.
    The wiring should be able to be used, though.


    I like using 5 volts – for you do have a steady voltage.

    12 volt systems – will not have a steady voltage (could range between 10 volts to as much as 15 volts).
    The voltage difference CAN and WILL make your gauge readings off due to the voltage differences.
    A crude example: ever notice how dash lights brighten as engine is at higher RPM than at idle? That is roughly a 2 volt difference.

    Personally, if I’m going through the trouble of installing gauges, I want them to give accurate readings.

    Note: you can add a voltage regulator that regulates output to 12 volts – but most voltage regulators don’t work or won’t work correctly if voltage goes under 12 volts (or whatever your target voltage is).

    BudW

    Edit: The Mopar 5 volt system has it's own problems - so not saying it is "best", either.

    Last edited: Sep 28, 2016
  4. brotherGood

    brotherGood Well-Known Member

    Messages:
    647
    Likes Received:
    75
    Joined:
    Mar 31, 2013
    Location:
    Urbana OH
    If I need to increase voltage, wouldn't I need to rewire? Do I need to increase the fuse size?

  5. 80mirada

    80mirada Well-Known Member

    Messages:
    791
    Likes Received:
    213
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    There is a voltage regulator on the back side of the gauge cluster that steps the voltage down to 5 volts. You should be able to use the input voltage off of it to run aftermarket gauges without any problems. Your new gauges won't be drawing much amperage, so I doubt there is a need to use heavier wiring, or a larger fuse

    4speedjim likes this.
  6. BudW

    BudW Moderator Staff Member

    Messages:
    3,055
    Likes Received:
    836
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I agree.
    Your gauges do not use much power – so wire size (or fuse size) is not important.

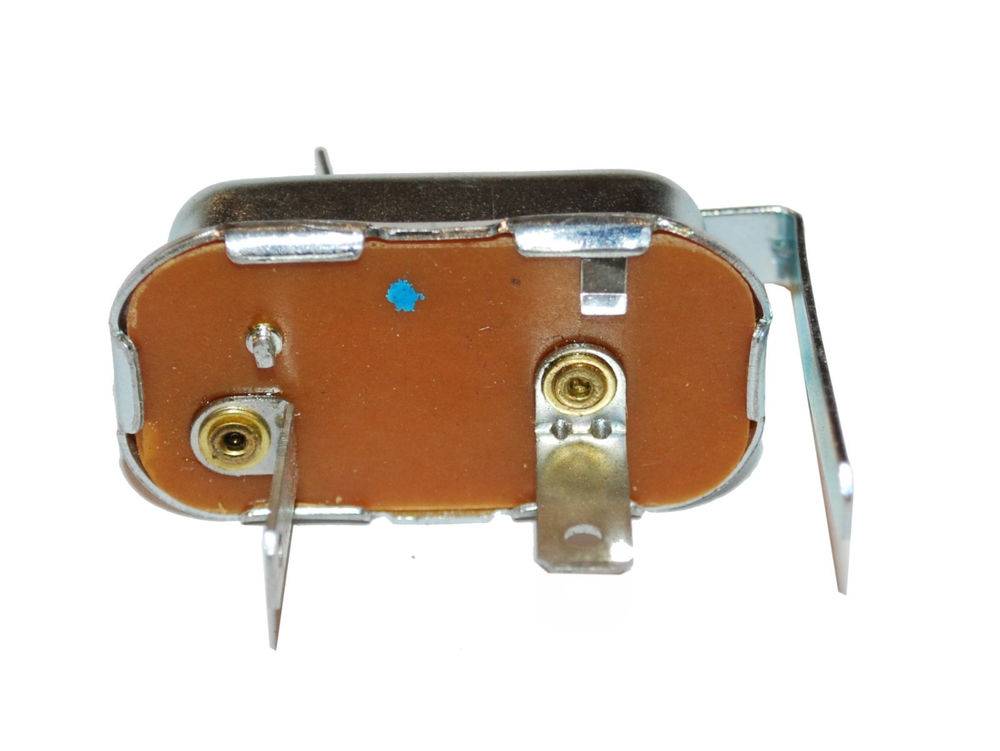

    There is metal plug-in 5 volt voltage limiter on back side of left side gauge pod (not sure of exact name).
    Voltage Limiter.jpg

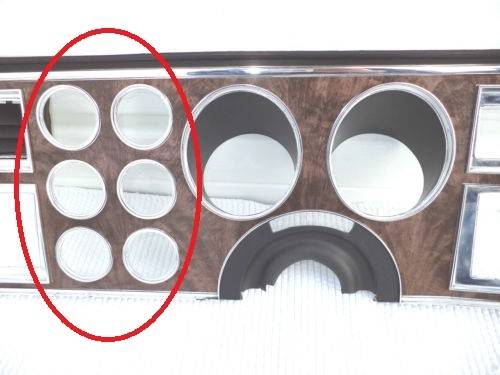

    M Bezel.jpg
    If you will not be using any of the factory gauges, then you can remove that regulator and bypass.
    If you are still going to use any of your original gauges, then you will need to keep it in place.

    12 volts will instantly fry a 5 volt gauge (I do mean instantly – I do have experience burning out gauges (plural) – accidently of course).


    Side note: on older Mopars, ‘60’s etc., I highly recommend replacing the voltage limiter (Chrysler calls it a voltage limiter, not a voltage regulator) with an updated electronic version – like one made by RTE (Main Page - rte ) - for older gauges are getting real hard to find.

    I bought a pair of these for my ’77 wagon and ’86 5th Ave – after working (a lot) on older gauges and the reliability of the mechanical voltage limiter. Yes – a tad pricy, but cheaper than buying all new gauges.

    BudW

  7. brotherGood

    brotherGood Well-Known Member

    Messages:
    647
    Likes Received:
    75
    Joined:
    Mar 31, 2013
    Location:
    Urbana OH
    So, I wire all gauges to the power supply that went to the regulator?

  8. BudW

    BudW Moderator Staff Member

    Messages:
    3,055
    Likes Received:
    836
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Are you replacing the fuel gauge, as well?
    If you are replacing all gauges, including the fuel gauge, then I don’t see why you can’t tap into the 12v side of the voltage limiter.

    The speedometer doesn’t care about voltage.

    If you are leaving the fuel gauge in place then you may need to re-think what goes were power wise, for it will need 5 volts.


    What would be very cool is if someone could make a M-body drop in meter to go in place of the fuel gauge that would be ¼ round fuel gauge and ¾ (or 2/3) round tachometer – but for some reason, I just don’t see that happening anytime soon.

    I think it is interesting that mid/late ‘60’s/early '70’s cars had Tachometers (as an option).
    The late ‘70’s and ‘80’s had nothing for tachometers (few and far between had them).
    Now when you get a car, it pretty much comes with a tachometer standard (not much choice in the matter).

    BudW

  9. brotherGood

    brotherGood Well-Known Member

    Messages:
    647
    Likes Received:
    75
    Joined:
    Mar 31, 2013
    Location:
    Urbana OH
    All gauges are being replaced. The fuel is going into a small hole to the left of the wheel

  10. brotherGood

    brotherGood Well-Known Member

    Messages:
    647
    Likes Received:
    75
    Joined:
    Mar 31, 2013
    Location:
    Urbana OH
    Ok, Im bringing this back up because I've got a question. Im currently looking for the sending units to get this moving forward. I installed the oil sending unit before even installing the engine..so I have that one. I have a brand new o2 sensor, i'll have to weld a spot in my exhaust for it though once I go with headers, or just look at a different gauge. Im assuming the volt gauge just wires into the harness. So, Im looking for the water temp sender and the fuel sending unit. My question is..are they dependent on the application, or will the unit for the gauge work for the car?

  11. 80mirada

    80mirada Well-Known Member

    Messages:
    791
    Likes Received:
    213
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    You will need the correct senders for the gauges you use. Aftermarket fuel gauges are available to work with the stock sender, or you can buy a variety of different aftermarket ones. Stock Mopar is like a 70-10ohm (I am going from memory so I may reverse numbers). Voltmeter require being wired to the charging circuit .

  12. brotherGood

    brotherGood Well-Known Member

    Messages:
    647
    Likes Received:
    75
    Joined:
    Mar 31, 2013
    Location:
    Urbana OH
    Well, I've seen a couple different sizes...

  13. kkritsilas

    kkritsilas Well-Known Member

    Messages:
    1,690
    Likes Received:
    307
    Joined:
    Jun 21, 2012
    Location:
    Calgary, Alberta, Canada
    Speedhut can do that (speedhut.com). It would be a custom order, but they can do tachometers with sub gauges, and they have off the shelf GPS speedometers with tachometers. The GPS speedometers would do away with speedometer gears or needing to worry about rear axle gear ratio or rear tire diameter changes. The speedometers are available in in MPH or KPH, and have the turn signal indicators as well. The odometer readout is in an LCD display though, so some may not like it.

    A while back, member by the name of NoCar340 had figured out what the factory font was for the J Body factory gauges, and Speedhut was open using them on any gauge they made, so the replacement gauges would look factory. You can, within limits, even choose the color the gauges light up in at night.

    4speedjim likes this.
  14. brotherGood

    brotherGood Well-Known Member

    Messages:
    647
    Likes Received:
    75
    Joined:
    Mar 31, 2013
    Location:
    Urbana OH
    Wow, I forgot all about this thread...probably should update it.

    Im onto a new idea for the gauges. Couldnt figure out how to address the main pods and found someone who had made his own custom bezel. Contacted him, had one built and realized when it got here that the center pods he cut were too big. After fighting with trying to make it work (and failing) I was talking to a friend of my father-in law who has some wicked Camaros. He asked why I didnt use solid wood and paint it. I kinda laughed at it, and he said hes got a wood bezel in his Z28 and its lasted 30 years at this point..and nobody realizes its wood until he says something about it. Once the weather gets warmer, I'll plug the holes in the firewall from the heaterbox removal and cut one up. Then comes the struggle of rewiring it all.

  15. brotherGood

    brotherGood Well-Known Member

    Messages:
    647
    Likes Received:
    75
    Joined:
    Mar 31, 2013
    Location:
    Urbana OH

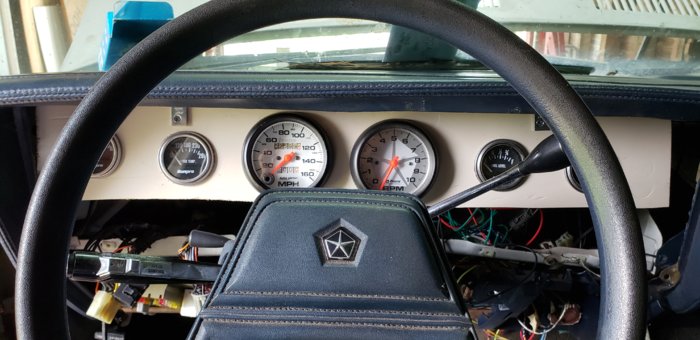

    Here's where I have it so far. The speedometer isn't working for some reason, nor is the water temp or volts. Also need to finish the bottom half (stereo and lights) but at the point..I'm just happy the hard part is done...

    ..I think.


  16. BudW

    BudW Moderator Staff Member

    Messages:
    3,055
    Likes Received:
    836
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I like it.

    You are getting rid of, err, not going to use the two A/C vents?
    BudW

  17. brotherGood

    brotherGood Well-Known Member

    Messages:
    647
    Likes Received:
    75
    Joined:
    Mar 31, 2013
    Location:
    Urbana OH
    Correct..a part of me wanted to keep them, but part of me said forget it.. haha

    We see which part won

  18. Duke5A

    Duke5A Well-Known Member

    Messages:
    125
    Likes Received:
    51
    Joined:
    Apr 6, 2018
    Location:
    Michigan
    I'm having a hard time seeing what the finished product is going to look like. The spacing and location of the gauges doesn't symmetrical either. :eek:

  19. brotherGood

    brotherGood Well-Known Member

    Messages:
    647
    Likes Received:
    75
    Joined:
    Mar 31, 2013
    Location:
    Urbana OH
    It isn't. This was the rough layout..which is why it is out of wood. I plan on going back through and lining everything up properly and using metal.

  20. BudW

    BudW Moderator Staff Member

    Messages:
    3,055
    Likes Received:
    836
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Great idea.

    There are two gauges hidden behind the steering wheel – so I was hoping you weren’t “set” on keeping the gauges at that location.

    It might not be a bad idea to find both sides of a multi-pin electrical connector (for however many pins you need) so if you need to remove the new cluster, a quick disconnect is all that is needed.
    Going to a pull-a-part makes this job easy – for it doesn’t matter what brand car you get both plugs from – just if they match, and you have a length of wire to work with.
    BudW
