directional sw diagram

Interior and Electrical

  1. mopops

    mopops Well-Known Member

    Messages:
    75
    Likes Received:
    1
    Joined:
    May 17, 2018
    Location:
    wappingers ny
    need source for diagram of directional switch every thing works but left rear brake n flasher thanks i am working on an 82 mirada

    Last edited: Mar 5, 2019
  2. Aspen500

    Aspen500 Well-Known Member

    Messages:
    3,848
    Likes Received:
    1083
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    What car do you have? I've got diagrams for F-body.

  3. mopops

    mopops Well-Known Member

    Messages:
    75
    Likes Received:
    1
    Joined:
    May 17, 2018
    Location:
    wappingers ny
    i have an 82 mirada boy that would have helped if i added that

  4. Aspen500

    Aspen500 Well-Known Member

    Messages:
    3,848
    Likes Received:
    1083
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI

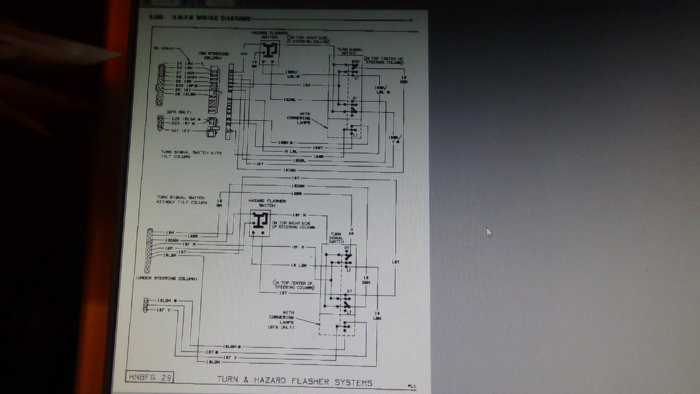

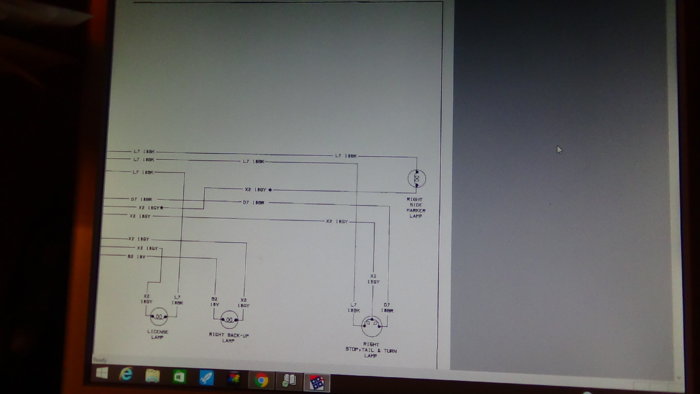

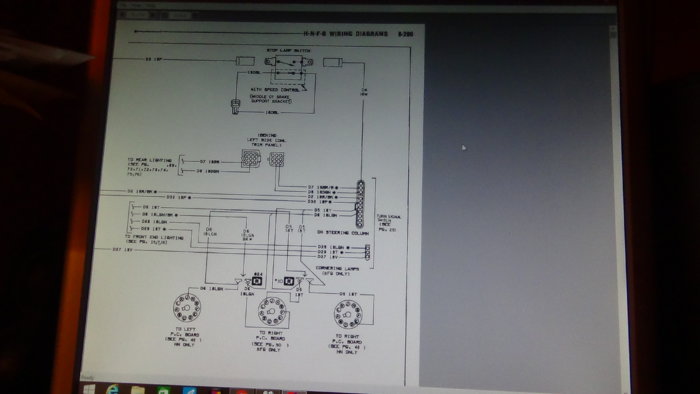

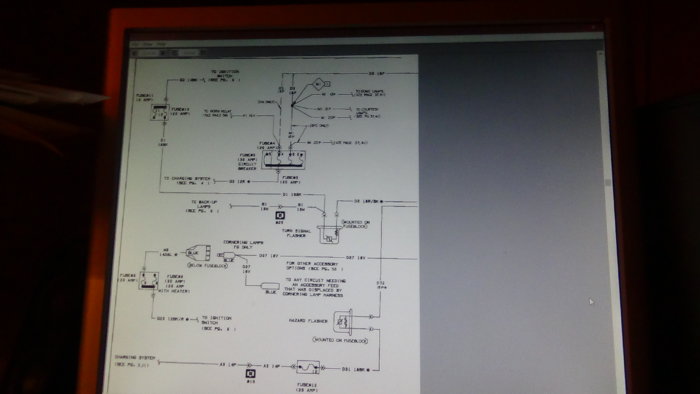

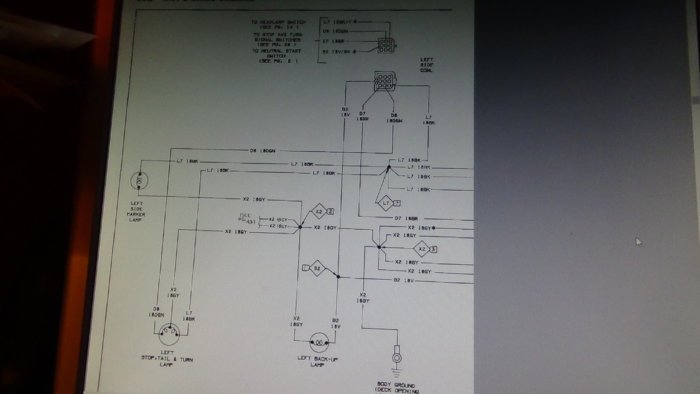

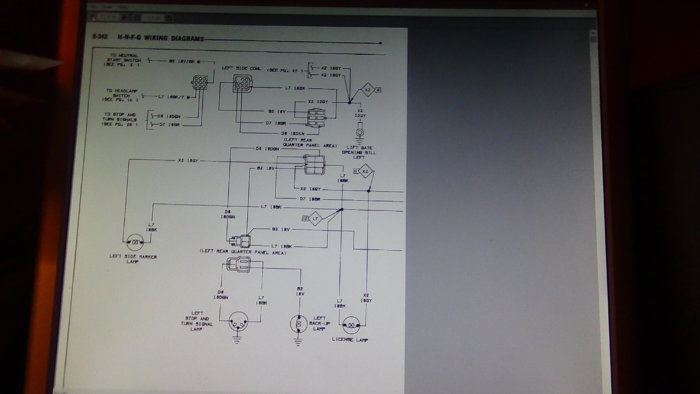

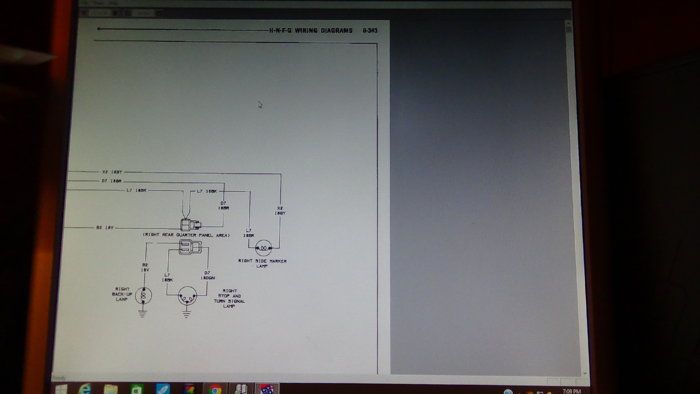

    Not sure if my diagrams will help. They're all 1979 F and M body but, this is them. I know, tough to see, sorry. My manual is on CD-ROM and you can't copy and paste from it, unfortunately. DSC00238.JPG DSC00239.JPG DSC00240.JPG DSC00234.JPG DSC00235.JPG DSC00236.JPG DSC00237.JPG

  5. 80mirada

    80mirada Well-Known Member

    Messages:
    908
    Likes Received:
    235
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    I have the 1980 book, I can post some shots of the J body diagram Thursday.

  6. mopops

    mopops Well-Known Member

    Messages:
    75
    Likes Received:
    1
    Joined:
    May 17, 2018
    Location:
    wappingers ny
  7. mopops

    mopops Well-Known Member

    Messages:
    75
    Likes Received:
    1
    Joined:
    May 17, 2018
    Location:
    wappingers ny
    will like to see what 1980 s j body looks like thanks i think i got a bad switch? will find out thanks

  8. 80mirada

    80mirada Well-Known Member

    Messages:
    908
    Likes Received:
    235
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    Have you tested the Hazards? Is the left rear non functional then too?

  9. mopops

    mopops Well-Known Member

    Messages:
    75
    Likes Received:
    1
    Joined:
    May 17, 2018
    Location:
    wappingers ny
    for the left rear brake and flasher don't work ----tail and directional work - all bulbs grounds are good

  10. mopops

    mopops Well-Known Member

    Messages:
    75
    Likes Received:
    1
    Joined:
    May 17, 2018
    Location:
    wappingers ny
    m plug at base of steering has 9 wires not 7 - -i ordered a new switch

  11. Aspen500

    Aspen500 Well-Known Member

    Messages:
    3,848
    Likes Received:
    1083
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    I checked to see if Shopkey (Mitchell online service manuals we subscribe to at work) showed any wiring diagrams for your car and, they do not. It's a great service but once you get older than about 1990, the info gets more and more sparse.

  12. 80mirada

    80mirada Well-Known Member

    Messages:
    908
    Likes Received:
    235
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

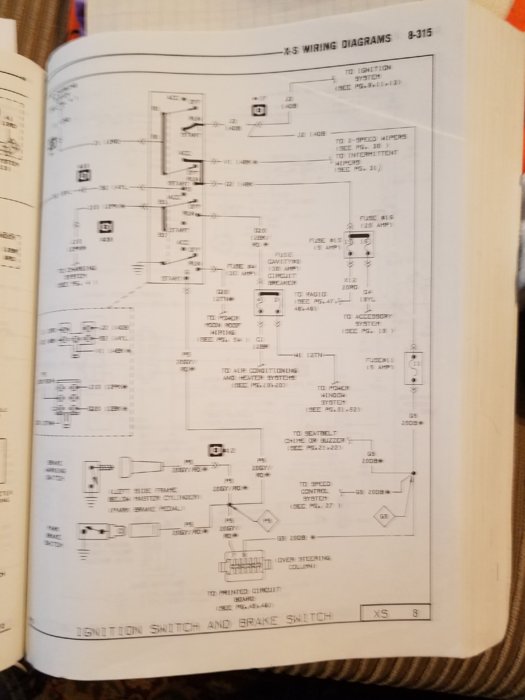

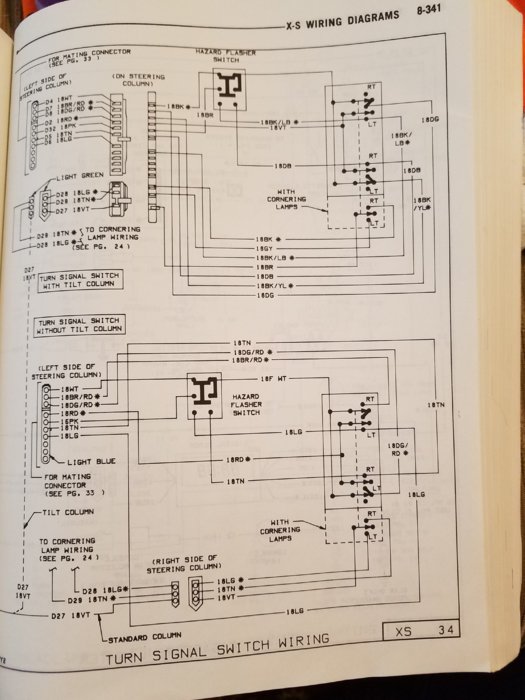

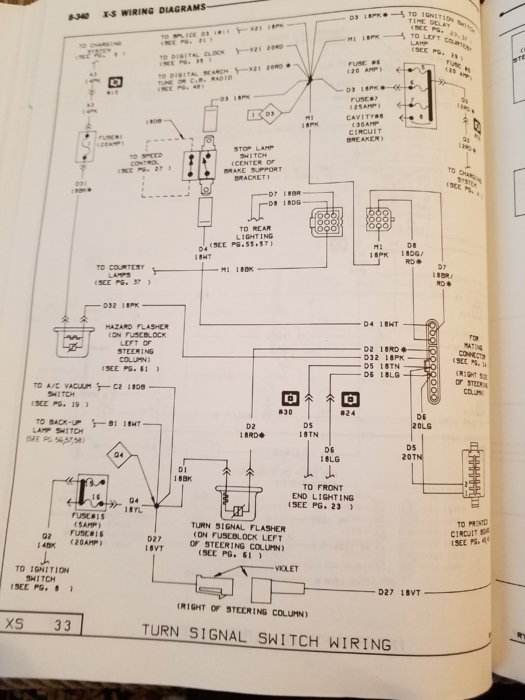

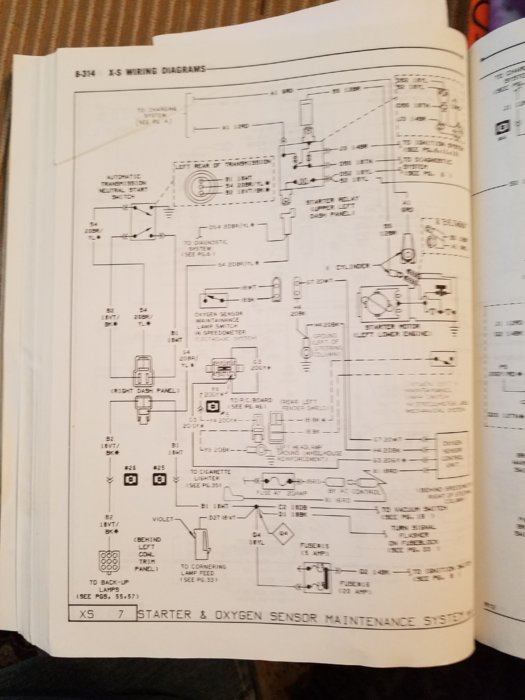

    20190312_180304.jpg 20190312_180308.jpg 20190312_180431.jpg 20190312_180435.jpg

    Sorry it took me so long, these are from the 1980 service manual. They should be close if not the same as later J-bodies

  13. mopops

    mopops Well-Known Member

    Messages:
    75
    Likes Received:
    1
    Joined:
    May 17, 2018
    Location:
    wappingers ny
  14. mopops

    mopops Well-Known Member

    Messages:
    75
    Likes Received:
    1
    Joined:
    May 17, 2018
    Location:
    wappingers ny
    thanks for trying to help me
