Gas pedal sensor woes

Master M

Well-Known Member
Joined
Nov 22, 2014
Messages
330
Reaction score
116
I just got more validation not to buy a newer car if at all possible.
A casual friend told me today they got stuck 100 miles from home because their 2010 car would not accelerate over 30 miles an hour. They had to limp 80 of the miles to get to a mechanic. I start thinking what could be the problem. A few things that came to mind were the typical fuel filter clogging, weak fuel pump, etc. They stopped by and told me later it was the gas pedal sensor. I stopped and said WHAT!!! your car has a sensor to monitor the gas pedal, how ingenious. All of my gas pedals are decades old and work great and I have never inspected them. So don't forget to check your oil and have your gas pedal sensor inspected before that road trip !!! How about checking all of the sensors before that road trip, there are only 12 to 30 in the average car. Below is from yourmechanic.com

Within the electronic throttle control system in your vehicle is an accelerator pedal position (APP) sensor. It's one of the many sensors in your car, and like the others, this one is responsible for an important job. What this sensor does is aid in the process of converting the pedal movement to a voltage signal. In a nutshell it's passing on a signal in relation to the position of the throttle. The signals are sent on to the ECM, which is the electronic control module. This information is vital in the vehicle’s combustion process.

This part can fail over time because of the high level of heat it is exposed to on a regular basis. Other factors that play into its' failing are dirt and debris, moisture building, a large amount of pressure, and more. This is not a part that can be repaired, so when it fails it needs to be replaced. A good rule of thumb is to have it inspected from time to time, so you don’t run the risk of it suddenly failing.


Cordoba1

Well-Known Member
Joined
Nov 22, 2011
Messages
457
Reaction score
125
Location
Northern Illinois
Eh.... Chrysler has been using them since 1975 on the Lean Burn systems. I'm actually a fan of lean burn. The prevailing logic has always been to rip it off when it stops working, but many issues can be diagnosed back to a failing sensor. Lean Burn uses a TPS to determine rate of throttle change. For example, by using both the TPS and the vacuum sensor; if the computer detects a fast WOT condition, it will start the acceleration timing advance program. By the way.. I love my old car, and I love my new car, too. I drive the old one locally; but if I have to drive a few hundred miles in a day, new car trumps old car.


Aspen500

Well-Known Member
Joined
Feb 14, 2015
Messages
7,030
Reaction score
2,759
Location
Rib Mountain, WI
He is talking about drive by wire where there's no throttle cable. The pedal has 3 sensors, two that have inverse signals (one goes up, the other down) and a third as a "back up" and to justify the signals from the other two. They send a signal back to the ECM which in turn send the command to the throttle body to open the throttle plate a certain amount. The TP sensors send back a signal to the ECM for throttle position. There are all sorts of fail safes built in to the system. In the event of a fault it'll go into "limp" mode or "reduced power mode". Could be a fault in the ETB system OR with the engine or trans that might result in severe damage that puts in limp mode. Of it was a momentary fault, usually shutting the car off and restarting will take it out of limp mode, provided the fault is no longer present.
That said, in the roughly 20 years since drive by wire on gas engines came around, I've seen VERY FEW failures. It's actually a really reliable system. Diesels have had drive by wire for even longer, Ford started it in 1992 (I think it was) on the 7.3L diesels for example.
Drive by wire adds things that could fail at some point but eliminates others like the idle air control solenoid and cruise control servo and the idle can be more precisely controlled.


Justwondering

Well-Known Member
Joined
Aug 7, 2015
Messages
3,602
Reaction score
1,003
Location
North Texas
As I raise my hand to ask a question...(novice)
TPS -- throttle plate sensor
WOT -- ???
ECM -- Electronic something something

I'm looking through the service manual but it has no index so these are under engine or fuel or carb subsections?

Need to get some sticky notes and stick in this book.


AJ/FormS

Well-Known Member
Joined
Apr 26, 2016
Messages
1,291
Reaction score
305
Location
On the Circle of the earth, Southern Man,Canada
TPS is Throttle Position Sensor
WOT is Wide Open Throttle
ECM is Electronic Control Module
MAP is Manifold Air Pressure
MAF is Mass Air Flow
CTS is coolant Temperature Sensor
NASA is LIARS one and all.
Evolution is a theory
There's only two ways to prove the earth is a ball, from earth;1) to fly over the the Southern "continent" from one ocean to the other, and 2) to measure the distancesbetween any three southern most land masses, and compare them to a globe based model.
The Antarctic is closed to the public. The land mass distances are impossibly large to measure,and airplanes don't fly direct.
Now, if you had some spare change you could rent a steamer, and set sail.....
There is a third option; you could try to sail all around that ice heap.You might not survive the armies of the world shooting you out of the water tho...
Hmmmmmmmmmmmmmmmmm, what's the big secret?

Last edited:

Justwondering

Well-Known Member
Joined
Aug 7, 2015
Messages
3,602
Reaction score
1,003
Location
North Texas
So the throttle position sensor (TPS) has a direct line connection back to the computer (brains - ECM?) as well as there is a vacuum line connection. Both these 'connections' work with the Lean Burn to determine how rich or how lean to burn.
Is that right?


Mr C

Well-Known Member
Joined
Apr 22, 2014
Messages
403
Reaction score
137

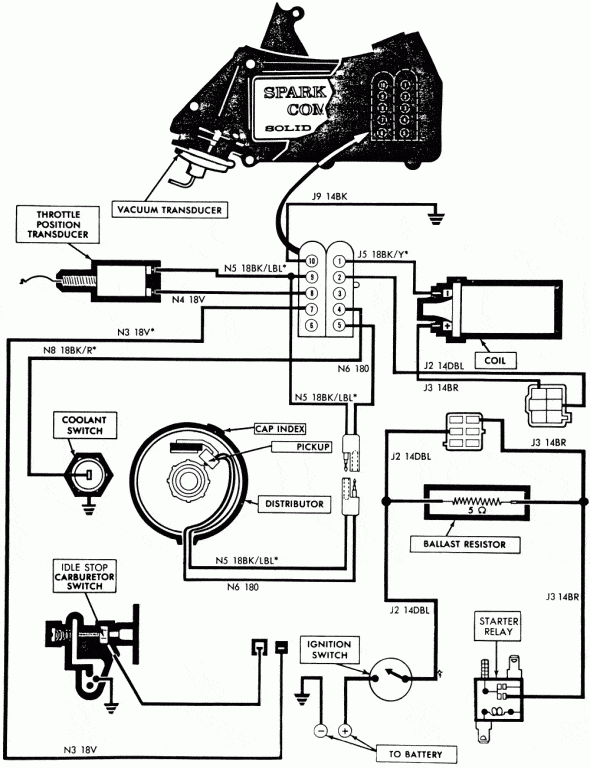

Here's a pic of the Lean Burn (LB) circuit. You can see the throttle position transducer and vacuum transducer in the pic.
