Glass run channel liner/weatherseal

Master M

Well-Known Member
Joined
Nov 22, 2014
Messages
330
Reaction score
116
Anyone know what product would fit well for the glass run channel seal on my 1988 Chrysler 5th? I am just going to replace the drivers side for now. I've seen different sizes and some universal
ones. Thanks.


Aspen500

Well-Known Member
Joined
Feb 14, 2015
Messages
7,030
Reaction score
2,759
Location
Rib Mountain, WI
I don't know any specifics but Restoration Specialties has all sorts of window channel. You'd have to look at the choices and compare with what you have to find which one, if any, will work.

Window Channel


Mikes5thAve

Well-Known Member
Joined
Mar 3, 2020
Messages
1,375
Reaction score
539
Location
Canada
Back when JC Whitney had the interesting catalogs they had pages of those type of seals to choose from cheap prices too.


BudW

Moderator
Staff member
Joined
Mar 4, 2012
Messages
5,121
Reaction score
1,485
Location
Oklahoma City
You need to get one with same profile then cut to length.

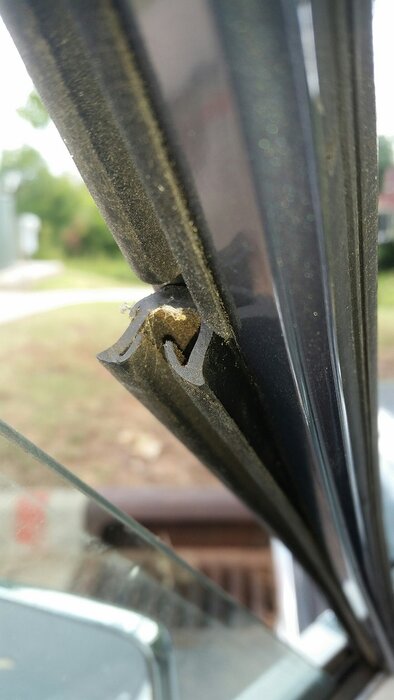

The ones on my '86 Fifth Ave are extremely hard and L/F is broken. Five years ago (August 30, 2016), I pulled this part out and took a picture:


I need to get some myself, so if you find some, please let us know from where and how much did you use (per door), please!

I would think this "should" be used by more than one car line.
BudW


Master M

Well-Known Member
Joined
Nov 22, 2014
Messages
330
Reaction score
116
I've ordered a pair of glass run channels that look like they may work. I'll report back if/how they fit.


Master M

Well-Known Member
Joined
Nov 22, 2014
Messages
330
Reaction score
116
1988 Chrysler 5th Ave glass run channel update: The total run inside the door is 77 inches. The pair I bought measure 97 1/2" long each. Carparts.com Part no. PRP750566PR , total delivered cost for the pair $25.44. I installed them today but have not done a test drive to see if there is any wind noise. It took a couple hours as the old rubber was brittle and had to be carefully removed.
Photo 1 old piece broken out. 2. dry fit of new piece 3. new channel installed.
I did have a nice view of a top shelf of old cans while I was working.

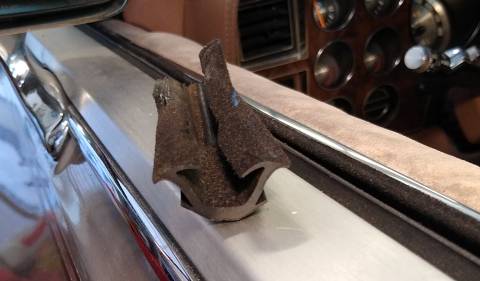

Glass run channel original piece.jpg

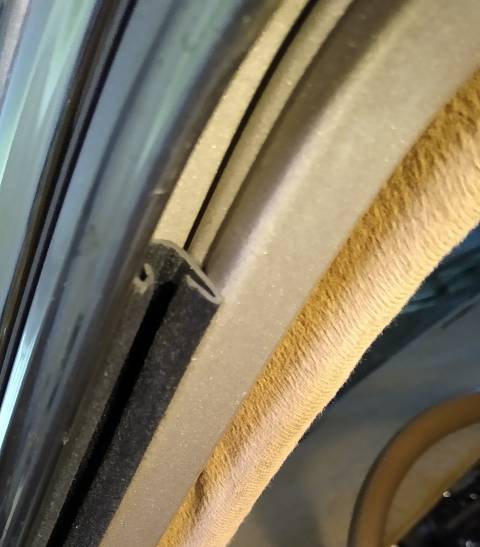

Glass run channel new trial fit.jpg

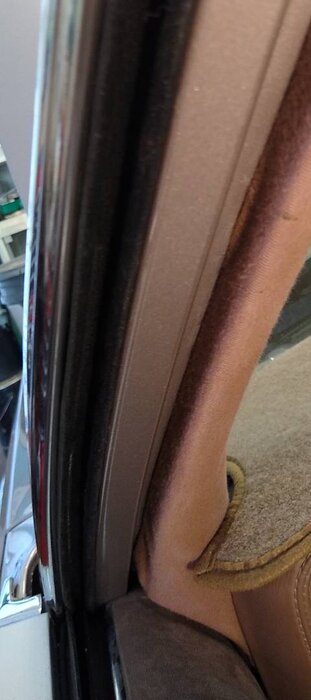

Glass run channel new installed.jpg


Glass run channel old can view.jpg

Last edited:

Master M

Well-Known Member
Joined
Nov 22, 2014
Messages
330
Reaction score
116
I did a road test when I finished the drivers side and no noticeable wind noise like I had before. Passenger side completed today. It took less time doing the passenger side, but working inside of the door was no better than the drivers side. Last test will be wind noise check on the passenger side.
