    Help i am not getting power to my ignition coil and cant find where the wires go or a diagram if someone could help that would be awesome, car is a 1980 dodge mirada thanks in advance!

  2. 78VOLAREWAG

    78VOLAREWAG Well-Known Member

    Messages:
    73
    Likes Received:
    20
    Joined:
    Nov 3, 2017
    Location:
    PITTSBURGH PA
    I'd try jumping the ballast resister first.

    Mn mopar likes this.
  3. Mn mopar

    Mn mopar Well-Known Member

    Messages:
    62
    Likes Received:
    7
    Joined:
    Apr 17, 2018
    Location:
    Milaca, minnesota
    That should be on the fire wall correct

  4. 78VOLAREWAG

    78VOLAREWAG Well-Known Member

    Messages:
    73
    Likes Received:
    20
    Joined:
    Nov 3, 2017
    Location:
    PITTSBURGH PA
    Yes, back in the 80s I would just wrap a piece of bare copper wire around the terminals, if it started, I'd put a new resistor on(kept one in the glove box)

    Mn mopar likes this.
  5. 80mirada

    80mirada Well-Known Member

    Messages:
    834
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    Does it seem like it wants to start, but wont keep running if you let the key off? Is it turning over?

    Mn mopar likes this.
  6. 80mirada

    80mirada Well-Known Member

    Messages:
    834
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    I do have the diagrams for the wiring.

  7. Mn mopar

    Mn mopar Well-Known Member

    Messages:
    62
    Likes Received:
    7
    Joined:
    Apr 17, 2018
    Location:
    Milaca, minnesota
    It turns over just no power/ spark

  8. 80mirada

    80mirada Well-Known Member

    Messages:
    834
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    Could be coil, do you have a multimeter?

  9. Mn mopar

    Mn mopar Well-Known Member

    Messages:
    62
    Likes Received:
    7
    Joined:
    Apr 17, 2018
    Location:
    Milaca, minnesota
    I do but the coil it self is not getting power thats why im stumped lol

  10. 80mirada

    80mirada Well-Known Member

    Messages:
    834
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    I'll dig out the manual later and post pics of the diagram

    Mn mopar likes this.
  11. Mn mopar

    Mn mopar Well-Known Member

    Messages:
    62
    Likes Received:
    7
    Joined:
    Apr 17, 2018
    Location:
    Milaca, minnesota
    Ok update, i have put brand new of the following, spark plugs wires cap rotor ignition coil balaster regulator, still no spark what else could it be?

  12. Mn mopar

    Mn mopar Well-Known Member

    Messages:
    62
    Likes Received:
    7
    Joined:
    Apr 17, 2018
    Location:
    Milaca, minnesota
    I am also getting power to the coil now

  13. 80mirada

    80mirada Well-Known Member

    Messages:
    834
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    Bad coil, bad pickup, bad ECU

  14. AJ/FormS

    AJ/FormS Well-Known Member

    Messages:
    848
    Likes Received:
    186
    Joined:
    Apr 26, 2016
    Location:
    Southern Manitoba,Canada
    Clean the ground at the ECU case

    or is that a LeanBurn?

  15. M_Body_Coupe

    M_Body_Coupe Well-Known Member

    Messages:
    127
    Likes Received:
    29
    Joined:
    Aug 19, 2013
    Location:
    Windsor, ON, Canada

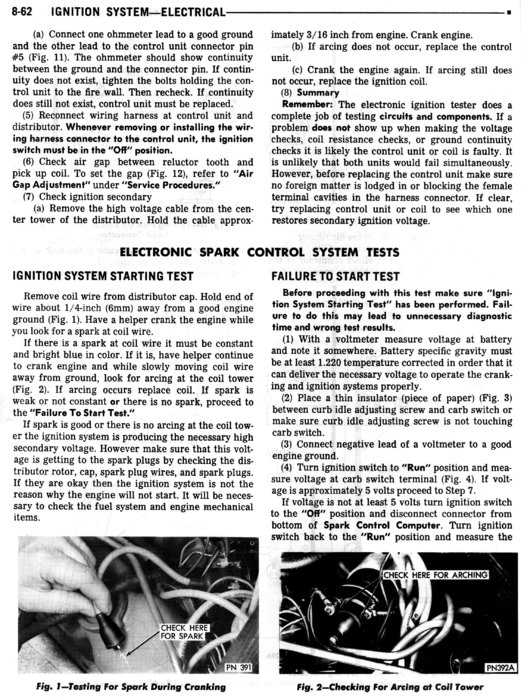

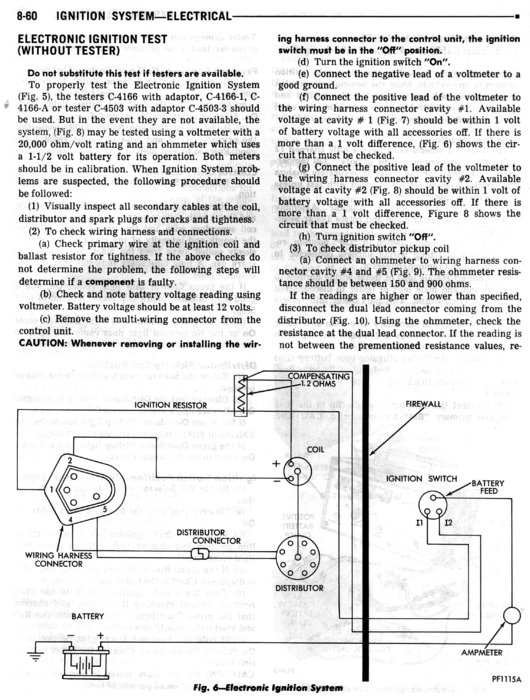

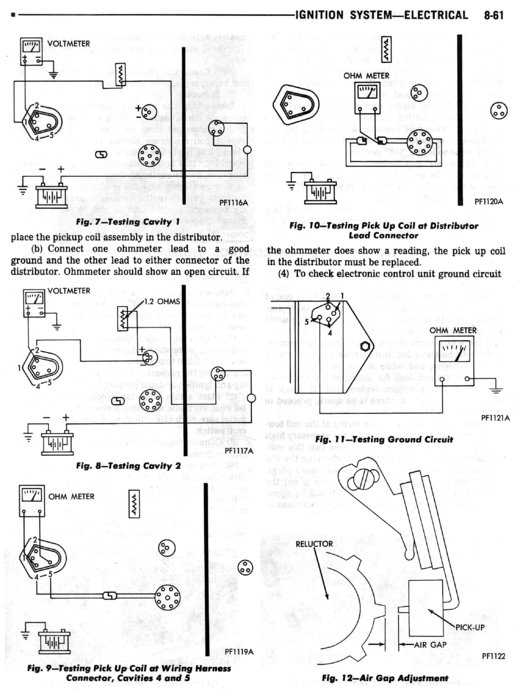

    Here are the FSM scans I made for the non-LeanBurn ignition setup. These should walk you through the troubleshooting if you have that older style ECU setup.




    Mn mopar likes this.
  16. Mn mopar

    Mn mopar Well-Known Member

    Messages:
    62
    Likes Received:
    7
    Joined:
    Apr 17, 2018
    Location:
    Milaca, minnesota
    4speedjim likes this.
  17. M_Body_Coupe

    M_Body_Coupe Well-Known Member

    Messages:
    127
    Likes Received:
    29
    Joined:
    Aug 19, 2013
    Location:
    Windsor, ON, Canada
    Thanks...but...I'm scratching my head a bit...the pics I uploaded were actually much bigger (so easier to read, more detail)...I see the stuff in the thread as having been sized down...not quite sure if there is a way to get at the originals as I'm not all that familiar with this particular forum software.

  18. Mn mopar

    Mn mopar Well-Known Member

    Messages:
    62
    Likes Received:
    7
    Joined:
    Apr 17, 2018
    Location:
    Milaca, minnesota
    Yeah i should be able to save the pic and enlarge it where i need it

  19. 80mirada

    80mirada Well-Known Member

    Messages:
    834
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

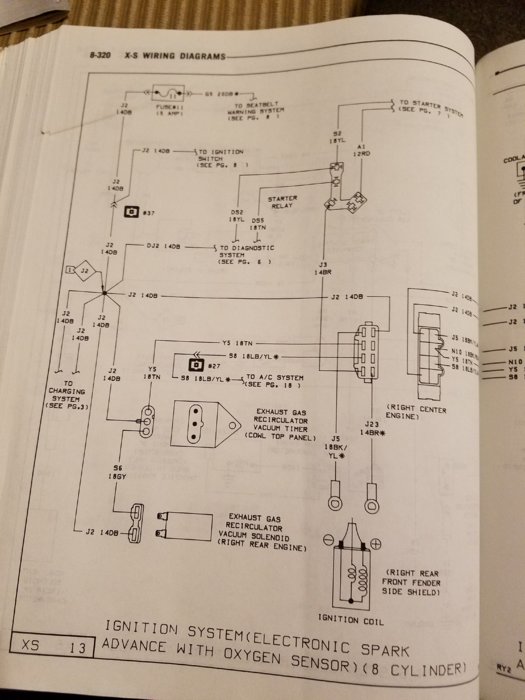

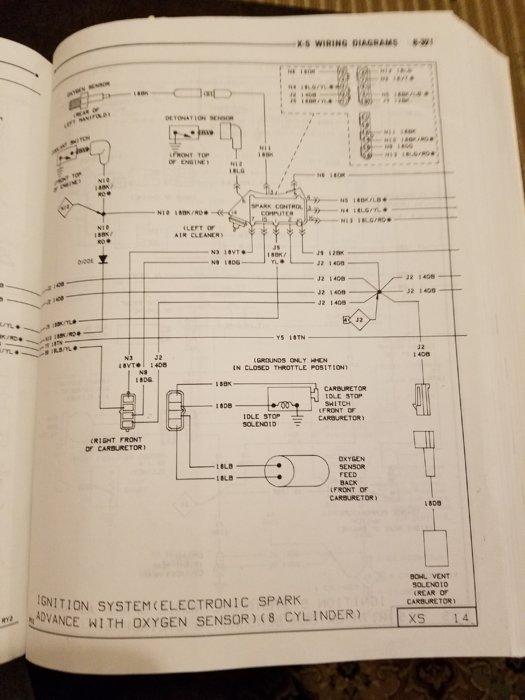

    20180426_210751.jpg 20180426_210748.jpg

    Last edited: Apr 26, 2018
    4speedjim likes this.
  20. 80mirada

    80mirada Well-Known Member

    Messages:
    834
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

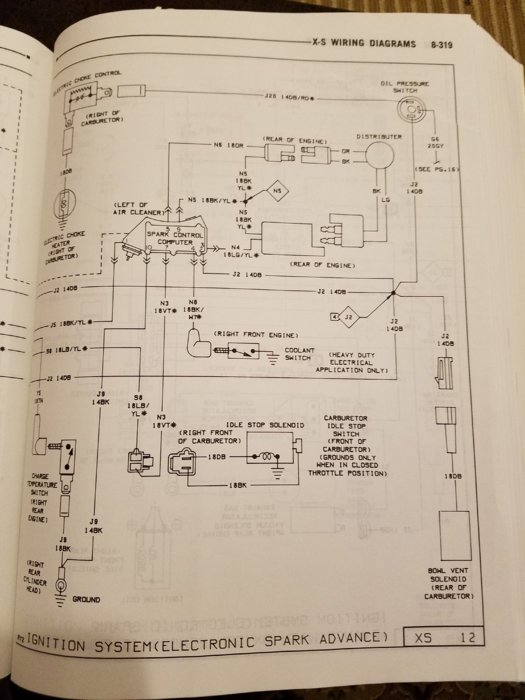

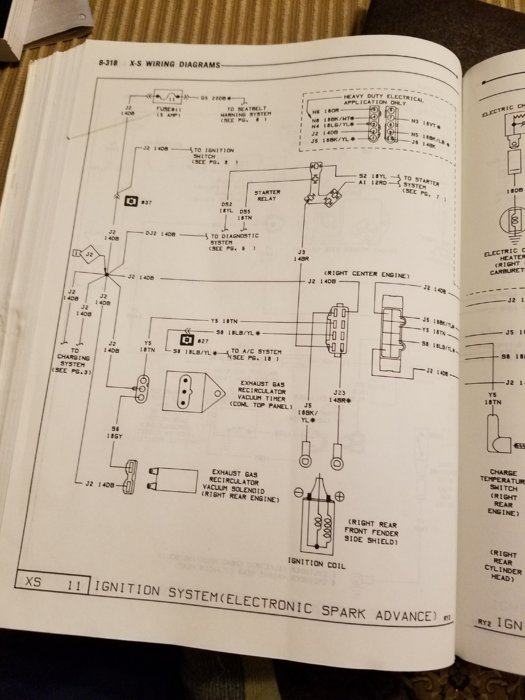

    20180426_210742.jpg 20180426_210738.jpg
