Hey guys I have a k member question. Small block to big block, I have a option to get a 70’s big block b body k member from my Dad and I’m wondering if the bb k member will bolt right in to my Mirada. I can’t get measurements on the bb k member cause he lives 4 hours away. So I’m asking my fellow guru’s if they would know. Thanks for any info!


Aspen500

Well-Known Member
Joined
Feb 14, 2015
Messages
7,030
Reaction score
2,759
Location
Rib Mountain, WI
Hey guys I have a k member question. Small block to big block, I have a option to get a 70’s big block b body k member from my Dad and I’m wondering if the bb k member will bolt right in to my Mirada. I can’t get measurements on the bb k member cause he lives 4 hours away. So I’m asking my fellow guru’s if they would know. Thanks for any info!
Nope, not even close to fitting. They are completely different.


Aspen500

Well-Known Member
Joined
Feb 14, 2015
Messages
7,030
Reaction score
2,759
Location
Rib Mountain, WI
There is very little the same between A/B/E-body and F/M/J. They are the only ones with transverse torsion bars, among other things.


BudW

Moderator
Staff member
Joined
Mar 4, 2012
Messages
5,121
Reaction score
1,485
Location
Oklahoma City
The K-frames for FMJ are unique on many levels.

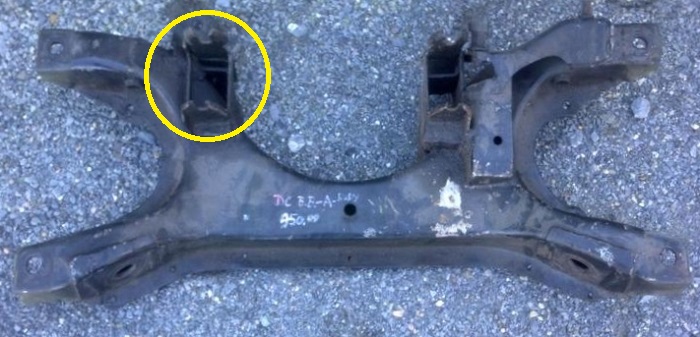

This is for an A-body (but '73 and older B-body and E-body are simular):
K BB Ab.jpg

Note: this one uses spool engine mounts - the same ones FMJ's use.

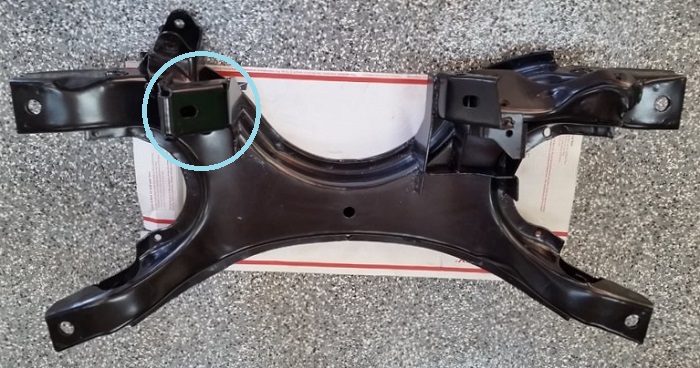

K 70 Bb.jpg

This is a '70 B-body. It uses the flat biscuit engine mounts.

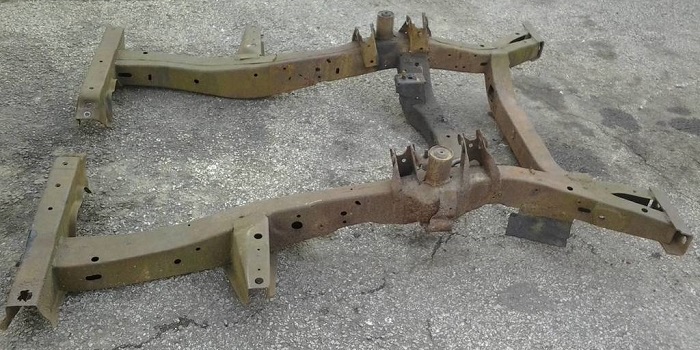

K Cb.jpg

A C-body subframe.

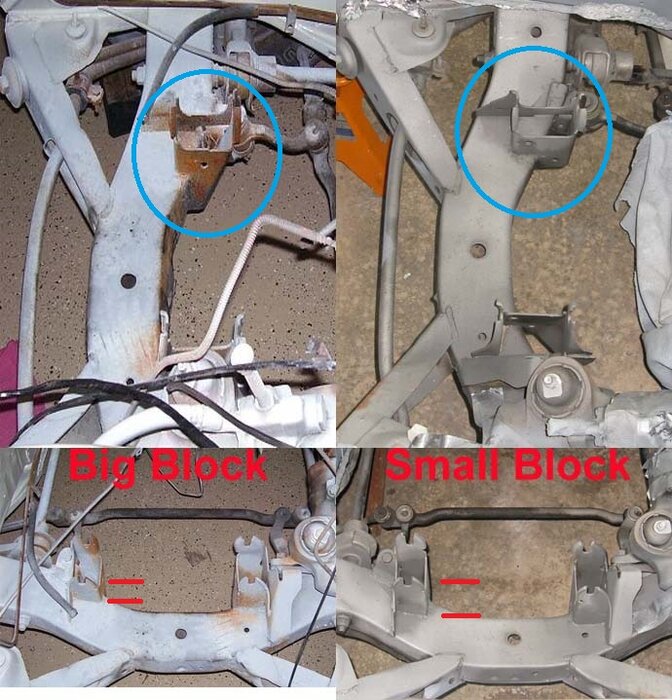

BBvsSB 73-74k-frame b.jpg

A '74-81 B/R-body K-frame (smaller than C-body but much larger than older A/B/E-body. This one shows the difference between Small Block and Big Block mount position.
A little metal work and welding, you can change a FMJ K-frame to a big block (if wanted).
