Miller trans tools ID

Transmissions and Rear Ends

  1. volare 77

    volare 77 Well-Known Member

    Messages:
    1,271
    Likes Received:
    166
    Joined:
    Jun 12, 2014
    Location:
    maryland
    Does someone know what these tools are for? I think they are miller trans tools of some type. I want to sell them but I would like to know what they do.

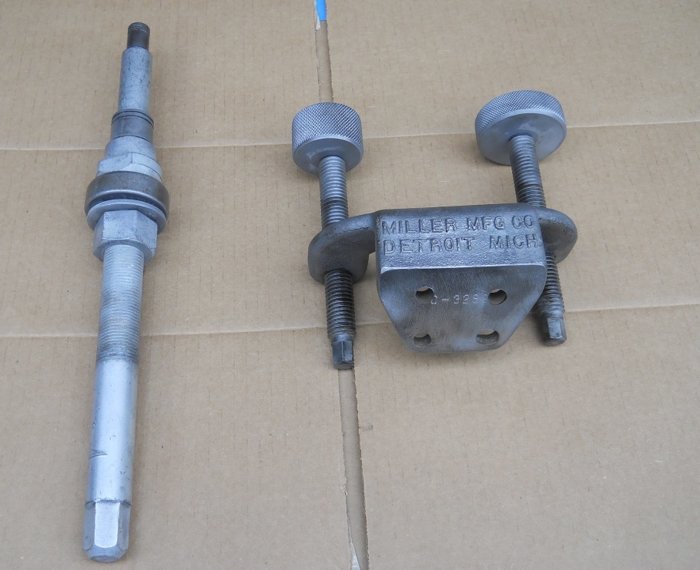

    c3289 c708.jpg

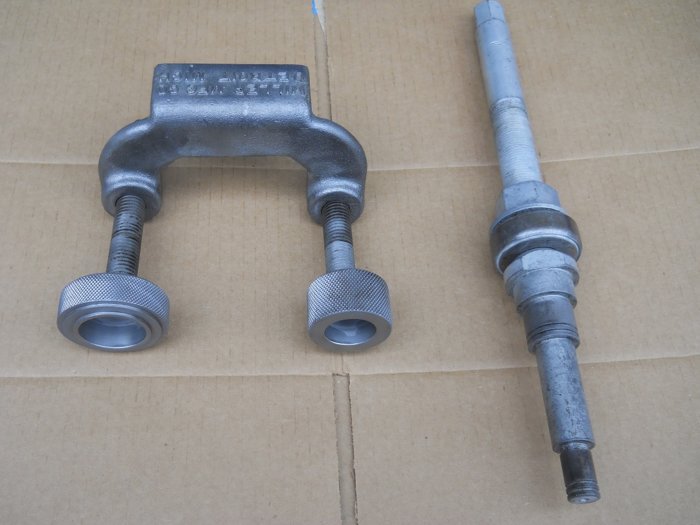

    c3289 c708a.jpg

  2. Aspen500

    Aspen500 Well-Known Member

    Messages:
    4,808
    Likes Received:
    1415
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    Are there any numbers on them? I see one on the tool with the 2 screws but can't quite make it out. The tool on the right APPEARS to be some sort of forcing tool to install bushings or bearings(?) I see the thrust bearing which is more like a pulley installer. Only a guess.

    The other tool, no ideas at all. Are you sure they're for transmissions?

  3. volare 77

    volare 77 Well-Known Member

    Messages:
    1,271
    Likes Received:
    166
    Joined:
    Jun 12, 2014
    Location:
    maryland
    After some help and research I found out what they are for. The C3289 is superseded by C3529 which says it is for powerflite and 56 chrysler 3 speed trans. It is used for the servo spring compressor. The C-708 was shown to be for a fluid drive trans for runner hub bushings installation and burnishing.
