Need radio wire diagram for 1985 Fifth Avenue

Interior and Electrical

  1. Dapert

    Dapert Member

    Messages:
    13
    Likes Received:
    4
    Joined:
    Mar 15, 2018
    Location:
    Richmond, TX
    Previous owner replaced factory radio with a POS Dual and clipped the factory harness. I purchased a Metra harness for connecting wires to the factory radio. Problem is the car radio diagrams I find on all of the car audio databases don't match the colors I have in the dash.

    I see:
    red
    red/blue
    yellow
    black&white
    black&yellow

    Car audio databases say I should have:
    Red - Constant 12v
    Red/White - Switched 12v
    Orange - Dimmer
    Yellow - Antenna trigger

    Does anybody have the real diagram so I can make sure I connect this properly?
    There is another bundle as well that he had all taped together for the speakers. For now just trying to get the power wires correct.

  2. Justwondering

    Justwondering Well-Known Member

    Messages:
    2,500
    Likes Received:
    575
    Joined:
    Aug 7, 2015
    Location:
    North Texas
    I can take a picture and upload it for you in just a bit.

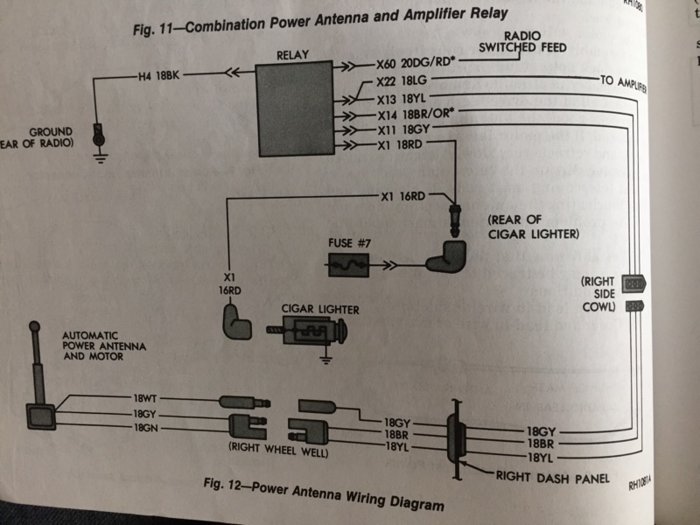

    The diagram I have in the manual has the following colors:

    DG/RD
    LG
    YL
    BR/OR
    GY
    RD
    GN
    WT
    BK

    Thats from the ground through the relay, from the relay to the amplifier/cigar lighter/dash panel/right wheel well.

    Gotta resize the photo and I'll upload it.

  3. Justwondering

    Justwondering Well-Known Member

    Messages:
    2,500
    Likes Received:
    575
    Joined:
    Aug 7, 2015
    Location:
    North Texas
  4. Dapert

    Dapert Member

    Messages:
    13
    Likes Received:
    4
    Joined:
    Mar 15, 2018
    Location:
    Richmond, TX
    Thanks. Can you snap the page on the speakers too just for good measure?

    I'm not seeing any colors there that match what is in my dash opening... other than RD and YL which I assume are red and yellow. Might have to go trial and error but put them on the volt meter first and see which are power.

  5. Justwondering

    Justwondering Well-Known Member

    Messages:
    2,500
    Likes Received:
    575
    Joined:
    Aug 7, 2015
    Location:
    North Texas
    Dapert - -
    I'm out of town until Wednesday afternoon. Will see if there is another page of info for you when I return.
    There is also a troubleshooting chart ... I can post that if you think it would be helpful.

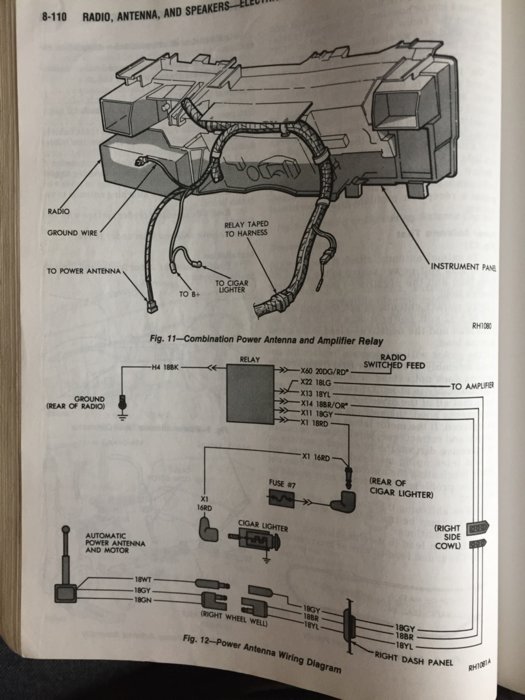

    This info is out of my 87 5th Avenue service manual.

    JW

  6. BudW

    BudW Moderator Staff Member

    Messages:
    3,278
    Likes Received:
    888
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I have noticed the wire colors change over the years.
    Knowing what year car you are working with, helps.
    BudW

  7. MoparDan

    MoparDan Well-Known Member

    Messages:
    116
    Likes Received:
    14
    Joined:
    Mar 17, 2011
    Location:
    Daytona Beach, FL
    I have an '85 I'll check mine in the next few days, the wires were different colors then what the factory service manual said if I remember right

  8. BudW

    BudW Moderator Staff Member

    Messages:
    3,278
    Likes Received:
    888
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I have ran across that before, as well.

  9. BudW

    BudW Moderator Staff Member

    Messages:
    3,278
    Likes Received:
    888
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    These are from my ’86 FSM (Factory Service Manual).

    The first couple of pictures were taken with my phone.
    The rest were scanned using my works copier machine.

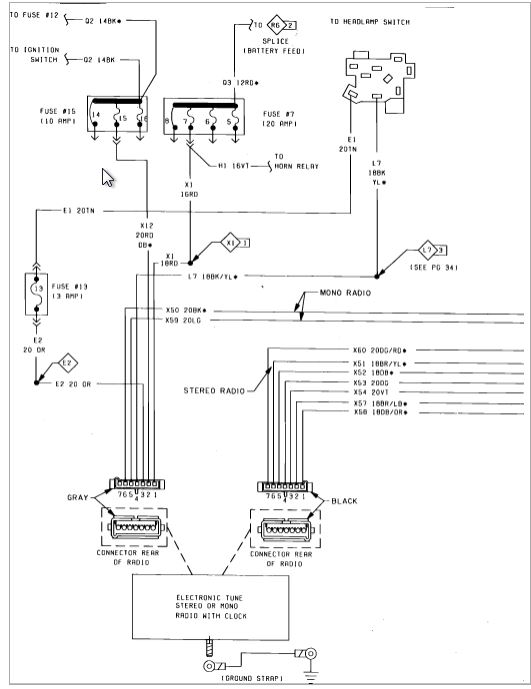

    86 FSM pg 8-224.JPG

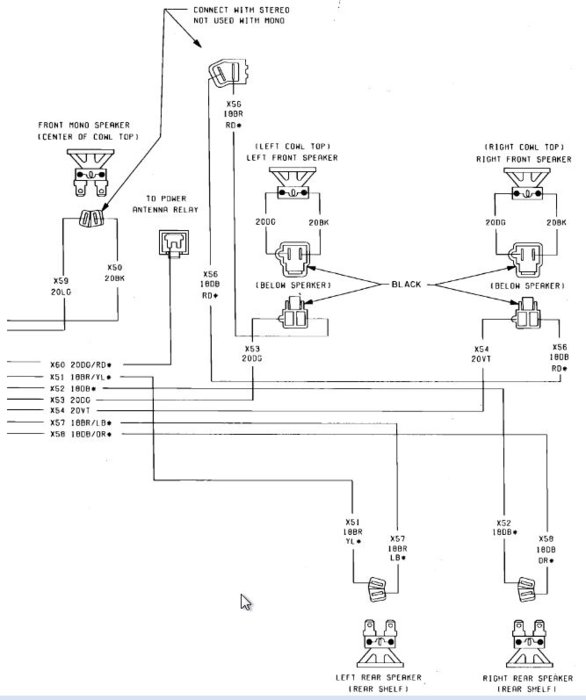

    86 FSM pg 8-225.JPG
    BudW


    Attached Files:

  10. MoparDan

    MoparDan Well-Known Member

    Messages:
    116
    Likes Received:
    14
    Joined:
    Mar 17, 2011
    Location:
    Daytona Beach, FL
    Here's what my '85 Gran Fury has (I'm assuming your '85 Fifth Avenue would have the wire colors) and yes the wires have different colors then what the factory service manual says:
    Grey plug:
    Battery: red
    Acc: red/blue
    Illumination: orange
    Park: black/yellow
    Right Front -: lime green
    Left Front -: black/grey
    Mute: no wire

    Black plug:
    Antenna: orange/red
    Left Rear +: brown/yellow
    Right Rear +: grey/white
    Left Front +: yellow
    Right Front +: pink
    Left Rear -: brown/blue
    Right Rear -: grey/orange
