FOR SALE NOS Body Hold-Downs 1973-1989

FMJ Body Parts For Sale

  1. marty mopar

    marty mopar Well-Known Member

    Messages:
    168
    Likes Received:
    26
    Joined:
    Mar 9, 2011
    Location:
    Tempe AZ
    Contact Seller
    3642851 BODY HOLD-DOWN OR LOWER FRAME ISOLATOR 1973-79 55.00
    4001552 BODY HOLD-DOWN REAR LOWER ISOLATOR 3 15/16 ACROSS 75.00
    4001554 BODY HOLD-DOWN REAR ISOLATOR INSERT 99201 SOP 3.25 X 3.75 INCHES 75.00
    4001595 BODY HOLD-DOWN FRONT UPPER ISOLATOR 76.00
    4001596 BODY HOLD-DOWN FRONT LOWER ISOLATOR 76.00

    the last 4 numbers fit 1976-1989 various models

    check your part books to see if they will work on your car

  2. BudW

    BudW Moderator Staff Member

    Messages:
    3,276
    Likes Received:
    888
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Thanks, Marty!

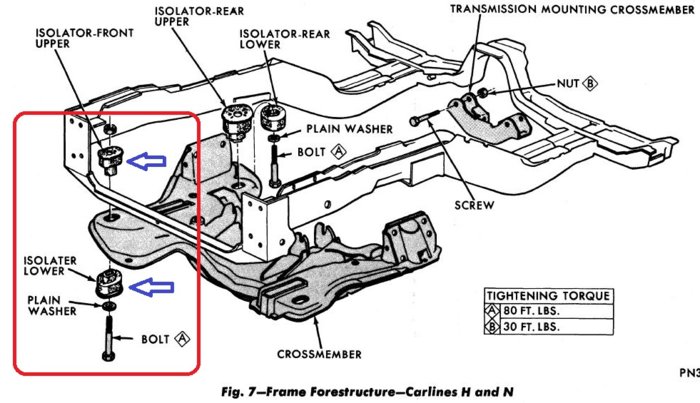

    To help others, he has this part available (blue arrows inside of red box):
    77 FSM pg 13.7.JPG

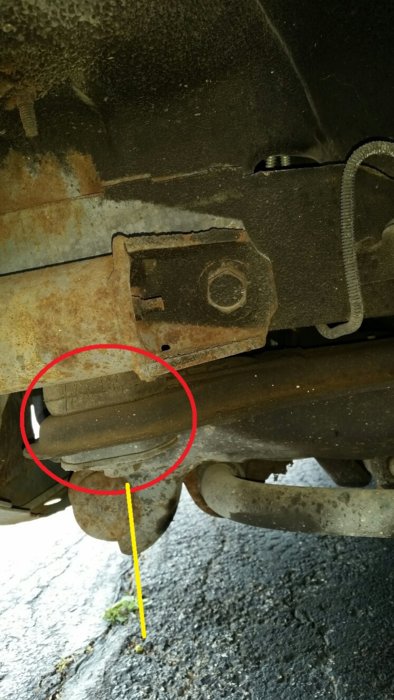

    Red circle

    4001552 is the Rear Lower Insulator or Cushion
    4001554 is the Rear Upper
    4001595 is the Front Upper
    4001596 is the Front Lower
    Two of each are needed for each part number above.


    The other part number, 3642851, is for B-body’s (only) and is the same part for all four corners, lower insulator (or cushion) – so it doesn’t apply to FMJ’s.
    BudW
