Problems with Parking Brake Strut

F Body General Discussion

  1. 1337m4723

    1337m4723 Member

    Messages:
    5
    Likes Received:
    1
    Joined:
    Apr 14, 2018
    Location:
    Hanover Germany
    Hello guys,

    my dad and me are fixing my 77 Aspen 225cui SE Woody-Wagon at the moment (pictures to find in the hello-section) and reached a severe point while repairing the rear drumbrakes.

    The parking brake didn't work before, and after installing a complete repair-kit for the brake and the parking brake it didn't start working.

    So we come to the point that we found out the parking brake struts were missing totally. We didn't recognize that fact, because we didn't know what the brake should look like originally. So I guess some previous owner changed the brake-parts and just forgot(!) about the parking brake struts. :(

    It's a really bad thing, because I couldn't find fitting struts for my 10" brakes. There seemed to exist fitting parts for 11" brakes or 10" from 65 to 74 for A-Bodies only.

    And A-Body-Cars like the Plymouth Valiant are thepredecessors from F-Bodies I thought.
    So I learned that the 10" parking brake strut from the A-Bodies should fit from 1965 to 1979 (also for F, M, J, R -Bodies).

    So my question is: would the #2409823 (Parking Brake Strut) really fit in my Aspen? I need a functioning parking brake because of the german TÜV laws.

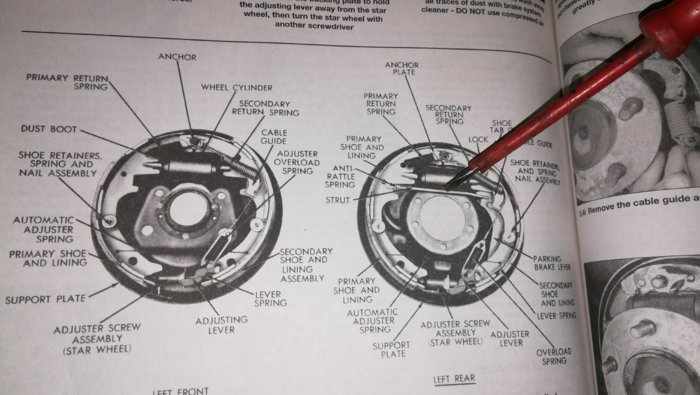

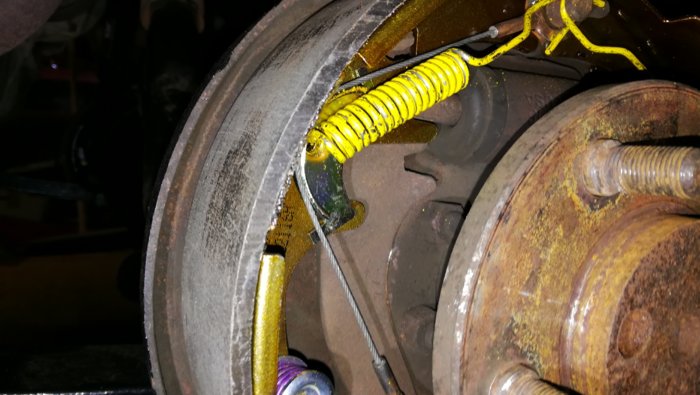

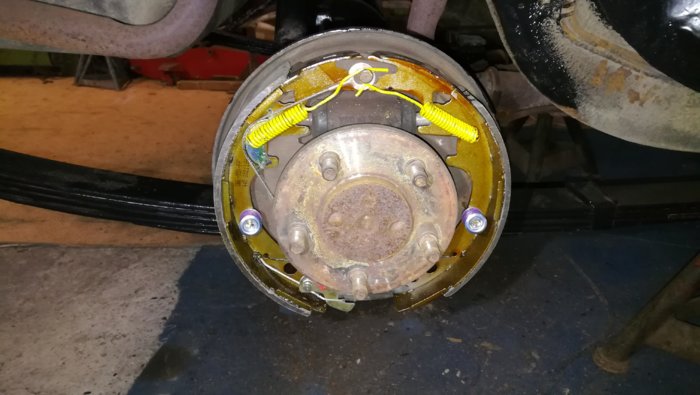

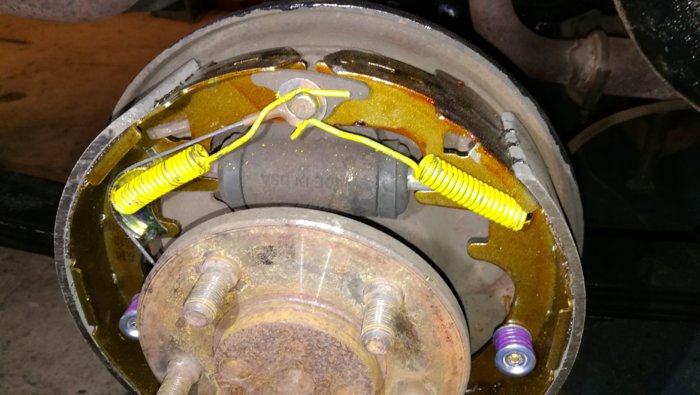

    Here are some pictures of my brake without the strut.

    Many greetings from germany! :):)







    Last edited: Apr 16, 2018
  2. Aspen500

    Aspen500 Well-Known Member

    Messages:
    2,922
    Likes Received:
    816
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    Yes it will fit. Same p/n an F-body takes. In fact, about the only thing that may be different for 10" rear drum for all years and models is the wheel cylinder (different dia pistons). Same is true for 11"

    My guess for why they're missing is, the parking brake cables were seized and instead of replacing or disconnecting them, they left the strut out so the drum would go back on.

    1337m4723 likes this.
  3. 1337m4723

    1337m4723 Member

    Messages:
    5
    Likes Received:
    1
    Joined:
    Apr 14, 2018
    Location:
    Hanover Germany
    Thank you for the answer!! :)

    So then I will order that parts immediatly. But I hope you're guessing wrong about the brake cable :-D We checked the cable and it moves and the parkingbrake-parts within the brakedrum are also moving.

    So I really hope, it's just the missing struts we need to replace, and everything will work properly after that episode...

    There are a few other sites that'll need my attention and work on :-D The brake-problem wasn't planned and didn't fit the plan.

  4. BudW

    BudW Moderator Staff Member

    Messages:
    2,854
    Likes Received:
    764
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    The 11” drum brake hardware looks to be the same as 10” drum brake hardware – but as far as I know, none of the 11” hardware will interchange with 10” hardware – including the park brake struts.

    The ~1965 to mid-2000, 10” brake hardware (for all body styles and pickups) will interchange as an "assembly". The newer hardware is more reliable than older – but any version works fine (as long as it is complete and same on both sides.

    The struts themselves I don’t think has changed any through the years. I have seen a few of them left off of cars over the years – more because of shade-tree mechanics (I think – but no proof, though).

    Part number 2409823 is the correct part number you need (fits either side).
    BudW

  5. Aspen500

    Aspen500 Well-Known Member

    Messages:
    2,922
    Likes Received:
    816
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    The cables were just a guess. I've seen the strut missing before (on more than one make). Brake cables in this climate (meaning winter road salt) seize from rust regularly, even if you always use it. Happened to my '96 Dakota three times in the 20 years I've owned it, and I always used the brake. Some people have the cables replaced, some don't.
