Radio connections, electric antenna G22

[Mikes5thAve]

No problem. That sounds about right.
I need to dig into the wiring myself at some point down the road because my truck has an aftermarket radio i want to put back to stock and I'm sure they've messed with the wiring for that.



[Gunnar Schroder]

Good to hear from you and I will send you feed-back later when the antenna is in Place. I am positive it will fit. As I see it there is no other solution.



[Gunnar Schroder]

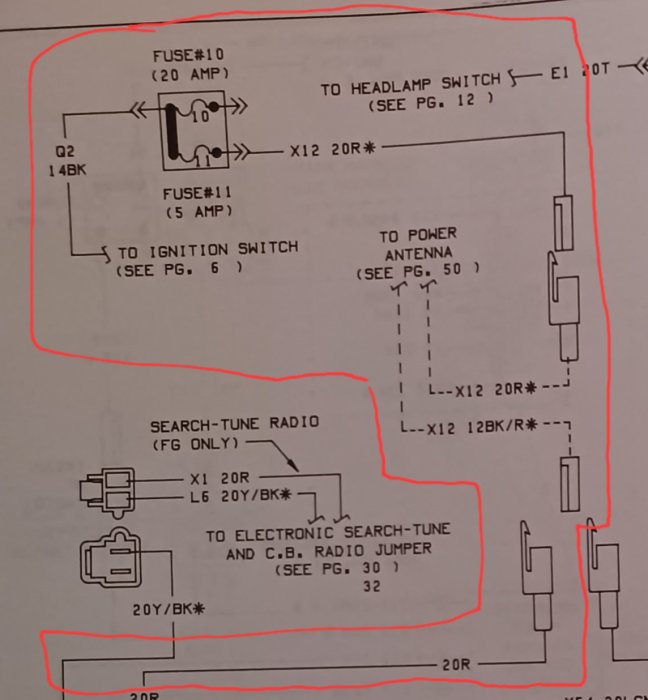

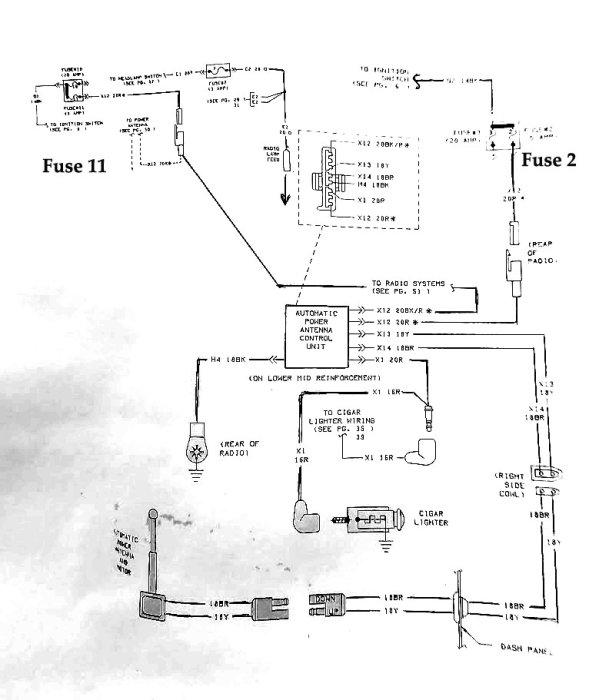

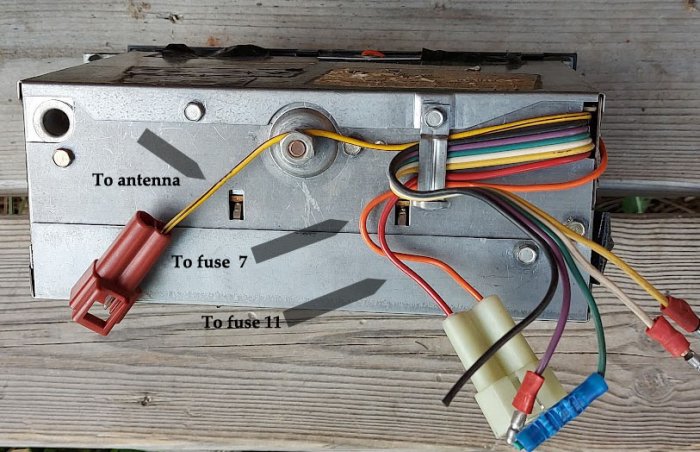

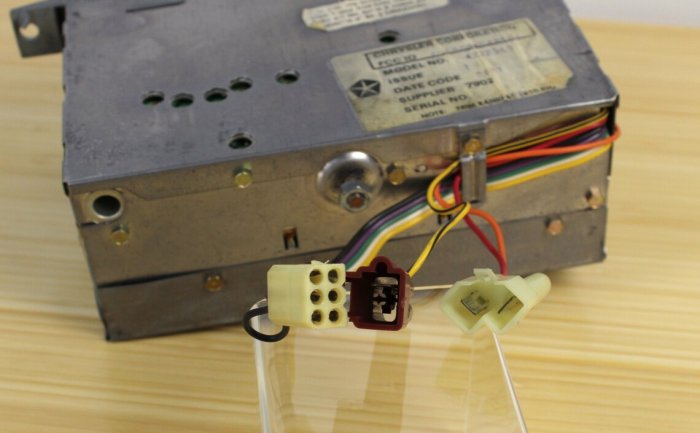

An unclear scheme I made for my own memory and simplified



[Mikes5thAve]

It doesn't feed to 2 different fuses like your diagram shows. The X12 20BK/R goes to red wire of the radio which was previously connected to the fuse. Which is where the X12 20R wire now connects.



[Gunnar Schroder]

Sorry Mike for dropping a clanger. The original red was already connected aleady to fuse 11! I am looking forward to checking it over on wednesday. So the other from the Contol box just connect up with the one already in use?
