Rear Hub to Hub dimensions

Greg55_99

Well-Known Member
Joined
Apr 17, 2011
Messages
331
Reaction score
78
Anybody got the rear wheels off and can give me the hub to hub dimensions for a stock 8.25"?

Greg


holmes

Well-Known Member
Joined
Mar 10, 2011
Messages
110
Reaction score
1
Location
Speedway,Indiana

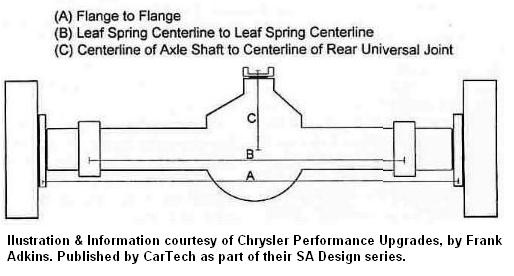

Year Axle Type (A) (B) (C)
1963 - 1972 7 1/4" A-Body 53.200" 43.02" 10.09"
1973 - 1976 7 1/4" A-Body 51.400" 43.02" 10.09"
All 7 1/4" F/J/M-Body 54.340" 44.46" 10.09"
1973 - 1976 8 1/4" A-Body 51.400" 43.02" 11.69"
All 8 1/4" B/R-Body 57.800" 47.30" 11.69"
All 8 1/4" C-Body 59.200" 47.30" 11.69"
All 8 1/4" F/J/M-Body 54.340" 44.46" 11.69"
All 8 3/4" A-Body 51.400" 43.00" 12.35"
1962 - 1970 8 3/4" B-Body 55.000" 44.00" 12.35"
1971 - 1974 8 3/4" B-Body 57.800" 47.30" 12.35"
1971 - 1974 8 3/4" B-Body S.W. 59.200" 47.30" 12.35"
All 8 3/4" E-Body 56.500" 46.00" 12.35"
All 9 1/4" B/R-Body 57.800" 47.30" 11.69"
All 9 1/4" C-Body 59.200" 47.30" 11.69"
1966 - 1970 9 3/4" B-Body 54.936" 44.00" 13.47"
All 9 3/4" E-Body 56.500" 46.00" 13.47"


Greg55_99

Well-Known Member
Joined
Apr 17, 2011
Messages
331
Reaction score
78
Thanks for the info. I was also hoping to get outside hub to outside hub rear measurements. Any help?

Greg


slant6billy

Well-Known Member
Joined
Dec 21, 2011
Messages
2,971
Reaction score
694
Guys, I will be picking up a non posi late 60s B body 8 3/4 rearend. I have a 1973 center with a 4:10 (4:11) by counting the number of turns. What I don't know is whether or not the driveshaft yoke on the 73 charger 8 3/4 would be the same as my 8 1/4? I do realize the 8 3/4 is .61 of an inch closer to the trans and that means I'll need to keep that in mind on rear suspension height (can't keep it too low).
