Super Six Hose Hookup

Rifleshooter

Well-Known Member
Joined
Jan 10, 2017
Messages
160
Reaction score
4
Location
Pennsylvania
So I recently did a 1 to 2bbl carb swap on my 1980 volare and aside from my repair manual I still seem to be having trouble with finding out what vacuum line goes where. Anybody have a diagram or info that could help me?


slant6billy

Well-Known Member
Joined
Dec 21, 2011
Messages
2,971
Reaction score
694
I might, but I definitely can shoot an under hood pic of my super6 tomorrow after work. All the lines are like they were at the factory


Rifleshooter

Well-Known Member
Joined
Jan 10, 2017
Messages
160
Reaction score
4
Location
Pennsylvania
I might, but I definitely can shoot an under hood pic of my super6 tomorrow after work. All the lines are like they were at the factory
Sounds good to me. I looked in my book so many times it's rediculous and there nothing there for non Canada 2bbl slants in 1980. So I ended up going to the 79 diagram and hooking up what was on there that I could find a location for as a temporary fix.


slant6billy

Well-Known Member
Joined
Dec 21, 2011
Messages
2,971
Reaction score
694

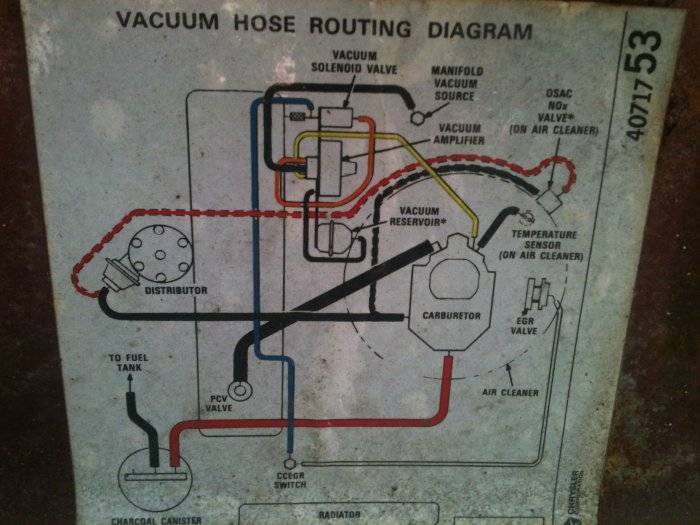

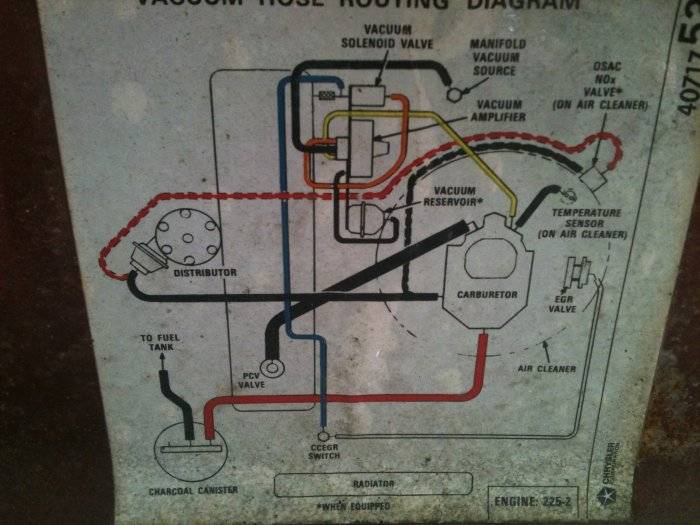

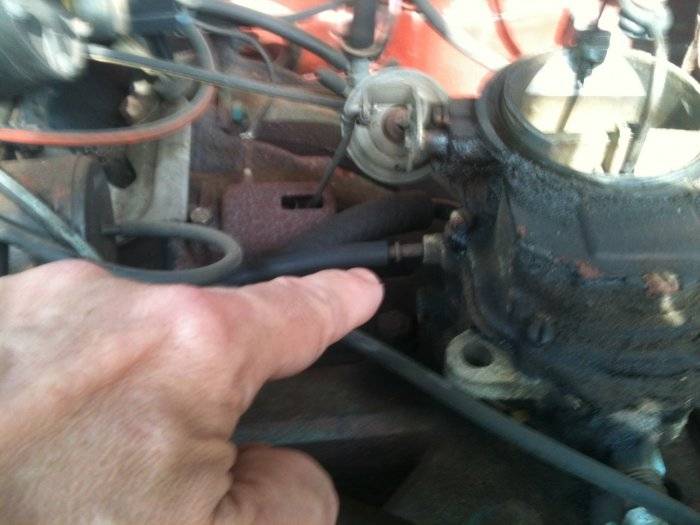

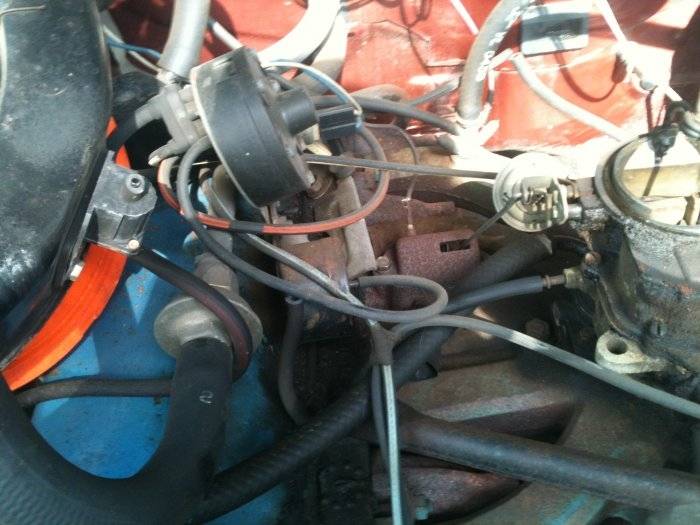

So the 2 vacuum lines off the carb on mine. The one to the back driverside corner of the carb goes to the bottom of the aircleaner to open /close the cold damper in the fresh air tube. The other one that comes out of the car pointing toward the pass side goes to the little block mounted on the side of the aircleaner. From there it goes to the distributor and the vacuum amplifier on the valve cover.


slant6billy

Well-Known Member
Joined
Dec 21, 2011
Messages
2,971
Reaction score
694

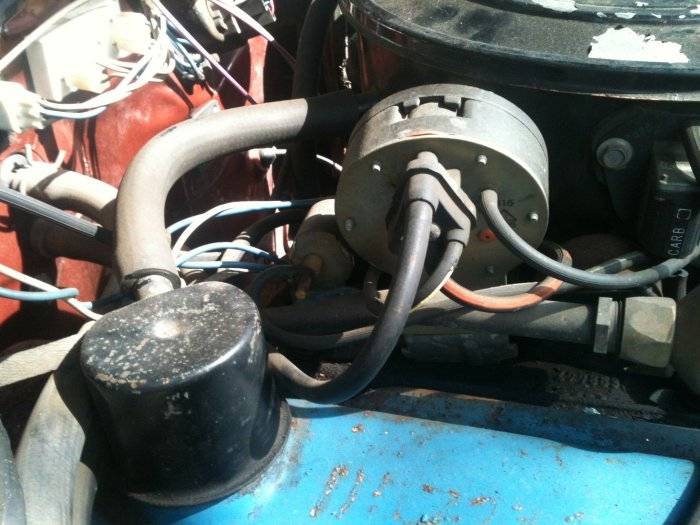

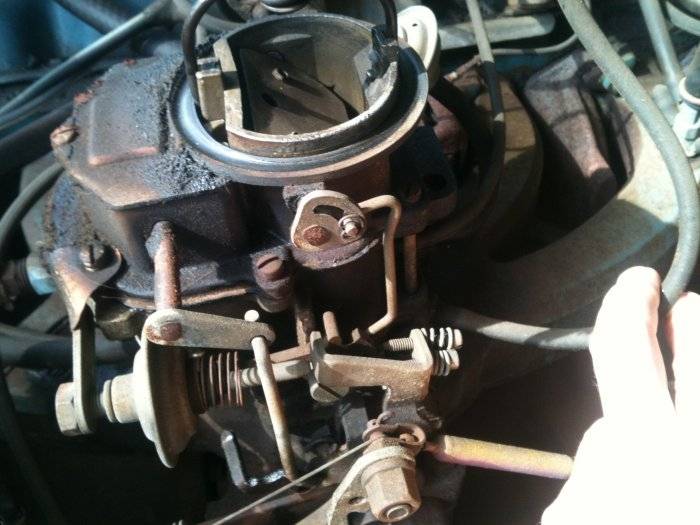

This one goes to the under side of the aircleaner where there are 2 vac nipples for the flapper fresh air door
