1980-83 cordoba rocker panel moldings with hardware

[Mopar&vettedude]

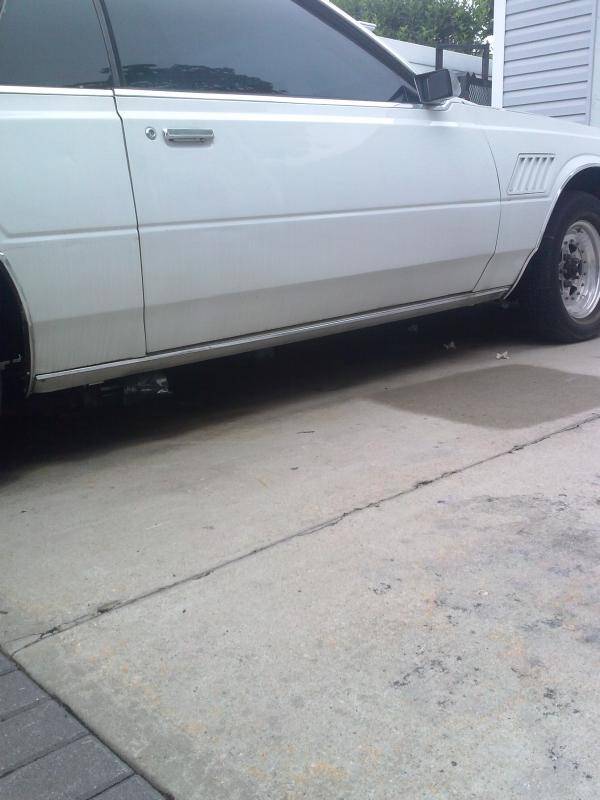

Looking for the rocker panel moldings for my doba. my car never came with them but still has the rivets on the body to do it. Anyone have some or know of anyone that has some. let me know. Thanks.



[MiradaMegacab]

Note: Mirada and the Cordoba LS rocker trim is different than the Cordoba trim. Just saying



[Mopar&vettedude]

how much different?



[MiradaMegacab]

Mirada trim doesnt come up onto the fender abd quarter panel like most Cordobas do.



[MiradaMegacab]

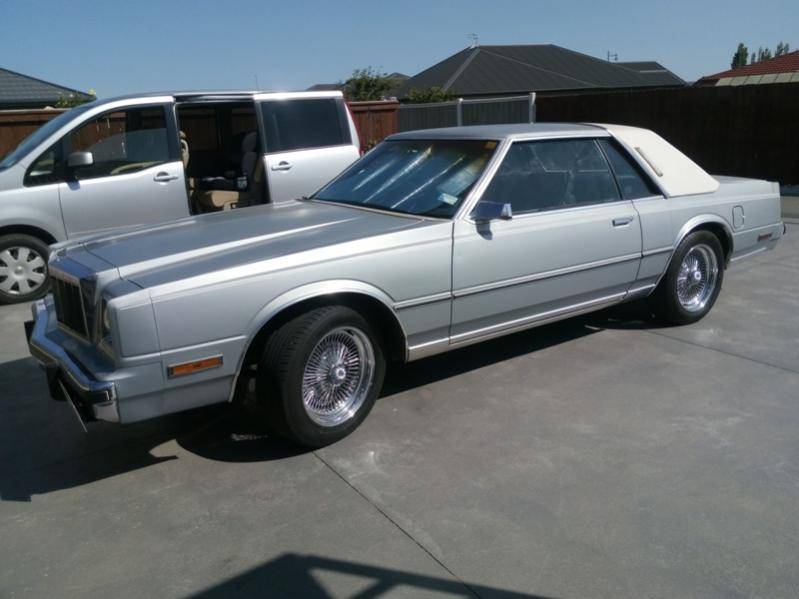

BruceNz Cordoba



[Mopar&vettedude]

ok i see what you're talking about. Then i need the set up like BruceNz doba.



[marty mopar]

4175196 Right

4175197 Left

have both NOS

the part book shows these as attaching parts:

3780999 retainer pkg not sure what this is

6003763 retainer this one would be the plastic clip

no QTYS shown for the clips



1983 Cordoba:

1 4175 306-7 1 MOULDING,Body Frt.Pillar Drain Trough
6003 591 AR RETAINER
2 4175 030-1 1 MOULDING,Roof Side Drain Trough,w/o Padded Landau Roof
4175 418-9 1 w/Padded Landau Roof w/Qtr. Plug
8 4175 170-1 1 MOULDING,Roof Transverse,Use on Padded Landau Roof w/Qtr.
Plug
6003 642 RETAINER
9420 867 NUT
SCREW
9 X134-5 BL4 1 MOULDING,Fndr.Side,Beige Met.
X134-5 BA2 1 Silver Met.
X134-5 TC9 1 Night Watch Blue
X134-5 BM5 1 Red
X134-5 BT8 1 Sable Tan
X134-5 VW3 1 Pearl White
X134-5 TX9 1 Black
11 4175 130-1 1 MOULDING,Fndr.Wheel Opening
SCREW
12 4175 196-7 1 MOULDING,Body Side Sill
3780 999 RETAINER PKG.
6003 763 RETAINER
6028 674 SCREW
14 4175 146 2 MOULDING,Door
6028 674 SCREW
6026 523 NUT
6001 927 RETAINER
15 X128 BL4 2 MOULDING,Door,Beige Met.
X128 TC9 2 Night Watch Blue
X128 VW3 2 Pearl White
X128 BM5 2 Red
X128 BA2 2 Silver Met.
X128 BT8 2 Sable Tan
X128 TX9 2 Black
16 4175 470-1 1 MOULDING,Fndr.,Rear Edge Belt
SCREW
17 4175 380-1 1 MOULDING,Door Belt,w/Mirror
18 4175 420-1 1 MOULDING,Qtr.Wdo.Belt,Use on Padded Landau Roof w/Qtr.
Plug
19 4175 018-9 1 MOULDING,Qtr.Drain Trough and Belt,Use w/o Padded Landau
Roof,w/o Qtr. Plug
20 4175 150-1 1 MOULDING,Qtr.Opera Wdo.,Use w/o Padded Landau Roof,w/o
Qtr. Plug
21 X135 BL4 1 MOULDING,Qtr.,Rt.,Beige Met.
X135 TC9 1 Night Watch Blue
X135 BM5 1 Red
X135 BT8 1 Sable Tan
X135 VW3 1 Pearl White
X135 TX9 1 Black
X135 BA2 1 Silver Met.
X134 BL4 1 Lt.,Beige Met.
X134 TC9 1 Night Watch Blue
X134 BM5 1 Red
X134 BT8 1 Sable Tan
X134 VW3 1 Pearl White
X134 TX9 1 Black
X134 BA2 1 Silver Met.
22 4205 532-3 1 MOULDING,Qtr.Pnl.
6003 739 RETAINER
6028 674 SCREW
6003 333 RETAINER
6002 794 RETAINER
NUT
23 4175 132-3 1 MOULDING,Qtr.Wheel Opening
SCREW
24 1 MEDALLION,Deck Lid Lock Cyl.
X592 BA2 1 Silver Met.
X592 AA9 1 Dark Silver
X592 BC4 1 Blue
X592 BM5 1 Red
X592 BL4 1 Beige Met.
X592 BT8 1 Sable Tan
X592 AW3 1 White
X592 AX9 1 Black
25 4175 495 1 NAMEPLATE,Deck Lid,"Cordoba"
4229 782 1 "Chrysler"
26 4078 616 2 CAP,End
27 4276 361 1 BOW,F/Strip Assy.,Black
4078 614 1 Cashmere
4276 358 1 Blue
4223 362 1 White
4276 364 1 Red
4319 696 1 Beige
28 AR SCREW (8-18 x .75)
29 AR RIVET (1/8 x 46 Fl. Hd.)
30 TAPE,Foam
31 4078 626-7 1 APPLIQUE,Qtr. Upr.
32 4276 359 1 KIT COVER ASSY. and Back Lite Lwr.,Black
4276 352 1 Cashmere
4276 351 1 White
4276 356 1 Blue
4276 362 1 Red
4319 694 1 Beige
34 4276 360 1 WELT ASSY.,W/Shield Header,Black
4078 634 1 Cashmere
4223 360 1 White
4276 357 1 Blue
4276 363 1 Red
4319 695 1 Beige
35 AR RIVET (1/8 x .328 Fl. Hd.)
36 AR RIVET (1/8 x 42 s/s)
37 RETAINER,Cap Upr. Frt. Outer (Serv. in Cap Assy)
38 4078 611 2 RETAINER,Frt. Cap Outer
39 AR RIVET (1/8 x .328 Fl. Hd.)
40 4078 612 1 CAP ASSY,Fiber Glass,Complete
41 4078 620-1 1 MOULDING,Qtr. Pnl Belt
42 AR RIVET (1/8 x 46 Fl. Hd.)
43 4078 618 AR SUPPORT,Back Lite Trim Pnl.
44 4078 619 2 INSERT,Belt Mldg.
45 4078 622 1 MOULDING,Back Lite
46 4094 619 AR RETAINER
47 4057 555 AR NUT
48 4078 617 AR MOULDING,Back Lite Int. Raw
49 AR SCREW
50 AR RIVET (1/8 x 43 Fl. Hd.)
51 AR TAPE (1/32 x 5/8)
52 4078 623 1 ORNAMENT,Rt. Side
53 BRACKET,Cap Retainer Side (Serv. in Cap Assy)
54 4078 610 1 RETAINER,Frt. Cap Center
55 AR RETAINER,Cap Upr. Frt. Center


1983 Mirada:

1 4175 306-7 1 MOULDING,Body Frt.Pillar Drain Trough
2 4175 030-1 1 MOULDING,Roof Side Drain Trough,Use on Simulated Conv.
Roof
6003 591 AR RETAINER
4175 172-3 1 MOULDING,Roof Side Drain Trough,Not Used on Simulated
Conv. Roof
3 X160-1 VX9 1 MOULDING,Roof Transverse,Black
NUT (Not Serv.)
9420 867 NUT
9 4175 424-5 1 BRACKET,Roof Transverse Mldg.Attaching
NUT (Not Serv.)
SCREW
11 4175 130-1 1 MOULDING,Fndr.Wheel Opening
SCREW
12 X092-3 TXX 1 LOUVER,Fndr.Side,Black
4103 488 2 PLATE,Fndr.Side Pnl.Louver Mtg.
NUT
13 4175 470-1 1 MOULDING,Fndr.,Rear Edge Belt
SCREW
14 4175 549 2 NAMEPLATE,Fndr.Side."Mirada"
4175 415 2 "CMX"
15 MOULDING.Fndr.Side
X134-5 BA2 1 Silver Met.
X134-5 BL4 1 Beige Met.
X134-5 VW3 1 Pearl White
X134-5 TC9 1 Night Watch Blue
X134-5 BM5 1 Red
X134-5 BT8 1 Sable Tan
X134-5 TX9 1 Black
16 X128 BL4 2 MOULDING,Door,Beige Met.
X128 TC9 2 Night Watch Blue
X128 VW3 2 Pearl White
X128 BM5 2 Red
X128 BA2 2 Silver Met.
X128 BT8 2 Sable Tan
X128 TX9 2 Black
17 4175 380-1 1 MOULDING,Door Belt,w/Mirror
18 4175 176-7 1 MOULDING,Qtr.Wdo.Belt,Use w/o Simulated Conv. Roof
SCREW
19 4175 150-1 1 MOULDING,Qtr.Opera Wdo.,Use w/o Simulated Conv. Roof
20 MOULDING,Qtr.,Rt.
X135 BA2 1 Silver Met.
X135 TC9 1 Night Watch Blue
X135 BL4 1 Beige Met.
X135 BT8 1 Sable Tan
X135 BM5 1 Red
X135 VW3 1 Pearl White
X135 TX9 1 Black
MOULDING,Qtr.,Lt.
X134 BA2 1 Silver Met.
X134 TC9 1 Night Watch Blue
X134 BL4 1 Beige Met.
X134 BT8 1 Sable Tan
X134 BM5 1 Red
X134 VW3 1 Pearl White
X134 TX9 1 Black
21 4175 132-3 1 MOULDING,Qtr.Wheel Opening
SCREW
22 4175 128-9 1 MOULDING,Body Side Sill
6028 674 SCREW
6003 715 RETAINER
23 4175 549 1 NAMEPLATE,Deck Lid,"Mirada"
4229 779 1 NAMEPLATE,Deck Lid,"DODGE"
25 X515 TA3 1 MOULDING and PNL.,Deck Opng.Lwr.Lic.Plate Mtg.,Burnish
Silver,Use on Monotone Paint Cars
26 MOULDING,Qtr. Drain Trough and Belt
4175 018-9 1 Use w/Simulated Conv. Roof
27 4078 616 2 CAP,End
28 4276 361 1 BOW,F/Strip Assy.,Black
4078 614 1 Cashmere
4276 358 1 Blue
4223 362 1 White
4276 364 1 Red
4319 696 1 Beige
29 AR Screw (8-18x75)
30 AR Rivet (1/8 x 46 Hd.)
33 4276 359 1 KIT COVER ASSY. and Back Lite Lwr.,Black
4276 352 1 Cashmere
4276 351 1 White
4276 356 1 Blue
4276 362 1 Red
4319 694 1 Beige
35 4276 360 1 WELT ASSY.,W/Shield Header,Black
4078 634 1 Cashmere
4223 360 1 White
4276 357 1 Blue
4276 363 1 Red
4319 695 1 Beige
36 AR RIVET (1/8 x .328 Fl. Hd.)
37 AR RIVET (1/8 x 42 s/s)
38 RETAINER,Cap Upr. Frt. Outer (Serv. in Cap Assy)
39 4078 611 2 RETAINER,Frt. Cap Outer
40 AR RIVET (1/8 x .328 Fl. Hd.)
41 4078 612 1 CAP ASSY,Fiber Glass,Complete
42 4078 620-1 1 MOULDING,Qtr. Pnl. Belt
43 AR RIVET (1/8 x 46 Fl. Hd.)
44 4078 618 AR SUPPORT,Back Lite Trim Pnl.
45 4078 619 2 INSERT,Belt Mldg.
46 4078 622 1 MOULDING,Back Belt
47 4094 619 AR RETAINER
48 4057 555 AR NUT
49 4078 617 1 MOULDING,Back Lite Int. Raw
50 AR SCREW
51 AR RIVET (1/8 x 43 Fl. Hd.)
52 AR TAPE (1/32 x 5/8)
53 4078 623 1 ORNAMENT, Rt. Side
54 BRACKET,Cap Ret. Side (Serv. in Cap Assy)
55 4078 610 1 RETAINER,Frt. Cap Center
56 AR RETAINER,Cap Upr. Frt. Center
57 X592 BA2 1 MEDALLION,Deck Lid Lock Cyl.,Silver Met.
X592 AA9 1 Dark Silver
X592 BC4 1 Blue
X592 BM5 1 Red
X592 BL4 1 Beige Met.
X592 BT8 1 Sable Tan
X592 AW3 1 White
X592 AX9 1 Black
NOTE: The Colored Medallion Used is Determined by the Exterior Paint of Car an offsetting order for part no. 3747881


there are the differences and similarities between the 2 cars



[kkritsilas]

Marty:

Would 3780999 be a small flat square aluminum bit? I am looking for one for my own Cordoba. It fits on the part of the sill plate molding that is on the front fender, not the door, and seems to be desgined to cover up the mounting bolt hole.

Kostas



[marty mopar]

don't have 3780999



[Mopar&vettedude]

What hardware do you have?



[chmirada]

I have Cordoba rocker trim for both sides + the trim that goes on the rear quarters in decent cond . Txt me 8572362035
