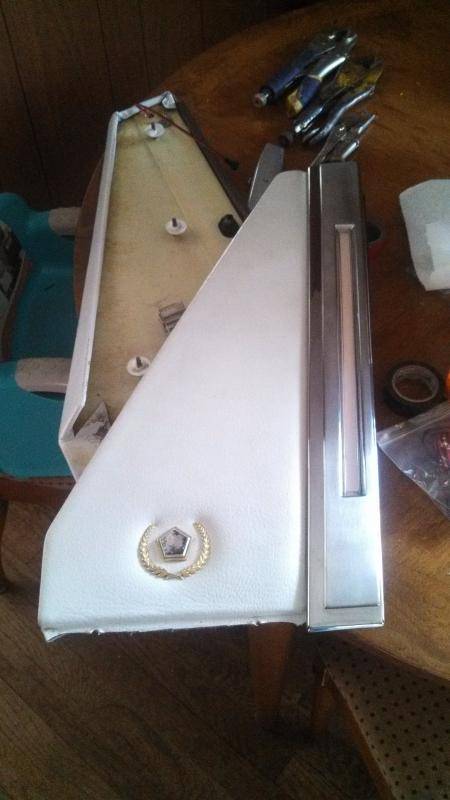

    Start by disconnecting your battery negative cable. Test your new light strips and make sure they work properly. Remove the triangle shaped interior door piece directly behind the opera lamp by carefully getting under it and prying it out from the 3 clips holding it in. Next, protect your paint directly under the exterior area of the chrome lamp assembly. Scribe around the speed nuts before loosening. Remove the speed nuts exposed on the interior where you removed the padded triangle shaped piece. Hang on to the exterior lamp assembly as you remove the nuts. Tilt the exterior assembly away from the top to expose the wiring and old inverter. Remove any silicone like caulking used to fill holes for wiring. Now you have to disconnect the wiring and remove the nuts holding the chrome lamp housing to the large exterior triangle piece. Try not to pull up on the piece too much to avoid pulling the vinyl top material out from the trim piece. Once you have the assembly removed, mark the top and bottom for reassembly. Take out the clear plastic and housing assembly. This is a good time to wax the chrome of the housing and set it aside. Take the opera lamp itself and slide a razor blade carefully at one corner where the clear lens is glued to the black housing. Slowly work the clear lens from the black housing. Once the clear lens is removed, scrape any dried glue from the mating surfaces on the lens and housing. Snip out the wire leads and remove the old EL strip. The new strips are made to be cut to any length you need. Cut to about 12" long (measure your old one first). Test the strip again after cutting it. The new strip will be placed in the black housing with the wire lead at the top. Next, take a file the same width as the heat shrink wire lead assembly on the EL strip and file a groove into the black housing so the wire lead lays flush to the mating surface of the black housing. Clean the black housing with isopropyl alcohol. Next, take five 1/2" wide strips of thin double-sided side molding tape and space them evenly on the black housing where the strip will lay in the center of the housing. Clean the BACK SIDE (non-glowing side) of the EL strip with isopropyl alcohol. Peel off the protective layer on the strips and carefully lay and press the EL strip into place. This would be a good time to polish the clear lens if needed before gluing it on. Next apply glue (I used Loctite stik'n seal outdoor adhesive. Don't use a 2 part epoxy or something that would be hard to remove if you had to). Put a bead of the glue on the black housing sealing area and immediately lightly press the clear housing onto the black housing. You can hold it in place until the glue tacks up. After it has set up, look around the clear lens and make sure there is a good bond. If there are some places where the glue is a little thin add some to those areas. Let dry overnight. Test the strip again. Dry fit the assembly and mark where to drill a hole where the EL strip connector will pass through. Using 2 pieces of double sided tape mount the new inverter right above the original one. Fill any holes with silicone caulk. Carefully reassemble making sure the clear lens is positioned properly in the opening. Start your speed nuts using the scribe marks to line up your assembly, and tighten the speed nuts. Test your opera lamps with your headlight switch. Please use this info as a guide. I did this project 3 months ago.


    Monkeyed, Mr C and Captain Caravelle like this.
  2. Captain Caravelle

    Captain Caravelle Moderator--Mopar Maniac

    Messages:
    10,788
    Likes Received:
    1126
    Joined:
    Jan 29, 2012
    Location:
    Hogtown, Ontario
    Excellent!
    Thank you!

  3. alf44

    alf44 Well-Known Member

    Messages:
    592
    Likes Received:
    15
    Joined:
    Dec 30, 2011
    Location:
    southern MN
    very good info

  4. Mr C

    Mr C Well-Known Member

    Messages:
    352
    Likes Received:
    116
    Joined:
    Apr 22, 2014
    This article should be preserved like the Lean Burn one...

  5. Captain Caravelle

    Captain Caravelle Moderator--Mopar Maniac

    Messages:
    10,788
    Likes Received:
    1126
    Joined:
    Jan 29, 2012
    Location:
    Hogtown, Ontario
    I agree.

  6. Monkeyed

    Monkeyed Well-Known Member

    Messages:
    711
    Likes Received:
    71
    Joined:
    Apr 3, 2014
    Location:
    West MI
    THE FOLLOWING IS THE ACTUAL INSTALL WITH PICS AND DESCRIPTION FROM OUR MEMBER MONKEYED

    Here is his original post....


    http://www.forfmjbodiesonly.com/cla...t-wish-quot-list&p=36275&viewfull=1#post36275


    Ok, so the installation was pretty straight forward. A couple minor things to look out for, but other than that went very smoothly.

    View attachment 8984

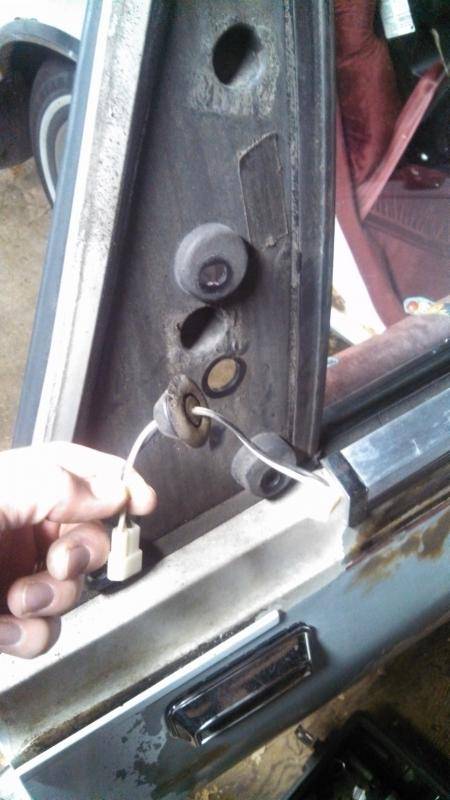

    I just popped this out to use for splice into with the new kit wiring.

    View attachment 8985

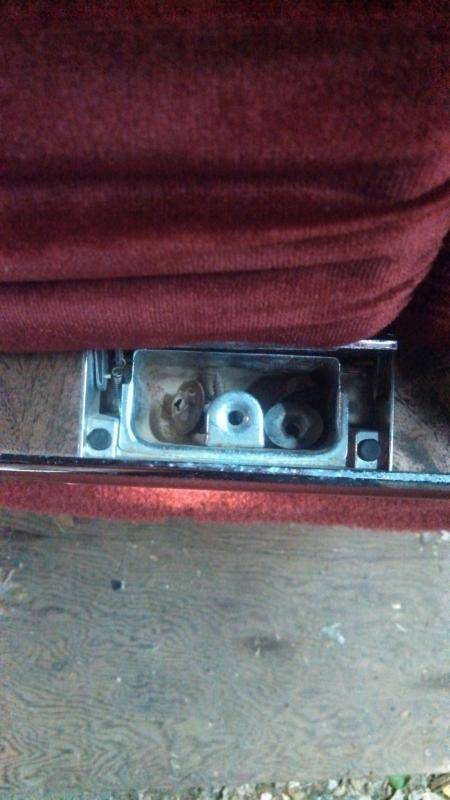

    I like to put the fasteners in the ashtray. keeps them in one easy to find place, and I can keep each side's separated from each other.

    View attachment 8986

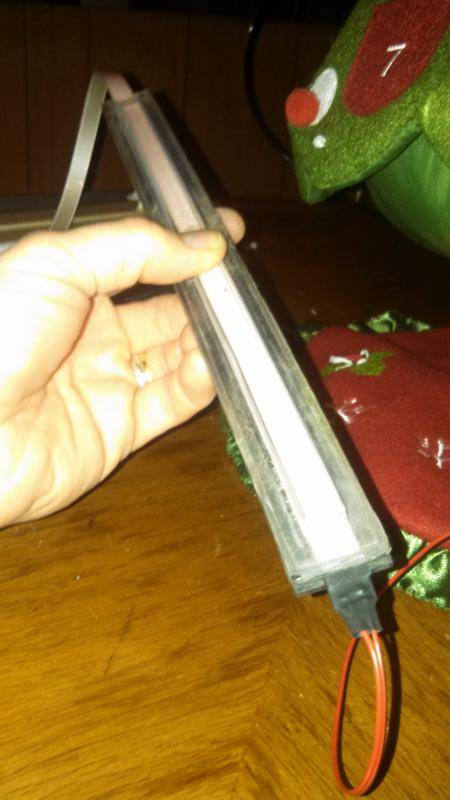

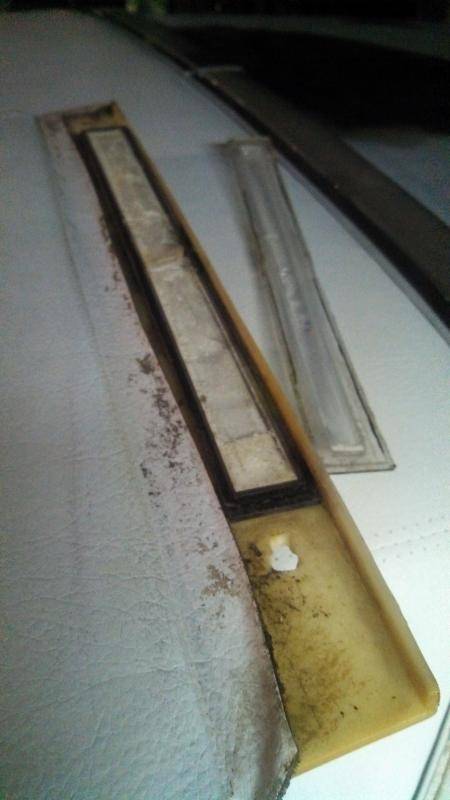

    Have to be careful removing the clear plastic cover. It looks like they were either joined with heat, or some kind of chemical process, either way they're melted together. That and mine were a bit brittle with age.

    View attachment 8987

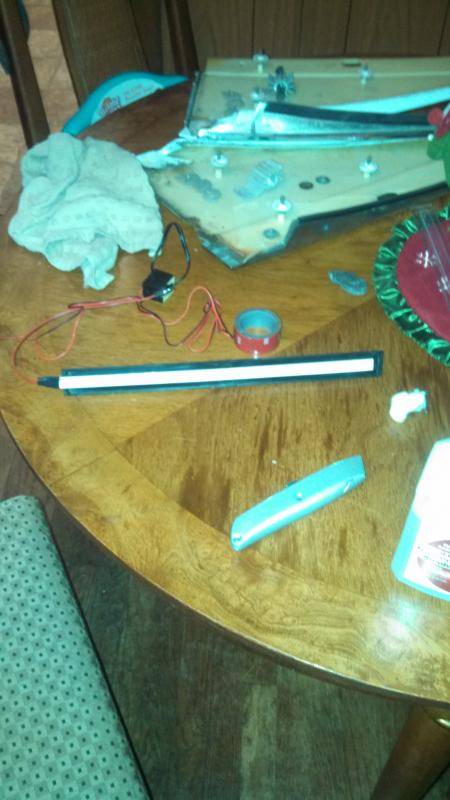

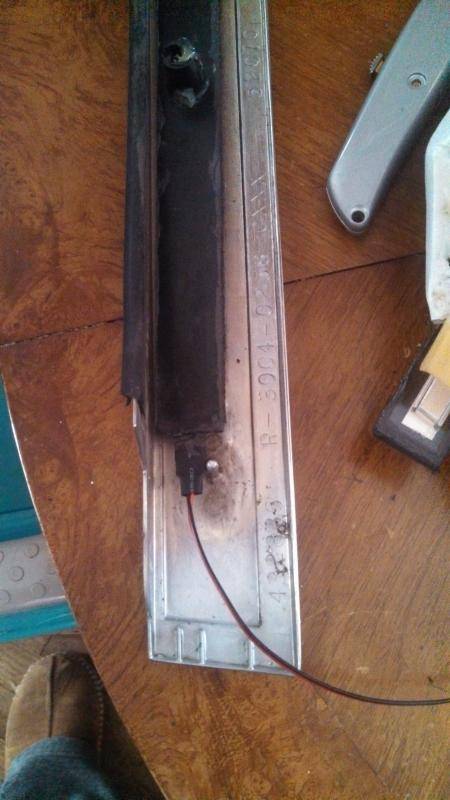

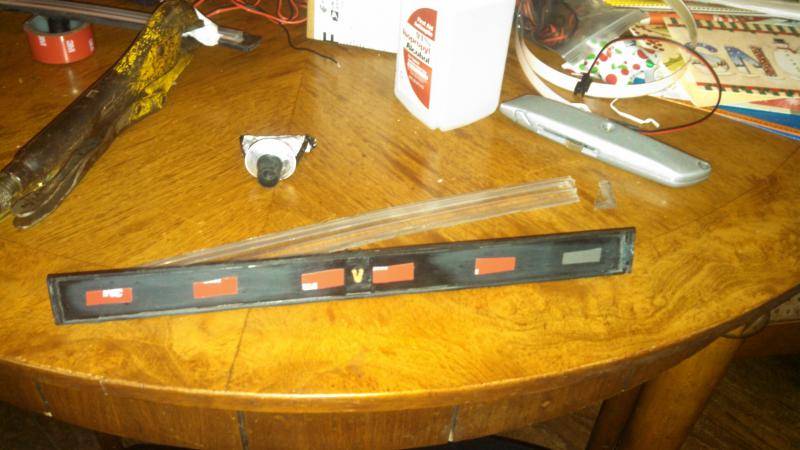

    Test fitting, the replacement strip isn't as wide as the original, so it's important that it's centered in the housing. As you can see, I bought the cut to fit piece, and planned to run the wire out the bottom (more on that later).

    View attachment 8988
    I just trimmed the end off to fit with a pair of scissors, and used the 3M mounting tape to secure it in place.

    View attachment 8989

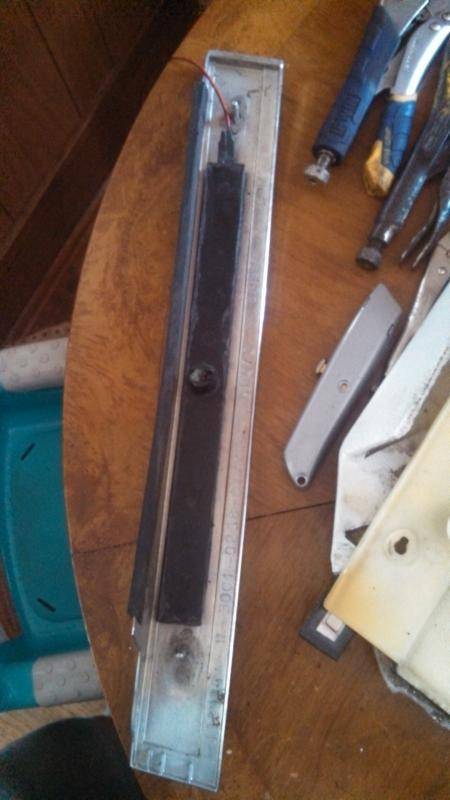

    I used RTV Black around the edges, because it's tough, rubbery, will form a nice watertight seal, and unlike silicone will also be resistant to heat and temperature changes for many years to come. just a little cheap insurance. Again I had to be careful with how tight I clamped these since they're becoming brittle with age, and exposure..

    View attachment 8990

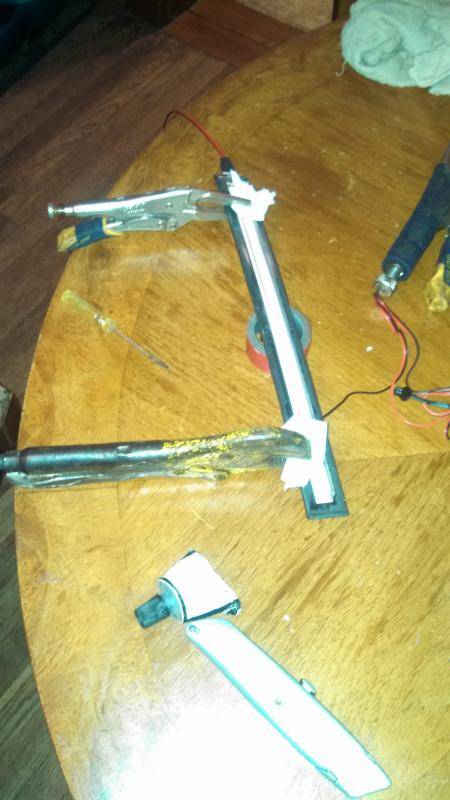

    This is the other side, as you can see I just cut thin strips of the mounting tape and set them in a row.

    View attachment 8991 View attachment 8992

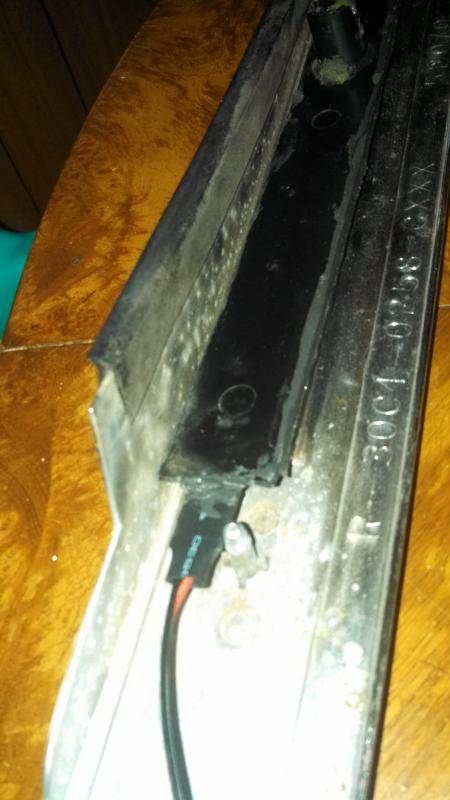

    This is the problem I ran into with trying to run the wire out of the bottom, easy enough fix..

    View attachment 8993
    I just flipped it and have the wire running from the top, I doubt anyone would ever know the difference.











    Last edited by a moderator: Dec 26, 2014
  7. Monkeyed

    Monkeyed Well-Known Member

    Messages:
    711
    Likes Received:
    71
    Joined:
    Apr 3, 2014
    Location:
    West MI
    Part 2

    View attachment 8994

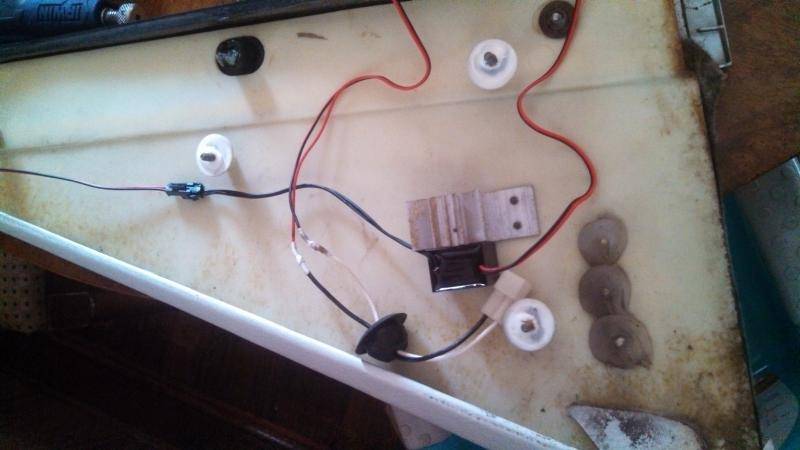

    Test fitting, you can kind of see where I drilled the hole for the wire on the top of the one in the background.

    View attachment 8996

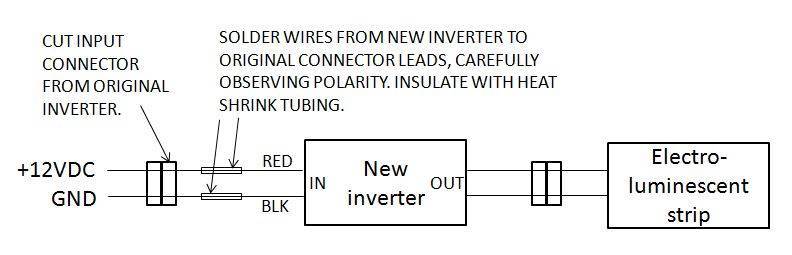

    I decided to just mount the new inverter next to the old heat sink. Another important point, if you're going to splice into the old connector, (and why wouldn't you?) black is positive, and white is ground for some reason.

    View attachment 8995

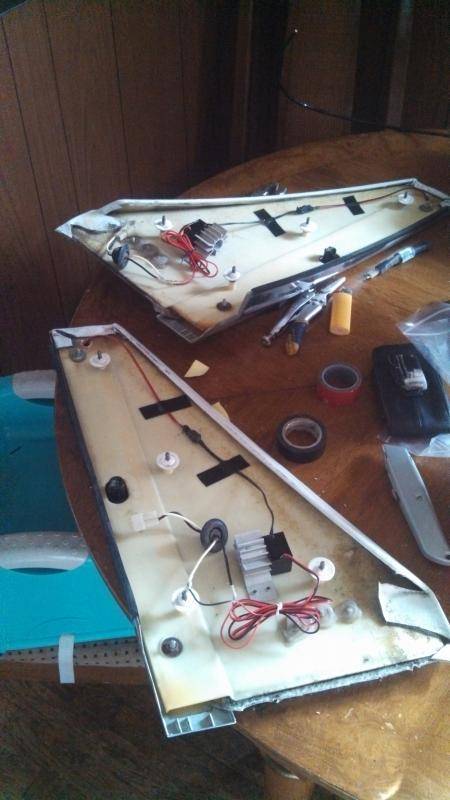

    Neatened up a bit, I put more RTV on the connectors that are between the electrical tapes, only because it's likely to be exposed to water, and I don't want that corroding.

    View attachment 8997 View attachment 8998

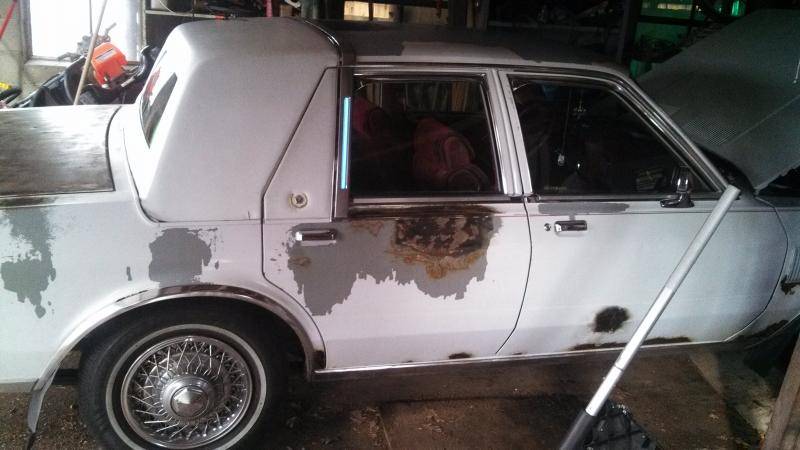

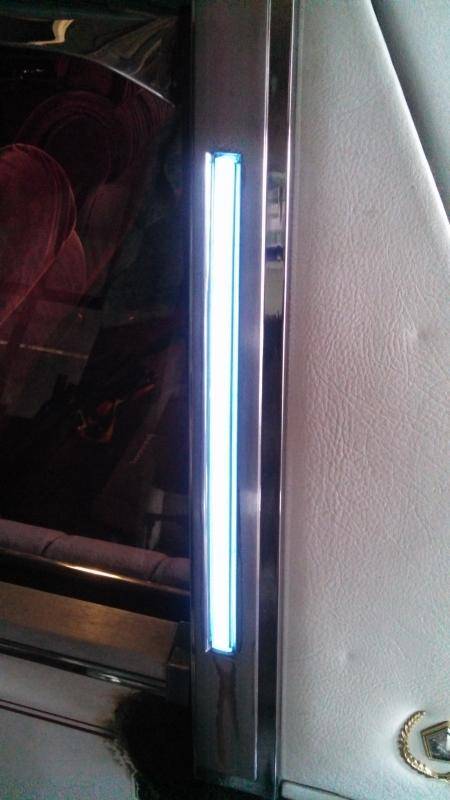

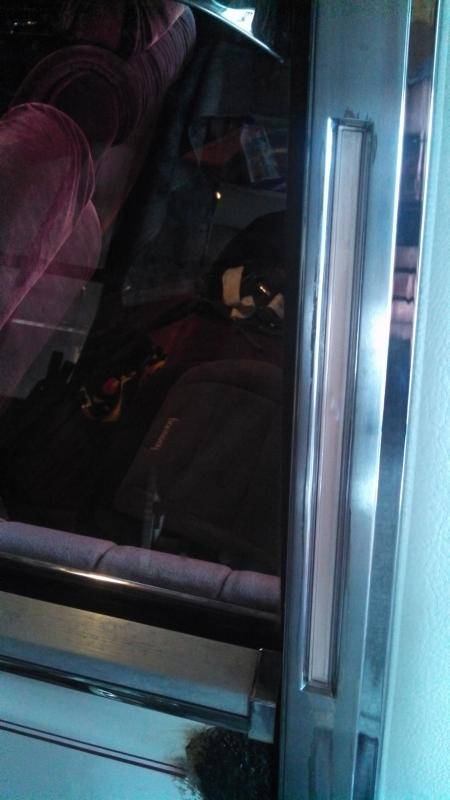

    All buttoned back up, and working like a charm!

    View attachment 8999 View attachment 9000
    Trashy, but Classy!








    Last edited by a moderator: Dec 26, 2014
  8. Mr C

    Mr C Well-Known Member

    Messages:
    352
    Likes Received:
    116
    Joined:
    Apr 22, 2014
    Monkeyed: Thanks for the research and the excellent "How to" that you provided.

    The only thing I'd like to mention is that glowhut said for me NOT to cut the strips, so I had to make their 12 inch by 1.25 inch strips fit and hang outside the factory backing plate...otherwise I followed your directions and the results are great !


    Monkeyed likes this.
