WANTED Cruise Control Stalk

[Fresh Air Inspector]

Hello All,

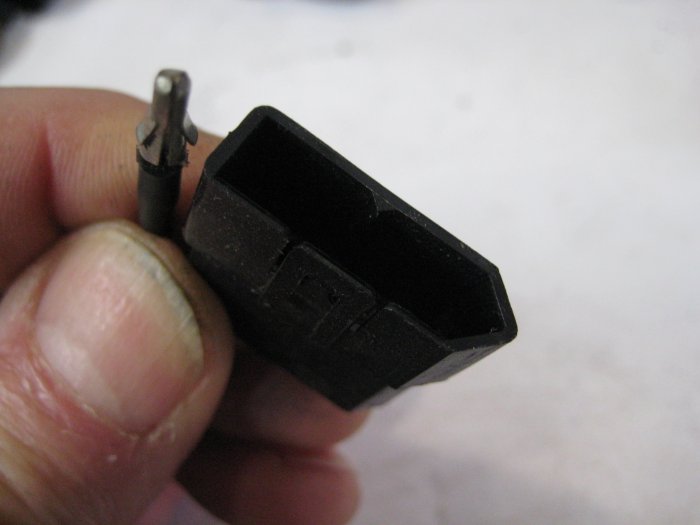

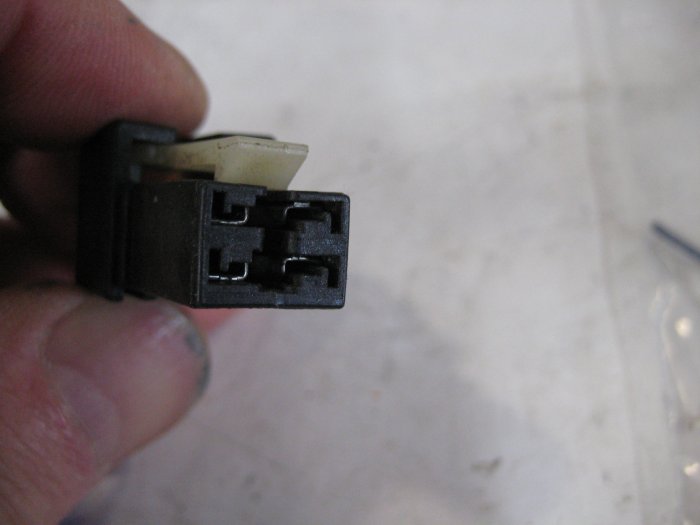

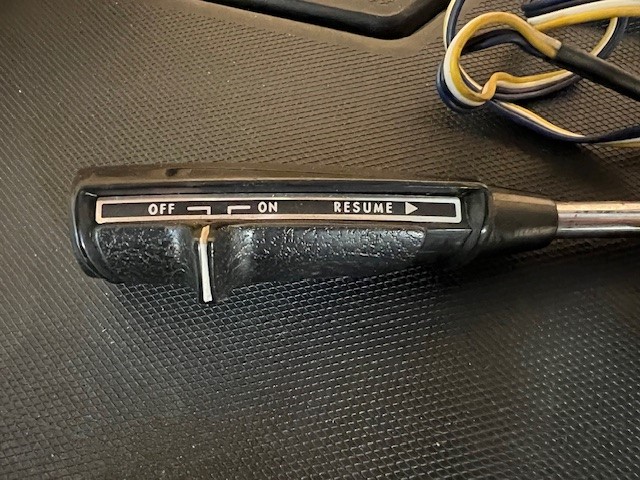

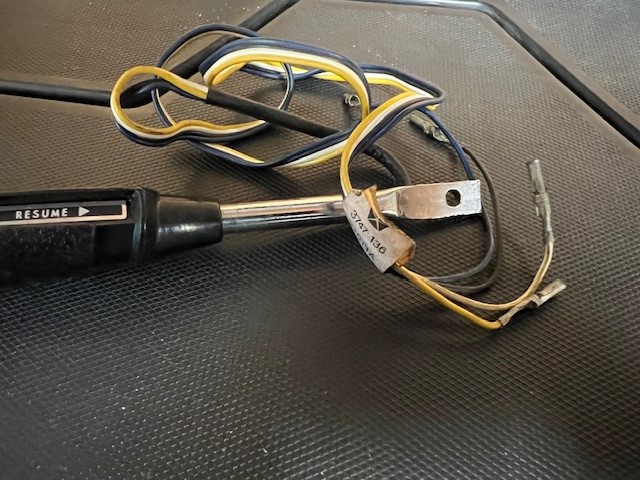

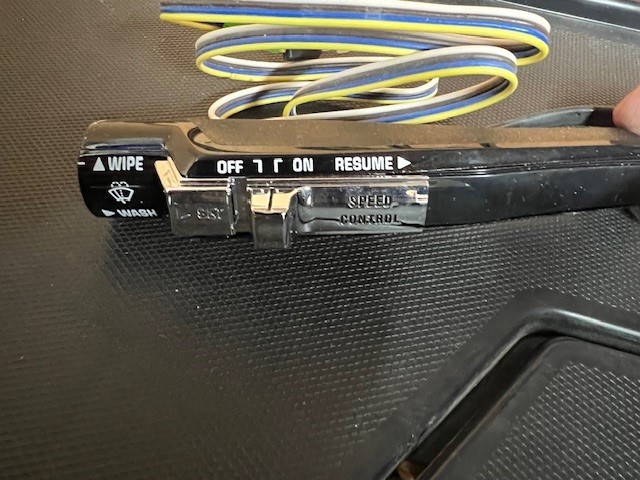

I'm looking for a cruise control stalk for my '88 Caravelle (aka Gran Fury), like the one in the first picture. The one I'm looking for has a 4 flat pin male connector that plugs into the female connector in second picture (factory wiring harness). I can NOT use the cruise control stalk with a connector like the one in third picture (it uses two male bullet connectors as shown and two female bullet connectors).

Appreciate any feedback you may have.



[stroked408]

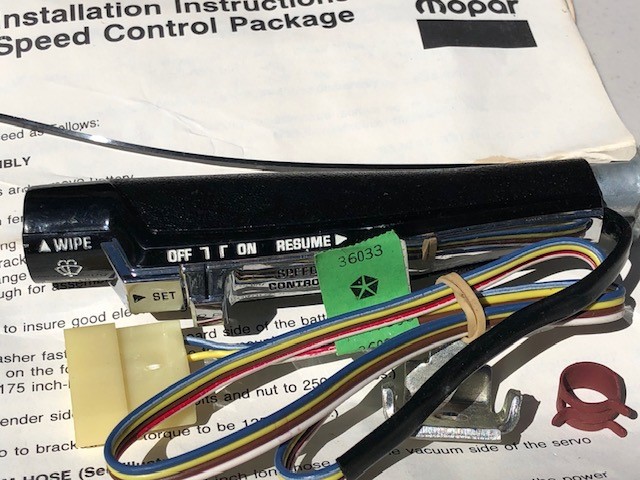

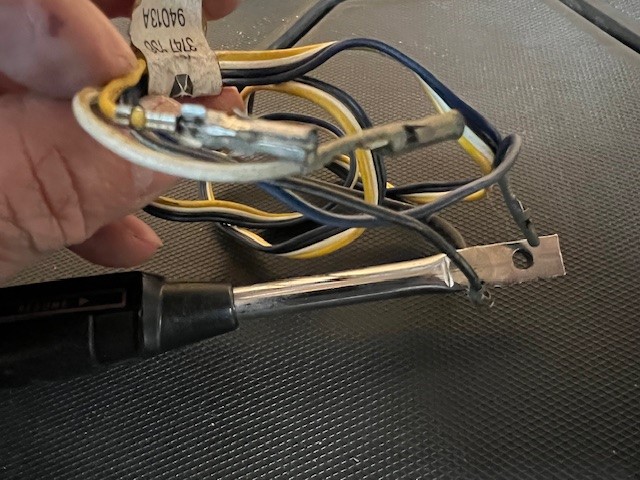

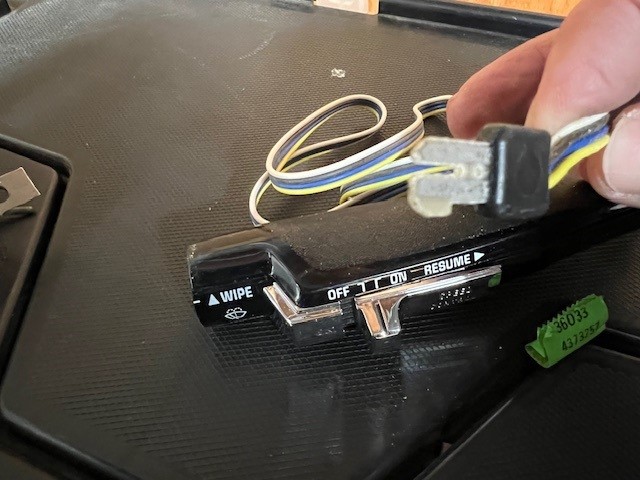

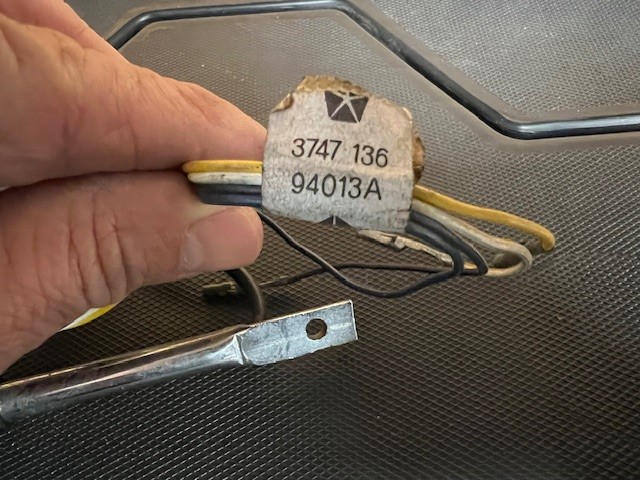

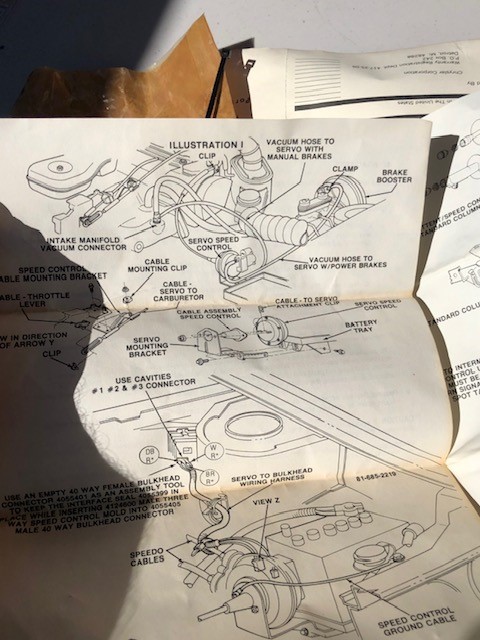

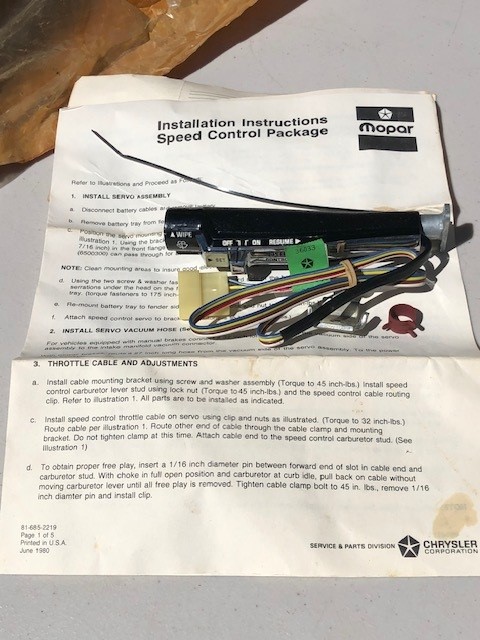

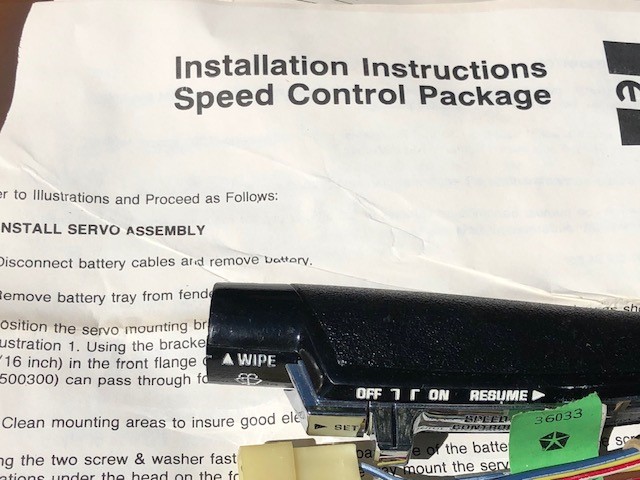

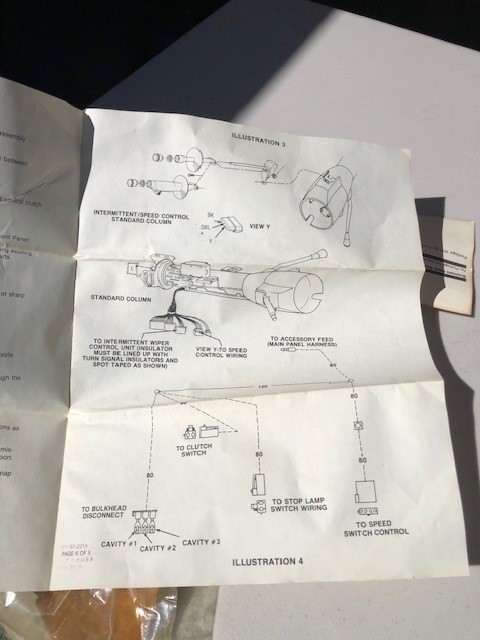

I have this NOS one that might work for you. It comes with instructions.



[Fresh Air Inspector]

Hello Stroked408,

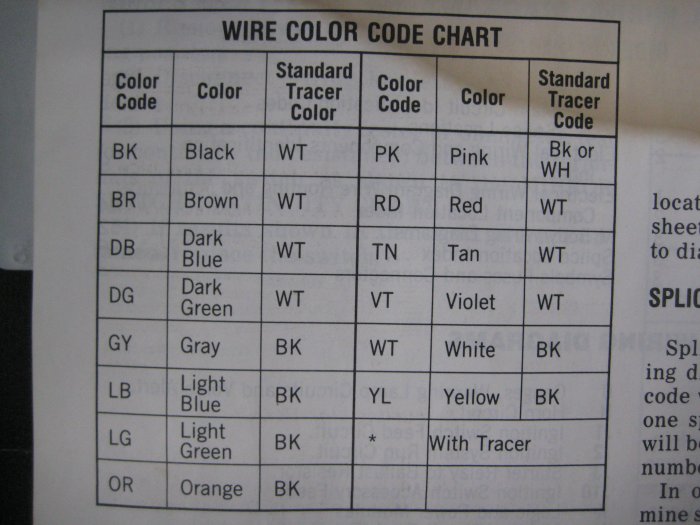

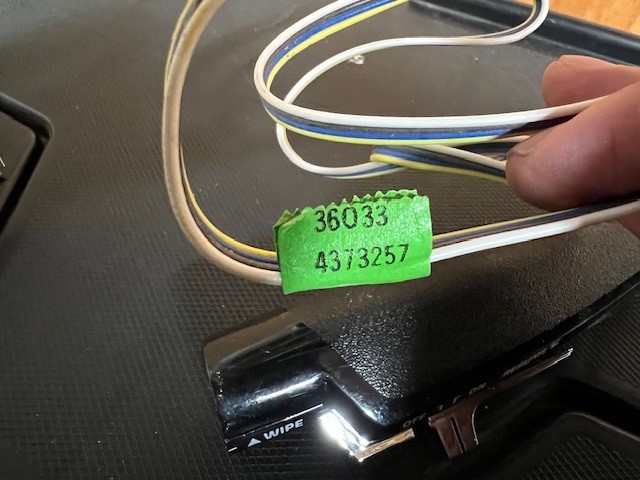

Thank you for your email. I'm a little concerned that the control stalk you have is for an earlier series than mine (1988). I base this on the connector in your pictures, it is the style that was used in the '70s. The colour coding does align with the 1988 factory wiring diagram I have; BR/RD, WT, YL/RD and DB/WT (factory diagram shows WT/RD instead of WT on the control) which adds to my confusion. I attached a picture showing the factory colour coding chart.

I have two questions;

1. Do you know what year (which years) of vehicle(s) this control stalk fits (the document indicates June 1980)?

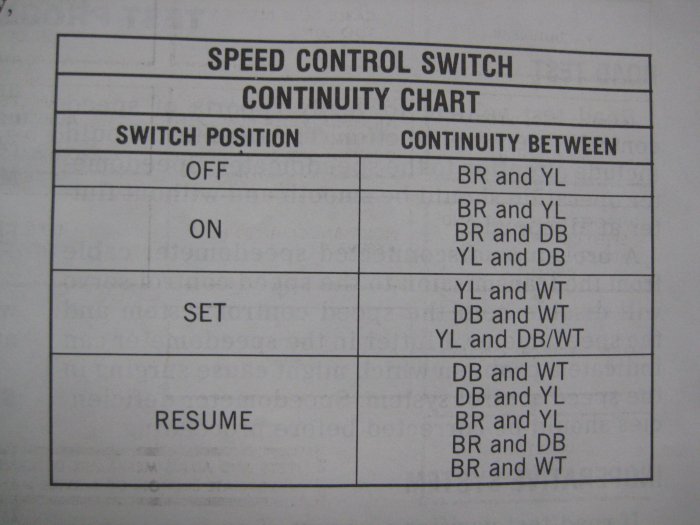

2. Do you own a 'continuity meter' (Ohm meter), to measure which wires are connected as each switch is moved? The picture below shows the factory 'continuity chart'

I will thank you in advance for any 'detective work' you do on my behalf.
