Transmission linkage grommet

MoparDan

Well-Known Member
Joined
Mar 17, 2011
Messages
751
Reaction score
335
Location
Daytona Beach, FL

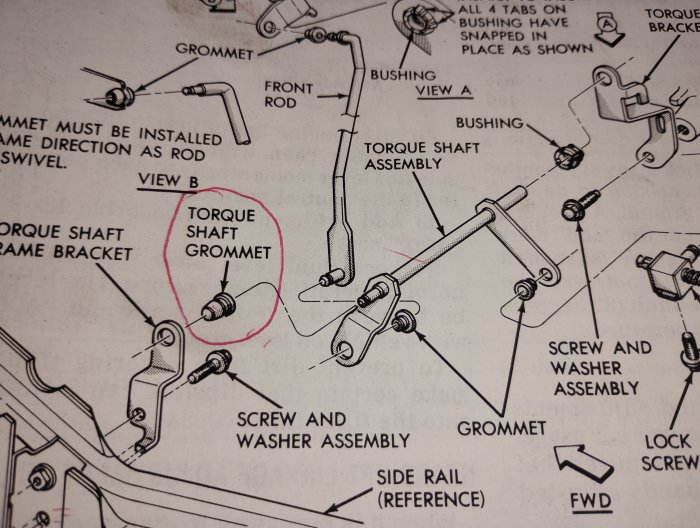

This broke and the transmission won't stay in gear, I've been to every auto parts store in Dayton, nobody has it or has even heard of it, where can I find a replacement or what can be modified to make it work? IMG_20241015_153656719.jpg


AMC Diplomat

Well-Known Member
Joined
Feb 14, 2023
Messages
1,401
Reaction score
626
Location
NY

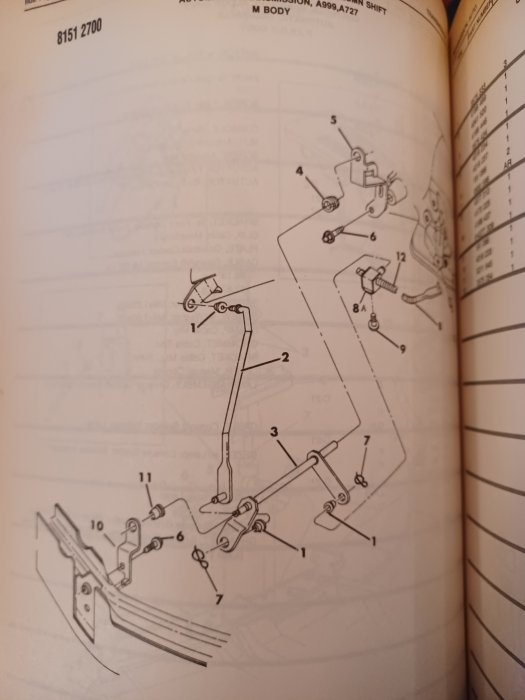

Number 11 is part number 5211845 which is the 2nd link i posted. the first link is number 1 on the diagram


MoparDan

Well-Known Member
Joined
Mar 17, 2011
Messages
751
Reaction score
335
Location
Daytona Beach, FL
Kind of interesting how my '85 manual show grommets everywhere but the '88 book shows those weirdly shaped cotter pin things (7) which is exactly what The Cherry Bomb has, I guess they changed them sometime after the '85 book was printed and The Cherry Bomb was made (Nov. '84)


AMC Diplomat

Well-Known Member
Joined
Feb 14, 2023
Messages
1,401
Reaction score
626
Location
NY
Kind of interesting how my '85 manual show grommets everywhere but the '88 book shows those weirdly shaped cotter pin things (7) which is exactly what The Cherry Bomb has, I guess they changed them sometime after the '85 book was printed and The Cherry Bomb was made (Nov. '84)
I think the shop manuals reuse drawings from earlier years and the parts catalog) are slightly more accurate, but not always. I mean, some poor bastard had to draw all that shit by hand. I'm not surprised that drawings were reused or are slightly inaccurate

Edit: I checked 83 (I don't have a parts catalog for 84) and it's the same part number for #11

Last edited:

Aspen500

Well-Known Member
Joined
Feb 14, 2015
Messages
7,279
Reaction score
2,933
Location
Rib Mountain, WI
Need to use the illustrations for part location and reference number, to find the correct p/n only. They don't necessarily look like the actual part. Same deal still continues to this day.
