Window Regulator Repair

dm330

Well-Known Member
Joined
Sep 11, 2021
Messages
199
Reaction score
78
Location
Salem, OH

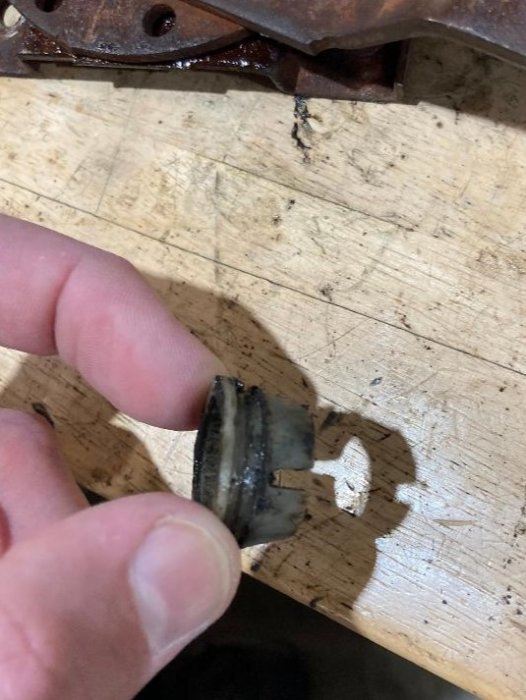

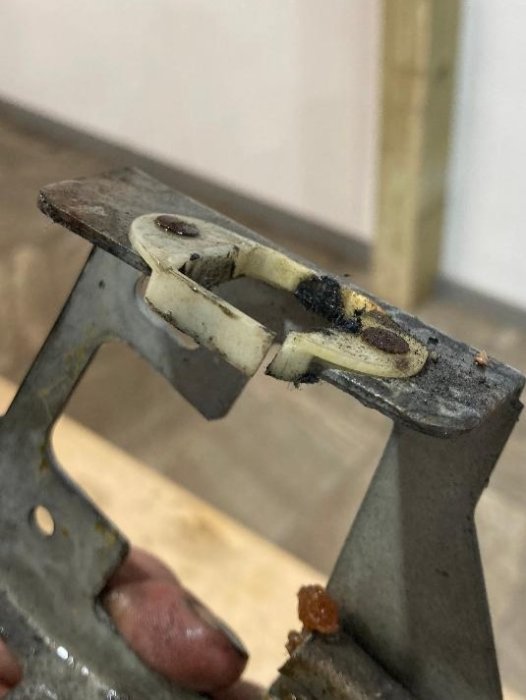

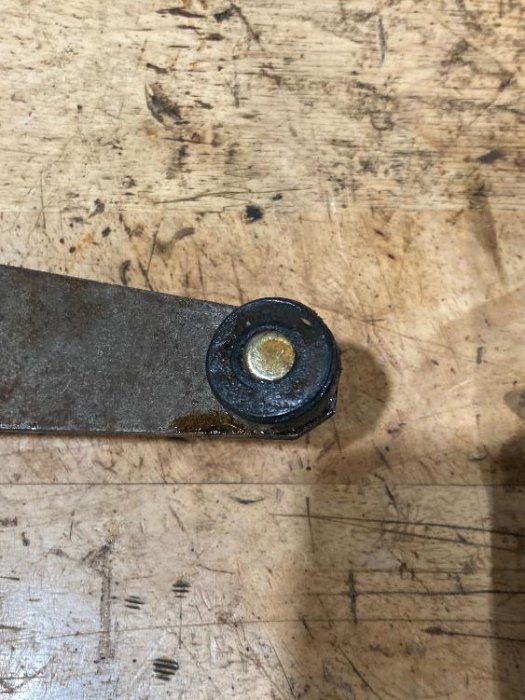

Are there any power window regulator repair kits that anyone is aware of for our cars? The bushings in the first 2 pics may be a little worn, but that plastic piece in the last pic snapped.
regulator bushing1.jpg
regulator bushing.jpg


Aspen500

Well-Known Member
Joined
Feb 14, 2015
Messages
7,323
Reaction score
2,971
Location
Rib Mountain, WI
There are sort of "universal" rollers avaiible. You'd need to select them using dimensions of the old ones. The broken bushing is a problem. About the only option (that I'm aware of) is to find a used piece with a good bushing.


dm330

Well-Known Member
Joined
Sep 11, 2021
Messages
199
Reaction score
78
Location
Salem, OH
Next spring, God willing, I'd like to have all the window rubbers/felts replaced since they're all shot and I mentioned to my guy the possibility of removing that plastic part and having a new one made. He suggested finding someone who specializes in 3D laser printing. It's an idea and I found a woman in my area who does, so I'll probably email her and hope to get some sort of estimate based on that picture.


volare 1977

Well-Known Member
Joined
Jun 12, 2014
Messages
1,909
Reaction score
302
Location
maryland
I bought them from a guy selling them for $20 plus shipping on a facebook site. No idea on the cost. They matched up well to my originals but I never needed them. 3788273 is the mopar part number and very are hard to find so I bought them as spares.
