1979 Aspen Gauge Cluster Problems

F Body General Discussion

  1. Dylan Bobek

    Dylan Bobek Member

    Messages:
    11
    Likes Received:
    0
    Joined:
    Jun 5, 2020
    Location:
    New Jersey
    So today I pulled the gauge cluster on my 1979 dodge aspen to change some bulbs and before I pulled it out the fuel and temp gauges worked perfectly now they don’t do anything if anybody can help it would be greatly appreciated. Also if anyone wanna to know my amp meter still works

  2. Aspen500

    Aspen500 Well-Known Member

    Messages:
    5,002
    Likes Received:
    1491
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    There's a chance the metal "clips" the gauge posts stick into, fell out of the printed circuit board. Pull it back out and see. There should be 2 for every gauge. Also possible, even if still in there that they lost contact with the printed circuit. The set up used for the clusters isn't the best design I've ever seen, to be honest.

  3. Dylan Bobek

    Dylan Bobek Member

    Messages:
    11
    Likes Received:
    0
    Joined:
    Jun 5, 2020
    Location:
    New Jersey
    Yeah after it didn’t work I pulled it back out to clean the contacts and nothing worked do you know how to safely pull that printed board out

  4. Aspen500

    Aspen500 Well-Known Member

    Messages:
    5,002
    Likes Received:
    1491
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    There's 2 small crews holding it to the dash, then just pull straight out and unhook the 2 harness connectors, unless they unplug themselves when pulling the circuit board out. Be careful with the connectors. The pins on the board can break off without too much effort.

  5. volare 77

    volare 77 Well-Known Member

    Messages:
    1,312
    Likes Received:
    174
    Joined:
    Jun 12, 2014
    Location:
    maryland
  6. volare 77

    volare 77 Well-Known Member

    Messages:
    1,312
    Likes Received:
    174
    Joined:
    Jun 12, 2014
    Location:
    maryland
    also there are new ones on ebay also but they are pricey

  7. Dylan Bobek

    Dylan Bobek Member

    Messages:
    11
    Likes Received:
    0
    Joined:
    Jun 5, 2020
    Location:
    New Jersey
    Thanks I’ll try that and tell you how it goes

  8. Dylan Bobek

    Dylan Bobek Member

    Messages:
    11
    Likes Received:
    0
    Joined:
    Jun 5, 2020
    Location:
    New Jersey
    Update got it out fine gonna try and replace the voltage regulator just as a precautionary since I have it off



  9. Aspen500

    Aspen500 Well-Known Member

    Messages:
    5,002
    Likes Received:
    1491
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    Well, that would make the fuel and temp gauges inop but not affect the amp gauge so, hopefully you get lucky:cool:

    Pop the gauge post terminals out of the board and make sure the spot they contact the printed circuit at is clean while it's apart.

  10. Dylan Bobek

    Dylan Bobek Member

    Messages:
    11
    Likes Received:
    0
    Joined:
    Jun 5, 2020
    Location:
    New Jersey
    Yeah thanks, that’s what I was thinking since the temp and fuel gauge do nothing might as well replace it while it’s all apart but other than that I’ll clean all the contacts up and I’ll update you when it goes back together

  11. BudW

    BudW Moderator Staff Member

    Messages:
    4,329
    Likes Received:
    1157
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

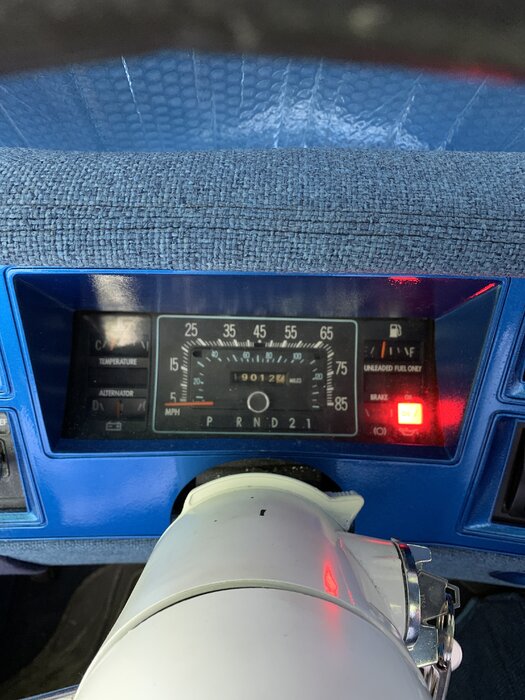

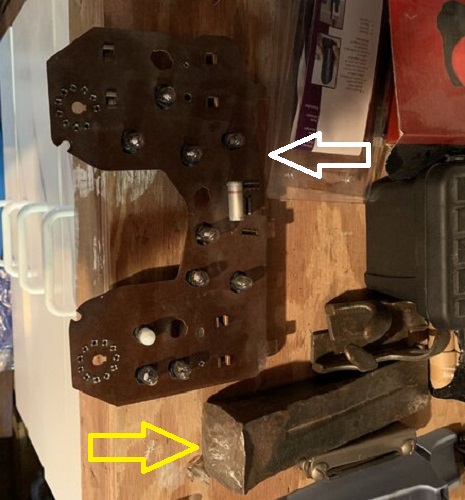

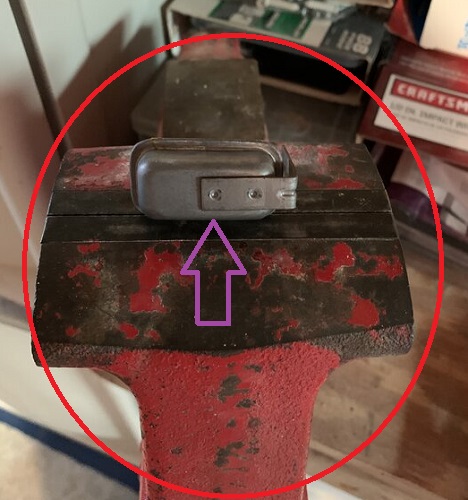

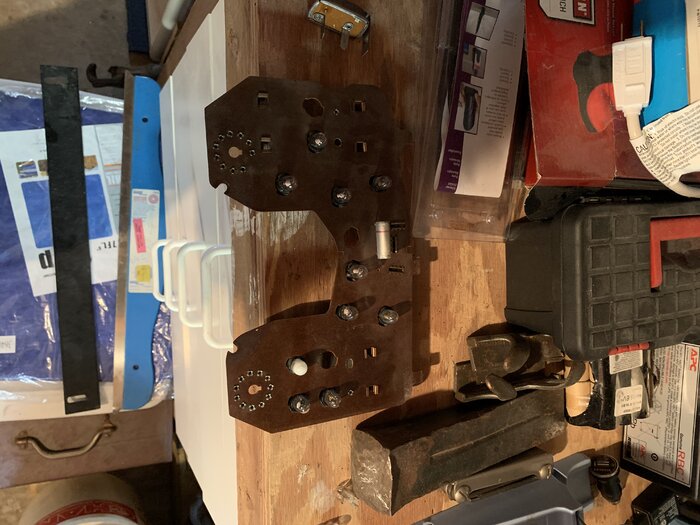

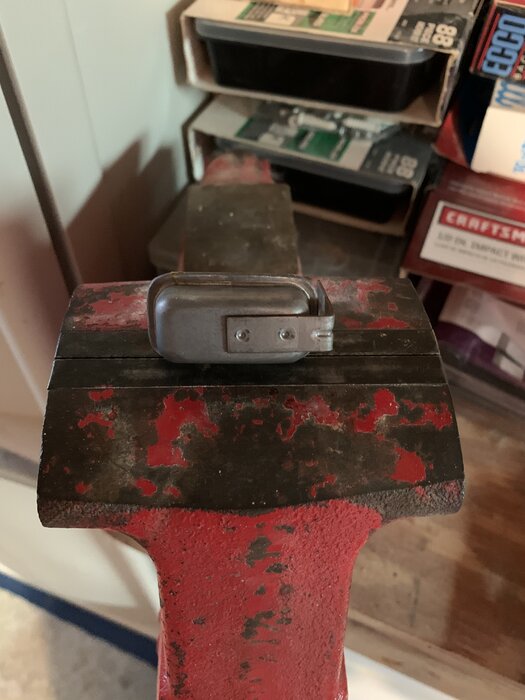

    I mean no harm by this but just general observation (you should see my garage). I don't think I've ever seen both of these items in this close proximity before:
