1980 F Body Fusebox Layout

[Jack Meoff]

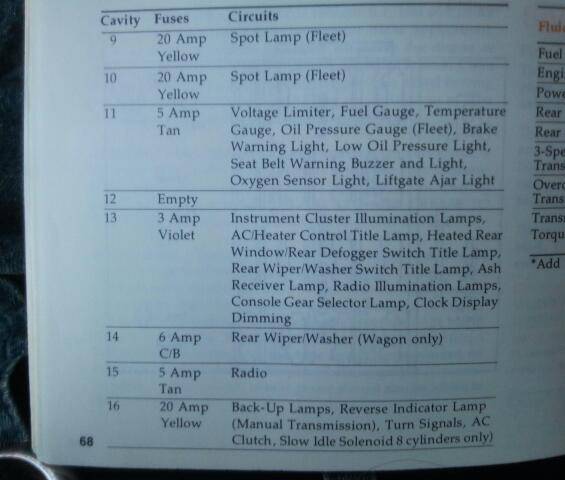

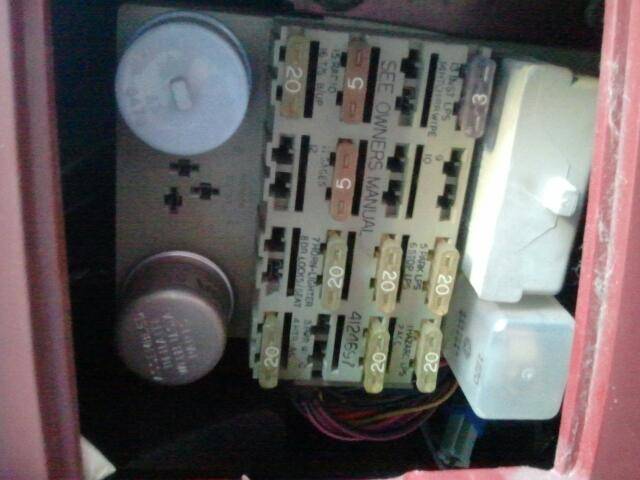

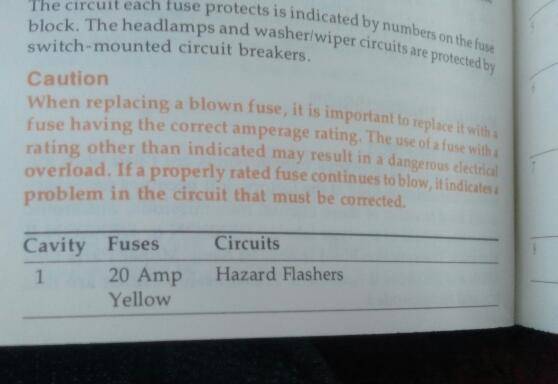

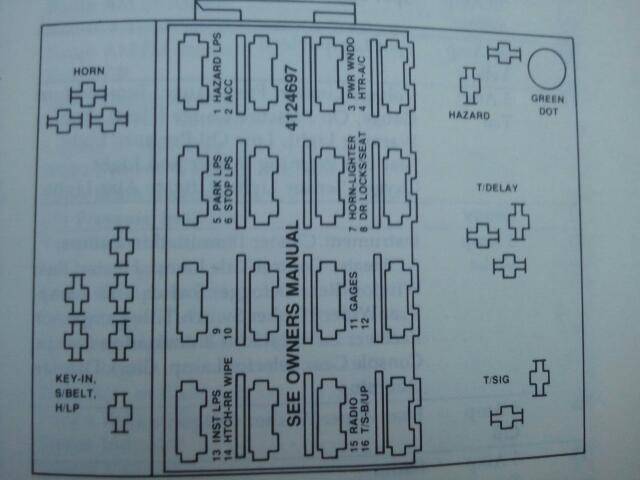

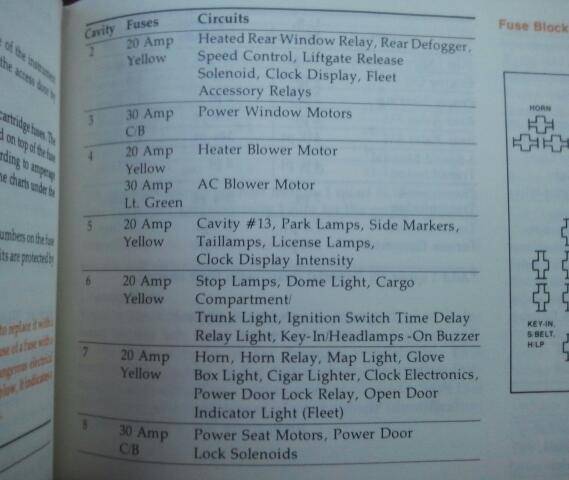

Since the topic has come up before as to what goes where I thought I'd post this.....



[slant6billy]

The 80 is the year of the plug in fuses. The glass fuse ended with the 79. To add to the frustration, my 76 is different than my 79 and the 77 wasn't the same and 78 was really strange wit the amber blinker.



[Jack Meoff]

I only posted it because we have the 76 wiring diagrams posted but that's it.
And people have asked me about the 80 fuse layout.
I might post the 78 and 86 layouts too since I have those.



[slant6billy]

I have them sir and I'll scan them tomorrow



[Jack Meoff]

Thank you kindly!
That would be great!



[slant6billy]

here is

the 79 Volare. Here is the 77 Volare:

. Finally the 76 Volare:



[Jack Meoff]

Thank you Sir.
