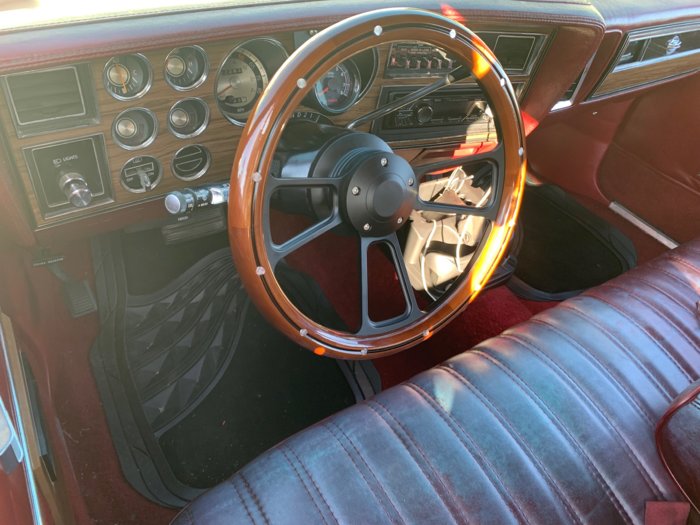

    3939AE2A-47CF-4D64-B028-25A1AE507FEF.jpeg So today I put a new steering wheel on my car. The person before me took the horn out. So, I am trying to put it back in and hook it up. I need help. Where does the original horn mount and if anyone can give some wiring advise it would be great. Maybe wire color from column? Thank you

    beatersRus likes this.
  2. Aspen500

    Aspen500 Well-Known Member

    Messages:
    4,130
    Likes Received:
    1174
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    The horn(2) are mounted behind the grille. The bracket bolts to the hood latch plate between the radiator and grille.

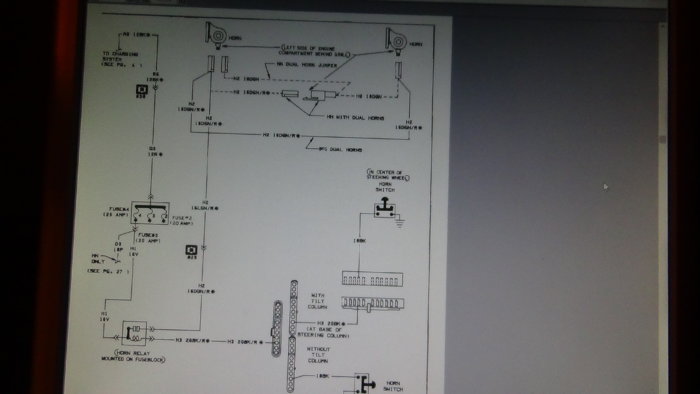

    Hopefully you can see the diagram. It's the horn circuit. This came from the '79 manual but far as I know, '80 is the same. Maybe you can download and enlarge it. If not, wire color from the column to the relay, in the fuse/relay panel, is black. Relay to the horn is green with red stripe. DSC00300.JPG

  3. 80mirada

    80mirada Well-Known Member

    Messages:
    983
    Likes Received:
    253
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

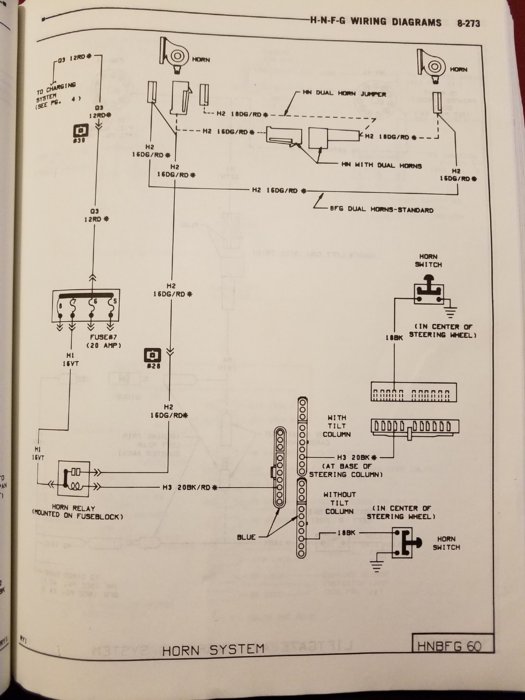

    From the 1980 book, looks the same as 1979

  4. shu-man

    shu-man Active Member

    Messages:
    31
    Likes Received:
    1
    Joined:
    Jul 28, 2019
    Location:
    Abbottstown,Pa
    Thank you very much

  5. shu-man

    shu-man Active Member

    Messages:
    31
    Likes Received:
    1
    Joined:
    Jul 28, 2019
    Location:
    Abbottstown,Pa
    Thank you very much

  6. beatersRus

    beatersRus Well-Known Member

    Messages:
    48
    Likes Received:
    11
    Joined:
    Jun 30, 2019
    Location:
    14560 new york state
    that wheel looks killer but also thick?
    also lmk if you need horns i stripped a 5th ave 2 weeks ago.

  7. shu-man

    shu-man Active Member

    Messages:
    31
    Likes Received:
    1
    Joined:
    Jul 28, 2019
    Location:
    Abbottstown,Pa
    Yes, could use them and any wiring you can get. Thanks

  8. Aspen500

    Aspen500 Well-Known Member

    Messages:
    4,130
    Likes Received:
    1174
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    Except that your '80 BOOK is a heck of lot easier to see than my '79 photo of the monitor screen.:D

  9. 80mirada

    80mirada Well-Known Member

    Messages:
    983
    Likes Received:
    253
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    I have "mastered" the art of taking photos of manual pages....

  10. shu-man

    shu-man Active Member

    Messages:
    31
    Likes Received:
    1
    Joined:
    Jul 28, 2019
    Location:
    Abbottstown,Pa
    Any chance you can take a picture of the power window circuit?

  11. shu-man

    shu-man Active Member

    Messages:
    31
    Likes Received:
    1
    Joined:
    Jul 28, 2019
    Location:
    Abbottstown,Pa
    Thank you everyone. I finally got the wiring figured out thanks to all of you. Just need to find a set of horns.

  12. beatersRus

    beatersRus Well-Known Member

    Messages:
    48
    Likes Received:
    11
    Joined:
    Jun 30, 2019
    Location:
    14560 new york state
    im positive i pulled those off the 5th,i just have to determine where they got put.
    i dont have extra wiring but i do have those horns.
