1980 Wiring Harness Info

J Body General Discussion

  1. 65 Dartman

    65 Dartman Well-Known Member

    Messages:
    171
    Likes Received:
    5
    Joined:
    Feb 27, 2011
    Location:
    Strasburg VA
    Does anyone have a wiring diagram for an 80 Miranda? I’m specifically looking for the info on the ignition switch, especially the color codes and what wire goes into each terminal. Thanks for any help.

  2. 80mirada

    80mirada Well-Known Member

    Messages:
    1,086
    Likes Received:
    300
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    I can take picture from my service manual after New Years

  3. 65 Dartman

    65 Dartman Well-Known Member

    Messages:
    171
    Likes Received:
    5
    Joined:
    Feb 27, 2011
    Location:
    Strasburg VA
    Thanks!

  4. 65 Dartman

    65 Dartman Well-Known Member

    Messages:
    171
    Likes Received:
    5
    Joined:
    Feb 27, 2011
    Location:
    Strasburg VA
    I would guess that the 80 Córdoba would be the same as well

  5. 80mirada

    80mirada Well-Known Member

    Messages:
    1,086
    Likes Received:
    300
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    they are the same diagram. I'm currently visiting family in Iowa, and will post close ups of the diagram this week

  6. 80mirada

    80mirada Well-Known Member

    Messages:
    1,086
    Likes Received:
    300
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

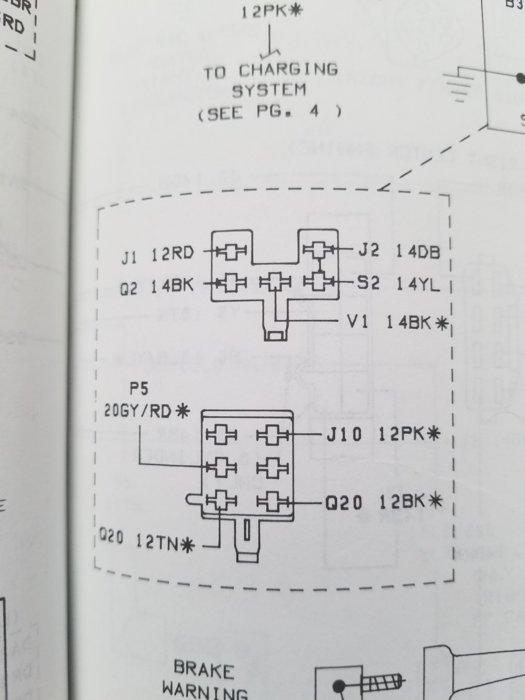

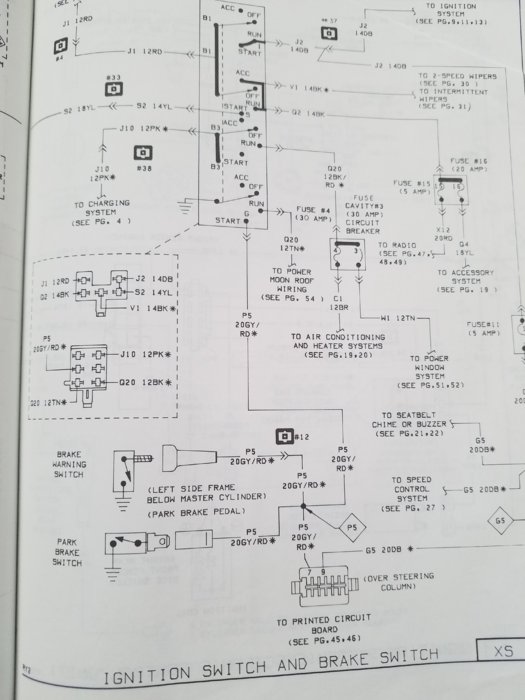

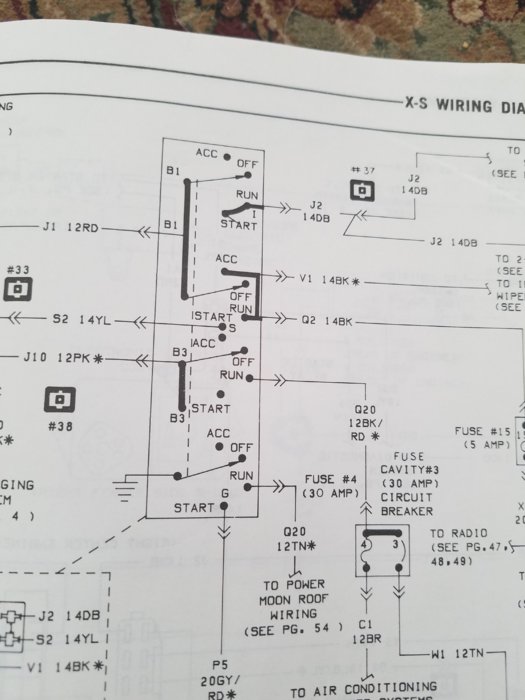

    20200101_093516.jpg 20200101_093507.jpg 20200101_093502.jpg

    here are the images of the diagram

  7. 65 Dartman

    65 Dartman Well-Known Member

    Messages:
    171
    Likes Received:
    5
    Joined:
    Feb 27, 2011
    Location:
    Strasburg VA
    And many thanks for the pics- I understand this is for an 80?

  8. 80mirada

    80mirada Well-Known Member

    Messages:
    1,086
    Likes Received:
    300
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    yes, straight out of the 1980 service manual

  9. 65 Dartman

    65 Dartman Well-Known Member

    Messages:
    171
    Likes Received:
    5
    Joined:
    Feb 27, 2011
    Location:
    Strasburg VA
    Thanks! Although the harness I have uses some different colors, I compared your info with that in my 82 FSM and see that my harness will interface with my 80 tilt column. Again, many thanks!
