    Electrical connectors and pigtail part numbers, from my ’84 Chrysler Parts manual.

    Each page from the manual is a different post.

    Some parts from ’76 and from ’89, will not be in this selection of pages.
    Most of these parts have not been available from Chrysler for many years/decades, except for the popular ones.

    If looking for something particular that is not listed, send me a PM and I’ll post here.

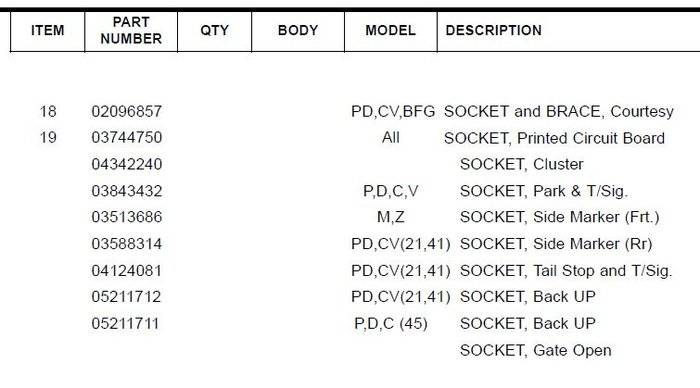

    Page 217

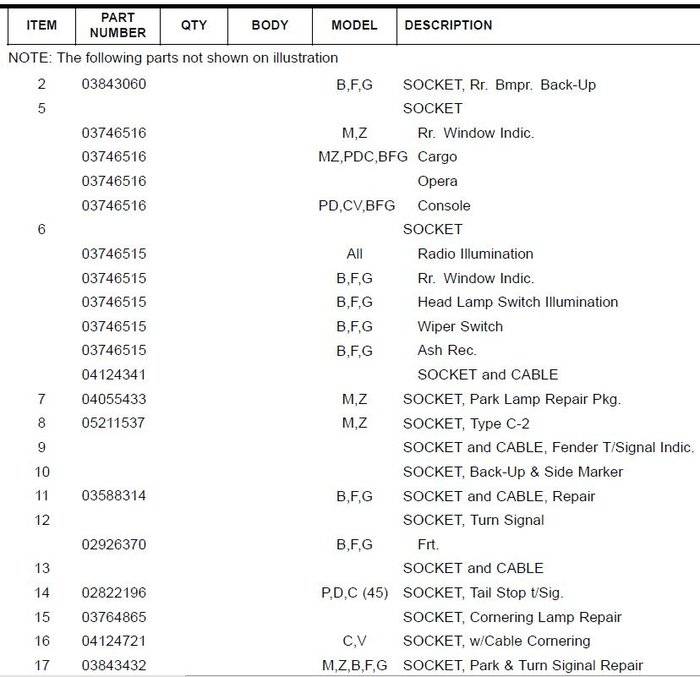

    84 PartsM pg 216.JPG

    84 PartsM pg 217.JPG


    Attached Files:

  2. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

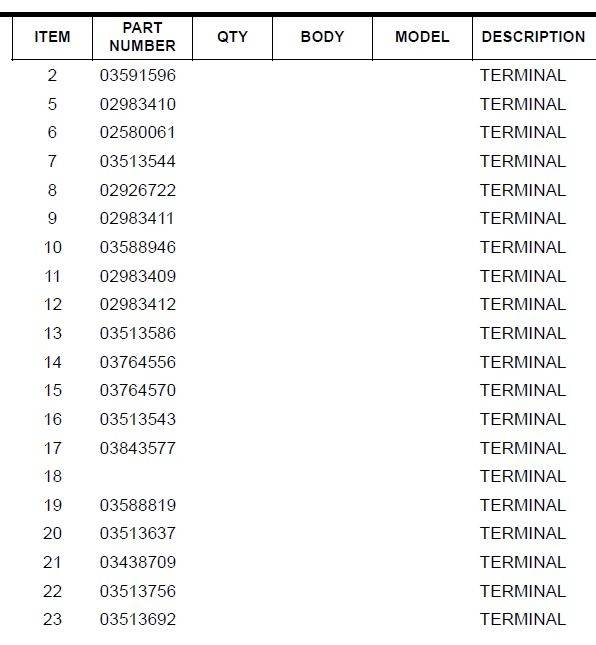

    Page 266
    84 PartsM pg 266.JPG


    Attached Files:

  3. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

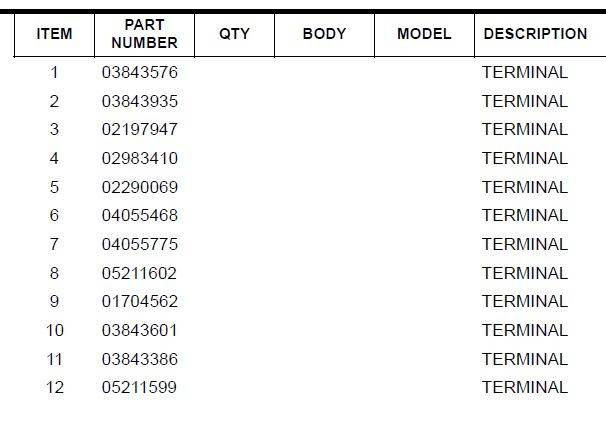

    Page 267
    84 PartsM pg 267.JPG


    Attached Files:

  4. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

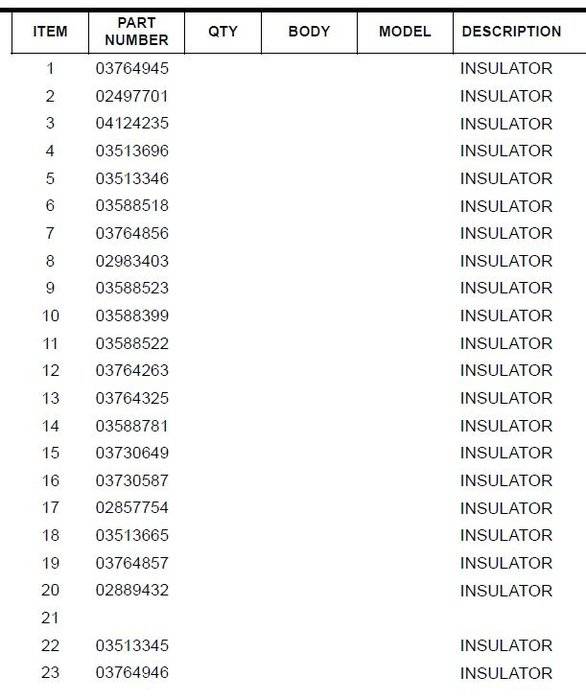

    Page 268
    84 PartsM pg 268.JPG


    Attached Files:

  5. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

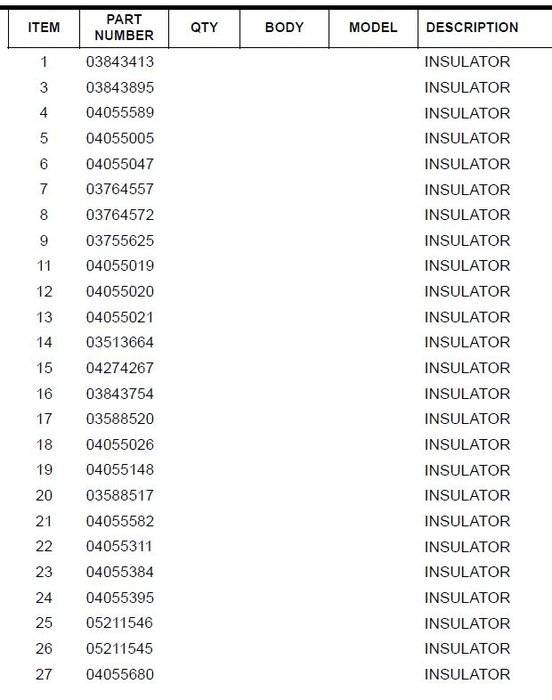

    Page 269 84 PartsM pg 269.JPG


    Attached Files:

  6. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

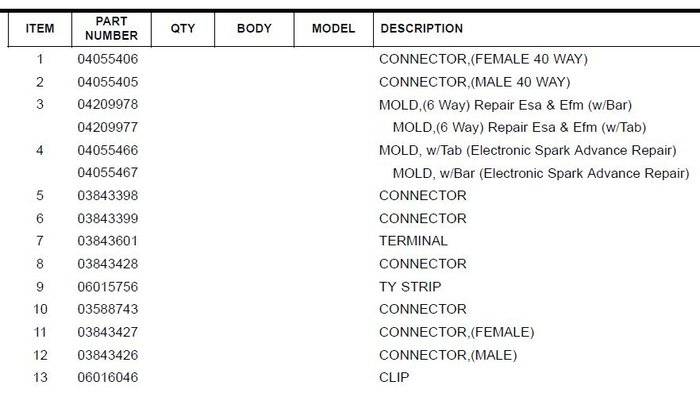

    Page 270
    84 PartsM pg 270.JPG


    Attached Files:

  7. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

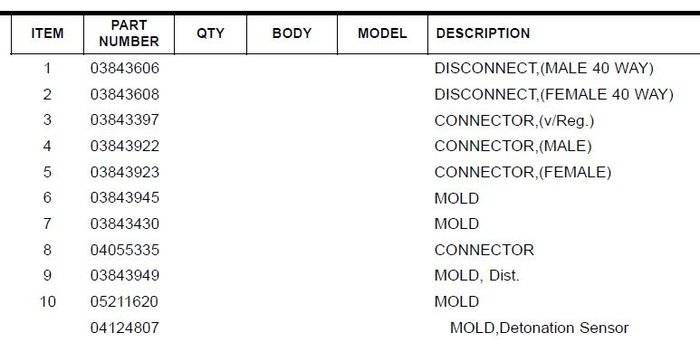

    Page 271
    84 PartsM pg 271.JPG


    Attached Files:

  8. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

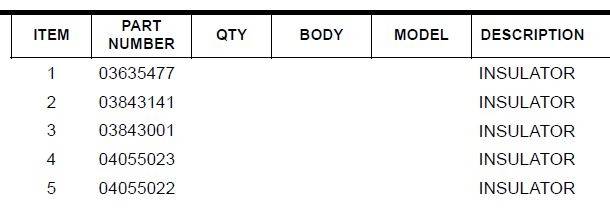

    Page 272 84 PartsM pg 272.JPG


    Attached Files:

  9. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

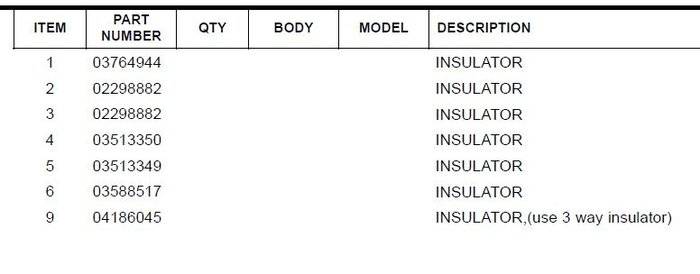

    Page 273
    84 PartsM pg 273.JPG


    Attached Files:

  10. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

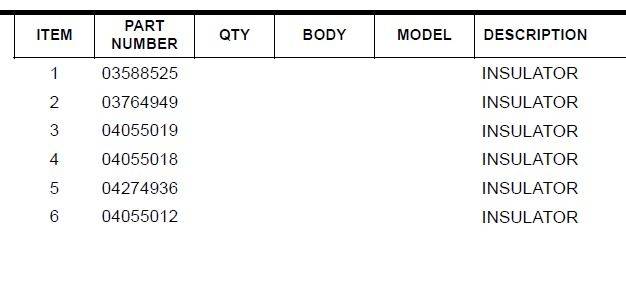

    Page 274
    84 PartsM pg 274.JPG


    Attached Files:

  11. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

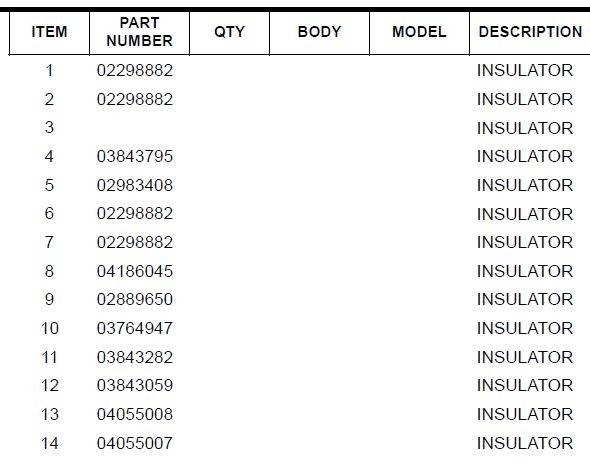

    Page 275
    84 PartsM pg 275.JPG


    Attached Files:

  12. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

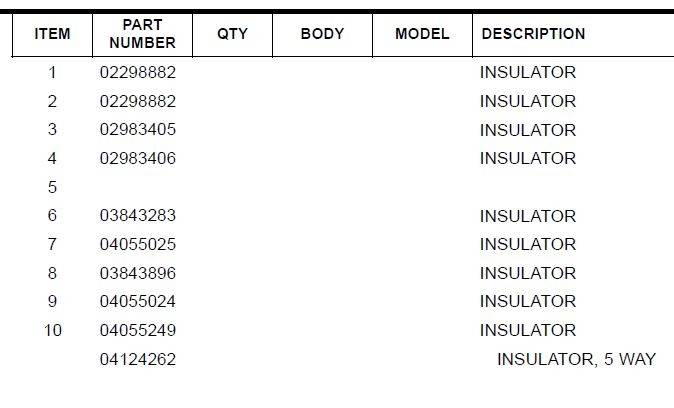

    Page 276
    84 PartsM pg 276.JPG


    Attached Files:

  13. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

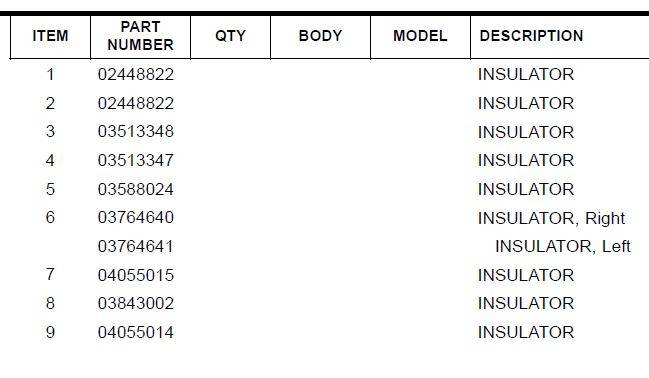

    Page 277
    84 PartsM pg 277.JPG


    Attached Files:

  14. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

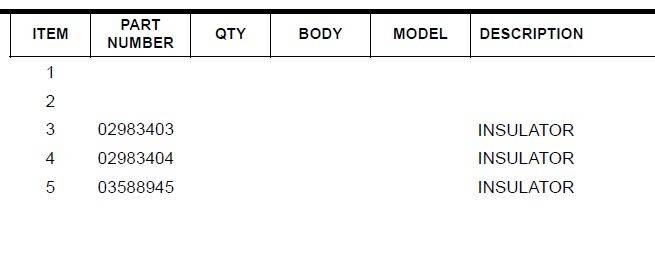

    Page 278
    84 PartsM pg 278.JPG


    Attached Files:

  15. BudW

    BudW Well-Known Member

    Messages:
    2,058
    Likes Received:
    626
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

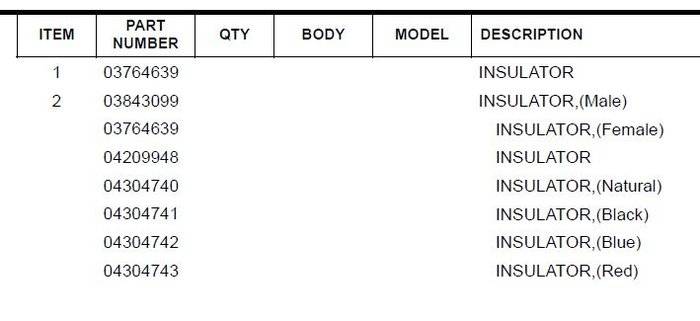

    Page 279
    84 PartsM pg 279.JPG


    Attached Files:

  16. Joe12459

    Joe12459 Well-Known Member

    Messages:
    589
    Likes Received:
    106
    Joined:
    Sep 21, 2012
    Location:
    Catskill Mountains, NY
    This is a great resource!

    7T8 Custom likes this.
  17. Mr Volare Imperial

    Mr Volare Imperial Well-Known Member

    Messages:
    70
    Likes Received:
    10
    Joined:
    Jan 15, 2016
    Location:
    oregon
    ok, its gotta be in there somewhere :)
