26" radiator and fan shroud for an Aspen

[bremereric]

I am looking for an NOS or good condition 26" radiator and fan shroud that fits an Aspen.

The part number for the radiator is 4016993...the core number can be the same or 4016992 or 4016996

The part number for the fan shroud is 3869812

watch out I have a 1977 parts book on CD...I am so dangerous now..:glasses3:



[bremereric]

I got my shroud...would still like a NOS radiator



[77kickinaspen]

eric my car is acting funny on hot days when shes all warmed up im thinking about the radiator i measured 26 roughly from mounting to mounting and the rad it self is close to 19 am i looking for the same as u i have my own shroud but r these the correct measurements?i may go with a champion if nothing else. but any other cars have same rad or oine that will bolt in ? just need some help



[bremereric]

I copied this out of my project thread

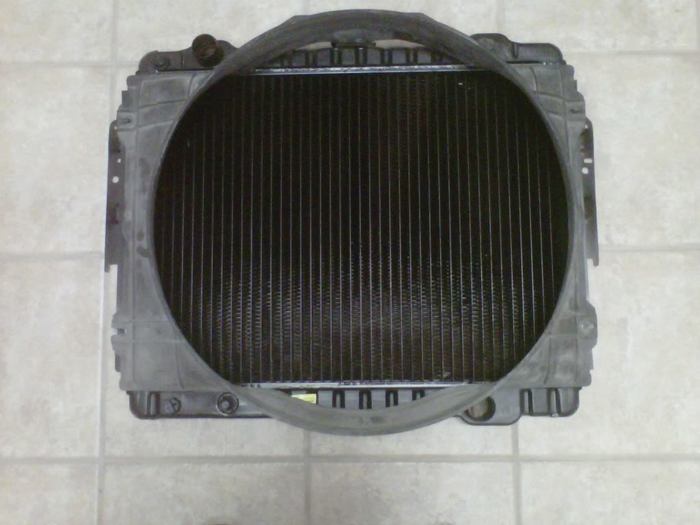

I got the Murry 26" radiator brand new yesterday at O'Reilly's for 129 bucks...I had a spare radiator fan shroud for my M body and decided to see if it fit...it did but is pretty dirty...will search for a better one...it already 97 here so all the cooling I can get I will take..I looked up a part number for the Aspen 26" radiator fan shroud and they match...guess they were using them through 1989.

This is a huge two row core radiator it will no mount in a non-AC car



[1980volare]

I got the Murry 26" radiator brand new yesterday at O'Reilly's for 129 bucks...I had a spare radiator fan shroud for my M body and decided to see if it fit...it did but is pretty dirty...will search for a better one...it already 97 here so all the cooling I can get I will take..I looked up a part number for the Aspen 26" radiator fan shroud and they match...guess they were using them through 1989.

This is a huge two row core radiator it will no mount in a non-AC car

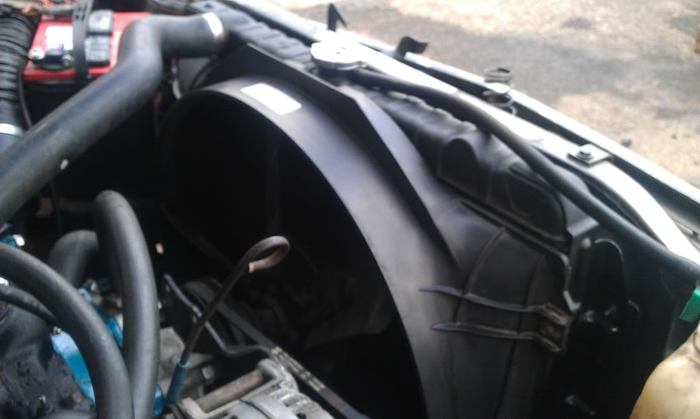

thats not true. mines mounted in a /6 non ac rad support.



[bremereric]

thats not true. mines mounted in a /6 non ac rad support.

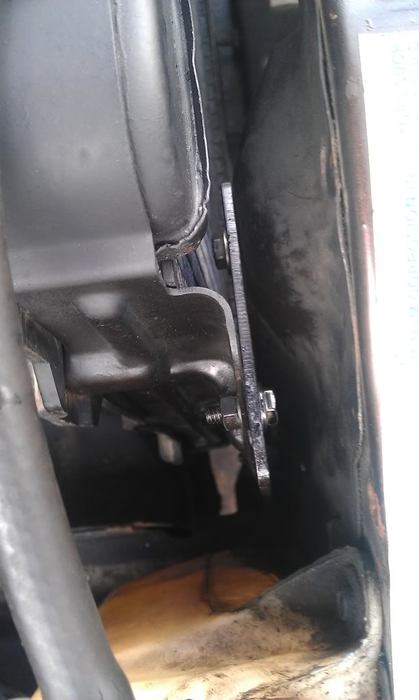

Factory location it is true...you or someone else made extension brackets to mount it to the factory bolt hole locations.....but thanks for the picture...it shows that it can be done with some brackets.



[77kickinaspen]

omg so i could do this and use the bigger radiator?can u post pics of the brackets themselves i could really use something like this and more info on it . are the pics u took the same as a 77aspen?



[1980volare]

go to autozone or you favorive other parts store. tell them you need a radiator for a 87 ram 360 with hd cooling and ac. you will need the lower hose off the ram as well for it to work i believe. them use some flat stock and bolt them to the factory location and measure for the rad mound on the flat stock and bolt it up. then find a shroud off a ram,van, or fmj car and it will bolt on that rad. its a really easy and worthwhile swap.



[77kickinaspen]

if i go this route my car has no a/c so should i get just a hd cooling 87 ram radand 2 goodyear flex rad hoses. but will i have to mess with fan spacing and luckly my car has the shroud to use on the truck rad and if urs is a /6 support mine has the 318 will my fit be diffrent i jus am very ???????? about the diffrence between ur and my car is there the same this may be the route for me.



[1980volare]

my car is/was a slant 6 car no ac. AC cars and trucks had a higher cooling capacity/and bigger and better rads. what is the width of your current radiator?



[77kickinaspen]

from eond of tab to tab on mounting peices close to 26inches wide ,22inches tall core is prolly less then 2in thick and core is like 18 1/4 by 18 1/4.



[bremereric]

from eond of tab to tab on mounting peices close to 26inches wide ,22inches tall core is prolly less then 2in thick and core is like 18 1/4 by 18 1/4.

You got the same small puny non A/C as me...the bracket is real wide and the actual radiator is real puny...do what 1980volare did and it will be good to go



[77kickinaspen]

in that case cant i just get a 77 aspen a/c large one instead of the 87 ram or the same one u got eric



[bremereric]

in that case cant i just get a 77 aspen a/c large one instead of the 87 ram or the same one u got eric

Yep either way and let me know right away if you need a shroud...I am going junking in the morning and I can probably get you one if the cars are still there 35-40 bucks will get you one plus shipping



[1980volare]

same rad, different part numbers, the hd cooling, ac ram radiator should be a 3 core as opposed to a 2 core. either way would be an upgrade.....read this..

http://www.dippy.org/forum2/index.php?topic=24.0



[77kickinaspen]

yes but then i must buy what the 26in rad or this one will fit with it.http://www.1aauto.com/1A/Radiators/Dodge/Aspen/1ARAD00230/292994/1977

i wish i could get it cheaper but the guys at orielys said non in stock they cant order them and carquest said they have 1 only and its 306



[bremereric]

yes but then i must buy what the 26in rad or this one will fit with it.http://www.1aauto.com/1A/Radiators/Dodge/Aspen/1ARAD00230/292994/1977

i wish i could get it cheaper but the guys at orielys said non in stock they cant order them and carquest said they have 1 only and its 306

BS....go to a different store......:spam4:



[77kickinaspen]

and ask for the same rad u got? and make the brackets and the shroud u will get me will work with it and ill be good with some new flex rad hoses



[bremereric]

and ask for the same rad u got? and make the brackets and the shroud u will get me will work with it and ill be good with some new flex rad hoses

I am going to get as many fan shrouds as I can get tomorrow...the two core one is behind my 81 Gran Fury with A/C with no problems



[bremereric]

and ask for the same rad u got? and make the brackets and the shroud u will get me will work with it and ill be good with some new flex rad hoses

I am going to get as many fan shrouds as I can get tomorrow...the two core one is behind my 81 Gran Fury with A/C with no problems

get this one at O'Riellys

http://www.oreillyauto.com/site/c/d...k=Search_01386_1069512_506&pt=01386&ppt=C0331

Of course as they get more rare the price goes up I got it 3 months ago at $130 and now it's $172.99
