76-77 F Clocks ???

F Body General Discussion

  1. XfbodyX

    XfbodyX Well-Known Member

    Messages:
    1,206
    Likes Received:
    238
    Joined:
    Sep 9, 2015
    Location:
    Central US
    Anyone know if there was a cut off date or if it was the approx model year change when it comes to the 76 type F body clock VS the cheaper more plain 77 type?

  2. BudW

    BudW Moderator Staff Member

    Messages:
    4,351
    Likes Received:
    1157
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I’m aware the F-bodies has an analog clock and a digital clock. I’m not aware there was a difference in each (or one) version. Do you have any pictures?

  3. XfbodyX

    XfbodyX Well-Known Member

    Messages:
    1,206
    Likes Received:
    238
    Joined:
    Sep 9, 2015
    Location:
    Central US

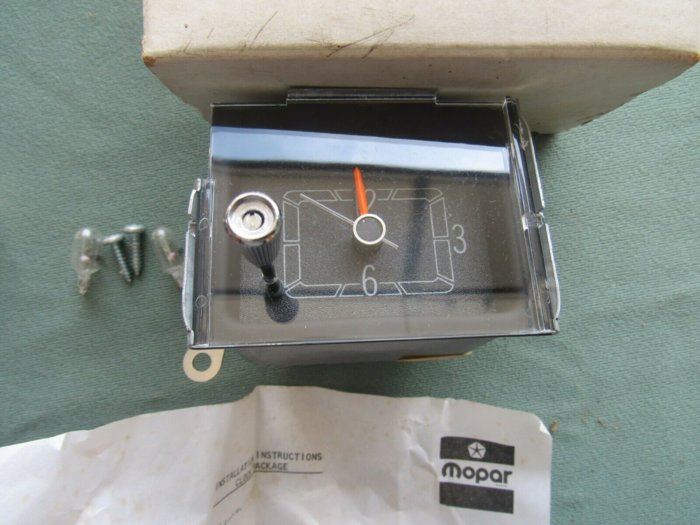

    76 Top Had the older mopar theme, black crinkle backing and screen printed on top.

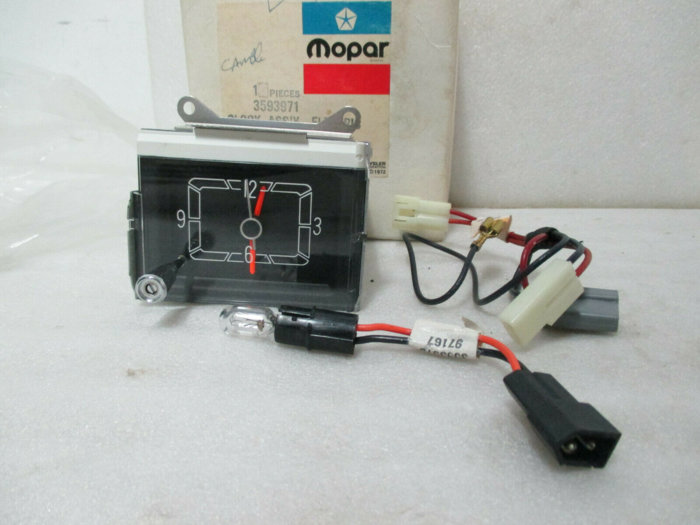

    77 Bottom Clock Face printed on back of lens, black background.

    76 Clock.jpg

    77 Clock.jpg

    greymouser7 and SuicideRider like this.
  4. 7T8 Custom

    7T8 Custom Well-Known Member

    Messages:
    814
    Likes Received:
    283
    Joined:
    Oct 17, 2015
    Location:
    Vancouver, British Columbia
    Who knew. You learn something new every day.

    greymouser7 likes this.
  5. volare 77

    volare 77 Well-Known Member

    Messages:
    1,342
    Likes Received:
    176
    Joined:
    Jun 12, 2014
    Location:
    maryland
    I knew of them being different but I don`t know when they changed.

  6. F body Deconstructor Jim

    F body Deconstructor Jim Well-Known Member

    Messages:
    557
    Likes Received:
    134
    Joined:
    Jun 19, 2011
    Location:
    Phoenix, AZ
    I'm betting it was a multiple supplier variation.

  7. XfbodyX

    XfbodyX Well-Known Member

    Messages:
    1,206
    Likes Received:
    238
    Joined:
    Sep 9, 2015
    Location:
    Central US
    I'm betting it was a multiple supplier variation.

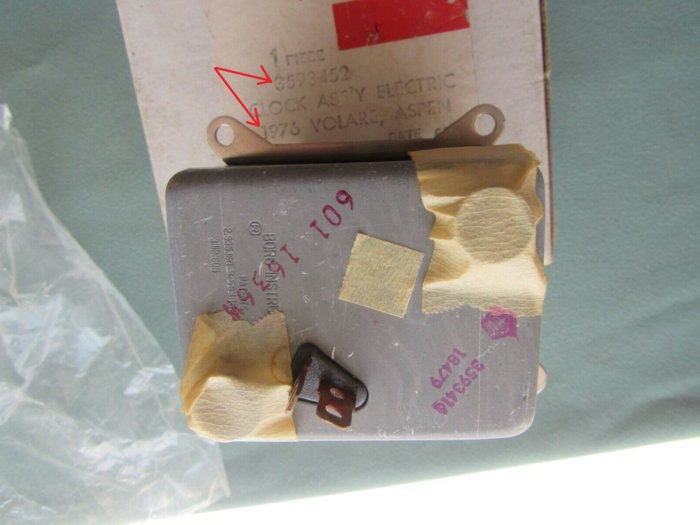

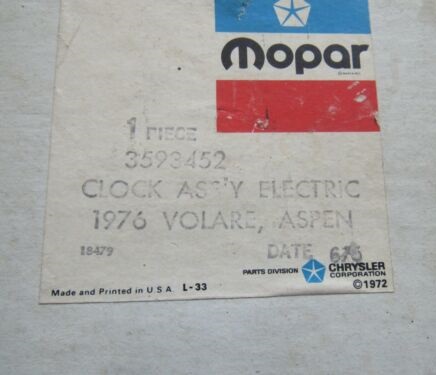

    Id go for that but the 76 parts book as well as the box shows the one I posted as a 76 PN 3593452. And both are made by the same company Borg.

    Ive got all the papers, wth they called? Not the TSB-s I dont think the product Product Bulletin, I looked, thats what it is so that might be of some help.

    76 Clock 2 - Copy.jpg


    Last edited: Jan 23, 2020
  8. XfbodyX

    XfbodyX Well-Known Member

    Messages:
    1,206
    Likes Received:
    238
    Joined:
    Sep 9, 2015
    Location:
    Central US

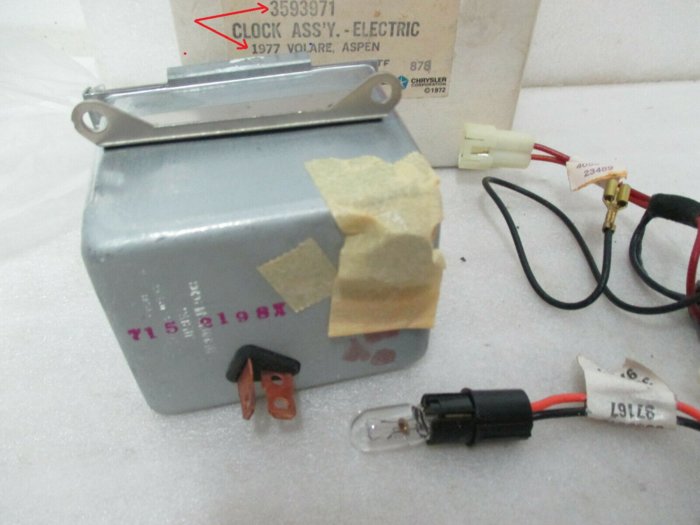

    The 77 parts book as well as the box shows the one I posted as a 77 PN 3593971.

    .

    77 Clock 2 - Copy.jpg

  9. XfbodyX

    XfbodyX Well-Known Member

    Messages:
    1,206
    Likes Received:
    238
    Joined:
    Sep 9, 2015
    Location:
    Central US
    And you can see there is one bulb in the 77.

  10. F body Deconstructor Jim

    F body Deconstructor Jim Well-Known Member

    Messages:
    557
    Likes Received:
    134
    Joined:
    Jun 19, 2011
    Location:
    Phoenix, AZ
    so it was single supplier variation :)

    cant help on the specific date, but, if typical chrysler of the era is at play, the date would be sometime in the beginning of the model year immediately after any leftover supply was used up.

  11. XfbodyX

    XfbodyX Well-Known Member

    Messages:
    1,206
    Likes Received:
    238
    Joined:
    Sep 9, 2015
    Location:
    Central US
    Now that stands to reason, I think I got the cut off month. Its not the 76/77 year change. I cant keep a printer working to save my life but let me see if I can scan it.

    I really didnt know this myself till about three years ago when I went to get the NOS clock out for a 76 project car and poof I had a NOS 77 clock in hand. They make a funny pop when they hit the wall.

    Last edited: Jan 23, 2020
  12. F body Deconstructor Jim

    F body Deconstructor Jim Well-Known Member

    Messages:
    557
    Likes Received:
    134
    Joined:
    Jun 19, 2011
    Location:
    Phoenix, AZ
    Yes...sometimes its a very satisfying sound.

    I imagine the date would vary from factory to factory.

    None of that now, with "just in time"...but that doesnt allow for much slack in the system for supply hiccups.

    greymouser7 likes this.
