81 Dippy brake light switch

shadango

Well-Known Member
Joined
May 30, 2016
Messages
456
Reaction score
38
Location
Pittsburgh, PA
Found that my brake lights were not working at all.....all 4 dead......did the usual checks...bulbs, fuse....

Turns out the witch on the pedal was not...er...switching. It was loose on the mount so first thing I tried was to tighten it up a bit...no change......so....

I took it out (they don't make it easy to get at for an old fat guy with a nad back, do they!?!?) and hooked up a meter....worked it a bunch of times and it started working.

It is sealed (couldnt really try and clean any contacts inside) so I figure I should probably get a new one....the OEM one is marked "made in japan" and is all white plastic and has the pigtail for cruise control....

Anyone know where I can find a GOOD quality one?

Rockauto only lists the "w/o cruise" version.......... :(

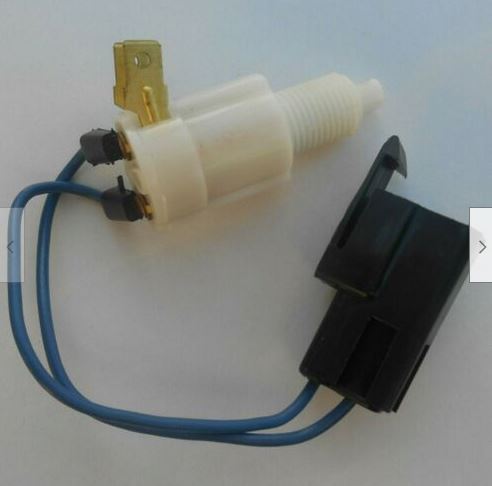

I found the one I need (in the picture) on ebay but $85 NOS!!!!!!

dippy brake switch.JPG

Last edited:

80mirada

Well-Known Member
Joined
Sep 3, 2012
Messages
1,361
Reaction score
460
Location
Wisconsin, Fort Atkinson
The same switch was used in different years, but the connector on the leads for the cruise control are different. 1982 Dodge Diplomat, Standard Motor Products SLS117, you will have to change the plug body, but the switch will work.


shadango

Well-Known Member
Joined
May 30, 2016
Messages
456
Reaction score
38
Location
Pittsburgh, PA
The same switch was used in different years, but the connector on the leads for the cruise control are different. 1982 Dodge Diplomat, Standard Motor Products SLS117, you will have to change the plug body, but the switch will work.

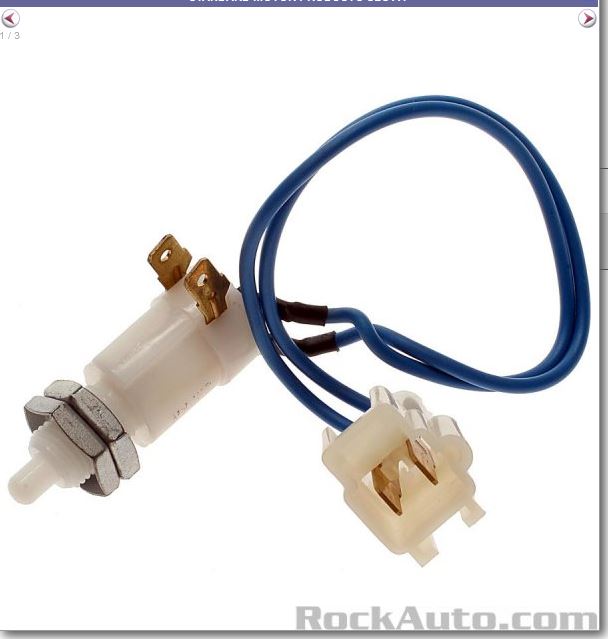

Thanks! This i great info.....it sure does LOOK the same and its available on rock auto for $27!

brake switch sls117.JPG
