81 Dippy exhaust pipe to transmission mount bracket

Engines, Exhaust and Fuel Systems

  1. shadango

    shadango Well-Known Member

    Messages:
    419
    Likes Received:
    37
    Joined:
    May 30, 2016
    Location:
    Pittsburgh, PA
    Hey folks
    Anyone have a source for the bracket that connects between the exhaust, a little ways back from the cat, to the transmission crossmember/mount?

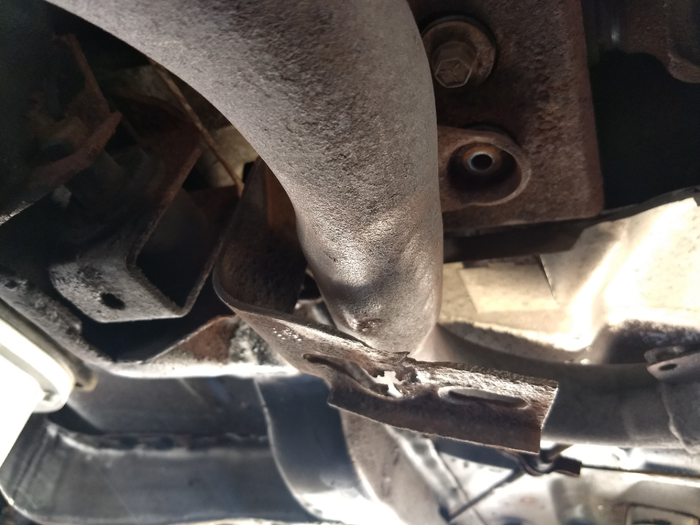

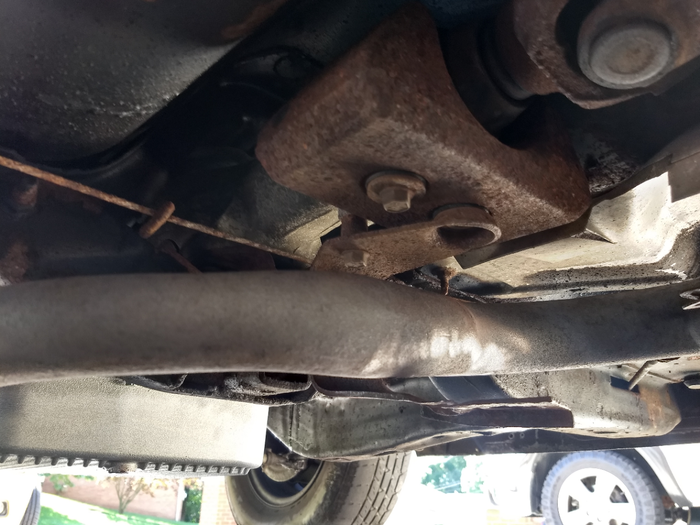

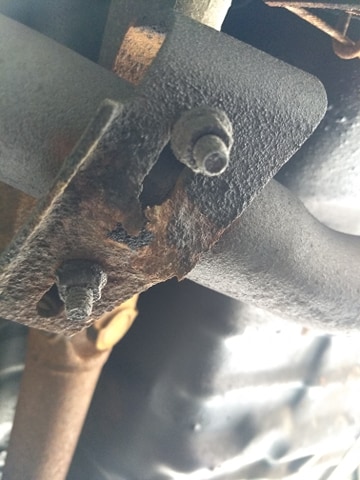

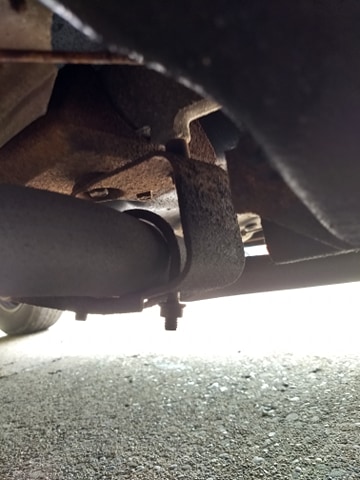

    bracket 1.jpg

    bracket 2.jpg

  2. volare 77

    volare 77 Well-Known Member

    Messages:
    1,302
    Likes Received:
    172
    Joined:
    Jun 12, 2014
    Location:
    maryland
  3. shadango

    shadango Well-Known Member

    Messages:
    419
    Likes Received:
    37
    Joined:
    May 30, 2016
    Location:
    Pittsburgh, PA
  4. Mikes5thAve

    Mikes5thAve Well-Known Member

    Messages:
    162
    Likes Received:
    53
    Joined:
    Mar 3, 2020
    Location:
    Canada
    is it a /6? The V8 ones look like the ebay picture.

  5. shadango

    shadango Well-Known Member

    Messages:
    419
    Likes Received:
    37
    Joined:
    May 30, 2016
    Location:
    Pittsburgh, PA
    Sorry! Yeah, it's a /6.

  6. BudW

    BudW Moderator Staff Member

    Messages:
    4,295
    Likes Received:
    1142
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

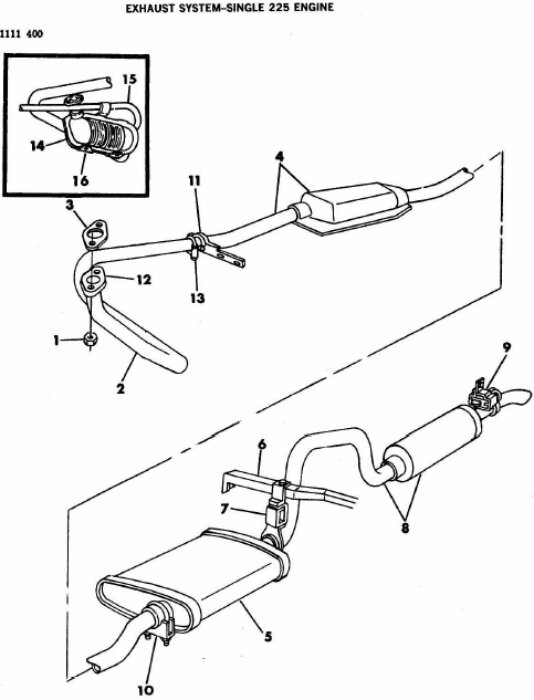

    I included the full size PDF's (below).

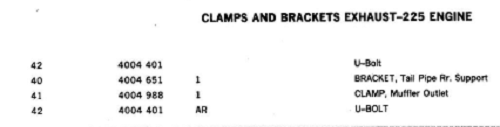

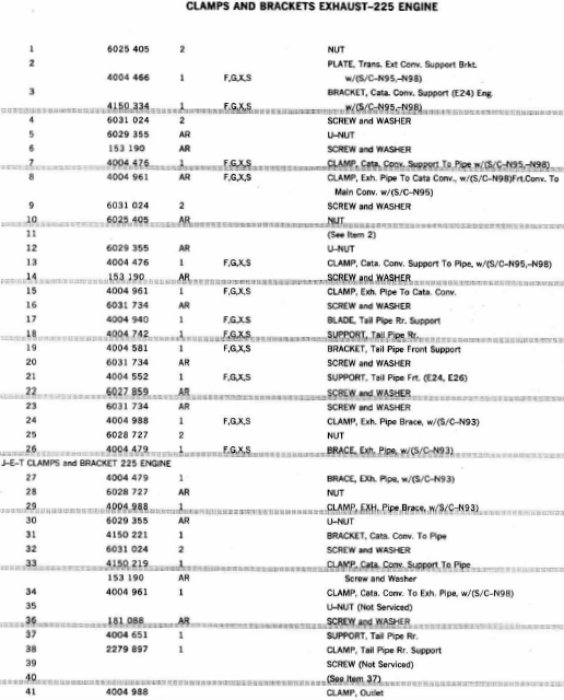

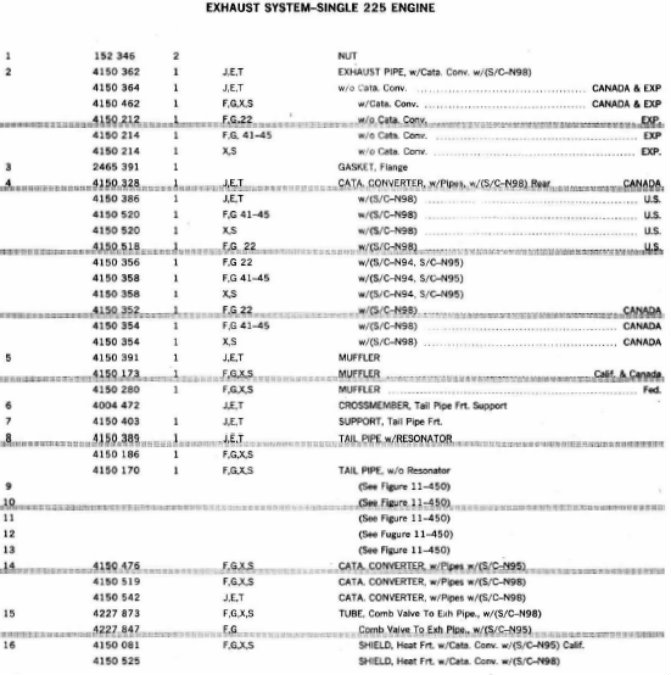

    81 PM pg 11-16.jpg
    81 PM pg 11-17.jpg

    81 PM pg 11-18.jpg
    81 PM pg 11-19.jpg
    81 PM pg 11-20.png
    Note: J,E,T is R-Body. You are looking for F,G (M-body). X,S is J-body, which most might be the same.
    Also 22 means 2-door, 41 is 4-door and 45 is station wagon.
    Lastly (S/C) is Sales Code (in this case, emissions level) which will be on the fender tag.
    BudW


    Attached Files:

  7. shadango

    shadango Well-Known Member

    Messages:
    419
    Likes Received:
    37
    Joined:
    May 30, 2016
    Location:
    Pittsburgh, PA
    Thanks Bud.

    So the correct bracket DOES look like the one on ebay...

    I guess someone must have fabricated the one thats on our dippy and maybe even moved the routing of the exhaust then, because aint no way that one is working under our car....

    More confused now....LOL
