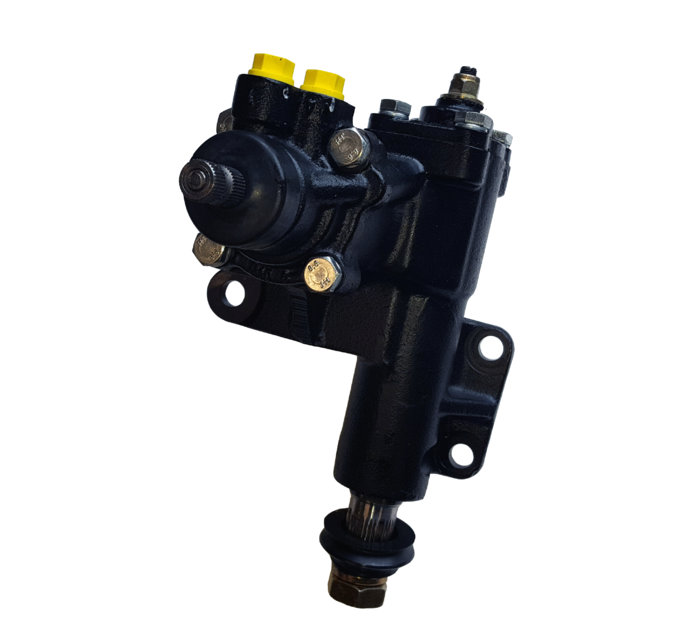

Borgeson Mopar 800126 technical information.

Steering Ratio: 14:1 (3.5 Turns Lock-to-Lock).

Input Shaft: 11/16"(17MM)-36 Spline.

Pitman Shaft: 1-1/8" Mopar with 32 Splines and 4 Master Splines, M22 X 1.5 Thread.

Pressure Port: 16mm X 1.5 Flare (Located Closest to Engine).

Return Port: 16mm X 1.5 Flare (Located Closest to Input shaft).

Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal.

Flow Rate: 2.0-2.5 GPM Flow Rate Recommended.

Degrees of Rotation: +/-45.5 Each Direction of Center.

Maximum Front End Weight: 2,645 Pounds

Maximum Output Torque: 633 Ft. Lbs.

Operating Temperature Range: -40F to 248F (Big Block Applications Will Require a Cooler).

Weight: 26.46 Pounds.

MSRP: $629.00

Installation Drawing: http://borgeson.com/imageCD/800126_800127_Drawing.pdf
