    Hey all,
    I was wondering if anyone would know what two colored wires would be for the brake light switch? 88 Diplomat not sure if it'd be different for F,J bodies. Most of the other wiring I could identify or figure out under the dash getting this car going again.The pedal assembly and other odds and ends were taken off and set aside when I got the car.I think it may be pink,white or yellow.
    Also I was trying to find a replacement switch,but haven't found any at napa,oreilys etc.Was thinking of using a GM switch same principle in function.Did find this one on ebay but not 100% sure NOS 84 85 86 MOPAR SPEED CONTROL SWITCH 4221975 DIPLOMAT CARAVAN LEBARON ~ 42219000075 | eBay.

  2. BudW

    BudW Moderator Staff Member

    Messages:
    3,731
    Likes Received:
    994
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    The official part number for your stop lamp switch for your ’88 would be:
    4221979 without cruise (comes without the metal bracket). This part was discontinued and superseded to part number (below).

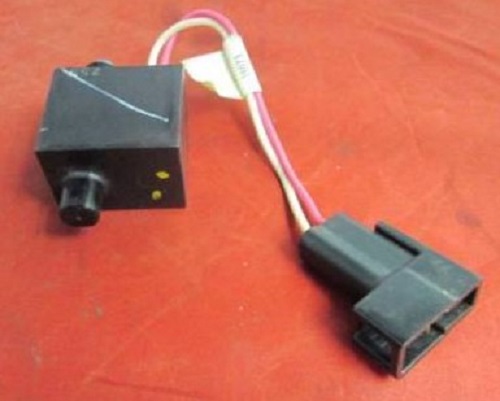

    4221979 Stop Lt Sw woCruise.jpg

    4221980 with cruise control. This part was recently superseded. If you can find a dealer with one, the MSRP is $36.98 (US).

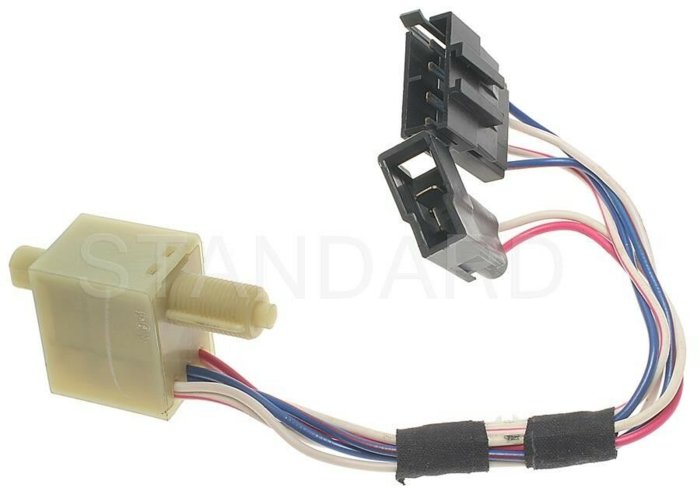

    This is a Standard part number SLS-191 which is aftermarket for the above part number.

    There is no problem using a “with Cruise” on a car without cruise. You will have an extra pigtail (or extra wires) that won’t be used.


    The red (or pink) wire is always hot (even when car is turned off and keys are in pocket).
    The white wire goes to brake lamps (even the 3rd brake lamp).
    The metal bracket might be the hard part to locate if yours is missing.

    This is from my ’86 FSM (Factory Service Manual). It should be the same (or very close if not the same).

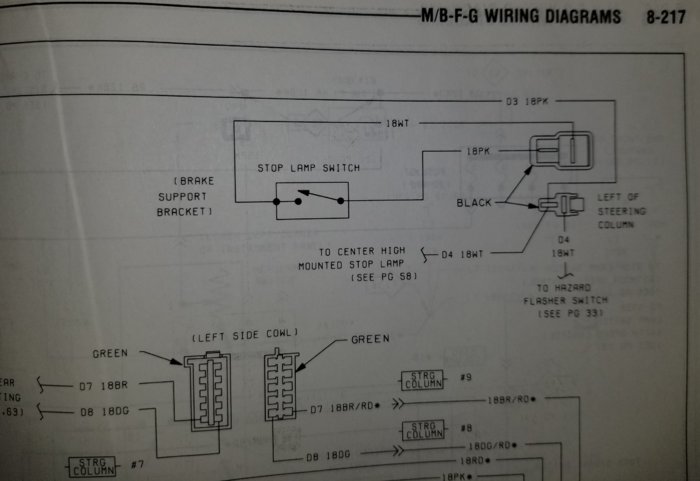

    without cruise

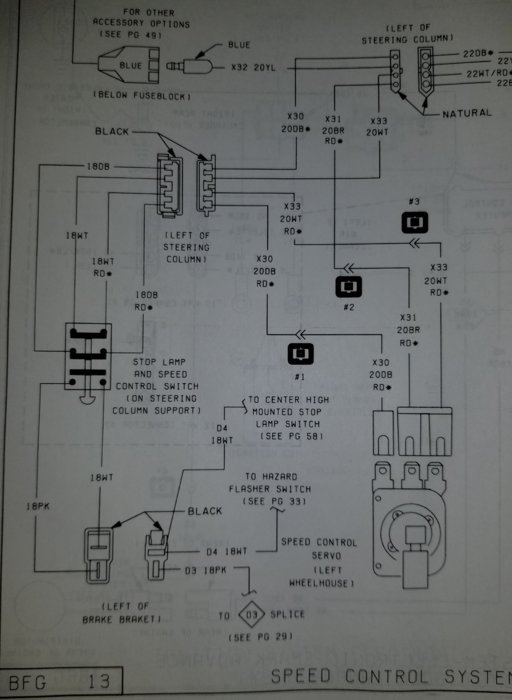

    with cruise

    This is from my ’88 Parts Manual

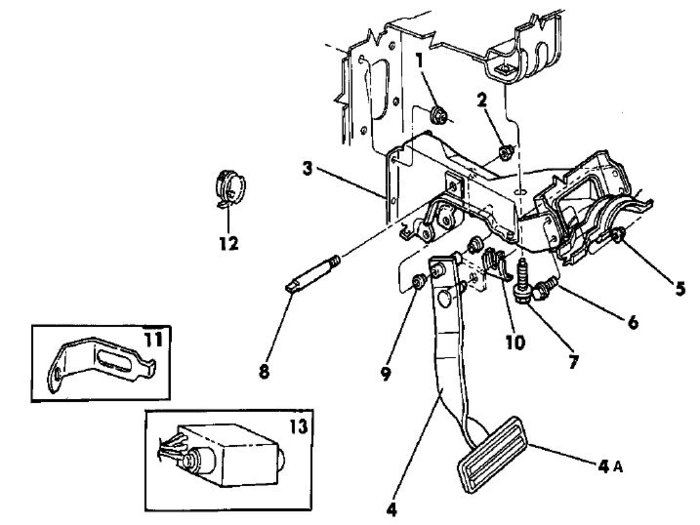

    88 PM pg 5-90a.JPG
    Item 11 is the stop lamp switch bracket. Item 13 is the stop lamp switch.

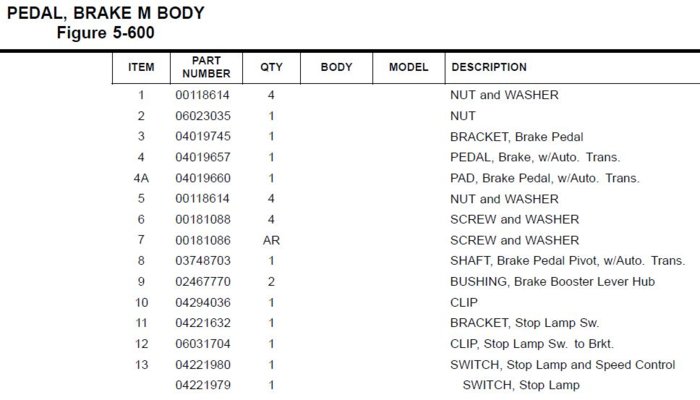

    88 PM pg 5-90b.JPG

    I hope this helps.
    BudW

  3. Camtron

    Camtron Well-Known Member

    Messages:
    105
    Likes Received:
    28
    Joined:
    Apr 25, 2019
    Location:
    Chicago
    Bud, are you a dealership service tech/manager or something? The info and diagrams you have access to are an amazing resource to us all. Thanks for all your help

    Ele115 likes this.
  4. Aspen500

    Aspen500 Well-Known Member

    Messages:
    4,209
    Likes Received:
    1223
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    Bud is a treasure trove of information! :cool:

  5. BudW

    BudW Moderator Staff Member

    Messages:
    3,731
    Likes Received:
    994
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Thank you for your kind worda. Fast, is one thing I'm not.

  6. 88_AHB

    88_AHB Well-Known Member

    Messages:
    108
    Likes Received:
    7
    Joined:
    Sep 24, 2018
    Location:
    West coast
    Would part # 4221975 work as well? looks almost exactly the same?

  7. BudW

    BudW Moderator Staff Member

    Messages:
    3,731
    Likes Received:
    994
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Honestly, I don't know.
    Chrysler has always been good about making one part fit many vehicles – so I can't imagine a different part number fitting correctly (but it might).
    BudW
