Bypass hose on the Slant Waterpump

Engines, Exhaust and Fuel Systems

  1. slant6billy

    slant6billy Well-Known Member

    Messages:
    2,868
    Likes Received:
    570
    Joined:
    Dec 21, 2011

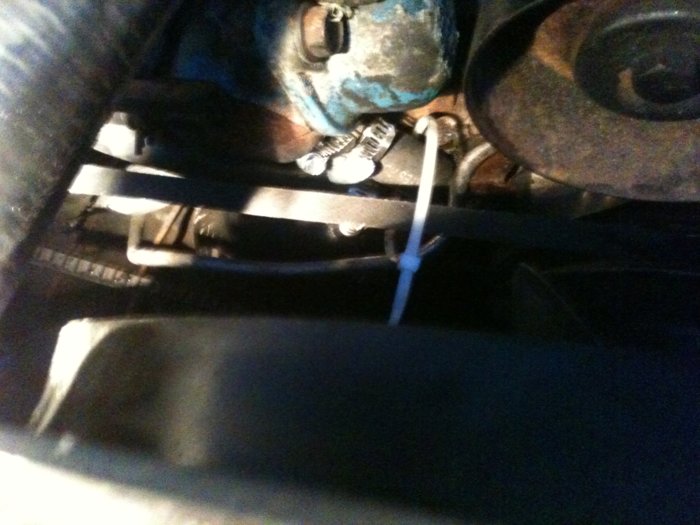

    Easy getting the old one off. Got to get smart getting the new one on IMG_4492.JPG
    Used a tyrap to pull it into place

  2. AJ/FormS

    AJ/FormS Well-Known Member

    Messages:
    1,112
    Likes Received:
    243
    Joined:
    Apr 26, 2016
    Location:
    On the Circle of the earth, Southern Man,Canada
    good job!

  3. BudW

    BudW Moderator Staff Member

    Messages:
    4,200
    Likes Received:
    1092
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I didn’t work on a lot of /6’s. The ones I did work on, I always replaced that hose when the head was off – because otherwise it would be a bear.

    Chrysler made regular (G) and raised block (RG) /6’s. The 170 is a G and 198 and 225 are both RG’s. That hose is about 1” shorter for the 170’s.
    For the 170’s. you had to remove the water pump because otherwise the hose was too short.

    Unrelated, I’m not sure the 170’s wasn’t a better running engine than the 225’ were because of the shorter stroke.
    BudW
