Dash lights wire color?

Interior and Electrical

  1. shadango

    shadango Well-Known Member

    Messages:
    303
    Likes Received:
    24
    Joined:
    May 30, 2016
    Location:
    Pittsburgh, PA
    Anyone with a 1980 Volare...can you tell me the location and color of the dash lights wire?

    Want to tap into it for a tach and gauge lighting.

    Thanks all!

  2. 80mirada

    80mirada Well-Known Member

    Messages:
    790
    Likes Received:
    212
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    Dash lights should be an orange wire, the ashtray one is the easiest to get to.

    shadango likes this.
  3. shadango

    shadango Well-Known Member

    Messages:
    303
    Likes Received:
    24
    Joined:
    May 30, 2016
    Location:
    Pittsburgh, PA
    Thanks! Will try that.

  4. shadango

    shadango Well-Known Member

    Messages:
    303
    Likes Received:
    24
    Joined:
    May 30, 2016
    Location:
    Pittsburgh, PA
    Well, seems we dont have an ashtray light so that wont work.... :)

  5. BudW

    BudW Moderator Staff Member

    Messages:
    3,050
    Likes Received:
    835
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

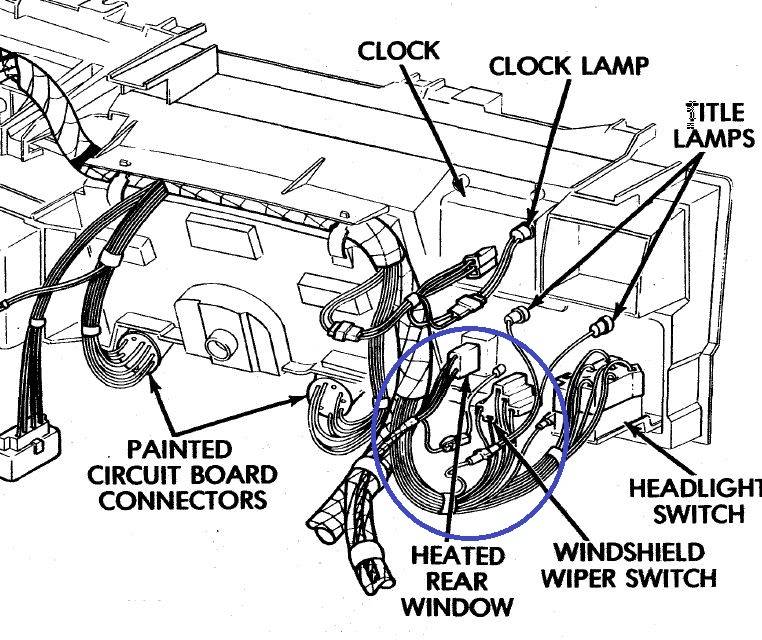

    Behind the dash, there will be (or should be) an orange electrical connector looking like this (blue circle):
    wire 2.jpg

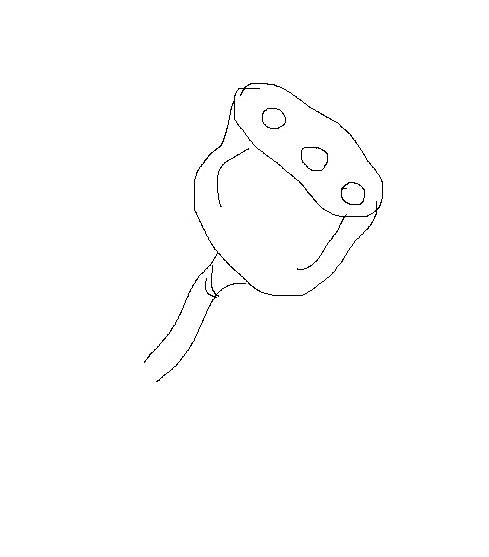

    It will have a provision for three bullet style connectors (not sure of exact name).
    It should have two if not all three spots open to use for dash lights.

    There Should be another connector (just like the orange one) under dash that looks like it that is red in color, and that is a good tap for 12 volts (but not sure offhand if switched or full time 12 volts)

    BudW
