Dash swapping from F to M

Interior and Electrical

  1. Edward Anglemyer Jr.

    Edward Anglemyer Jr. Member

    Messages:
    9
    Likes Received:
    3
    Joined:
    Apr 6, 2019
    Location:
    Pennsylvania
    I understand that there is already a thread on this, but I have different questions.

    My 79 Volare has rear defrost and cruise control. I had ordered a wire harness which was said to be from a 77 Diplomat.

    I am noticing that the firewall plugs are backwards (volare is female, diplomat is male.) The Diplomat does not have the same options as the Volare.

    What I am trying to figure out is how much I would have to change for the firewall plug and how I can add the wiring for my Volare's options.

    Did I get the wrong year wiring harness?

    Thank you.

    Last edited: Apr 10, 2019
  2. Darth-Car

    Darth-Car Well-Known Member

    Messages:
    794
    Likes Received:
    278
    Joined:
    Aug 9, 2015
    Location:
    Ohio
    Very different instrument clusters, and because of that the wire harnesses are totally different. You have a Volare' so you need a Volare' harness, or an Aspen harness. The Diplomat, or LeBaron harnesses will not work for you.

  3. Edward Anglemyer Jr.

    Edward Anglemyer Jr. Member

    Messages:
    9
    Likes Received:
    3
    Joined:
    Apr 6, 2019
    Location:
    Pennsylvania
    So I can keep my Volare harness for my Diplomat gauges? What will I have to switch so the harness will work with the gauges?

  4. Edward Anglemyer Jr.

    Edward Anglemyer Jr. Member

    Messages:
    9
    Likes Received:
    3
    Joined:
    Apr 6, 2019
    Location:
    Pennsylvania
    But could I use an M body harness for an M body gauge cluster?

  5. DCAspen

    DCAspen Well-Known Member

    Messages:
    965
    Likes Received:
    191
    Joined:
    Sep 27, 2011
    Location:
    ct.
    76-77 harness from dash to engine plug together under the dash and 78 up plug together on the firewall like early 70s mopars.You would need a harness from a 78 or 79 to fit your 79 Volare.

    Edward Anglemyer Jr. likes this.
  6. Edward Anglemyer Jr.

    Edward Anglemyer Jr. Member

    Messages:
    9
    Likes Received:
    3
    Joined:
    Apr 6, 2019
    Location:
    Pennsylvania
    Ok, that is the answer I was looking for. Thank you!

  7. F body Deconstructor Jim

    F body Deconstructor Jim Well-Known Member

    Messages:
    477
    Likes Received:
    120
    Joined:
    Jun 19, 2011
    Location:
    Phoenix, AZ
    you need a 79 F dash harness with rear defrost and cruise?

    somewhere in late 78 or beginning of 79 the plug became a true bulkhead connector on the F's...
    earlier harnesses wont fit directly.
    later wont work either due to the column changes for 1980.

    Edward Anglemyer Jr. likes this.
  8. DCAspen

    DCAspen Well-Known Member

    Messages:
    965
    Likes Received:
    191
    Joined:
    Sep 27, 2011
    Location:
    ct.
    Nice to see your back Jim,You still selling parts?

  9. F body Deconstructor Jim

    F body Deconstructor Jim Well-Known Member

    Messages:
    477
    Likes Received:
    120
    Joined:
    Jun 19, 2011
    Location:
    Phoenix, AZ
    bear woods.jpg :D

  10. BudW

    BudW Moderator Staff Member

    Messages:
    3,604
    Likes Received:
    955
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Hum, not sure what that means, exactly.
    I hope he is still selling parts. He’s a great guy to work with . . . even though he’s proven me wrong a few times.
    BudW

  11. bbeep79

    bbeep79 Member

    Messages:
    15
    Likes Received:
    13
    Joined:
    Jul 19, 2018
    Location:
    Lake Mills, Wisconsin
    Translating lawyer speak to English, I believe it comes down to 'Does a bear s*** in the woods?'
    The answer would be yes, he still sells parts.

  12. 89.Fifth

    89.Fifth Well-Known Member

    Messages:
    355
    Likes Received:
    73
    Joined:
    Sep 5, 2015
    Location:
    New York, NY
    exactly! Love the cartoon for that.

  13. F body Deconstructor Jim

    F body Deconstructor Jim Well-Known Member

    Messages:
    477
    Likes Received:
    120
    Joined:
    Jun 19, 2011
    Location:
    Phoenix, AZ
    :D

  14. Edward Anglemyer Jr.

    Edward Anglemyer Jr. Member

    Messages:
    9
    Likes Received:
    3
    Joined:
    Apr 6, 2019
    Location:
    Pennsylvania

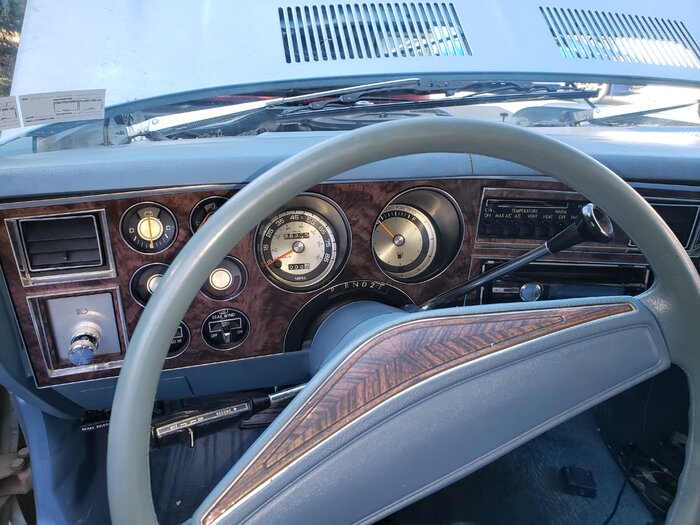

    Ok so I am just going to re-use my destroyed F harness. I have a question about the temperature gauge though. How do I send 5v power to it if the 1 5v on the F harness is being used for the fuel gauge?

  15. BudW

    BudW Moderator Staff Member

    Messages:
    3,604
    Likes Received:
    955
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City

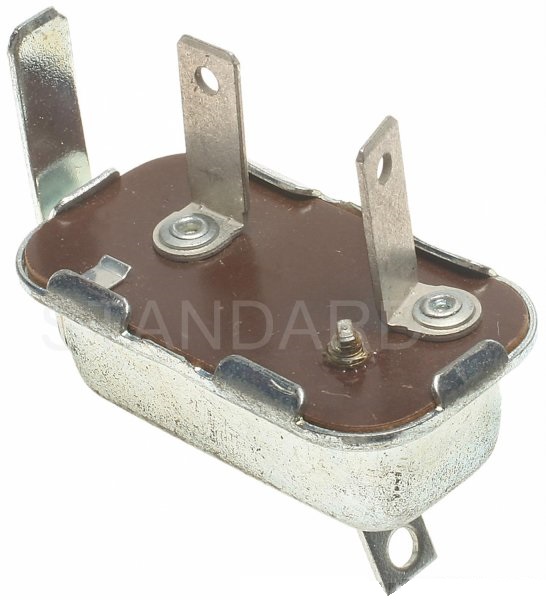

    On the back side of instrument cluster, there will be a 5-volt voltage regulator, that looks like this:
    VRC 601.jpg
    This converts 12 volts to 5-volts. Correction, it turns on/off fast, to make a 5-volt supply voltage so it is more of an A/C (alternating current) 5-volts than a D/C 5-volts. The gauges will not respond quickly, so it works fine.

    The same 5-volt source supplies current to fuel gauge, engine temperature gauge and for oil pressure gauge (if equipped).

    Matter of fact you can take a spare fuel gauge sender to test the operation of the temperature or oil pressure gauges (all three has the same low and high range ohm reading).
    BudW

  16. Darth-Car

    Darth-Car Well-Known Member

    Messages:
    794
    Likes Received:
    278
    Joined:
    Aug 9, 2015
    Location:
    Ohio
    AAAHHH It's so big! It's the voltage regulator that ate Chicago! That is definitely not shown actual size. :)
