Manual seat to power seat how to advice

Master M

Well-Known Member
Joined
Nov 22, 2014
Messages
330
Reaction score
116
Has anyone changed out the manual seat adjuster base to a power seat adjuster base. I would like to do that on the passenger side of my 1988 5th. Ave. Are there any tips on how to ? Any ideas where I can find the power adjuster base ? Thanks.


Jack Meoff

Mopar Maniac
Joined
Jan 29, 2012
Messages
10,747
Reaction score
1,200
Location
Hogtown, Ontario
Unless someone on here is parting out a Fifth it might be tough finding those parts. I don't know your location but I did a US wide search on www.car-part.com and found four or five seat motors so there's a chance the same boneyards might have the tracks too.

I've never done this conversion myself so I'm limited help myself.

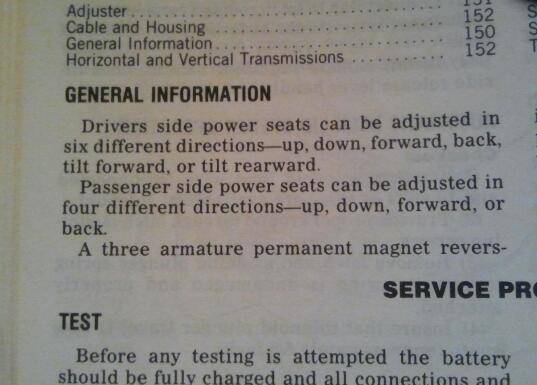

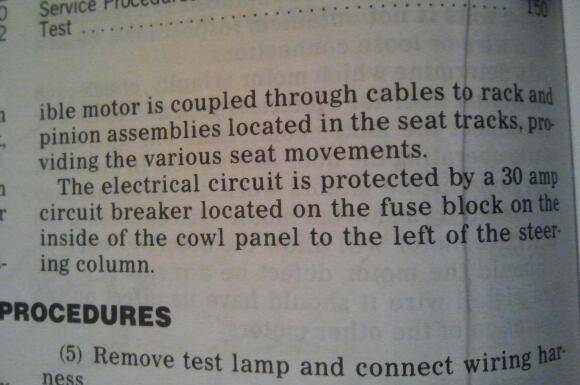

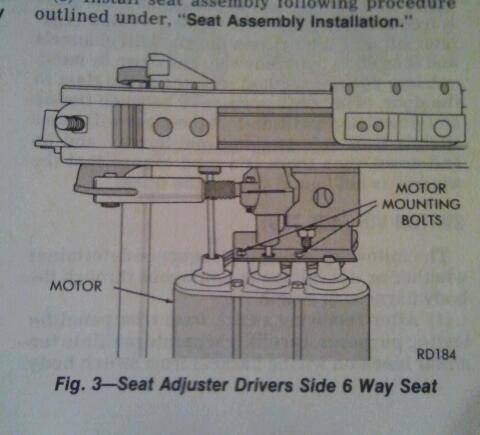

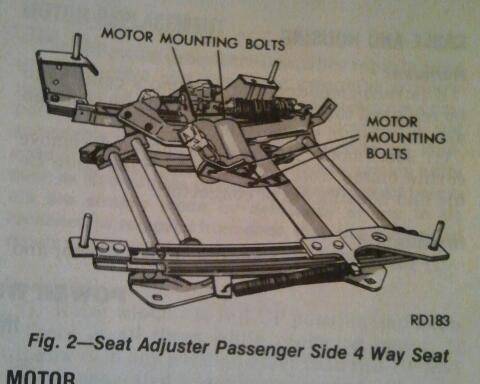

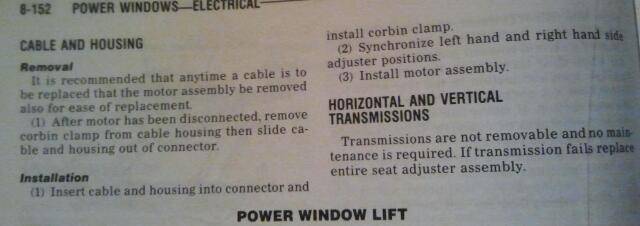

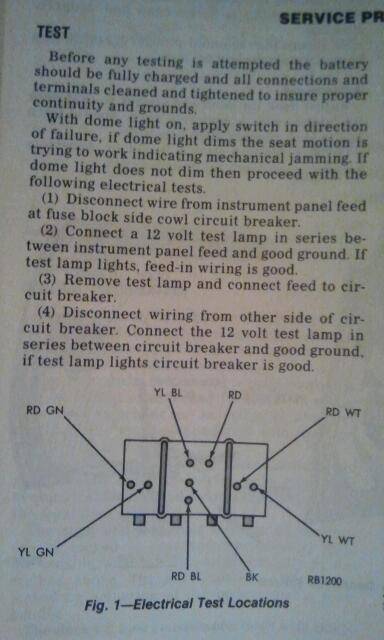

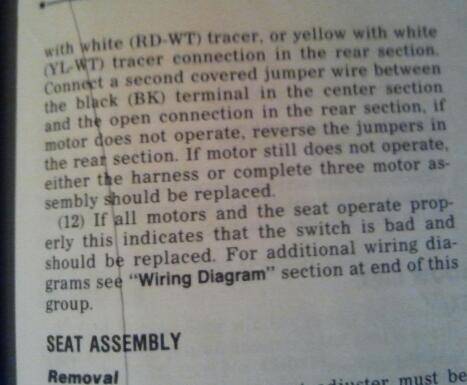

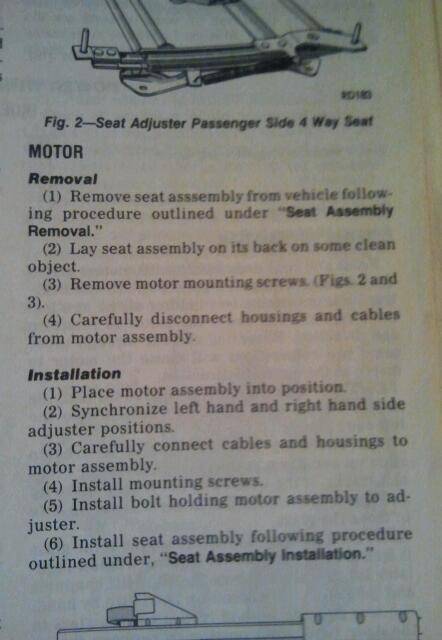

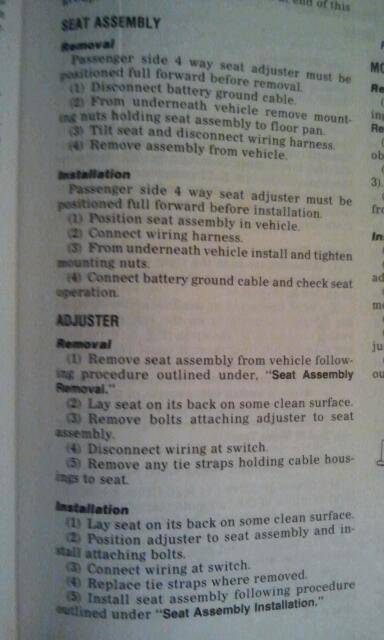

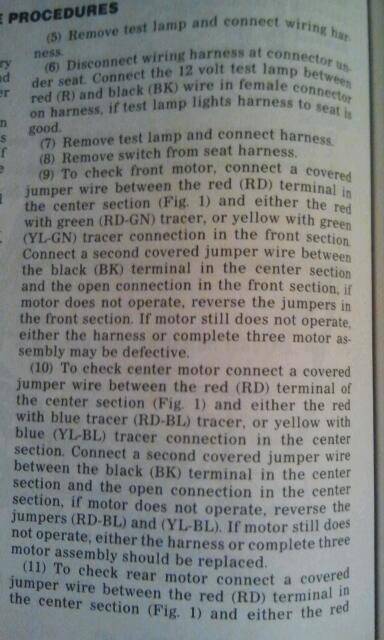

What I can give you is everything I have in my 86 FSM on power seats.
Hope this helps....

2015-01-01 23.11.24-1.jpg

2015-01-01 23.11.41-1.jpg

2015-01-01 23.12.54-1.jpg

2015-01-01 23.13.35-1.jpg

2015-01-01 23.14.03-1.jpg

2015-01-01 23.14.24-1.jpg


2015-01-01 23.11.24-1.jpg


2015-01-01 23.11.41-1.jpg


2015-01-01 23.12.54-1.jpg


2015-01-01 23.13.35-1.jpg


2015-01-01 23.14.03-1.jpg


2015-01-01 23.14.24-1.jpg

Last edited:

Master M

Well-Known Member
Joined
Nov 22, 2014
Messages
330
Reaction score
116
Thanks for the info. I also posted in the wanted section, so I will have to be patient and see what I can find.
