Pictures Wanted

[65 Dartman]

I recently obtained pretty a bunch of brackets for fitting a factory rotary compressor to a late F or M/J Body with a slant six. The main bracket that fits around the water pump is a no brainer, but all the rest of the stuff I got I could use some help on where everything goes. If anyone has a rotary compressor on a slant and would be willing to take some clear close-ups I could sure use some help. PM me and I'll pass along my email address.



[slant6billy]

My 81 Lebaron has the slant with the newer AC compressor. I don't have the stills with b/c I'm out of town, but the video of the car running is here: https://www.youtube.com/watch?v=7qcONEFqMSI

I hope that helps



[Aspen500]

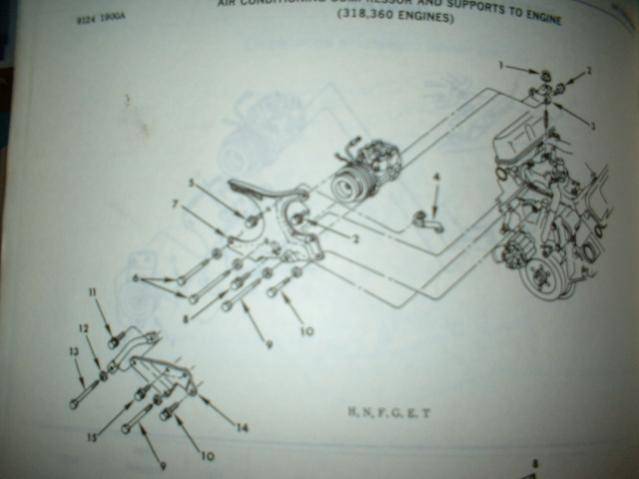

I don't know if this will help any but, here it is anyways. Out of a '79 parts catalog.



[Aspen500]

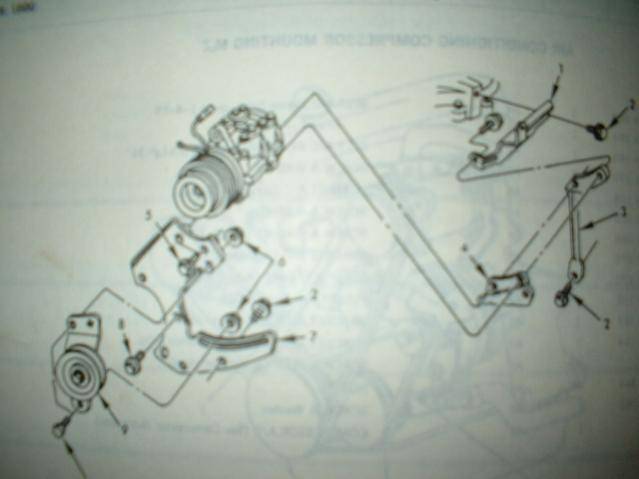

OK, let's try this operation again,,,,,,,,,,,,,,,,,with the CORRECT picture this time.................



[65 Dartman]

That helps quite a bit - I have something similar but yet a little different. I was wondering how the back of the compressor was supported and see that U-Shapped bracket with a bunch of support braces - interesting. My main bracket seems to have an extra bracket on it at the bottom - maybe for a smog pump? I have to look and see if I have an idler pulley as I'm sure I'll need one. Thanks for the picture!



[65 Dartman]

My 81 Lebaron has the slant with the newer AC compressor. I don't have the stills with b/c I'm out of town, but the video of the car running is here: https://www.youtube.com/watch?v=7qcONEFqMSI

I hope that helps

Are you running a Sanden-style compressor? That's what I'm planning on usings BTW this will be installed in a 65 Dart wagon.
