I have a 87 fifth avenue with a edelbrock performer intake and the stock accelerator cable kick down cable and cruise cable. I was wondering if anyone has any advice on hooking up all the cables on to the summit carb which is pretty much a Holley prior to this I already had done the lean burn conversion and I still have all the original pieces off the 2 barrel.


BudW

Moderator
Staff member
Joined
Mar 4, 2012
Messages
5,121
Reaction score
1,486
Location
Oklahoma City
You didn’t mention what kind of carburetor is going back onto the Edelbrock Performer intake manifold?
If a 4 bbl carburetor, then you have a small problem. The primary throttle blade (front 2 bbls) are father forward and father outside of what the 2 bbl carburetor was.

You can get an aftermarket 4-bbl throttle cable still (it is about 1-2 inches longer).
The cruise cable will fit without problems – as long as the carburetor is either set up as Mopar – or you have the Mopar bracket bolted to carburetor.
IF you can get original cable to fit, it won’t stay good for long, for normal engine movement will cause problems! If cable doesn’t break first, then having your throttle stuck wide open IS NOT WORTH THE RISK!

The transmission kickdown linkage is a different story.
If you can find a 318, 340 or 360 4-bbl kickdown linkage assembly (all pieces are different between 2 and 4-bbl) then you are set.
Otherwise, I might recommend getting an aftermarket kickdown cable setup (Lokar, or similar) to use.

Be sure to take a few pictures of how throttle, cruise and kickdown linkages are set up, before taking them apart.
Also be sure to check what vacuum hose/line goes where (labels are good) – for different carburetors will not have ports at same locations.

BudW


brotherGood

Well-Known Member
Joined
Mar 31, 2013
Messages
884
Reaction score
158
Location
Urbana OH
I've got it..it's pretty basic to set up. You do need the mopar adapter. The manual has simple instructions for hooking everything it up..also comes with a disc


brotherGood

Well-Known Member
Joined
Mar 31, 2013
Messages
884
Reaction score
158
Location
Urbana OH

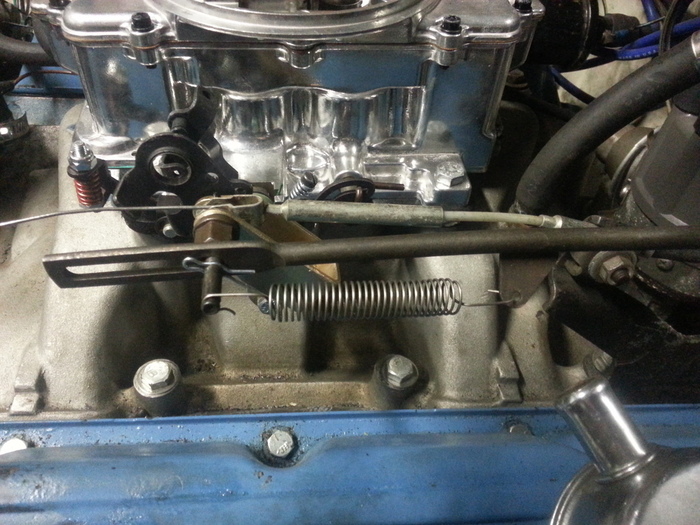

I'm running the factory linkage. However, if you're going from 2bbl to 4bbl, you'll need different stuff anyway. I already had a 4bbl, so I didn't need to worry about it


HectorVenezula

Active Member
Joined
Aug 11, 2016
Messages
42
Reaction score
0
Location
Fernley NV
I bought the longer diplomat cop car throttle cable but it seems just a bit to short still and it seems crooked do I need a longer cable from a different car


brotherGood

Well-Known Member
Joined
Mar 31, 2013
Messages
884
Reaction score
158
Location
Urbana OH


brotherGood

Well-Known Member
Joined
Mar 31, 2013
Messages
884
Reaction score
158
Location
Urbana OH
Yeah, the servo quit working and I don't really have any plans for keeping it anyway. But it would just hook up like normal
