temperature sending unit wire

Interior and Electrical

  1. slant6billy

    slant6billy Well-Known Member

    Messages:
    2,718
    Likes Received:
    511
    Joined:
    Dec 21, 2011

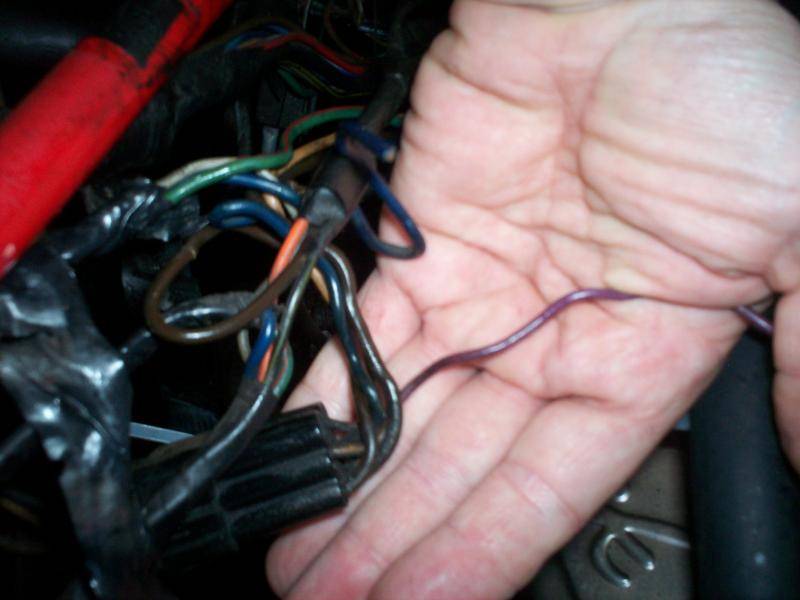

    I think I have it, but am not sure . The goober cut the wire and used a thousand feet of black electrical tape to hide the sins. I have a 6 gang connector on the passenger side with a cut purple wire. I think the purple wire is my temp sender wire, Can anyone confirm this purple wire? The rubber 90° boot is cut off, other wise it would be obvious. 100_3289.jpg

    There is also a beige wire that is cut off too. The purple wire is on No6 terminal of the connector and the beige is on terminal 4. It could be either wire. Any help, thanks.


  2. Captain Caravelle

    Captain Caravelle Moderator--Mopar Maniac

    Messages:
    10,789
    Likes Received:
    1,119
    Joined:
    Jan 29, 2012
    Location:
    Hogtown, Ontario
    Best I have is a 78 FSM.
    If you need any specific wiring diagrams I can snap a pic unless someone else can shed some light.

  3. slant6billy

    slant6billy Well-Known Member

    Messages:
    2,718
    Likes Received:
    511
    Joined:
    Dec 21, 2011
    Thanks Capt. My schematics go to 76 and it has different colors. My wife asks how do I see the color, since I can't distinguish grey, light blue tan, and mint green - a form a colorblindness or in my case color retardedness. I can see and mopar color just fine.

  4. Captain Caravelle

    Captain Caravelle Moderator--Mopar Maniac

    Messages:
    10,789
    Likes Received:
    1,119
    Joined:
    Jan 29, 2012
    Location:
    Hogtown, Ontario
  5. slant6billy

    slant6billy Well-Known Member

    Messages:
    2,718
    Likes Received:
    511
    Joined:
    Dec 21, 2011
  6. Joe12459

    Joe12459 Well-Known Member

    Messages:
    726
    Likes Received:
    124
    Joined:
    Sep 21, 2012
    Location:
    Catskill Mountains, NY
    The temp wire is usually purple/violet, if that helps any.

    greymouser7 likes this.
  7. slant6billy

    slant6billy Well-Known Member

    Messages:
    2,718
    Likes Received:
    511
    Joined:
    Dec 21, 2011
    yep. At this point everyone is going on the purple. thanks all

  8. slant6billy

    slant6billy Well-Known Member

    Messages:
    2,718
    Likes Received:
    511
    Joined:
    Dec 21, 2011
  9. slant6billy

    slant6billy Well-Known Member

    Messages:
    2,718
    Likes Received:
    511
    Joined:
    Dec 21, 2011
    On to a new thread" Where does your Volar's temperature needle land when at operating temp?"

  10. Captain Caravelle

    Captain Caravelle Moderator--Mopar Maniac

    Messages:
    10,789
    Likes Received:
    1,119
    Joined:
    Jan 29, 2012
    Location:
    Hogtown, Ontario
    Mine wouldn't help you much.
    It's a slant. Sits in between second line and half on mine faithfully.

  11. Jnfbodyguy83

    Jnfbodyguy83 Well-Known Member

    Messages:
    292
    Likes Received:
    15
    Joined:
    Feb 29, 2012
    Location:
    Tonwanda, ny
    Slant6Billy what was your remedy to the 90 degree elbow plug cut off? I just had mine snap off the wire.

    compubert likes this.
  12. slant6billy

    slant6billy Well-Known Member

    Messages:
    2,718
    Likes Received:
    511
    Joined:
    Dec 21, 2011
    It is common up to 93 on the non magnum V8s in the pickups. I used an electrical grommet and crimped it on. Just used a rubber cap to hold it on. If you find a pickup, u could splice on the 90 degree boot
