Transmission shift linkage install

Transmissions and Rear Ends

  1. 88_AHB

    88_AHB Well-Known Member

    Messages:
    145
    Likes Received:
    9
    Joined:
    Sep 24, 2018
    Location:
    West coast
    Hey everyone,

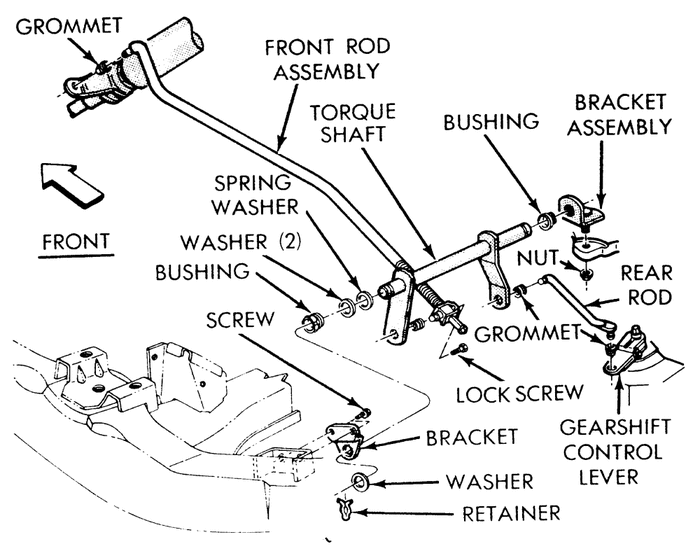

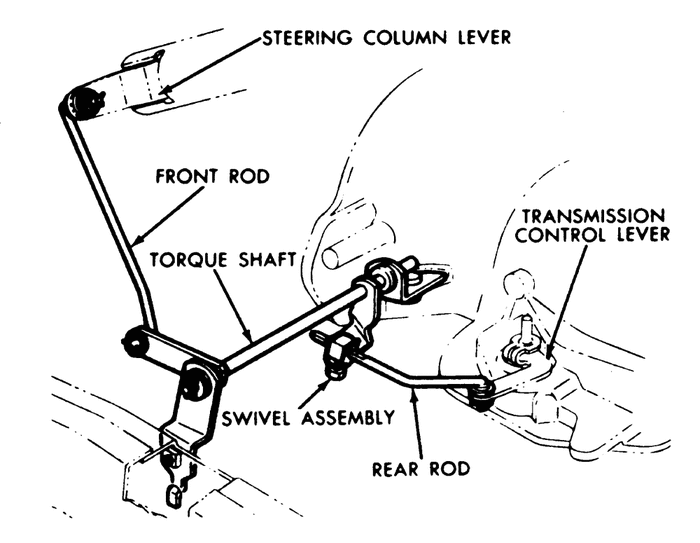

    Needed some help and possibly a diagram or schematic on all the parts/install of the transmission shift linkage for my 88 dippy.I think I found all or most the pieces that were taken off by the P.O. but, I feel as if some of the bushings/parts are missing.I know there's a somewhat of similar post in here by another member, i didn't want to hijack that thread.I have a 318/904 in the car currently,also has a set of headers on it not sure if that was interfere with the linkage at all.I'll try to take a pic soon of what I have currently to show on here.I also did post in the parts wanted section for a complete shift linkage setup in case I need that.Thanks!

  2. Duke5A

    Duke5A Well-Known Member

    Messages:
    673
    Likes Received:
    243
    Joined:
    Apr 6, 2018
    Location:
    Michigan


  3. 88_AHB

    88_AHB Well-Known Member

    Messages:
    145
    Likes Received:
    9
    Joined:
    Sep 24, 2018
    Location:
    West coast
    Thank you,definitely helps a lot!Anyone here have clearance issues with the linkage while running headers?I have a set of headman full lengths on it.

  4. Duke5A

    Duke5A Well-Known Member

    Messages:
    673
    Likes Received:
    243
    Joined:
    Apr 6, 2018
    Location:
    Michigan
    I had Hooker Competition headers in mine and had absolutely no clearance problems. Those Headman headers are probably the exact same things.

  5. volare 77

    volare 77 Well-Known Member

    Messages:
    1,271
    Likes Received:
    166
    Joined:
    Jun 12, 2014
    Location:
    maryland
    The instruction sheet should tell you what to modify. If you don`t have the sheet then go to hedman headers online and download it. Linkage modification is common with mopars and headers.

  6. 88_AHB

    88_AHB Well-Known Member

    Messages:
    145
    Likes Received:
    9
    Joined:
    Sep 24, 2018
    Location:
    West coast
    Do you happen to have a pic of your setup? Was curious how close it comes.Hedmans website gives a detailed picture with instruction of modification in case you "might" have to modify the shift linkage.https://www.hedman.com/images/ePIM/original/78050series.pdf


  7. Duke5A

    Duke5A Well-Known Member

    Messages:
    673
    Likes Received:
    243
    Joined:
    Apr 6, 2018
    Location:
    Michigan
    Sorry, I don't. That all went away went I swapped it out for a big block. My Dad has that setup on his coup though. He won't be in town for a couple weeks though. What's your timeline look like?

  8. 88_AHB

    88_AHB Well-Known Member

    Messages:
    145
    Likes Received:
    9
    Joined:
    Sep 24, 2018
    Location:
    West coast
    No huge rush,wanted to fire it up in the next couple of weeks.Have a few other things to hookup/install before I do.
