340'' W2 race engine build thead?

[9secRR]

is there any interest in my 340 W2 race engine build? if there is, i will take photos and document the build.



[M_Body_Coupe]

C'mon man...what kind of a question is THAT???

Like you even need to ask...where are the pics, why aren't they up yet!!!



[LSM360]

is there any interest in my 340 W2 race engine build? if there is, i will take photos and document the build.

Na. Keep it to yourself.

Hahaha!!! Kidding, heck yeah we want to see!



[Oldiron440]

You bet lets see it, I like to see how the small block crowd builds em.



[9secRR]

Nothing happing yet.

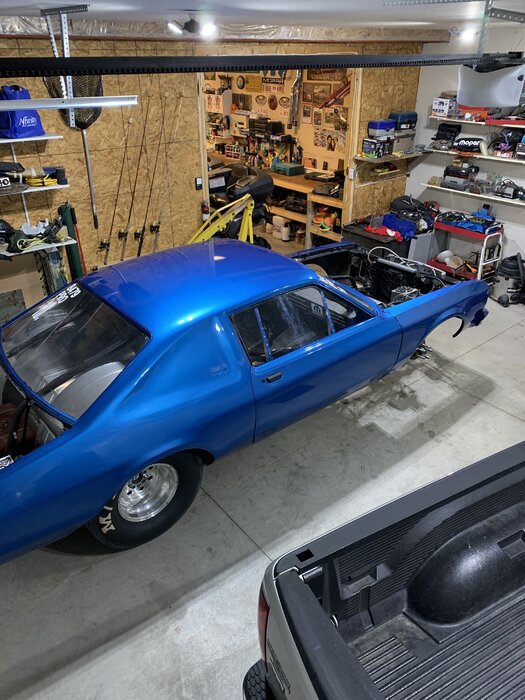

I think this picture sums up my winter.....patiently waiting for parts.



[9secRR]



[9secRR]

it's going to be a basic build,

crank is a Mopar Performance 3.46'' 8 bolt flange.

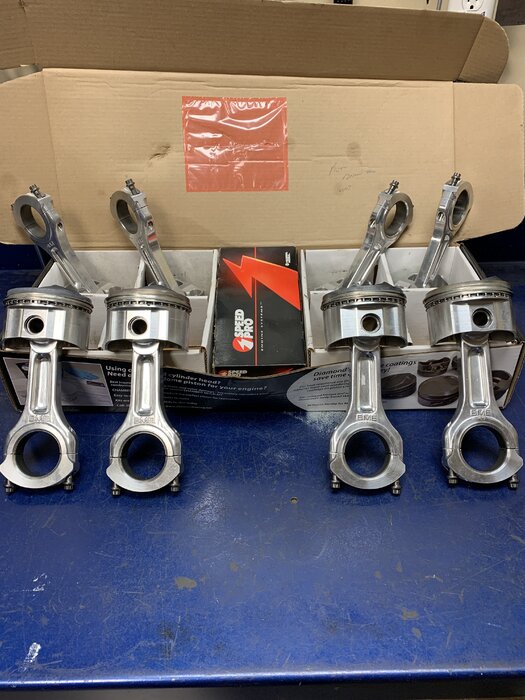

BME aluminum rods with JE domed pistons. should be 12.5-13:1.
half filled 340 block, ARP main studs.
everything else stays the same as the 360''. cam, heads, intake.... only thing that will change is compression and obviously bore/stroke.
i plan on building fender exit headers. i already bought the W2 header flanges. good chance i will do a step header, 1-5/8 to 1-3/4.



[DCAspen]

Keep the updates coming.



[Lightning II]

+1



[jasperjacko]

is there any interest in my 340 W2 race engine build? if there is, i will take photos and document the build.

Lets see, uh cold outside, crazy covid, crazy election, Yeah no, we don't want to see no awesome engine builds.



[9secRR]

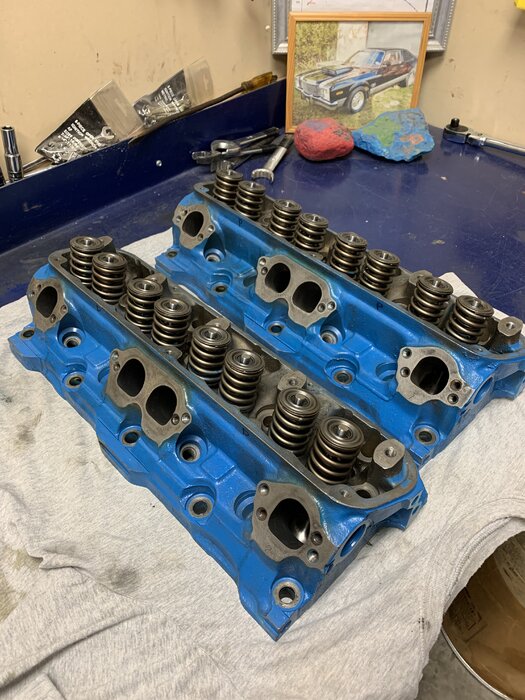

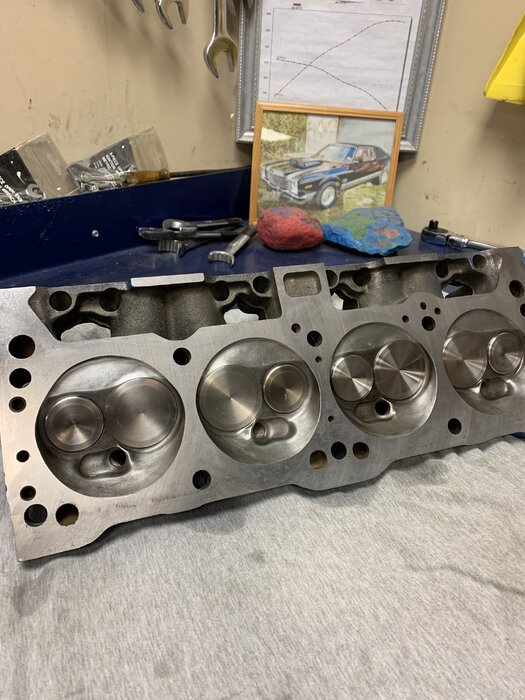

Not much to update yet. Got my heads back from RAMM, Jesse Robinson in Ontario.

i called the machine shop about my block and rotating assembly. Hopefully end of the week he will be done. If he’s done, I’ll go Saturday and pick it up.



[M_Body_Coupe]

Nice...what did you have RAMM do with your heads?



[9secRR]

Nice...what did you have RAMM do with your heads?

not much really. i sent them back just to make sure everything was still good. since a connecting rod decided to come apart, i wanted to make sure nothing was wrong with my heads. never know what happens when metal is jumping around in the engine.
2 valves got replaced. other then that, good to go.



[M_Body_Coupe]

I'm sorry if this is a duplicate of another conversation, but I'm curious what valve/spring combo you are running.

My W2s are the race Econo versions, so I have the following:
1) VALVES
Intake - Manley 11702-8, 2.02" intake, 11/32" stem, 5.240" long - Pro-Flo Severe Duty Series, W2 Long Valve
Exhaust - Manley 11703-8, 1.60" exhaust, 11/32" stem, 5.255" long - Race-Flo Severe Duty Series, W2 Long Valve

2) SPRINGS
CompCams - 26056, Beehive, 1.454" OD base, 1.185" OD top, 400 lbs./in. rate, 1.100" Coil Bind Height, 160 lbs@1.800", 420 lbs@1.150"

This is meant to support the custom ground hydraulic roller flat tappet cam: XR292HR-12, SER# E 8961-14, GRIND# CRS 13084B / 3039B HR112+4

It was a bit of a challenge to find the right valve spring for the long valve setup and a hydraulic roller cam. I opted for the Beehive to shave off a little weight and bring some stability into the valvetrain, although that's largely based on industry marketing as opposed to any 1st hand experience on my part.



[9secRR]

Valves,
Manley 11323
11556
Springs,
Isky 8005-A



[9secRR]

I got the call today from the machine shop. Ready for pick up. Looks like Saturday I’ll make the trip to pick it up.
finally I can start the assembly.



[Oldiron440]

I'm curious why you are using a hydraulic roller cam as apposed to a solid? This is coming from a guy that still uses flat tappet cams so its just my curiosity.



[9secRR]

I'm curious why you are using a hydraulic roller cam as apposed to a solid? This is coming from a guy that still uses flat tappet cams so its just my curiosity.

I assume you are asking M Body Coupe this question?



[Oldiron440]

My mistake I thought that was your cam, I didn't see who posted.



[9secRR]

W2, the head that never fails
