77 or 78 FSM wiring diagram

Remow2112

Well-Known Member
Joined
Mar 10, 2011
Messages
158
Reaction score
40
Need pics of the pages with the ignition switch and through firewall to starter relay.

Thanks all!


Justwondering

Well-Known Member
Joined
Aug 7, 2015
Messages
3,635
Reaction score
1,031
Location
North Texas
well now, I've been gone all day (the Mister to a Pulmonary Function Test today).
Let me get caught up and I'll go through my manual to see what I can find.
Have you already searched the forums for this topic?

JW


Remow2112

Well-Known Member
Joined
Mar 10, 2011
Messages
158
Reaction score
40
Those are some help. But the issue is I want to change my 76 ignition switch (very similar to a 76 A body) to a 77 and up ignition switch. These are the ones that the connector is a half moon shape. The number of wires does not match LOL.


Using a mish mash of my Haynes manual and a 76 FSM I am pretty sure yellow to yellow and heavy red to heavy red should get it to turn over. But I am unclear if that will feed the coil or if the dark blue is need to feed the coil. I am using a Pertronix HEI module for ignition box.

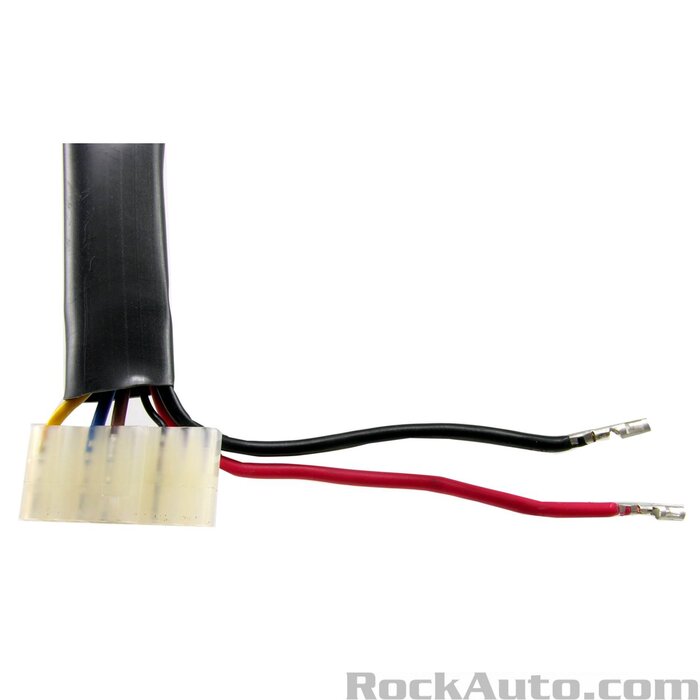

76 connector

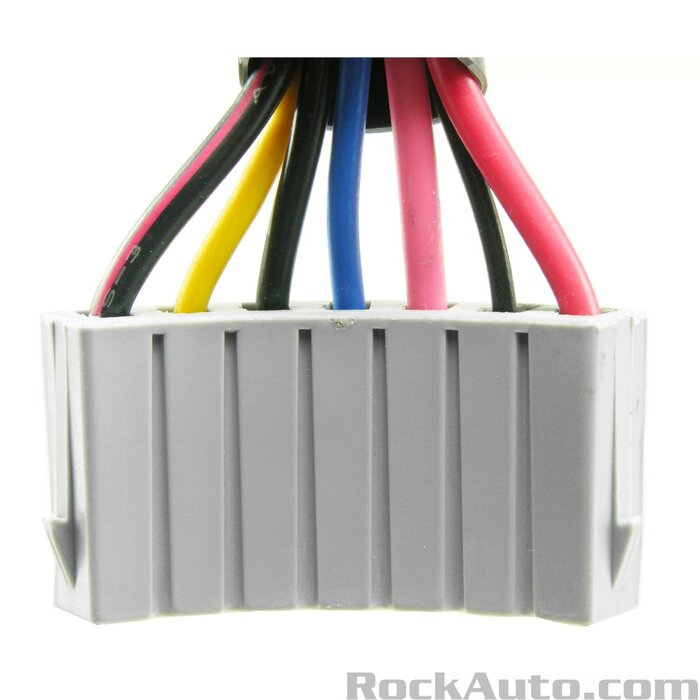

77 Connector

76 Volare Ignition switch connecter.jpg


77 Volare Ignition switch connecter.jpg


Remow2112

Well-Known Member
Joined
Mar 10, 2011
Messages
158
Reaction score
40
I have searched the forum and google all the internet. I have not found exactly what I need. A lot of stuff on the early style connector. Not so much on the 77 and up. :)


Mikes5thAve

Well-Known Member
Joined
Mar 3, 2020
Messages
1,499
Reaction score
609
Location
Canada
Dark blue is the switched ignition power anything that needs power in the "run" position needs that.


Justwondering

Well-Known Member
Joined
Aug 7, 2015
Messages
3,635
Reaction score
1,031
Location
North Texas

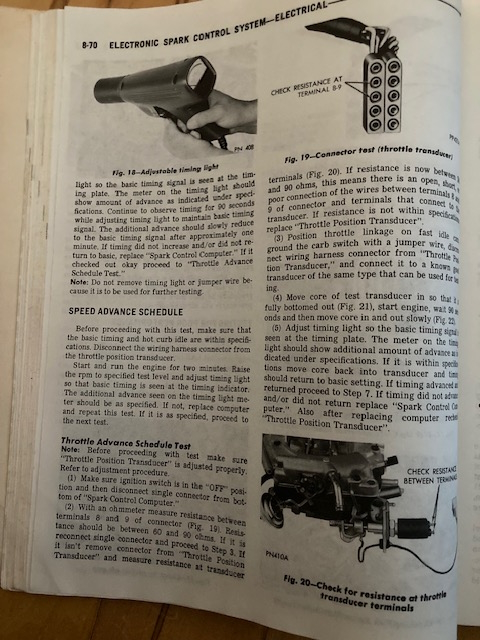

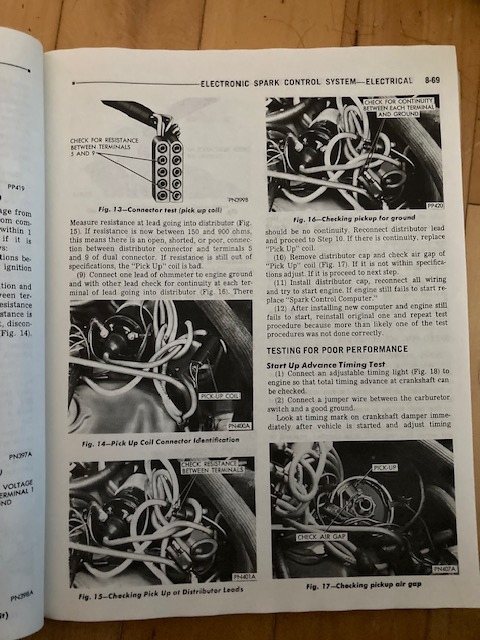

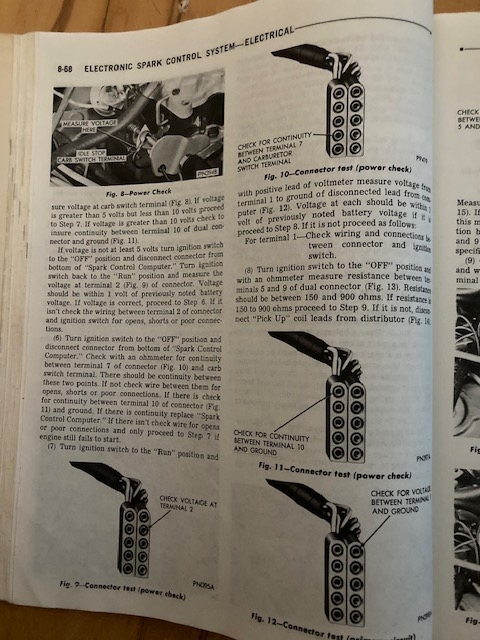

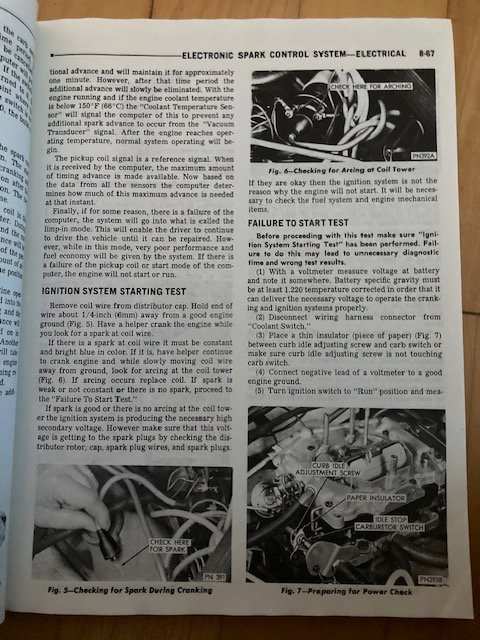

Here you go . from 1979 Chrysler Plymouth Dodge Electrical Service Manual... bought on ebay for 12 bucks this year.



JW


Justwondering

Well-Known Member
Joined
Aug 7, 2015
Messages
3,635
Reaction score
1,031
Location
North Texas

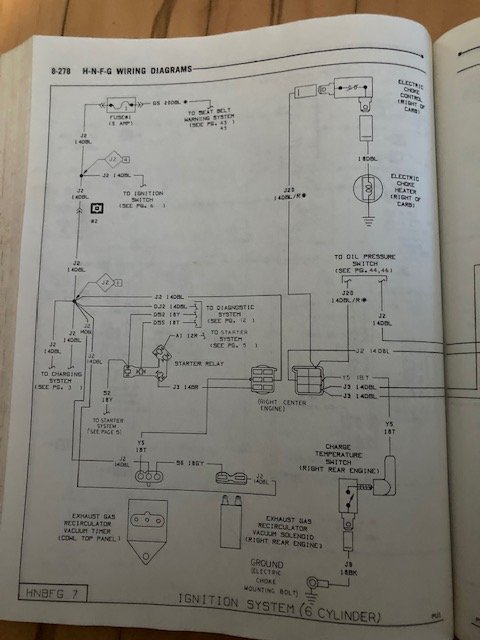

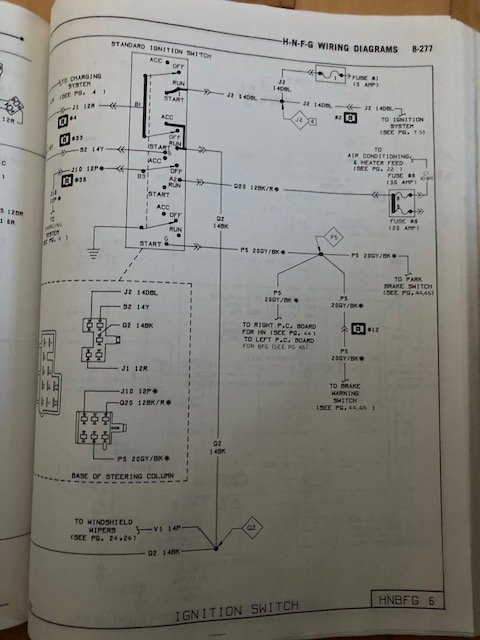

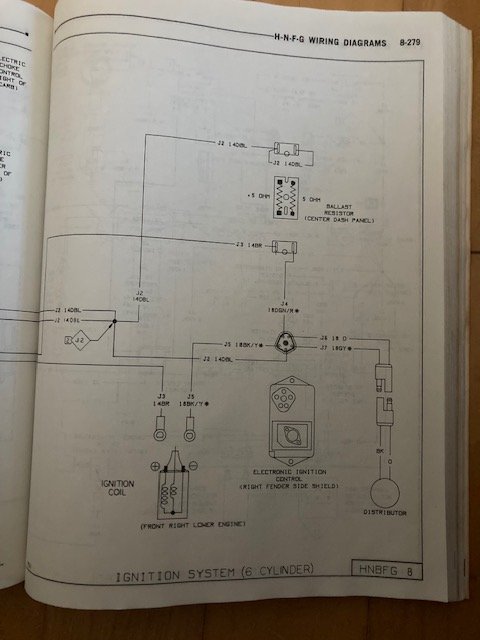

And the electrical diagrams...


I leave the rest up to you since I have no 77 vehicle nor 77 vehicle books.

JW
