FOR SALE 77 Suspension Recal Braces

FMJ Body Parts For Sale

  1. redex79

    redex79 Member

    Messages:
    17
    Likes Received:
    0
    Joined:
    Jan 11, 2014
    Location:
    Hernando, Mississippi
    Contact Seller

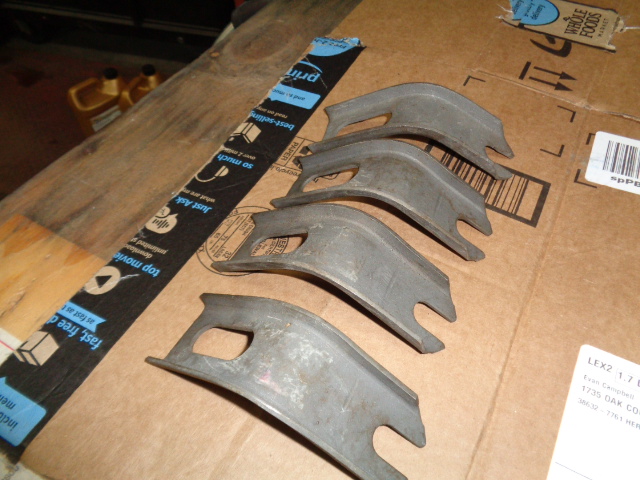

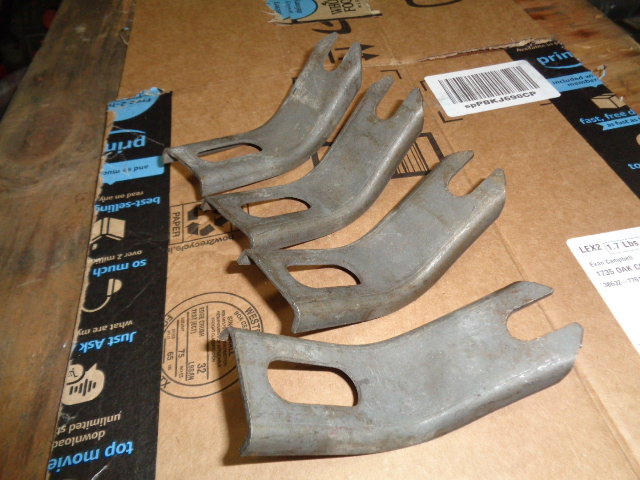

    NOS recall front upper control arm braces. Missing washers. Never used. $35+ shipping



    Last edited: Jul 8, 2019
  2. volare 77

    volare 77 Well-Known Member

    Messages:
    1,107
    Likes Received:
    135
    Joined:
    Jun 12, 2014
    Location:
    maryland
  3. redex79

    redex79 Member

    Messages:
    17
    Likes Received:
    0
    Joined:
    Jan 11, 2014
    Location:
    Hernando, Mississippi
    Yea, couldn't find them in the lot I got.

  4. volare 77

    volare 77 Well-Known Member

    Messages:
    1,107
    Likes Received:
    135
    Joined:
    Jun 12, 2014
    Location:
    maryland
    OK cool. I`m not sure how important they are or if another type washer can be used instead. Just wanted to inform you.

  5. redex79

    redex79 Member

    Messages:
    17
    Likes Received:
    0
    Joined:
    Jan 11, 2014
    Location:
    Hernando, Mississippi
    I don't either. I had a 77 Aspen R/T Super Pack I bought new and I had to take it in for them to installed. They did have the washers on them.

  6. Oldiron440

    Oldiron440 Well-Known Member

    Messages:
    2,279
    Likes Received:
    440
    Joined:
    Apr 25, 2017
    Location:
    Iowa
    Just where do they go?

  7. volare 77

    volare 77 Well-Known Member

    Messages:
    1,107
    Likes Received:
    135
    Joined:
    Jun 12, 2014
    Location:
    maryland
    They support the upper control arms and bolt to the pivot bars. The support plates were cracking. I believe it was used on 76 77 and some 78 F bodies.

  8. Oldiron440

    Oldiron440 Well-Known Member

    Messages:
    2,279
    Likes Received:
    440
    Joined:
    Apr 25, 2017
    Location:
    Iowa
    Mine doesn't have them, I'm going to be going over all the front end parts including frame and sub frame. Its had a few rough landings over the years.

  9. Aspen500

    Aspen500 Well-Known Member

    Messages:
    4,205
    Likes Received:
    1223
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    I put them on my '79 just for the heck of it. Can't hurt.

    They go from the upper control arm bracket bolts and over the shaft studs. Basically, they put the shaft bolts in double shear instead of single shear.

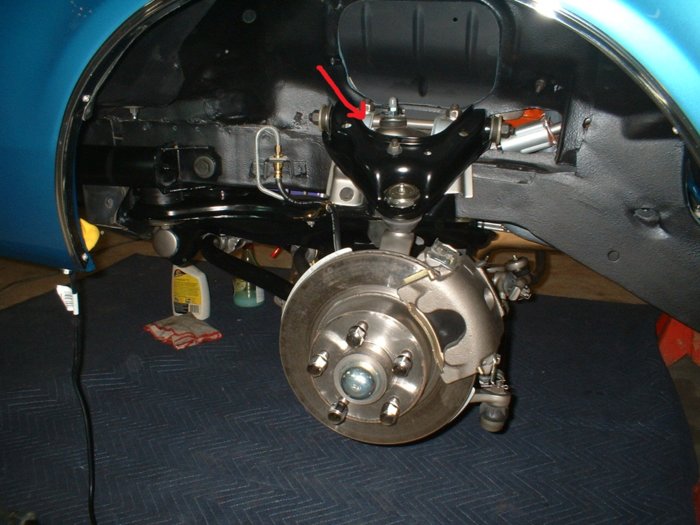

    Not the best picture for seeing them but the red arrow points at one of the braces.

    Last edited: Jul 8, 2019
  10. Oldiron440

    Oldiron440 Well-Known Member

    Messages:
    2,279
    Likes Received:
    440
    Joined:
    Apr 25, 2017
    Location:
    Iowa
    I'll have to look.

  11. redex79

    redex79 Member

    Messages:
    17
    Likes Received:
    0
    Joined:
    Jan 11, 2014
    Location:
    Hernando, Mississippi
    Still for sale.
