    soon it will be time to start preparing parts for assembly

    MiradaCMX80 likes this.
  2. Duke5A

    Duke5A Well-Known Member

    Messages:
    862
    Likes Received:
    346
    Joined:
    Apr 6, 2018
    Location:
    Michigan
    That is way too nice to be hidden under the car.

  3. SRTMirada

    SRTMirada Well-Known Member

    Messages:
    53
    Likes Received:
    29
    Joined:
    Dec 29, 2015
    Location:
    Niagara

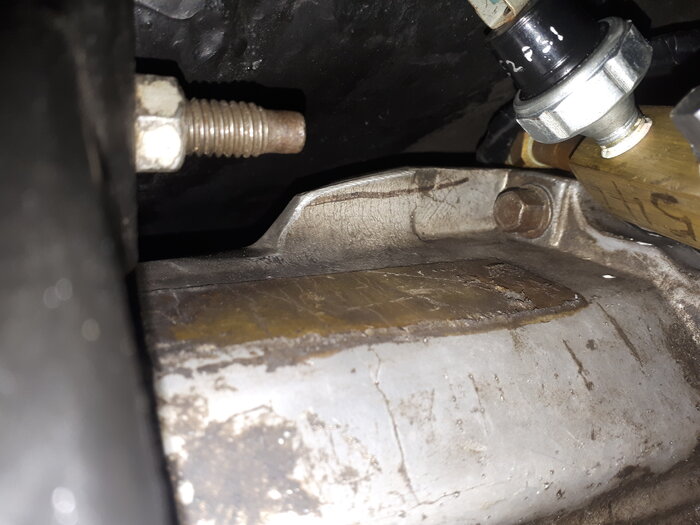

    You might want to remove the boss on the passenger side of the overdrive case now before you try and install it. I also cut away a web on the driver side for the original shifter linkage which you probably don't need to do with your mega shifter. Here's a picture that might give you a better idea of what I mean.


  4. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    I have already fitted it to the trans tunnel, that's where it was until a few days ago.

  5. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

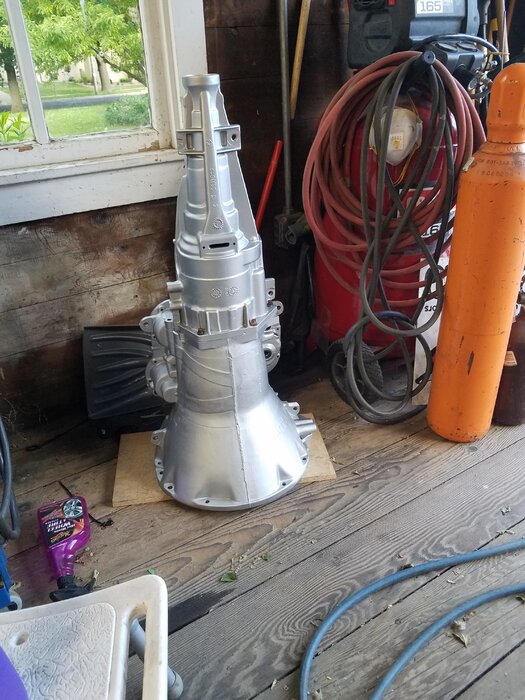

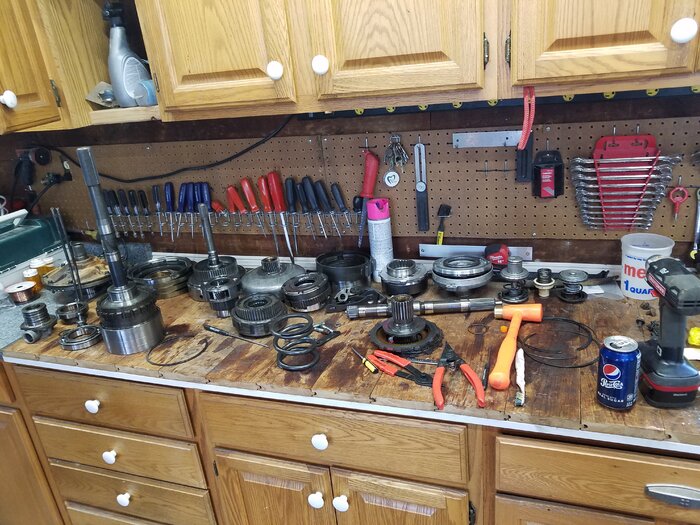

    The 518 build is underway

    MiradaCMX80 and SuicideRider like this.
  6. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    20200710_180426.jpg 20200710_180430.jpg

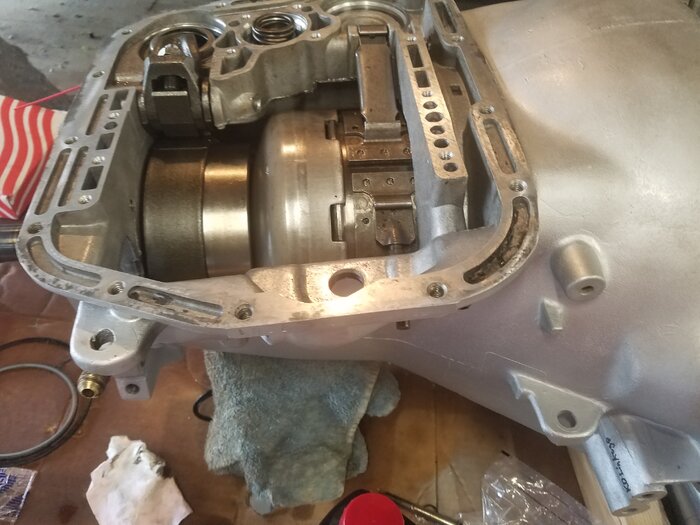

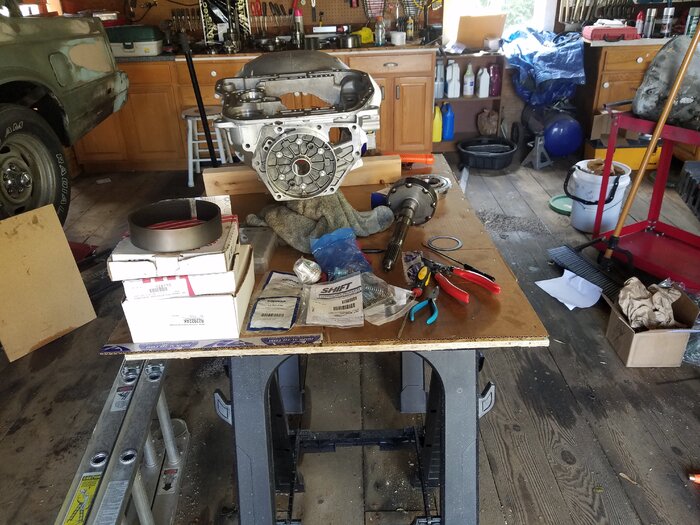

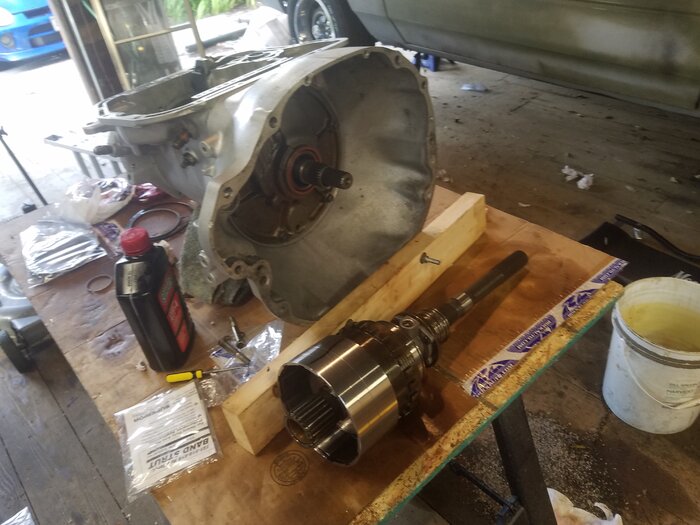

    front section is built, waiting on parts to arrive

    MiradaCMX80 and Duke5A like this.
  7. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

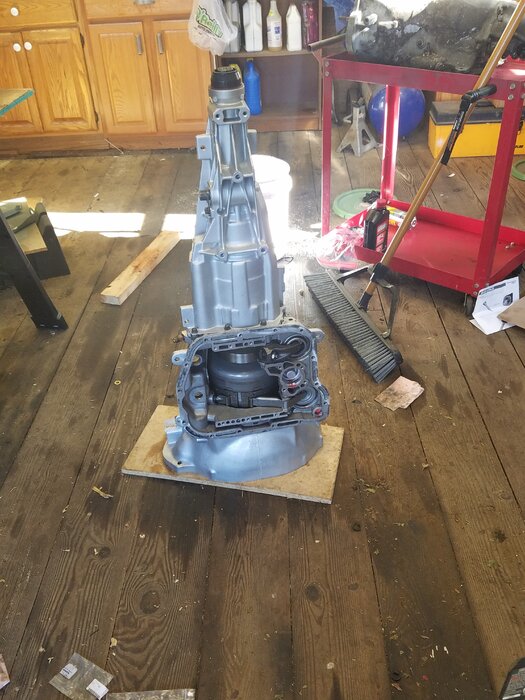

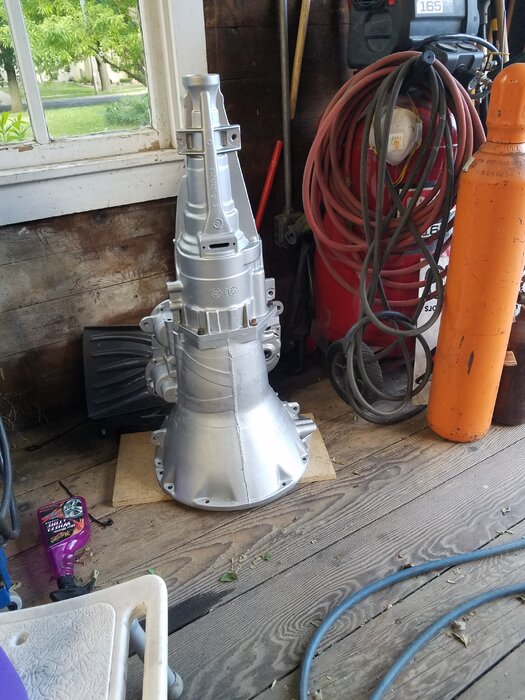

    all buttoned up waiting for the valve body to be done

  8. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    20200719_093739.jpg 20200719_153331.jpg

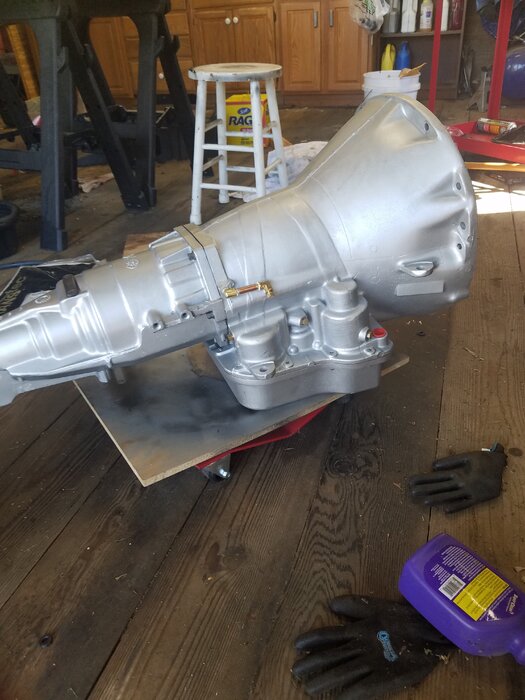

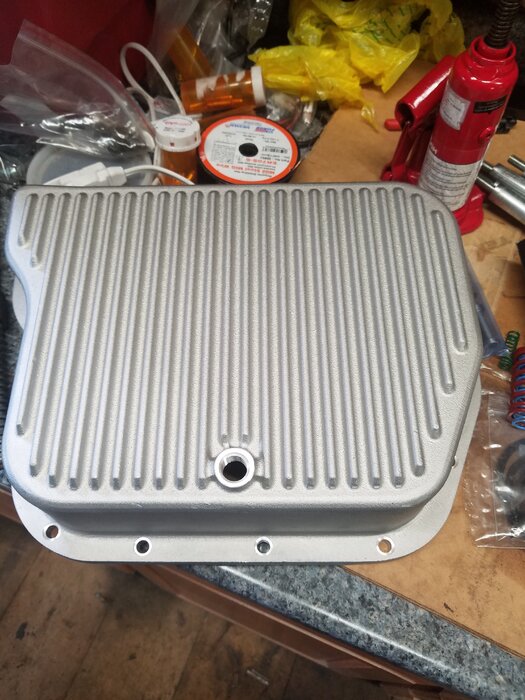

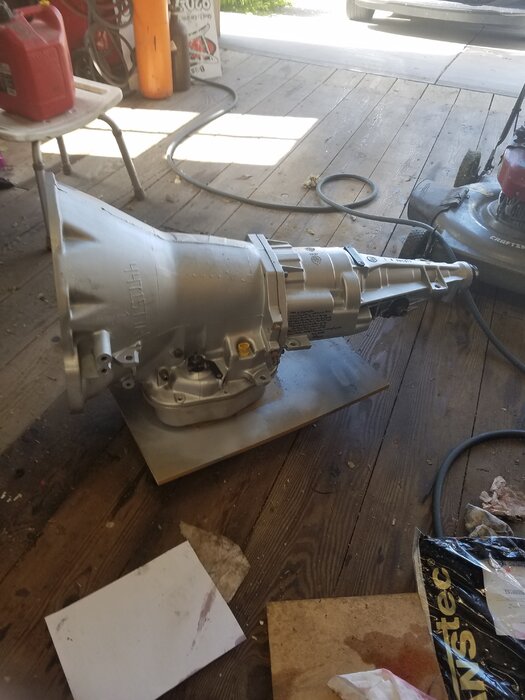

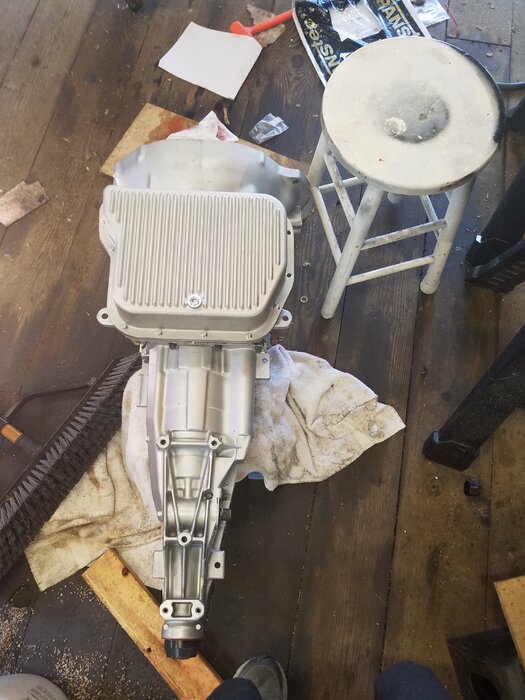

    got a nice aluminum pan from summitracing to replace the tired steel one. I got the shift kit done, hopefully it is right.

  9. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    damn I really need to clean up my mess

  10. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    20200719_154205.jpg 20200719_154217.jpg

  11. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

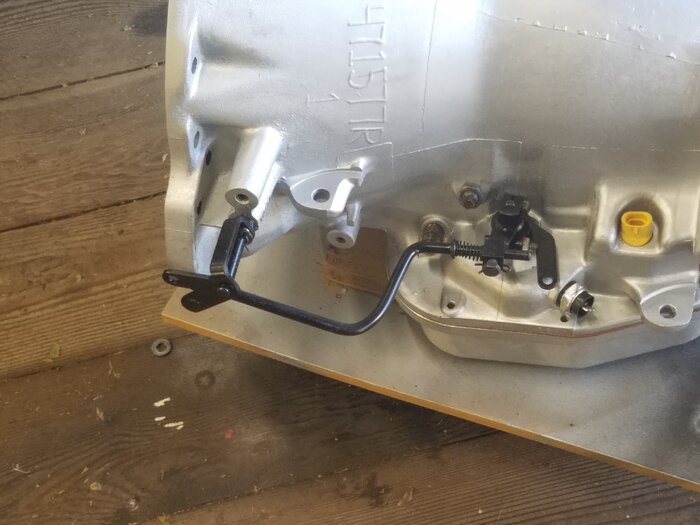

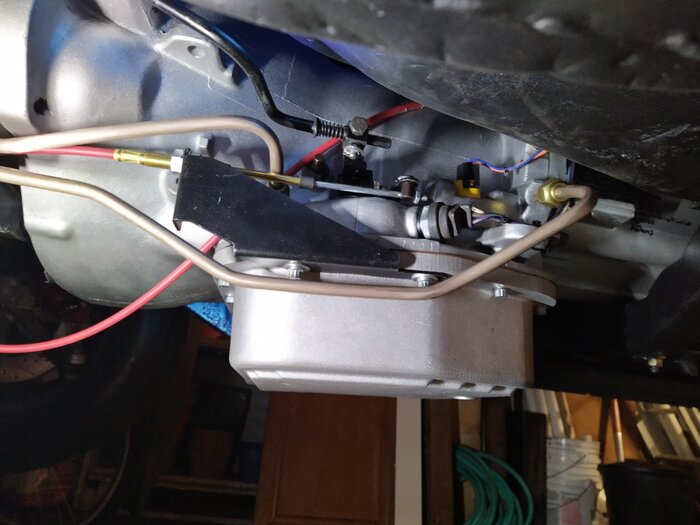

    20200719_172935.jpg starting to mock up the shift linkage so I can make cooler lines

    MiradaCMX80 likes this.
  12. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

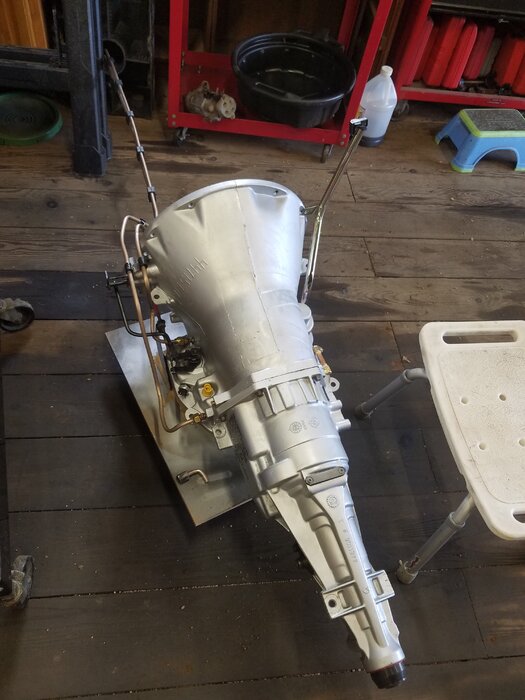

    Got a set on cooler lines bent to a usable rough shape

    SuicideRider likes this.
  13. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

    New converter installed, along with the new dipstick and wiring. Ready to go in when the tunnel is ready.

  14. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    So for anyone interested in the specs on the 518. I changed the front 3 clutch front drum for a 4 clutch, rebuilt with an Alto Red Eagle Power pack, and new spring set. The "rear" clutch received the rear clutch power pack. New HP/HD bands, 5.0 kickdown lever, extra duty apply strut, and nex sprag rollers and springs, upgraded accumulator, and a 4 gear rear planetary. The Overdrive section is loaded with an OD Power pack, new trust bearings,a beefed up apply spring reaction plate, and a 5600rpm govenor kit from A&A. I then added a superior shift kit. It is popped off with a Summit deep aluminum pan for a 727, a Torco 22-2500 converter and an Allstar locking dipstick.

    jasperjacko and SuicideRider like this.
  15. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

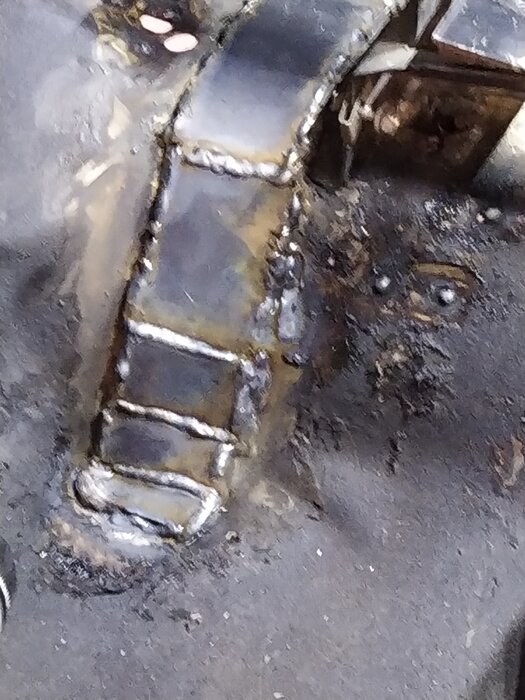

    Transmission cross member is done.

    SuicideRider likes this.
  16. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

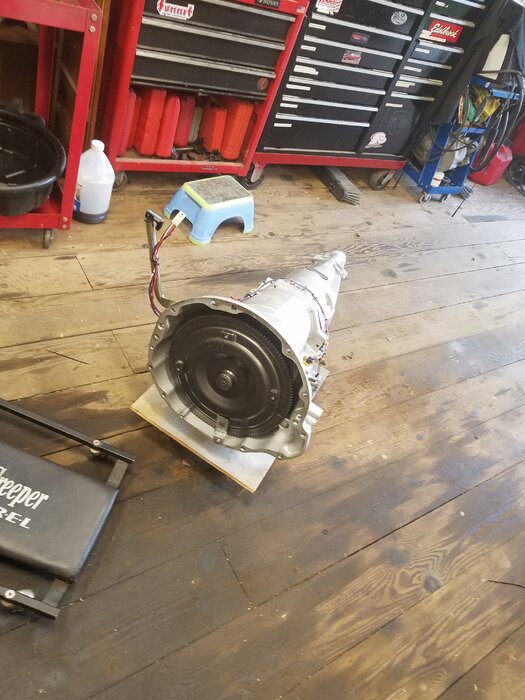

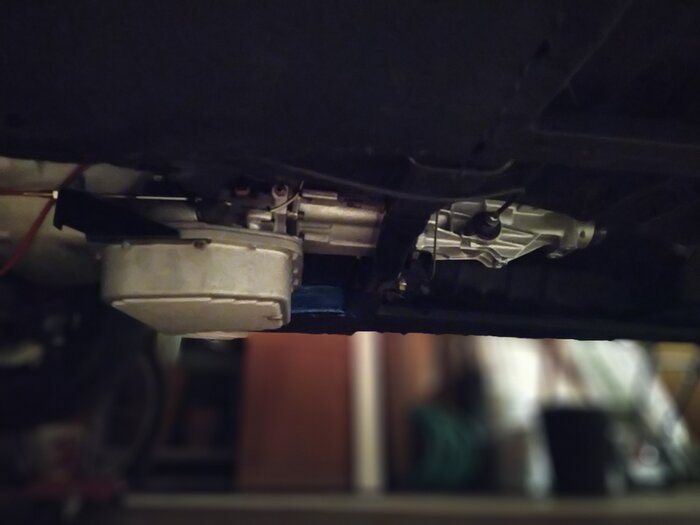

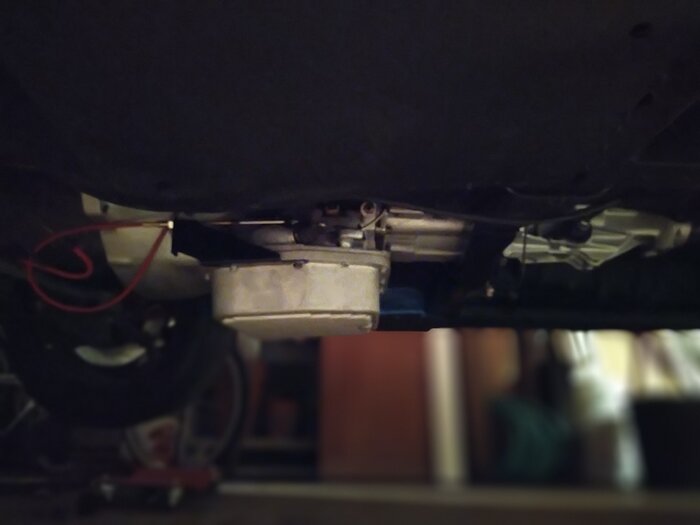

    Trans is finally installed

    SuicideRider likes this.
  17. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

  18. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

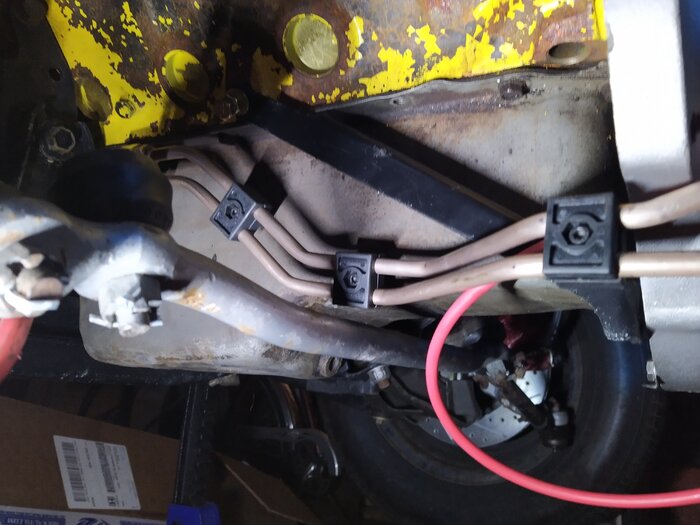

    Going to have to start over on the transmission lines, the ones i made don't fit the way they need to.

  19. 80mirada

    80mirada Well-Known Member

    Messages:
    1,215
    Likes Received:
    358
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

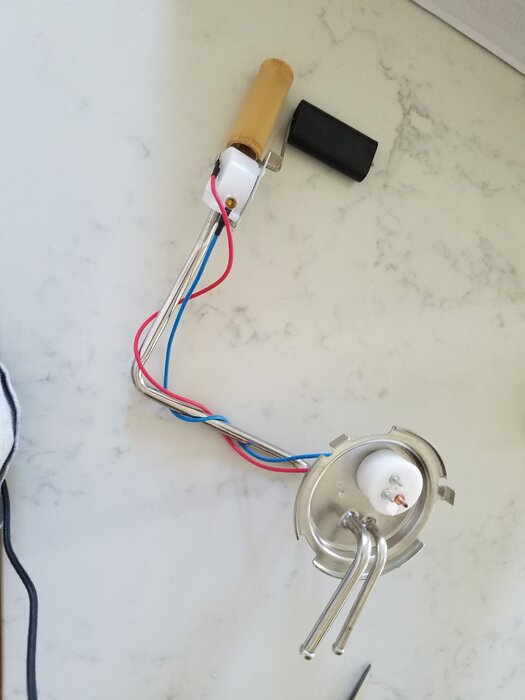

    Got one of the correct tank senders from Vans on eBay. Looks like a perfect replacement. I'm adding a 3/8 inch pickup to it
