Alternators used on all FMJ's

BudW

Moderator
Staff member
Joined
Mar 4, 2012
Messages
5,123
Reaction score
1,487
Location
Oklahoma City
This post is about the different alternators used on FMJ's. The next post (same thread) will be on what is needed to retrofit another alternator onto your FMJ.

Before I get into interchangeability, I wanted to touch on five ways to get any alternator to produce more electricity:
1) repair (or replace) one that is malfunctioning.
2) Increase the amount of wiring in the rotor (the part that spins).
3) Increase the amount of voltage being applied to the rotor.
4) Increase the amount of wiring in the stator (the stationary windings).
And/or
5) Increase the rotational speed of the alternator.

Item 1 applies a lot more often than not. It would surprise you.

For most cases, item 3 is kinda limited to 12 volts. If a person "could" apply power to the field windings (the rotor) to 24 volts, you can effectively double the output amperage of any alternator.

Item 5 has some limitations. That would be the “safe” speed or maximum rotational speed before things come apart by centrifugal force (ie: hand grenade). On the Round or Square-back, Chrysler set that speed at 7,000 engine RPM – so pulley sizes used are based off of that speed.
What I don't understand is why the pulley sizes are the same for a 340 (which could reach 7k RPM) and a 318 2-bbl which struggles to get past 4k RPM. The problem with changing pulley size, is just that – not a whole lot of options to change pulley sizes. If a person could increase the alternator speed by say 50%, that would correct (but not eliminate) a lot of “dim lights at idle” concern – but if you have a high RPM engine, you need to also keep that in mind as well.

I have seen a few if the older Chrysler alternators that have came apart – but that also typically ends with a electrical fire – and that doesn't end well for your ride. Trying to stop the car immediately, then disconnecting the battery, then putting out the existing fire quickly, is a very hard thing to do, which HAS TO BE DONE before or you are face-face to one very expensive bonfire. The cars I have worked on – there was no question that alternator over-speed was the cause of failure, or in other terms, the cause of the "expensive bonfire".
The newer design alternators are designed to operate with a higher RPM ceiling – which is part of reason why they work better at low engine RPM.

You can not have “too much of an output” alternator. The vehicle will only use what it needs. In most cases, even a 41-amp alternator only puts out a fraction of what needs when cruising, BUT when at idle which then it is at 100% output (giving the RPM at the time). That said, many of today's cars, the stereo system, electric cooling fans, headed back glass, etc., you need a whole lot more than 41-amp, so for some, a 100-amp might be the bare minimum.

To control the alternator output, Chrysler controls the amount of voltage going to the field windings (to rotor).
Chrysler mostly has used external voltage regulators, mainly to control the amount of voltage for battery charging, based off of the external temperature. The amount of voltage to charge a battery is several volts difference when outside (or underhood) temperature is -20' F (-29 C) which ranges between 14.9 to 15.9 volts, or at 140' F (60 C) which is below 13.6 volts. Newer Chrysler's have a temperature sensor (under and touching the battery) to better adjust the output voltage. This is one reason I like to retain the external voltage regulator.
The numbers used in this paragraph is from my '77 FSM and this is performed using a “factory design voltage regulator”.

I can understand why people would rather go with simplicity with the single wire designs (which use alternator temp instead of firewall temp) – and in their cases (garage kept vehicles seeing limited temperature ranges) – then this might be the best option for them. When these cars were built and sold, the factory design would have been the best version for the masses.

One item that is way often overlooked when increasing the alternator output is you also need to increase the size of the cable going to the battery. The factory size cable is only barely adequate. I have also seen, way too many times, where the battery cable melted. If that happens, you only have a very short time to disconnect the battery before (again) you have a very expensive bonfire. For me, this is hard to tell if someone has increased alternator size without wiring upgrade for you just don't know. Personally, if you are planing on spending some money for your ride, you might want to just upgrade the size of the cable from alternator to battery, just so you don't ever have to experience that “expensive bonfire” feeling.
My guess is copper must have been hard to get, or was expensive back in the '60's to '80's . . . maybe.

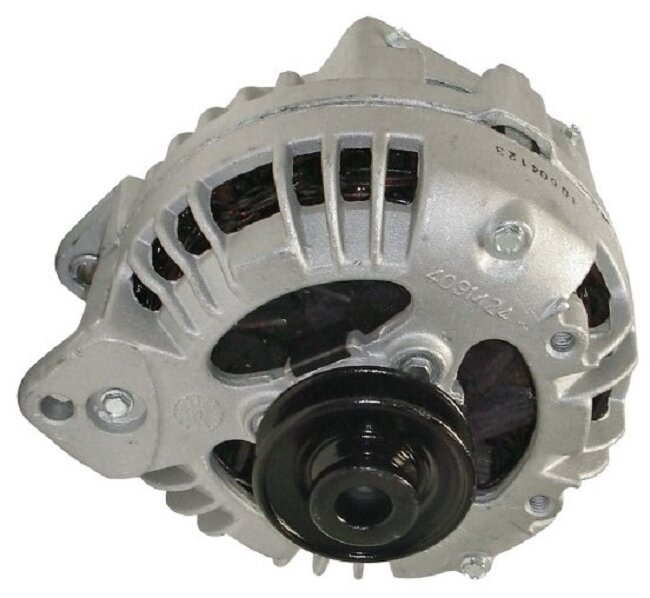

Most of the alternators made from '64-87 look like this, on the front:
Alternator front.jpg

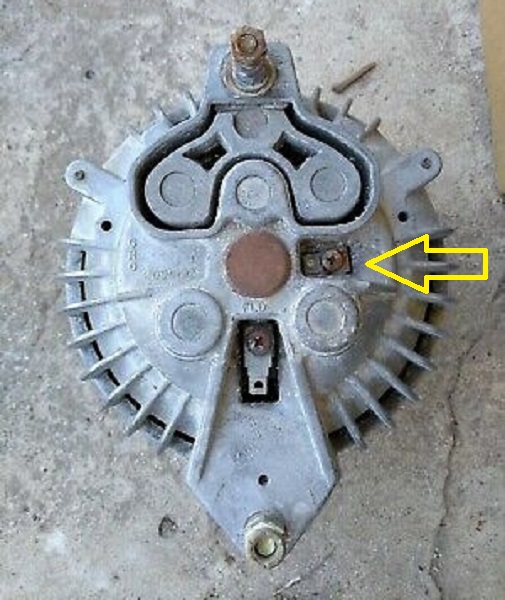

The Chrysler alternators from '64-71 are refereed to the “round-back” design:
Round Back Alternator.jpg

The “round-back” has a single field wire ('64-69) and dual field wire ('70 and newer). It is easy to use a dual field wire alternator (or even a “square-back” alternator – which are all duel field wire) by taking a piece of wire, to either field wire, to ground.
The Yellow arrow, above) shows one of the field wires, which in this case is grounded by the brush holder screw,

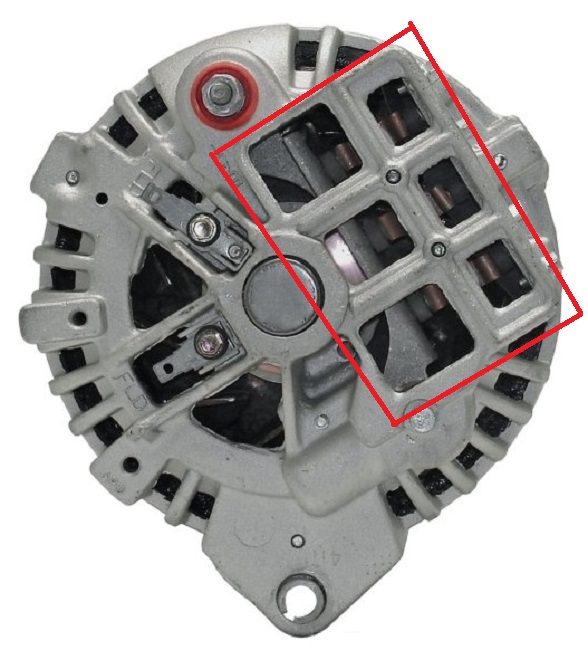

The '72-87 alternators are referred as “square-back” - but are more rectangular in design. Either way, a much better design and very easy to repair (over the round-backs).


In 1978 (a mid-year change) the square-back alternators went metric. Some internal parts are interchangeable and other items are not. The easy way to tell them apart is the stator (the black steel part between aluminum case halves). The early square-backs have a wide (viewable) stator and metric version has a narrow (viewable) stator. As a unit, they still interchange.

Most vehicles with A/C use the double-belt alternator pulley and most cars without without A/C used a single belt pulley. The double-belt pulley will work in either case (A/C or no A/C) – so if your vehicle currently has the factory installed A/C compressor removed and you have intention of re-installing A/C sometime down the road, be sure to use a double-belt pulley just so there is one less thing to change later on.

You can change pulleys with the proper tools, but it is difficult to install an alternator pulley on the car without damaging the bearings. You really need to take the (any design) alternator apart and use a press to install (or change) the pulley, to prevent any damage.


Factory installed (square-back) alternator sizes (a = Amps):
'76-'78 (mid-year change to Metric – but size choices are the same)
41a, 50a, 60a and 65a
'79-'81
60a and 65a
'82-'87
60a and 78a
'87 was the last year of the square-back alternators (and the huge starters)
'88-'89
90a (Denso or newer Chrysler design) and 120a (new Chrysler design_

Note: my '77 (no-A/C) wagon was built with a 41a alternator. It failed a couple years back and has sense been replaced with an 78a alternator. I haven't upgraded the wiring in that car … yet, because there is not much electrical items on the car, currently (very few options/base model). Before I go fuel injection and electrical cooling fans, the wiring and alternator will be upgraded.
My '86 Fifth Ave has a factory installed 78a alternator – for that vehicle has every electrical option for that car (except for 100a alternator). Before it gets fuel injection and electrical cooling fans, it will also get upgraded.


Note: the alternator brackets (and sometimes A/C brackets) are completely different between these three alternator options (used on FMJ's).
- Square-back ('72-'87)
- 100a (or 114a) – which is a huge (and heavy) assembly ('75-'87).
- Denso ('88 and newer) and Chrysler design ('88 and newer) aka: plastic-back
If you are considering changing the alternator “type” you will need to either get the complete bracket setup or perform major modifications to existing bracket setup.

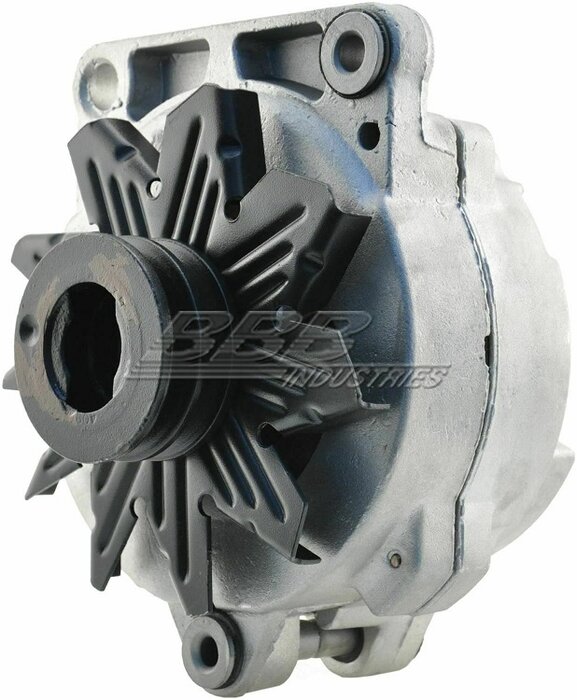

The 100a (or 114a) alternator:

I don't think I have ever replaced a defective 100a alternator. That said, I have dropped a few (um, did I say that out loud?) which damaged it beyond reuse. It is built like a tank (and might even be used on one...maybe).
A tip: If you have back problems = DO NOT REPLACE one, for it is heavy. They make for a great door stop and/or (above ground) tent stake.

Adapting a Denso (short for Nippendenso) will be easier but not exactly a direct bolt-in. At the end of Model Year '87 Chrysler quit using the "square-back" 60-65 amp alternator and went to a new design ('88 and newer) Chrysler (90 or 120) amp and Denso alternator (90a)- as well as the small design Denso mini-starters (also in '88).
For the most part, all '88/89 (M-body, pickups and vans) came with either 90a Denso or optional 120a Chrysler – but due to a lack of supply, some 90a Chrysler alternators were used (which use the 120a brackets).

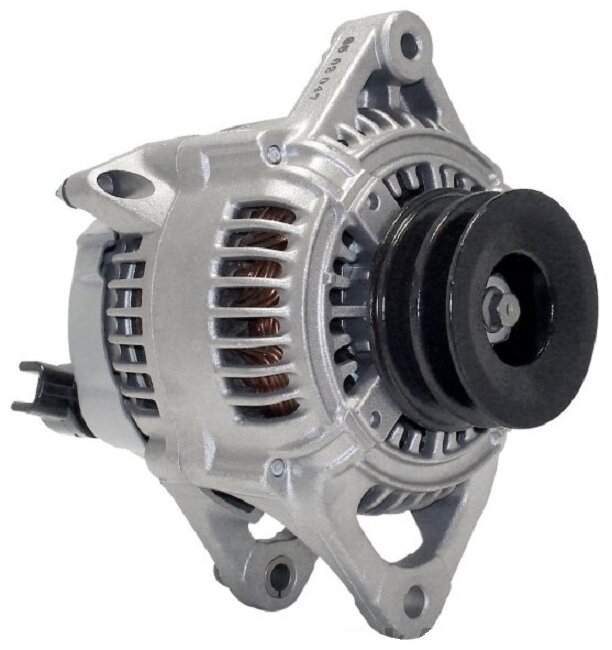

Denso 90a (note: it is very easy to get an higher amperage Denso that will bolt right in place of your existing Denso).

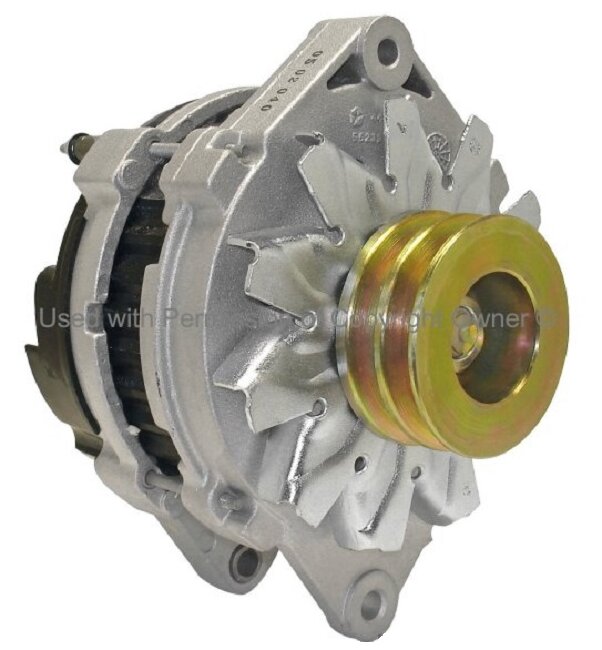

(Newer) Chrysler 120a (or 90a)

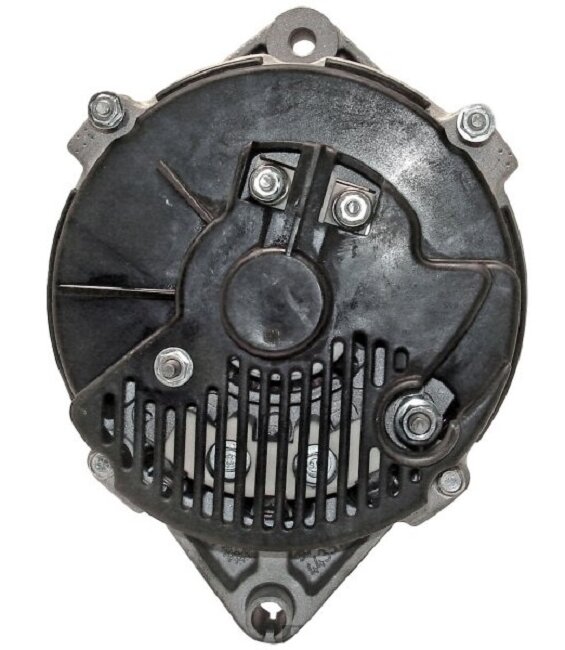

Both 90a and 120a versions have a black plastic back on them – so easy to tell it apart,


For small blocks There is a total of three different alternator bracket setups (the square-back Chrysler, the huge (older) 100/114a Chrysler and the new 90/120a Chrysler/Denso.

The '88 and newer alternator bracket set is NICE sense it has an bolt that can be used to tighten alternator belt, where as the '87 and older is, um, well, more difficult to tighten the drive belt.
The built-in tightening bolt, by itself, is worth the cost to upgrade to the Denso alternator. Then having the smaller and lighter alternator is only more benefits.

None of /6's got the Denso or the newer 90/120a Chrysler alternators.

The Denso's come in both externally regulated and internally regulated variants but all of the Factory design alternators are externally regulated.
Personally I prefer the externally regulated versions sense do a better job with voltage between the temperature ranges - but this is debate worthy of another thread

If wanting to upgrade your alternator output and currently have a square-back - I would recommend looking for a aftermarket high output version of the square-back - and upgrade the wiring (for the increased amperage output). This is the simplest option and will require the fewest changes. Trying to find a '88 to '92 (non-Magnum) small block bracket set, intact, is not easy and a bit of work to replace existing brackets, as well (IMO) - but with a good donor car (or pickup), makes it a lot easier.
BudW


Aspen500

Well-Known Member
Joined
Feb 14, 2015
Messages
7,148
Reaction score
2,854
Location
Rib Mountain, WI
You may have touched on this and I missed it. The alternator is a battery maintainer, not charger. The car actually runs off the battery and the alternator only maintains a full charge. (Hopefully). Biggest cause of premature alternator failure is running with a weak battery.


XfbodyX

Well-Known Member
Joined
Sep 9, 2015
Messages
1,650
Reaction score
430
Location
Central US
Ive never had good luck with oem mopar units and high rpm, a screeching alternator after a hard street race really is spooky the first couple times, makes one think the clutch came apart. That if the belt didnt fling off first, then I got into the habit of just taking the belt off for the run and ran the old school sketchy ele. water pump drive.


LSM360

Well-Known Member
Joined
Nov 28, 2011
Messages
838
Reaction score
331
Location
Melbourne, Florida
You may have touched on this and I missed it. The alternator is a battery maintainer, not charger. The car actually runs off the battery and the alternator only maintains a full charge. (Hopefully). Biggest cause of premature alternator failure is running with a weak battery.
Yes also good info. Many people don't realize this. We have people at work that will jump start dead cars, then leave them idling in our parking lot for hours to "recharge" a completely dead battery. I try and tell them this is not the proper way to handle it. If the battery has gone completely dead they need to see if it's salvageable on a good battery charger with a long slow trickle charge and not with an alternator.


BudW

Moderator
Staff member
Joined
Mar 4, 2012
Messages
5,123
Reaction score
1,487
Location
Oklahoma City
Even with jump starting, a person needs to bump up the engine RPM on the vehicle to say 2000 RPM, or let it sit running (charging) for a long time at idle.

One other thing, if you ever see smoke coming out of the alternator (any alternator), you had better disconnect the battery ASAP - because a meltdown is in progress (so expect the worse case scenario, ie: expensive bonfire, if nothing is done). If you have a direct short circuit on an "un-fused" circuit, you have to remove the voltage source (battery) before applying a fire extinguisher OR you are in da canoe heading down a river towards a waterfall at a fast rate, without a proverbial paddle. You have to remove the source of the fire (excessive current demand) before the secondary fire can be put out.
BudW


LSM360

Well-Known Member
Joined
Nov 28, 2011
Messages
838
Reaction score
331
Location
Melbourne, Florida
Bud, how important is having the correct VR? There are so many different part numbers. If the plug is the same, is it likely okay or does one need to change VR if changing to a different amperage alternator?


BudW

Moderator
Staff member
Joined
Mar 4, 2012
Messages
5,123
Reaction score
1,487
Location
Oklahoma City
A good question to be asked.

Chrysler voltage regulators, made from about '65 to '92ish work very similar. The differences is the '60's VR's are points - which do wear out over time, and use the single field wire.
For daily usage, upgrading a '60's Mopar to electronic regulator and dual field wire alternator is much better than using a points (mechanical) VR)!

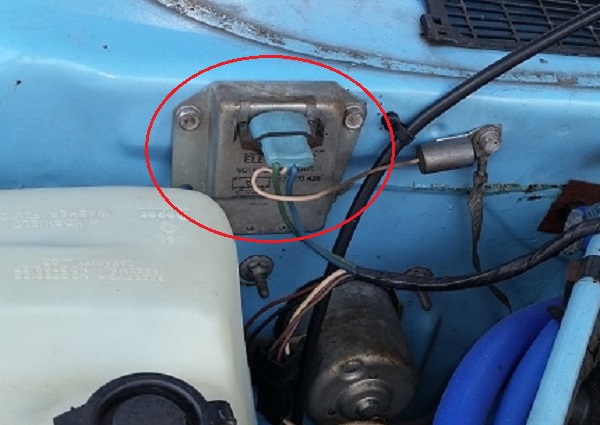

The external VR's, used from '70 to ~'92ish have a plug in looking like this:

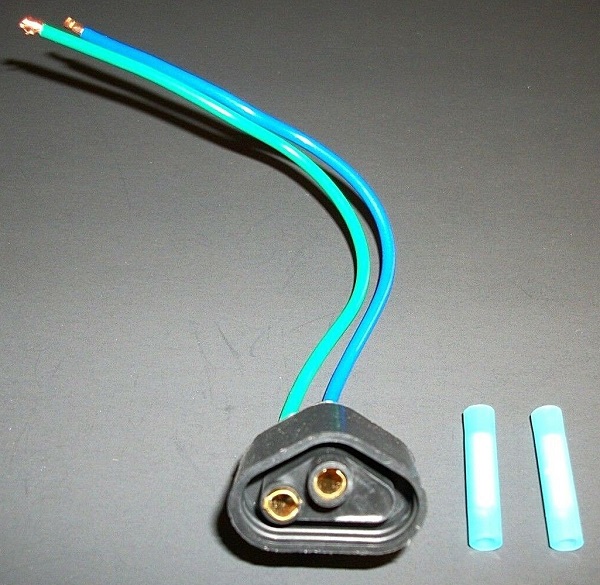

VR Connector.jpg

Notice the top picture shows a metal retaining clip. The factory plug also has a condenser/capacitor built into it - so if you have to replace that plug-in, make sure there is capacitor either at the VR or at alternator to reduce electrical noise (ie: radio reception).

There are two different bolt patterns of this VR design - but otherwise they are interchangeable. Around '92 (or so) the engine computer controls the alternator output.

or does one need to change VR if changing to a different amperage alternator?
When the VR see's the alternator output voltage to be too high, it reduces the amount of voltage going to the field wiring (rotor). If output voltage is too low, it raises the voltage to field wiring up (up to a max of 12 volts).
If you have a larger than stock capacity alternator, the regulator might barely send any voltage to the field wiring.
If an undersized alternator (or one that is defective), then voltage to field wiring will be higher than normal (or at max).
You can not have "too big" of an alternator installed. The vehicle will only use what it needs. The only downside to "too large" will be extra weight and extra rotating mass.
The 100/114a or 120a alternators use the same VR as a 41a alternator uses.

BudW


69-

Well-Known Member
Joined
Dec 13, 2020
Messages
390
Reaction score
264
Location
Germany
Yes it is. Incredible & great info, including such background knowledge.

@BudW Don't you want to write all that in a book (or a whole library)? ;)


dm330

Well-Known Member
Joined
Sep 11, 2021
Messages
140
Reaction score
53
Location
Salem, OH
Thanks for all that info Bud! I've been looking at alternators with having this fuel injection system installed and will probably have 1 or 2 additional power points installed too. I didn't know the 88 and 89 Fifths came with higher amp alternators than the previous years. Just a guess, but I'm thinking a 4 gauge wire should solve the dim lights at the stop sign issue.


LSM360

Well-Known Member
Joined
Nov 28, 2011
Messages
838
Reaction score
331
Location
Melbourne, Florida
"The built-in tightening bolt, by itself, is worth the cost to upgrade to the Denso alternator". SO TRUE Bud. No more trying to wedge a crow bar in there and tighten with one hand and pry with the other!!!


kmccabe56

Well-Known Member
Joined
Mar 10, 2011
Messages
123
Reaction score
28
This post is about the different alternators used on FMJ's. The next post (same thread) will be on what is needed to retrofit another alternator onto your FMJ.

Before I get into interchangeability, I wanted to touch on five ways to get any alternator to produce more electricity:
1) repair (or replace) one that is malfunctioning.
2) Increase the amount of wiring in the rotor (the part that spins).
3) Increase the amount of voltage being applied to the rotor.
4) Increase the amount of wiring in the stator (the stationary windings).
And/or
5) Increase the rotational speed of the alternator.

Item 1 applies a lot more often than not. It would surprise you.

For most cases, item 3 is kinda limited to 12 volts. If a person "could" apply power to the field windings (the rotor) to 24 volts, you can effectively double the output amperage of any alternator.

Item 5 has some limitations. That would be the “safe” speed or maximum rotational speed before things come apart by centrifugal force (ie: hand grenade). On the Round or Square-back, Chrysler set that speed at 7,000 engine RPM – so pulley sizes used are based off of that speed.
What I don't understand is why the pulley sizes are the same for a 340 (which could reach 7k RPM) and a 318 2-bbl which struggles to get past 4k RPM. The problem with changing pulley size, is just that – not a whole lot of options to change pulley sizes. If a person could increase the alternator speed by say 50%, that would correct (but not eliminate) a lot of “dim lights at idle” concern – but if you have a high RPM engine, you need to also keep that in mind as well.

I have seen a few if the older Chrysler alternators that have came apart – but that also typically ends with a electrical fire – and that doesn't end well for your ride. Trying to stop the car immediately, then disconnecting the battery, then putting out the existing fire quickly, is a very hard thing to do, which HAS TO BE DONE before or you are face-face to one very expensive bonfire. The cars I have worked on – there was no question that alternator over-speed was the cause of failure, or in other terms, the cause of the "expensive bonfire".
The newer design alternators are designed to operate with a higher RPM ceiling – which is part of reason why they work better at low engine RPM.

You can not have “too much of an output” alternator. The vehicle will only use what it needs. In most cases, even a 41-amp alternator only puts out a fraction of what needs when cruising, BUT when at idle which then it is at 100% output (giving the RPM at the time). That said, many of today's cars, the stereo system, electric cooling fans, headed back glass, etc., you need a whole lot more than 41-amp, so for some, a 100-amp might be the bare minimum.

To control the alternator output, Chrysler controls the amount of voltage going to the field windings (to rotor).
Chrysler mostly has used external voltage regulators, mainly to control the amount of voltage for battery charging, based off of the external temperature. The amount of voltage to charge a battery is several volts difference when outside (or underhood) temperature is -20' F (-29 C) which ranges between 14.9 to 15.9 volts, or at 140' F (60 C) which is below 13.6 volts. Newer Chrysler's have a temperature sensor (under and touching the battery) to better adjust the output voltage. This is one reason I like to retain the external voltage regulator.
The numbers used in this paragraph is from my '77 FSM and this is performed using a “factory design voltage regulator”.

I can understand why people would rather go with simplicity with the single wire designs (which use alternator temp instead of firewall temp) – and in their cases (garage kept vehicles seeing limited temperature ranges) – then this might be the best option for them. When these cars were built and sold, the factory design would have been the best version for the masses.

One item that is way often overlooked when increasing the alternator output is you also need to increase the size of the cable going to the battery. The factory size cable is only barely adequate. I have also seen, way too many times, where the battery cable melted. If that happens, you only have a very short time to disconnect the battery before (again) you have a very expensive bonfire. For me, this is hard to tell if someone has increased alternator size without wiring upgrade for you just don't know. Personally, if you are planing on spending some money for your ride, you might want to just upgrade the size of the cable from alternator to battery, just so you don't ever have to experience that “expensive bonfire” feeling.
My guess is copper must have been hard to get, or was expensive back in the '60's to '80's . . . maybe.


Most of the alternators made from '64-87 look like this, on the front:
View attachment 47562
The Chrysler alternators from '64-71 are refereed to the “round-back” design:
View attachment 47563
The “round-back” has a single field wire ('64-69) and dual field wire ('70 and newer). It is easy to use a dual field wire alternator (or even a “square-back” alternator – which are all duel field wire) by taking a piece of wire, to either field wire, to ground.
The Yellow arrow, above) shows one of the field wires, which in this case is grounded by the brush holder screw,

The '72-87 alternators are referred as “square-back” - but are more rectangular in design. Either way, a much better design and very easy to repair (over the round-backs).
View attachment 47564

In 1978 (a mid-year change) the square-back alternators went metric. Some internal parts are interchangeable and other items are not. The easy way to tell them apart is the stator (the black steel part between aluminum case halves). The early square-backs have a wide (viewable) stator and metric version has a narrow (viewable) stator. As a unit, they still interchange.

Most vehicles with A/C use the double-belt alternator pulley and most cars without without A/C used a single belt pulley. The double-belt pulley will work in either case (A/C or no A/C) – so if your vehicle currently has the factory installed A/C compressor removed and you have intention of re-installing A/C sometime down the road, be sure to use a double-belt pulley just so there is one less thing to change later on.

You can change pulleys with the proper tools, but it is difficult to install an alternator pulley on the car without damaging the bearings. You really need to take the (any design) alternator apart and use a press to install (or change) the pulley, to prevent any damage.


Factory installed (square-back) alternator sizes (a = Amps):
'76-'78 (mid-year change to Metric – but size choices are the same)
41a, 50a, 60a and 65a
'79-'81
60a and 65a
'82-'87
60a and 78a
'87 was the last year of the square-back alternators (and the huge starters)
'88-'89
90a (Denso or newer Chrysler design) and 120a (new Chrysler design_

Note: my '77 (no-A/C) wagon was built with a 41a alternator. It failed a couple years back and has sense been replaced with an 78a alternator. I haven't upgraded the wiring in that car … yet, because there is not much electrical items on the car, currently (very few options/base model). Before I go fuel injection and electrical cooling fans, the wiring and alternator will be upgraded.
My '86 Fifth Ave has a factory installed 78a alternator – for that vehicle has every electrical option for that car (except for 100a alternator). Before it gets fuel injection and electrical cooling fans, it will also get upgraded.


Note: the alternator brackets (and sometimes A/C brackets) are completely different between these three alternator options (used on FMJ's).
- Square-back ('72-'87)
- 100a (or 114a) – which is a huge (and heavy) assembly ('75-'87).
- Denso ('88 and newer) and Chrysler design ('88 and newer) aka: plastic-back
If you are considering changing the alternator “type” you will need to either get the complete bracket setup or perform major modifications to existing bracket setup.

The 100a (or 114a) alternator:
View attachment 47565
I don't think I have ever replaced a defective 100a alternator. That said, I have dropped a few (um, did I say that out loud?) which damaged it beyond reuse. It is built like a tank (and might even be used on one...maybe).
A tip: If you have back problems = DO NOT REPLACE one, for it is heavy. They make for a great door stop and/or (above ground) tent stake.

Adapting a Denso (short for Nippendenso) will be easier but not exactly a direct bolt-in. At the end of Model Year '87 Chrysler quit using the "square-back" 60-65 amp alternator and went to a new design ('88 and newer) Chrysler (90 or 120) amp and Denso alternator (90a)- as well as the small design Denso mini-starters (also in '88).
For the most part, all '88/89 (M-body, pickups and vans) came with either 90a Denso or optional 120a Chrysler – but due to a lack of supply, some 90a Chrysler alternators were used (which use the 120a brackets).

Denso 90a (note: it is very easy to get an higher amperage Denso that will bolt right in place of your existing Denso).
View attachment 47566

(Newer) Chrysler 120a (or 90a)
View attachment 47567
Both 90a and 120a versions have a black plastic back on them – so easy to tell it apart,
View attachment 47568

For small blocks There is a total of three different alternator bracket setups (the square-back Chrysler, the huge (older) 100/114a Chrysler and the new 90/120a Chrysler/Denso.

The '88 and newer alternator bracket set is NICE sense it has an bolt that can be used to tighten alternator belt, where as the '87 and older is, um, well, more difficult to tighten the drive belt.
The built-in tightening bolt, by itself, is worth the cost to upgrade to the Denso alternator. Then having the smaller and lighter alternator is only more benefits.

None of /6's got the Denso or the newer 90/120a Chrysler alternators.

The Denso's come in both externally regulated and internally regulated variants but all of the Factory design alternators are externally regulated.
Personally I prefer the externally regulated versions sense do a better job with voltage between the temperature ranges - but this is debate worthy of another thread

If wanting to upgrade your alternator output and currently have a square-back - I would recommend looking for a aftermarket high output version of the square-back - and upgrade the wiring (for the increased amperage output). This is the simplest option and will require the fewest changes. Trying to find a '88 to '92 (non-Magnum) small block bracket set, intact, is not easy and a bit of work to replace existing brackets, as well (IMO) - but with a good donor car (or pickup), makes it a lot easier.
BudW
Great article. Much appreciated. What gauge wire would you recommend for the new cable? I have a '79 /6 wagon with a/c and heated rear window. I'm toying with the idea of a power driver's seat as well.

Joined
Oct 15, 2021
Messages
11
Reaction score
1
Location
RIDGE MANOR, FLORIDA
absolutely!!!! Great information!!! One thing I would like to add, on the square-back alternator, when replacing a round-back with a square-back, one must add an extra ground wire from the blank field terminal to ground. If it isn't added, the alternator won't charge. I did this on a '69 C-body New Yorker.


Mikes5thAve

Well-Known Member
Joined
Mar 3, 2020
Messages
1,501
Reaction score
609
Location
Canada
Thanks for all that info Bud! I've been looking at alternators with having this fuel injection system installed and will probably have 1 or 2 additional power points installed too. I didn't know the 88 and 89 Fifths came with higher amp alternators than the previous years. Just a guess, but I'm thinking a 4 gauge wire should solve the dim lights at the stop sign issue.
Dim lights at stop sign is usually bad voltage regulator. If the belt is tight and battery good etc.


dm330

Well-Known Member
Joined
Sep 11, 2021
Messages
140
Reaction score
53
Location
Salem, OH
I did put a new regulator on shortly before sending the car off for its fuel injection installation and front suspension rebuild. The silicone backing on the old one had melted away. I also remember my first 88 doing the same thing (over 20 years ago). I had that one tested and it showed it had a weak charge. Once I get my car back, I'll check to see how the new voltage regulator holds at night.
