    Toying around with the idea of making a custom taillight build with LED's for my 80 Aspen. Instead of plug and play LED's I'm thinking of using led tube strips to lay out a design. Just curious if anyone would know of a tail light housing from another make and model that would fit the 80 Aspen besides the Volaré? I was originally planning to build upon the stock taillights but it would be cool to have options if there is anything else that could possible work.

  2. Duke5A

    Duke5A Well-Known Member

    Messages:
    797
    Likes Received:
    310
    Joined:
    Apr 6, 2018
    Location:
    Michigan
    This thread here: 80 Mirada,. Guy has a Mirada and did a stellar job with the fabrication.

    I chickened out and went with conversion bulbs from superbrightled.com. If I had another set of taillights it's still something I might do later on.

    Mopargirl80 likes this.
  3. Mopargirl80

    Mopargirl80 Member

    Messages:
    6
    Likes Received:
    2
    Joined:
    Nov 20, 2019
    Location:
    Michigan
    A buddy of mine had lens' 3d printed so that is another possible option. I have a pair of donor volare lights I could use the housings from without tearing apart my Aspen ones.

  4. brotherGood

    brotherGood Well-Known Member

    Messages:
    821
    Likes Received:
    102
    Joined:
    Mar 31, 2013
    Location:
    Urbana OH
    Wait...whut?

  5. BudW

    BudW Moderator Staff Member

    Messages:
    4,341
    Likes Received:
    1157
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    A few years back, I picked up a second pair of Fifth Ave taillights for a sequential taillight conversion.
    At the time, I was going to get a set of mustang sequential taillights with circuit board (the older version that uses bulbs instead of LEDS) and carry over the electronics (and bulb sockets if needed) – which should work well in the long taillights on my ’86 Fifth Ave.
    The Mustang and Fifth Ave use a three-bulb per side system.
    Note: that project is a distance from the top of my list of things to get done. It will happen, but most likely not in 2020.

    Sense that time, I’ve seen a lot of fancy LED’s used for taillights and have thought of doing something more like what @80mirada has done, maybe.

    There is more room to use sequential taillights on the newer M body than on F’s.
    BudW

  6. Aspen500

    Aspen500 Well-Known Member

    Messages:
    5,037
    Likes Received:
    1507
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    My '08 Mustang has sequential signals/brake lights and I'm embarrassed to say, I don't know how they're controlled (separate module, by the smart junction box a.k.a. body control module, or other). Now I'm curious and have to find out!:D

  7. BudW

    BudW Moderator Staff Member

    Messages:
    4,341
    Likes Received:
    1157
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    I haven’t had one in my hands to look at myself (yet), but my “understanding” is the sequential circuitry comes with the taillamp assembly (either the bulb version and a different version for the LED lamp version). Sense I don’t have firsthand knowledge of that to be the fact, don’t go out and buy one going by what I may or might not know.

    I’ve “heard” a person can upgrade certain year mustangs with a taillamp (bulb type) exchange only. The LED type lamp doesn’t fit the older cars.
    Now you know as much as I do about Mustangs.
    BudW

  8. Aspen500

    Aspen500 Well-Known Member

    Messages:
    5,037
    Likes Received:
    1507
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    I see there's aftermarket sequential conversions that look like it's part of the harness and work with LED's. Mine are factory but it almost has to be done at the taillight itself, there aren't enough wires to have it done way up front in the SJB. The way I read it, LED's wouldn't work with the factory set up (I could be wrong).

    Darn it, now I really HAVE to find out how they work. Why? Just because.:)

  9. Aspen500

    Aspen500 Well-Known Member

    Messages:
    5,037
    Likes Received:
    1507
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI

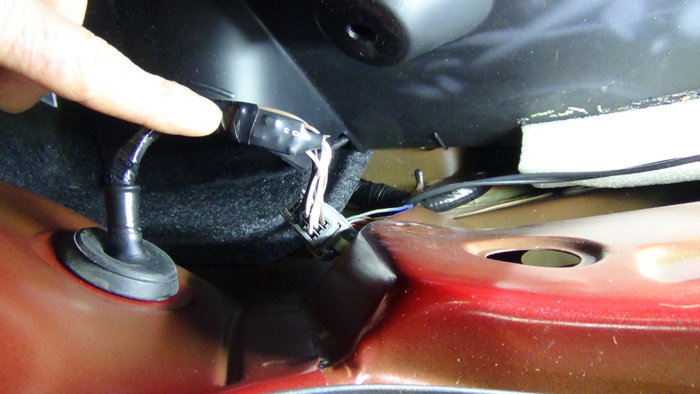

    To dig up an old thread, I finally looked at the t-light harness in my Mustang and there is a small circuit board type thing taped inside the harness for the sequential signals/brake lights. It's about the size of half a postage stamp, maybe 3 mm thick, one on each side.

  10. BudW

    BudW Moderator Staff Member

    Messages:
    4,341
    Likes Received:
    1157
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    What, NO pictures, hehe.
    On harness side or taillight side?

  11. Camtron

    Camtron Well-Known Member

    Messages:
    474
    Likes Received:
    168
    Joined:
    Apr 25, 2019
    Location:
    Here
  12. Aspen500

    Aspen500 Well-Known Member

    Messages:
    5,037
    Likes Received:
    1507
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    So, you're going to make me pull the trim panel back again? OK, if I must:D

    It's on the taillight sub harness, not the vehicle harness.


  13. BudW

    BudW Moderator Staff Member

    Messages:
    4,341
    Likes Received:
    1157
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Thank you!
    That is what I've heard, but wasn't sure of the exact details.

    The next time I'm at a pull-a-part, I'll look into getting those.

  14. Aspen500

    Aspen500 Well-Known Member

    Messages:
    5,037
    Likes Received:
    1507
    Joined:
    Feb 14, 2015
    Location:
    Rib Mountain (Wausau) WI
    Not all Mustang's have sequential signals, at least the '05-'08 models. It's odd that mine does since it's a base model with only a couple other options (5 speed auto trans and single disc CD stereo). Not sure if all from '09 and up have sequential or if it was still an option. I may own one but I'm not a Mustang fanatic and am FAR from being an expert on them!

  15. Camtron

    Camtron Well-Known Member

    Messages:
    474
    Likes Received:
    168
    Joined:
    Apr 25, 2019
    Location:
    Here

    SuicideRider and brotherGood like this.
  16. BudW

    BudW Moderator Staff Member

    Messages:
    4,341
    Likes Received:
    1157
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    According to my information (and I’m not a Ford expert), the sequential taillights came out (again) for 2010 Mustangs – and those used LED bulbs. I would think the driver (the chip or Printed Circuit Board) for bulb’s might be different for LED’s sense they use less power – but have no idea.

    Your picture looks like this kit: https://www.amazon.com/Mustang-05-0...=2025&creative=165953&creativeASIN=B00CHRSA6U so I would guess someone upgraded it before you purchased the car (maybe).

    I bet if I could find a pair of those chips, I could get ‘em to work for me.
    BudW

  17. BudW

    BudW Moderator Staff Member

    Messages:
    4,341
    Likes Received:
    1157
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    Not sure what you sent. It looks like:
    Annotation 2020-02-24 115954.jpg
    BudW

  18. Camtron

    Camtron Well-Known Member

    Messages:
    474
    Likes Received:
    168
    Joined:
    Apr 25, 2019
    Location:
    Here
    Weird.

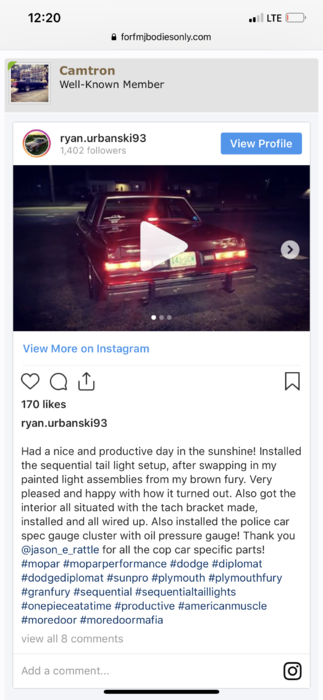

    It looks like this on my end. it’s a video of the Gran fury with the sequential harness installed.


  19. brotherGood

    brotherGood Well-Known Member

    Messages:
    821
    Likes Received:
    102
    Joined:
    Mar 31, 2013
    Location:
    Urbana OH
    I was hoping you were talking about Ryan's car. I'm hoping he heads down my direction this summer, may find an excuse to send mine down the track if he does.

    Camtron likes this.
  20. Camtron

    Camtron Well-Known Member

    Messages:
    474
    Likes Received:
    168
    Joined:
    Apr 25, 2019
    Location:
    Here
    Yea, he’s got a nice lil build going on his car. The tail lights stood out, can’t recall seeing it done on another FMJ.
