    That should burn a few retinas!

  2. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    They are plenty bright

  3. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

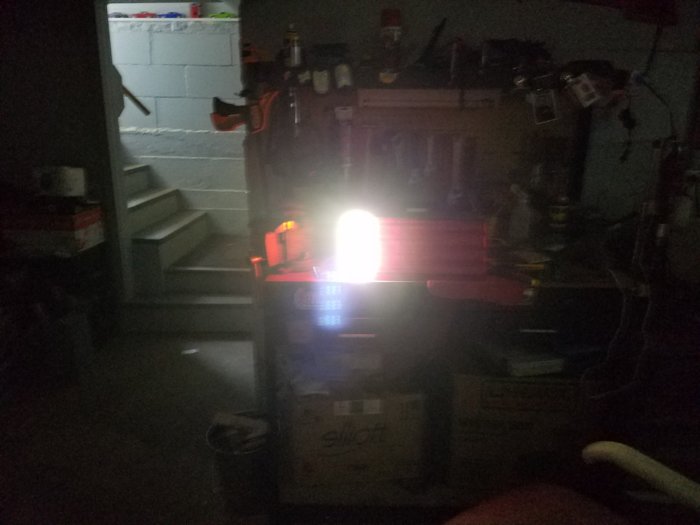

    I got one backup light made, just need to make locators to keep it in place.

  4. Duke5A

    Duke5A Well-Known Member

    Messages:
    186
    Likes Received:
    61
    Joined:
    Apr 6, 2018
    Location:
    Michigan
    Really like to hear more on the process of how you're putting the tail lights together. Converting over to LED has been on my list and I was just going to use the retrofit bulbs, but this is on orders of magnitude better.

  5. BudW

    BudW Moderator Staff Member

    Messages:
    3,276
    Likes Received:
    888
    Joined:
    Mar 4, 2012
    Location:
    Oklahoma City
    In my garage is a pair of decent M-body tail lamps (Yes, I know nothing like either J-body lamps) that I want to convert to sequential taillights, and to convert to LED, possibly.

    I have so many other projects that is taking my spare time (and spare coin) that I hadn’t had a chance to get into this much – but I’m very eager to know more details like lamp source(s), and so forth for my upcoming project.

    At this point, I have been considering using one of two different Mustang sequential tail light setups, one is LED and other uses incandescent bulbs.
    Note: I’m not looking for anything fancy or expensive. Most M-bodies has a lot of taillight area to work with.

    So, more pictures and details, please.
    BudW

  6. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    I will post more when I have some detail pictures done

  7. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

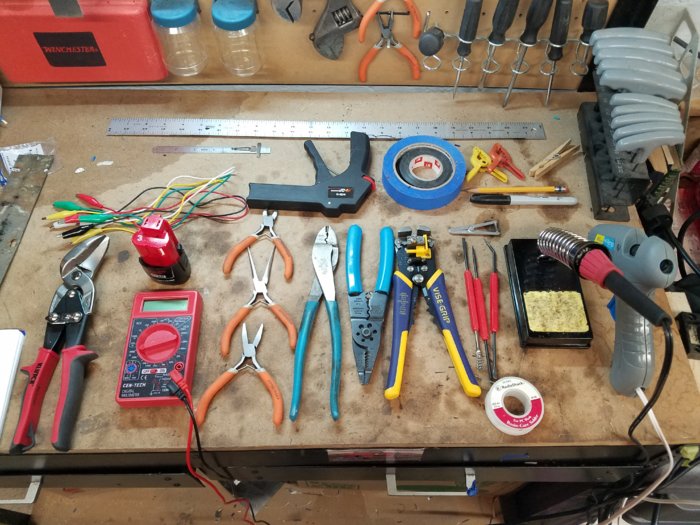

    The tools I used: wire stripper, crimping plier, soldering Iron, heat sink, solder probes, hot glue gun, multi-meter, 12 volt power source (drill battery), zip tie gun, mini pliers, wire cutter, ruler, painter's tape, a variation snips (scissors work too), sharpie, pencil and a heat gun. Some tools are optional

  8. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

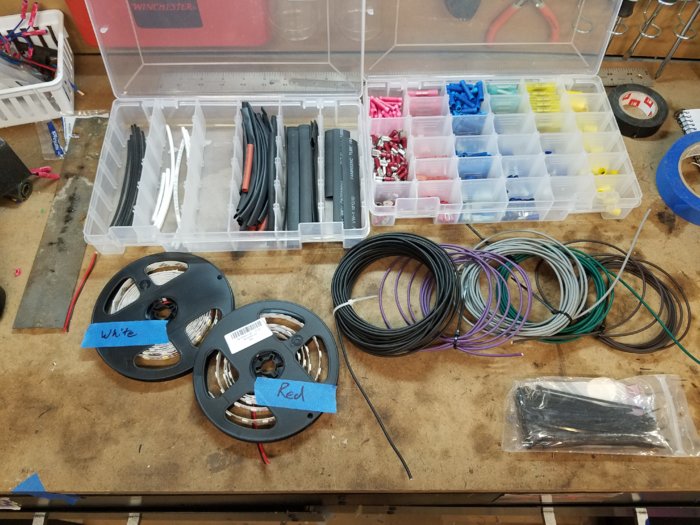

    Supplies: 18ga wire to match original harness, 22-20ga wire to wire LEDs, 5050 SMD LEDs on 5m rolls (I use three red and one white), shrink tubing, crimp connectors, 60-40 electrical solder, and 4" zipties.

  9. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

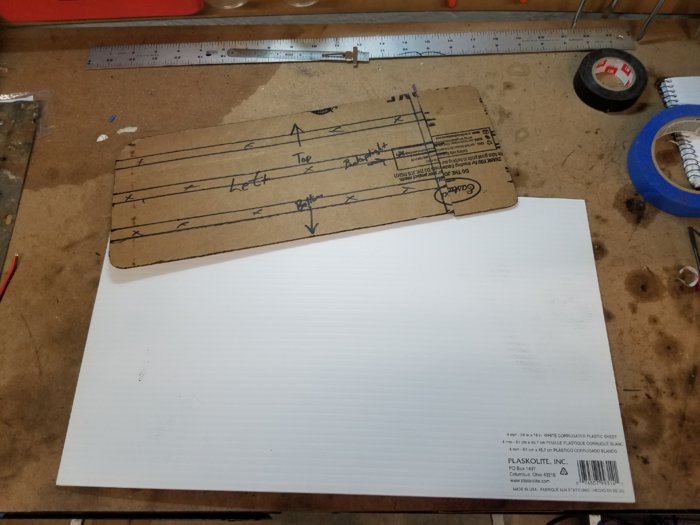

    Supplies: cardboard to make a template, corrugated plastic to mount the LEDs

  10. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

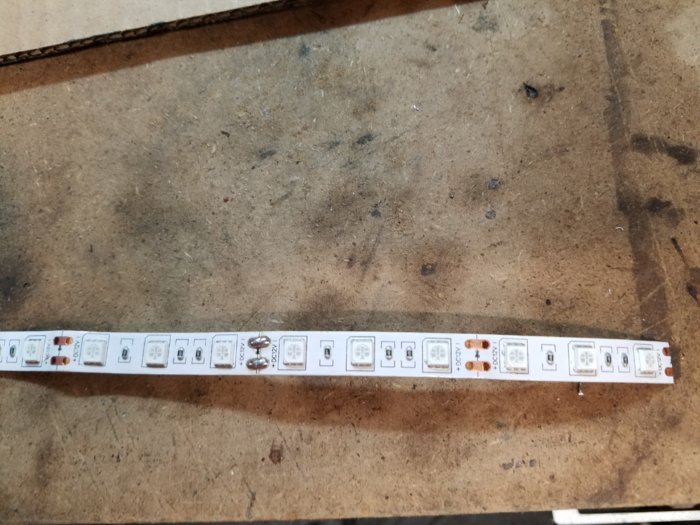

    Before I go any further, some helpful knowledge. When putting LEDs into a light it is important to use ones that are the same color as you intend for it to light up. White will shine through a red lens as white with a pink tint. The LEDs I use are mounted in three LED circuits wired for 12 volts, and adhesive backed. They are available with a weatherproof coating.

    They have cut lines between each circuit with contacts for wiring them. They are available on Ebay, Geek, and Superbriteleds.com.

    Your taillight housings and probably the lenses will require some modifications.

  11. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

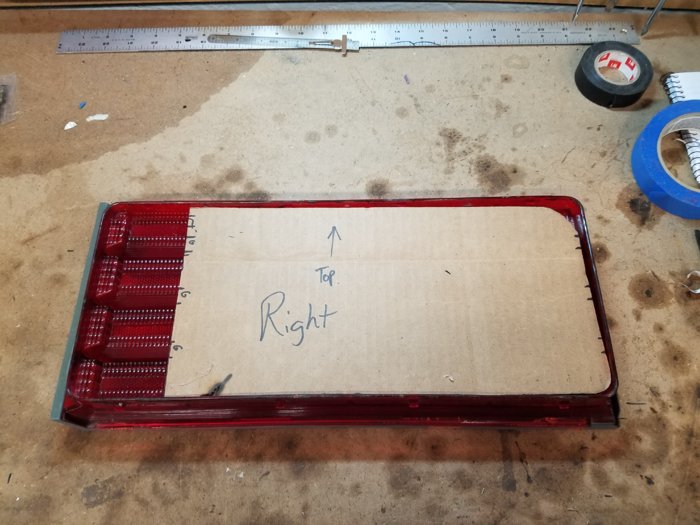

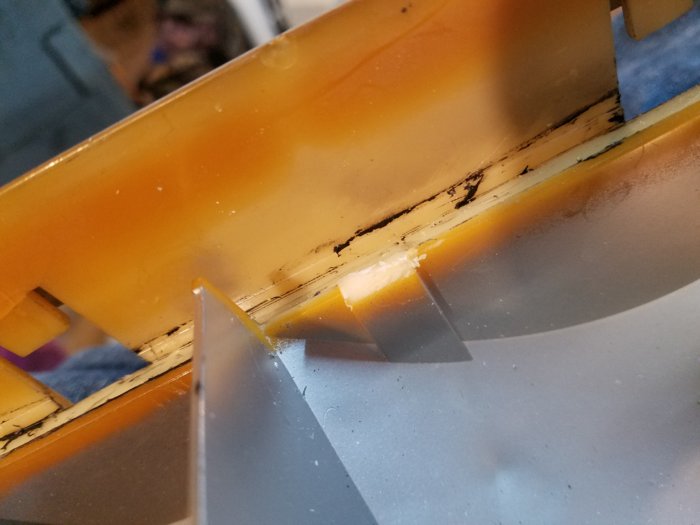

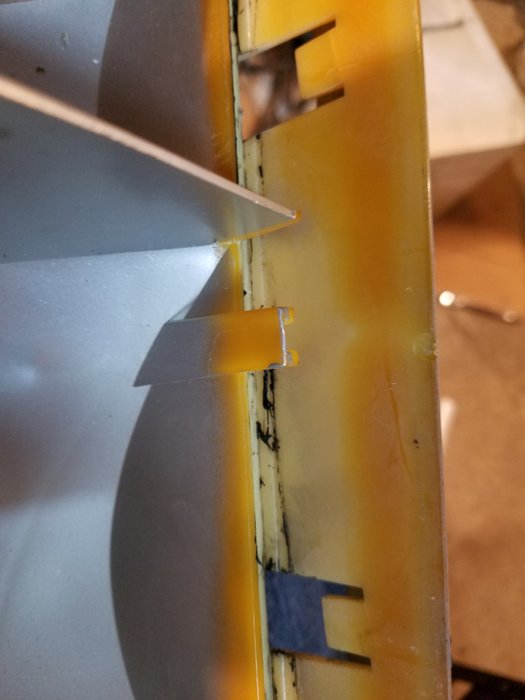

    I measured and cut out a piece of cardboard to the size of the inside of the lens, paying careful attention to how it fits the corners. There were a number of protrusions in the reflector/housing that interfered with the panel.

    I simply cut them off flush

    I left the divider, and the bits that were part of the reflectors, I case I ever went to a diffused light source.

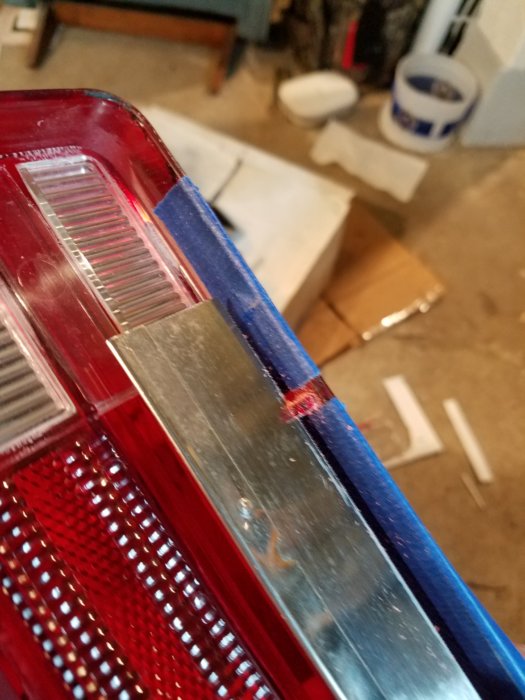

    I trimmed the small ribs around the outer edge of the lenses to allow room for the panel. I cut about 3/16 of an inch (4mm approximately for our international membership)

    Last edited: Jun 26, 2018
  12. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    I experimented with a number of different layouts for the LED strips. I finally settled on three strips per taillight bar with the center ones and taillight and the others as brake/turn signals. A 50/50 split between taillight and brakelight seems to work well enough, but mine are 35/65 split making the brake/turn much brighter.

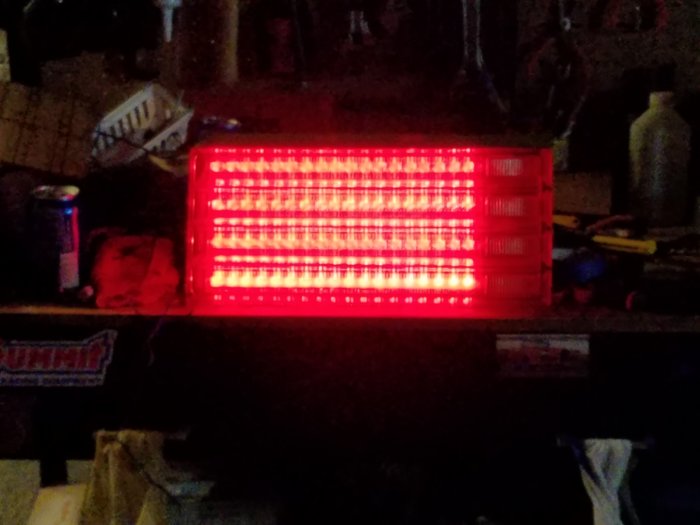

    Taillight

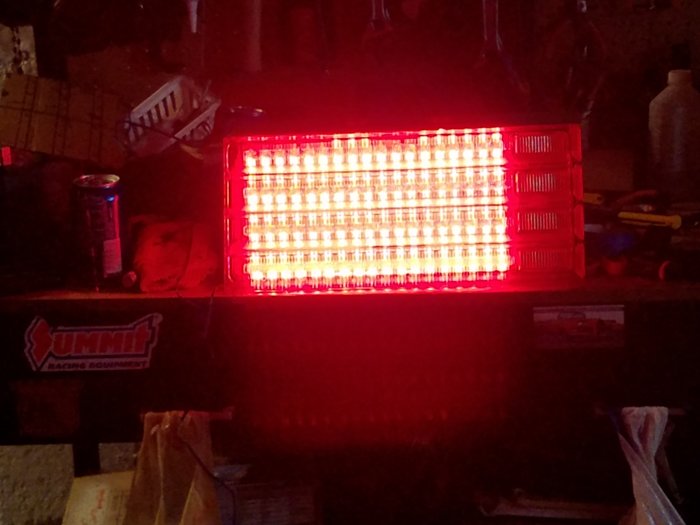

    Brake and taillight together

    Last edited: Jun 26, 2018
  13. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

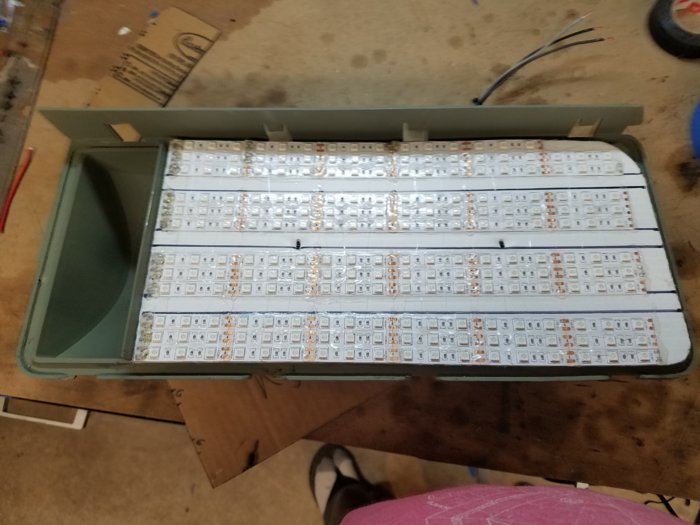

    I used a cheap pair of aviation ships to cut the corrugated plastic after tracing the cardboard pattern onto it. I Then cut LED strips to the longest possible length to fit the lens, and still have full circuits. The panels needed to be marked for the the unlit portion of the lens so the strips could be mounted. I would recommend soldering short lengths of 20-22 ga wires to the contacts on each of the strips (1 1/2-2" or 38-50mm). I also filled the edges of the panels with hot glue to stabilize the edges. Make some alignment Mark's for the first LED in each strip to help keep them lined up. I then pierced holes for the wires and stuck the strips to the panels.


    You can see the alignment mark for the first LED.

    Last edited: Jun 26, 2018
  14. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

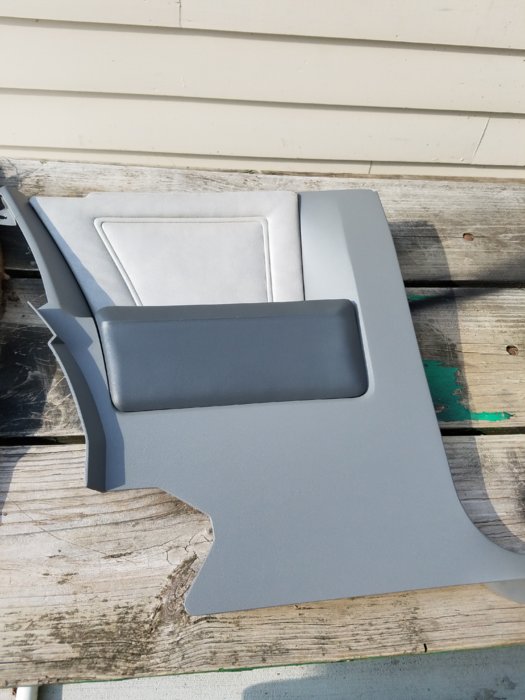

    Working on interior panels

    Moore Mirada likes this.
  15. Moore Mirada

    Moore Mirada Member

    Messages:
    8
    Likes Received:
    6
    Joined:
    Sep 22, 2018
    Location:
    South Carolina
    80mirada, you mentioned earlier in this conservation that BHA43 was going to make quarter extensions for the Mirada. Is that something that happened? I have recently purchased a 80 Mirada that my Mom bought new, it only has 21,000 miles on it and is in excellent condition but the quarter extensions are dust. She had purchased some of the fiberglass replacements but like with everyone else they fit like garbage, I could spend countless hours working them to fit but if I could get some better ones I would love it!

  16. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends
    Last I heard, his fiberglass guy suffered a huge setback. There was a massive fire at the fiberglass shop, but Phil had all of the finished molds for F-body stuff and go-carts at his place. No telling when he will be able to get the J-body stuff done

  17. Moore Mirada

    Moore Mirada Member

    Messages:
    8
    Likes Received:
    6
    Joined:
    Sep 22, 2018
    Location:
    South Carolina
    Thanks! I guess I’ll be getting some mat and a bucket of resin! I’ll post some pics of the progress!

  18. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

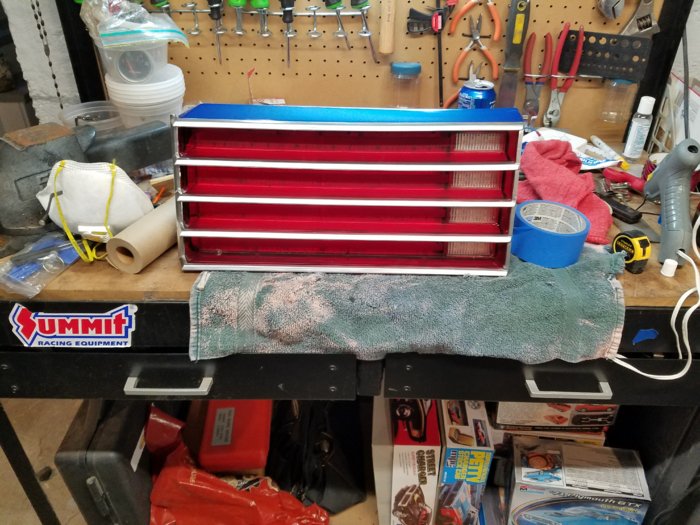

    Nearly finished taillight, the trim is not attached since it need sanded and a second coat added to it


    Only took three tries to get the little strip of body color right.

  19. 80mirada

    80mirada Well-Known Member

    Messages:
    827
    Likes Received:
    226
    Joined:
    Sep 3, 2012
    Location:
    Wisconsin, West Bend depends

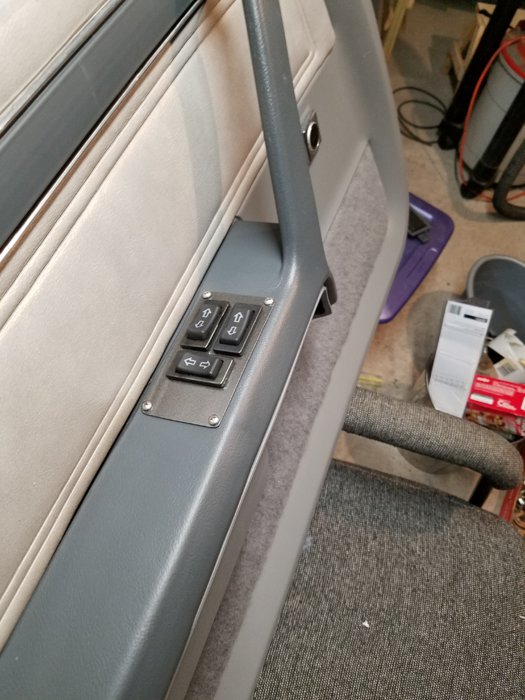

    Finished install of the custom window and door lock switch on the drivers door
